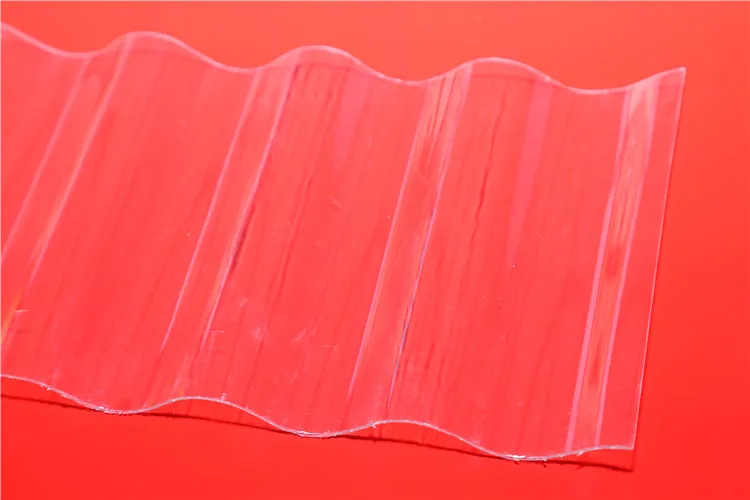

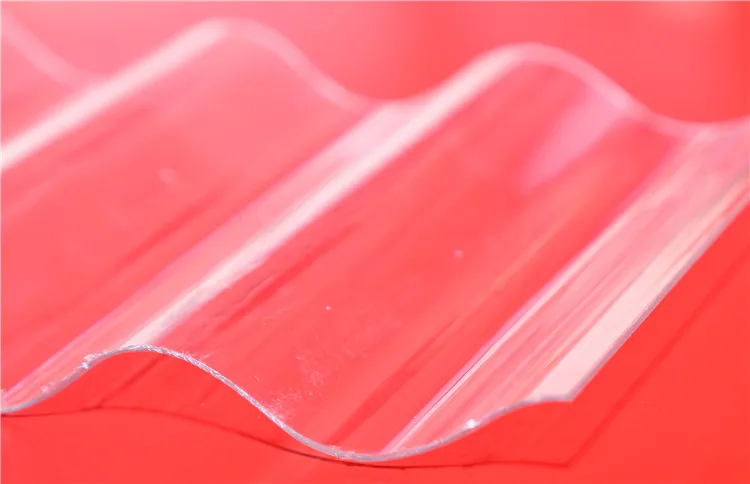

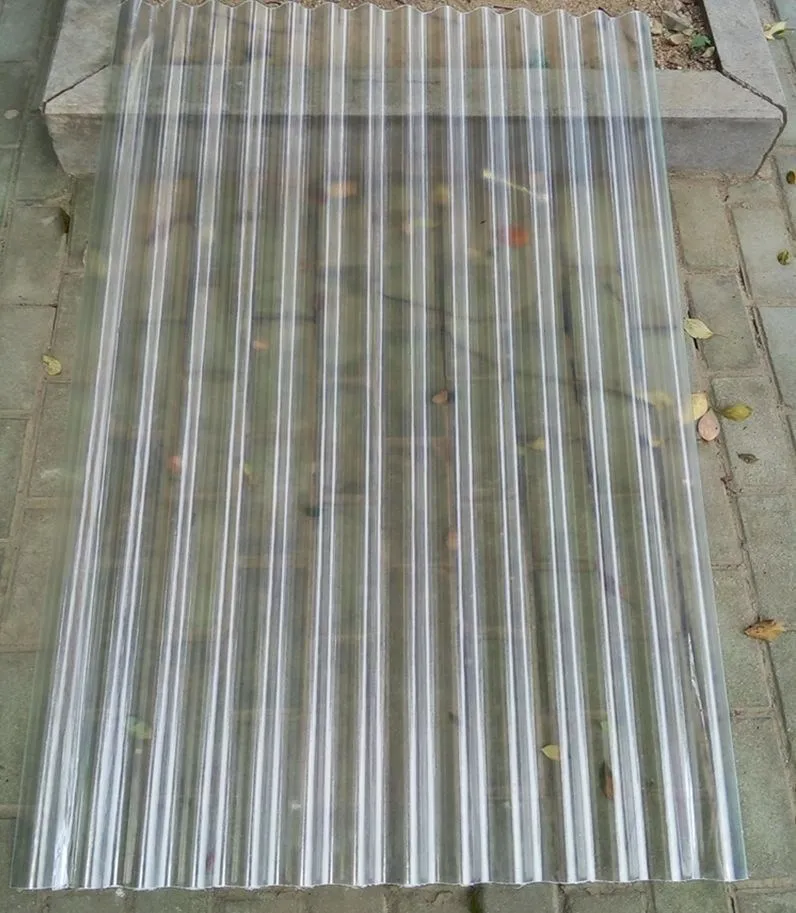

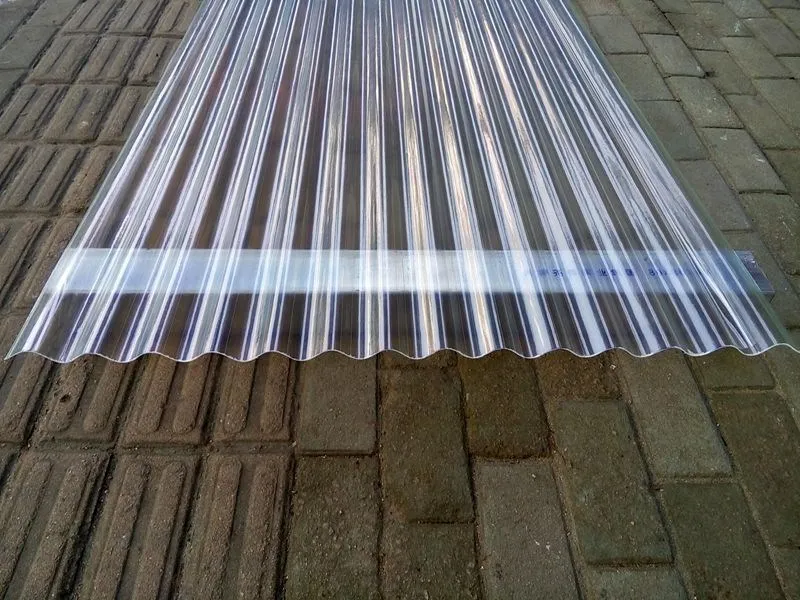

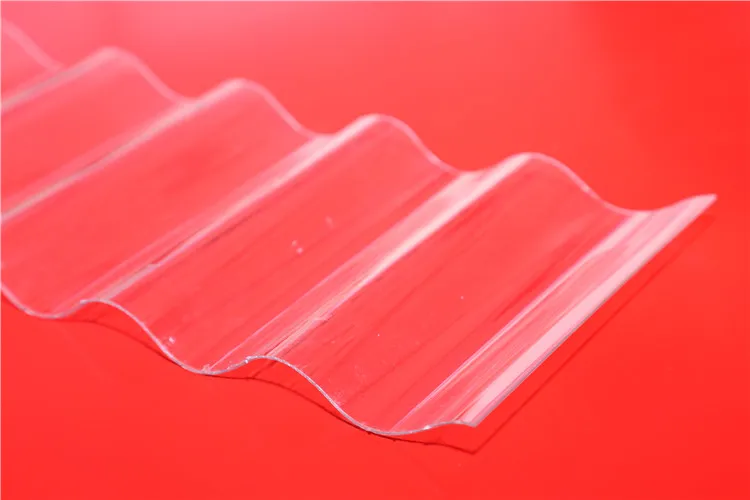

Transparent PC Roof Sheet Product name polycarbonate corrugated plastic roofing sheets
- Category: >>>
- Supplier: Zhenhao Building Materials Co. Ltd.
Share on (1600748428533):
Product Overview
Description
Upvc Trapeziodal Wave Corrugated Wave Light Weight Roof Tiles
UPVC corrugated roof sheet as upgraded product of color steel sheet, adopts advanced co-extrusion technology and uses super weather-resistance resin PVC as main material, mixes UV resistance and other chemical adjuvant to enhance weather ability and color durability.
Application: widely used in agricultural trade market, passageway, residence house, temporary housing, flat to sloping, villa, sunshade, rain shade, garages, commercial buildings, train station, bus station, newsstand, sports buildings, swimming pool, outdoor playground roof etc..
Product Overviews
| Code | UPVC Trapezoidal/Corrugated 940 | ||
| Warranty | 15 Years | ||
| Width | 1130mm | ||
| Cover width | 1060mm | ||
| Thickness | 1.5mm-3.0mm | ||
| Length | Customized | ||
| Colors | White,Blue,Brick red,Gray,also could be customized | ||
| Packing | Nude Packing or pallet packing, customized | ||
| Usage | Housing,factory,warehouse,shed,etc. | ||
- Features
1) Heat and sound insulation. The 3-layer structure, modified UPVC material and the Polymer reinforcement fibrous material ensure the insulation effect.
2) UV resistance. Add the UV absorption additives to absorb the UV.
3) Acid and alkali resistance. The surface UPVC is stable and does not react with the acid and alkali.
4) Waterproofing and fireproofing. It meets the national B1 grade.
5) Impact resistance.
6) Typhoon resistance.
7) Easy installation, saving time and labour.
8) High physical strength to bear weight.
9) Long serve life, it is ensured to be used for 15 years.

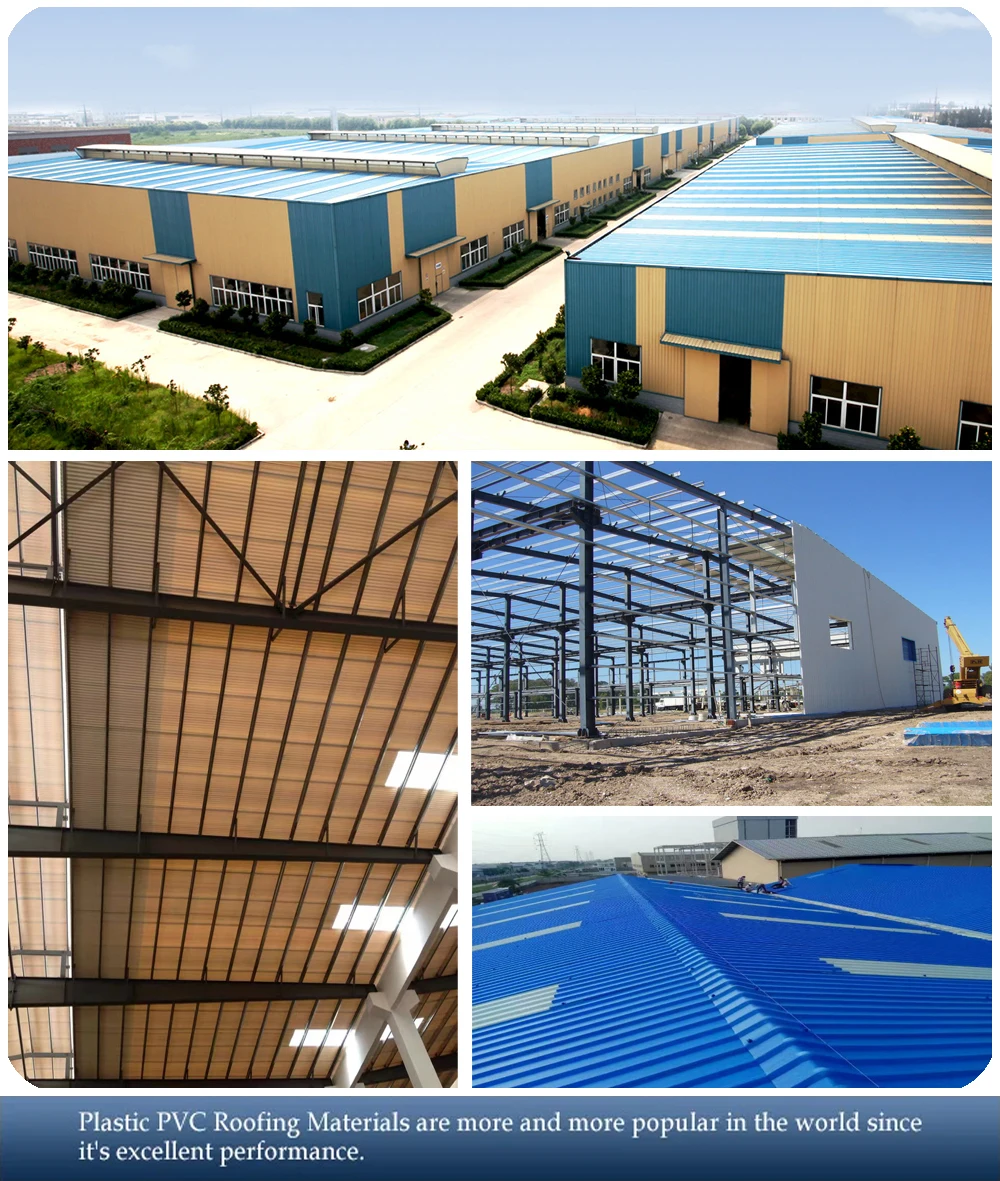

Project Show
Application
Roofing and wall of large-span portal steel structure, corrosive chemical plant, factory, warehouse, high temperature workshop etc.
Advantages
Advantages of pvc wall panel
1.save cost
2. Loading bearing: It can load 150 kg per square meter evenly;
3. Light weight: 5-6.0kg/square meter;
4. Water resistance: 100%;
5. Fire resistance: Self-extinguish off fire;
6. Anti corrosion;
7. Impact resistance and low temperature resistance;
8. Sound and heat insulation;
9. Small Thermal expansivity;
10. Environmental protection and energy conservation;
11. Easy to install
Production Process
3 layer Heat Insulated UPVC Roof Sheet is manufactured based on 3 layer co-extrusion technology by one-time processing. It is an ideal building material for construction projects with heat insulation requirement. The following is a list of the distinct features of each layer material.
First layer:weather resistant resin is selected as the top layer material to block the solar ultraviolet radiation and reduce the coefficient of heat conductivity. It provides our UPVC roofing material with great durability and chemical corrosion resistance;
Second layer:the bottom layer of our heat insulated UPVC roof sheet adopts modified PVC material to offer optimum strength and rigidity.

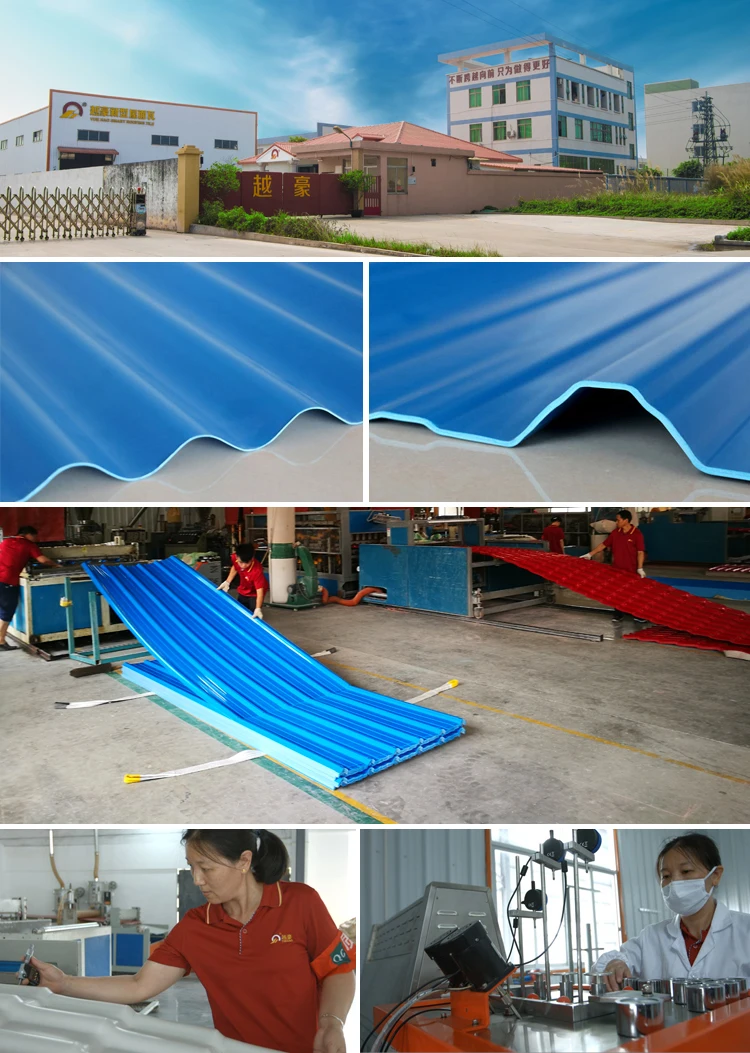

Our Company
Foshan Yue Hao Building Materials Technology Co.,Ltd have almost 20years solid factory experies,with latest equipment and technology,all our products have passed the evaluation of ISO9001 Quality System Certification.Besides, the Yuehao ASA tile has gained the title of Famous Brand in Guangdong Province. With the high quality and proffessional production/service team,we are the authorized supplier of roofing tiles for many successful projects in China, Mid East,South America etc.. Located in Sanshui Lubao Industrial Park, We sincerely welcome you to visit us!

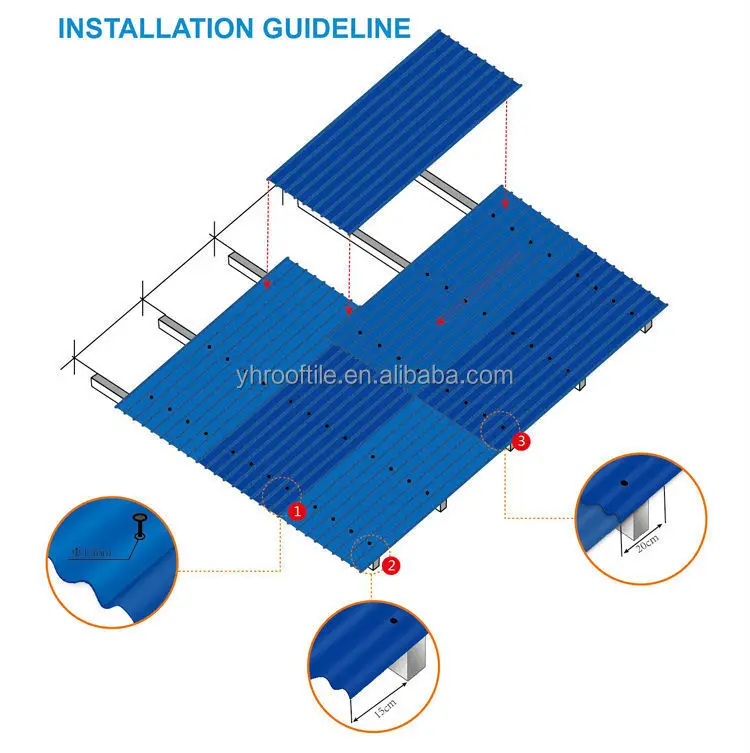

Install
Cautions:
*Mind the sharp edge of the sheets in case of any injury.
*Please use a fine -toothed saw to cut the sheet.
*Do not fix screw sets too tight because the sheets will expand with heat and contract with cold. Otherwise, noise might occur when the sheet shrink due to low temperature.
*Screw sets must be fixed at the peak position of the sheets to avoid any leakage.
*The sheets must be installed starting from the opposite direction of local wind direction.
*Can drill hole with hand drill or power drill. When drilling, the sheet should be supported in the bottom side to prevent swaying, and the hole diameter should be 2.0mm bigger than screw.
*When fixing screws, special rubber mat should be placed under the tile, and the screws should be properly fasten and should not be too tight.
*The frame structure can be steel or wood as purines. Purlins require to be neat, parallel and evenly spaced without deforming.
*Purlins distance is related with temperature of the building, the higher temperature, the shorter distance of purlins.
*Two waves for crosswise lap joint while lengthwise lap joint should be respectively more than 15cm of the each end.
*Mind the sharp edge of the sheets in case of any injury.
*Please use a fine -toothed saw to cut the sheet.
*Do not fix screw sets too tight because the sheets will expand with heat and contract with cold. Otherwise, noise might occur when the sheet shrink due to low temperature.
*Screw sets must be fixed at the peak position of the sheets to avoid any leakage.
*The sheets must be installed starting from the opposite direction of local wind direction.
*Can drill hole with hand drill or power drill. When drilling, the sheet should be supported in the bottom side to prevent swaying, and the hole diameter should be 2.0mm bigger than screw.
*When fixing screws, special rubber mat should be placed under the tile, and the screws should be properly fasten and should not be too tight.
*The frame structure can be steel or wood as purines. Purlins require to be neat, parallel and evenly spaced without deforming.
*Purlins distance is related with temperature of the building, the higher temperature, the shorter distance of purlins.
*Two waves for crosswise lap joint while lengthwise lap joint should be respectively more than 15cm of the each end.
Purlins details as table:
FAQ
Q:1, What is your MOQ?
A:1 meter. We perform excellent service for any customer no matter what the quantity is.
Q:2, What is your delivery date?
A:Normally 1 day, we have large stock in warehouse, generally we can deliver goods ithin one day except the super large quantity.
Q:3, How about your design service?
A:We have 3 after sale service teams including the design service.
Q:4, What is the address of your factory?
A:We are located at A Area,Lubao Industry Park,Sanshui District,Foshan,GD.China,528139
Q:5, What is your main products?
A:Various synthetic resin roof tiles, ASA PVC wallpanels, hollow corrugated sheet, trapezoid tile and partition wall board, and its relative accessory parts.
