ODM OEM Module Oolite V5.1 QCA9531 OpenWrt 4G WiFi Router Module
ODM OEM Module Oolite V5.1 QCA9531 OpenWrt 4G WiFi Router Module
ODM OEM Module Oolite V5.1 QCA9531 OpenWrt 4G WiFi Router Module
ODM OEM Module Oolite V5.1 QCA9531 OpenWrt 4G WiFi Router Module
ODM OEM Module Oolite V5.1 QCA9531 OpenWrt 4G WiFi Router Module
ODM OEM Module Oolite V5.1 QCA9531 OpenWrt 4G WiFi Router Module
ODM OEM Module Oolite V5.1 QCA9531 OpenWrt 4G WiFi Router Module

ODM OEM Module Oolite V5.1 QCA9531 OpenWrt 4G WiFi Router Module

Share on (1600748438643):


Price:$20.00 - $26.00

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Model Number
Oolite v5.1
Type
WiFi Module
Country of Origin
China
Brand
Oolite
Chipset
QCA9531
Application
Smart home network equipment,Wireless WIFI device,Industry Controller
Chipset
QCA9531 MIPS 24Kc 650MHz
RAM
64Mbyte DDR2(128Mbyte optional)
FLASH
16Mbyte spi nor flash(32Mbyte optional)
Interface
JTAG,SPI,I2S,UART,GPIO,LED,Mini-PCIE


Company Profile




Product Introduction:

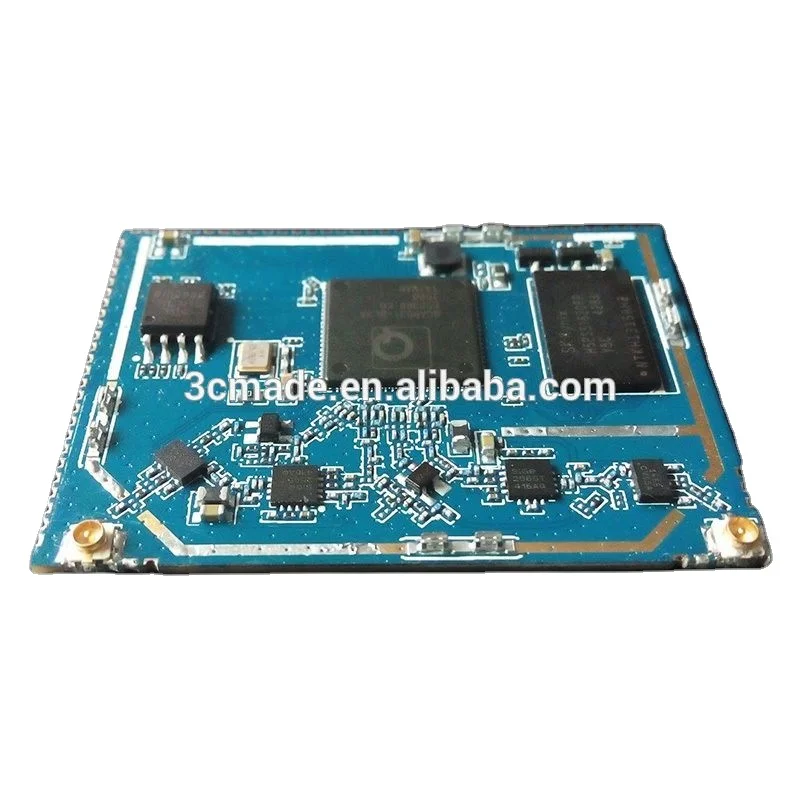

The OoliteV5.1 is a complete,small 802.11a/b/g/n Wi-Fi Solution optimized for low-cost, and highly integrated AP and consumer electronic devices,the module integrates all Wi-Fi functionality in a package friendly to low-cost PCB design, requiring only a 3.3V power supply .
The module based on the QCA9531 which integrates an 802.11n 2x2. MIMO MAC/BB/ radio with external PA and LNA. TX power up to 23dbm. RX sensitivity up to -75dbm, It supports 802.11 n operations up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz, compatible 802.11b/g/n.
The module support AP mode, client mode at the same time , and include mass service application software to reduce the research and design work of customer.
Applications Stage
⚫ Smart home network equipment
⚫ Wireless WIFI device, unmanned aerial vehicle
⚫ Dual band Router, Industry Controller and so on.
Features
⚫ Chipset: QCA9531 MIPS 24Kc 650MHz
⚫ RAM: 64Mbyte DDR2(128Mbyte optional)
⚫ Flash: 16Mbyte spi nor flash(32Mbyte optional)
⚫ WiFi: 802.11 b/g/n 2.4G 300Mbps, High power wifi transmitter with PA and LNA.
⚫ 1xUSB2.0 ,PCI Express 1.1 Root Complex interface for minicpe device
⚫ 5x 10/100Mbps Ethernet Port(1 wan + 4 Lan)
⚫ Interface : JTAG,SPI,I2S,UART,GPIO,LED,Mini-PCIE
⚫ Antenna: 2xIPEX(Stamp Hole optional)
⚫ 3.3V power supply
⚫ Size:45.7mm x 34.0mm x 4.0mm Weight: 4.0g

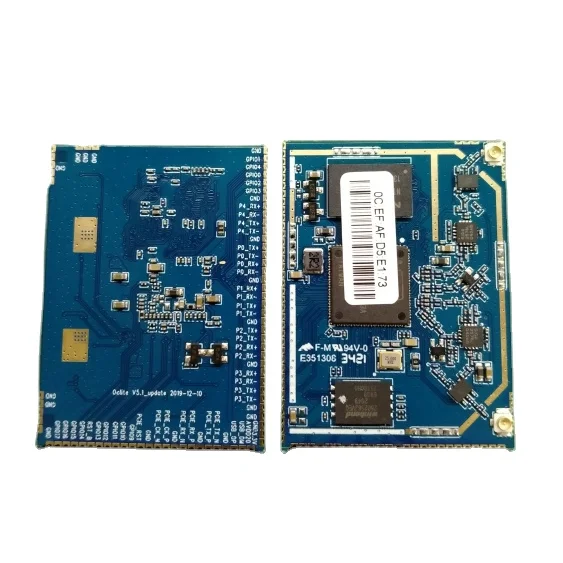

⚫ Packaging: 74-Pins LCC
ENVIRONAMENT
Power Supply:3.3V ±5%
Operating Temperature:0℃ ~ 70℃
Storage Temperature:-40℃ ~ 80℃
Operating Humidity:10%~90% non-condensing
Storage Humidity:Storage Humidity: 5%~90% non-condensing



FAQ


1. who are we?
We are based in Guangdong, China, start from 2011,sell to North America(20.00%),South America(20.00%),Western Europe(15.00%),Eastern Europe(15.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%),South Asia(4.00%),Mid East(3.00%),Eastern Asia(2.00%),Oceania(2.00%),Southern Europe(2.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Other Communication & Networking Product, Energy storage battery; Solar inverters; Energy storage system; Home Energy Storage Systems

4. why should you buy from us not from other suppliers?
We focus on Qualcomm and MTk wifi module and router also Lora products, We have a professional R&D team of over 30 people that can offer ODM and OEM service with technical support.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
