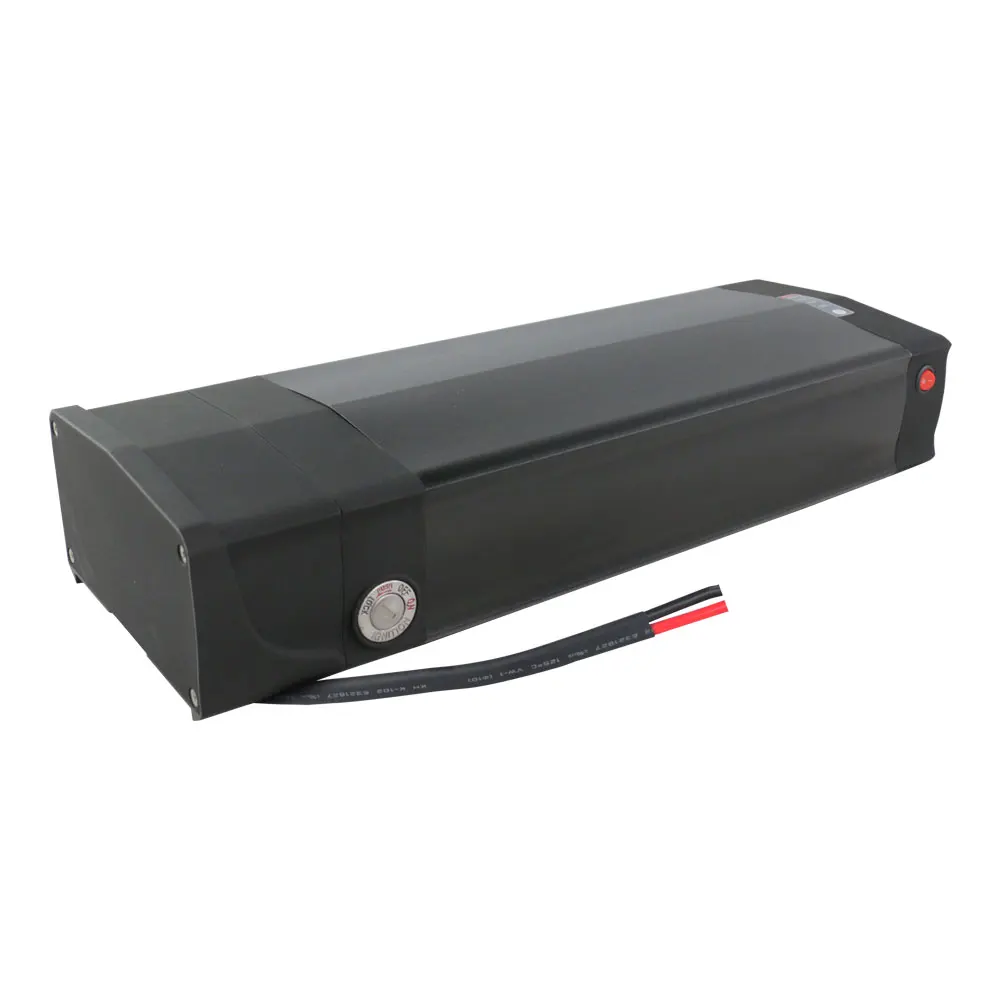

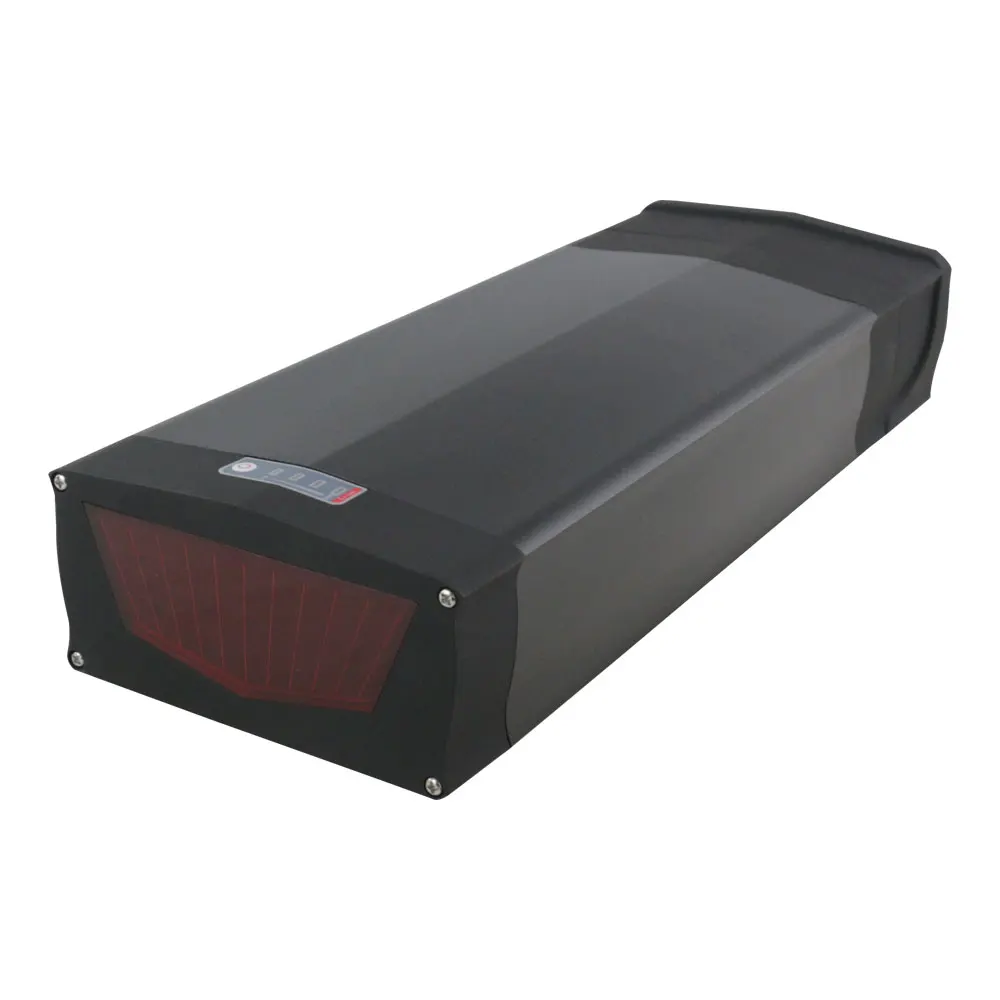

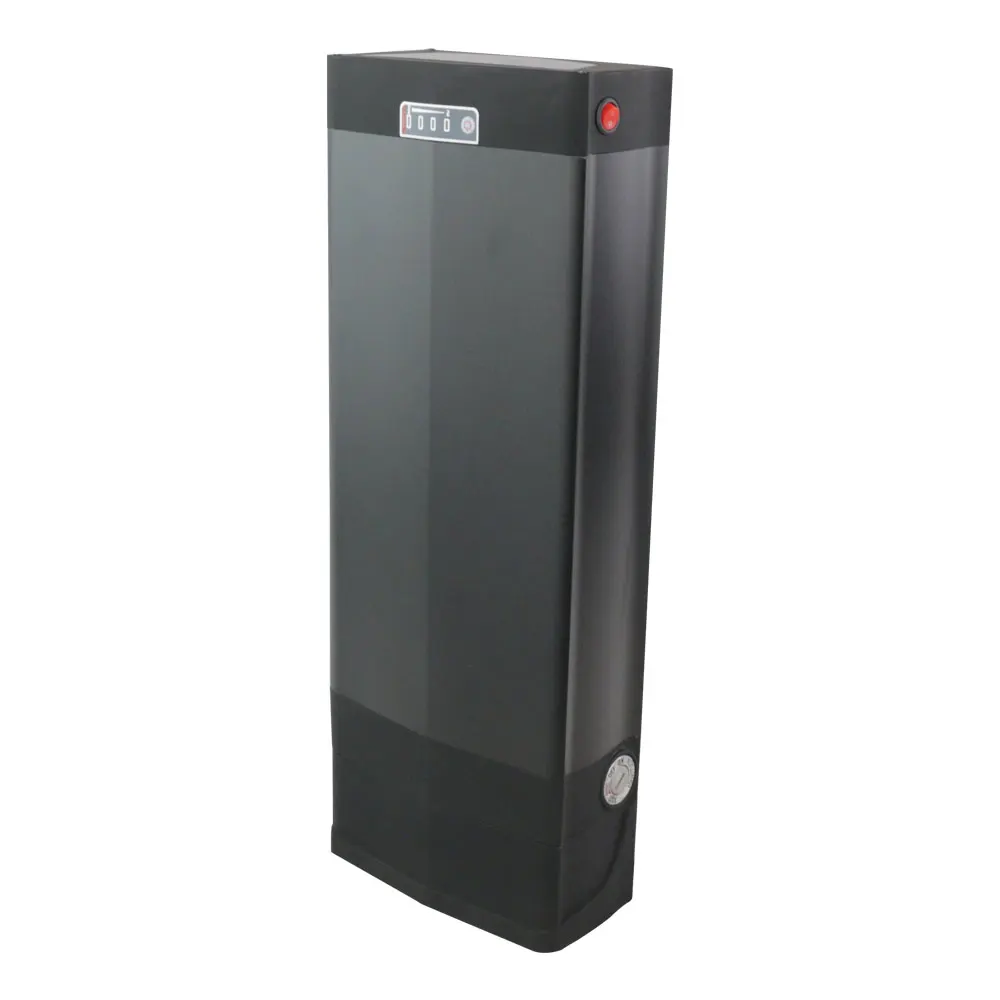

48V 25.6AH Pana Cell Rear Carrier Case Lithium Battery with 5A Charger

Product Overview

Description









Please don't use this battery for more than 2000W Motor!!! Otherwise if cause any problem or accident, we are not responsible for that and no warranty.



Parts Included:

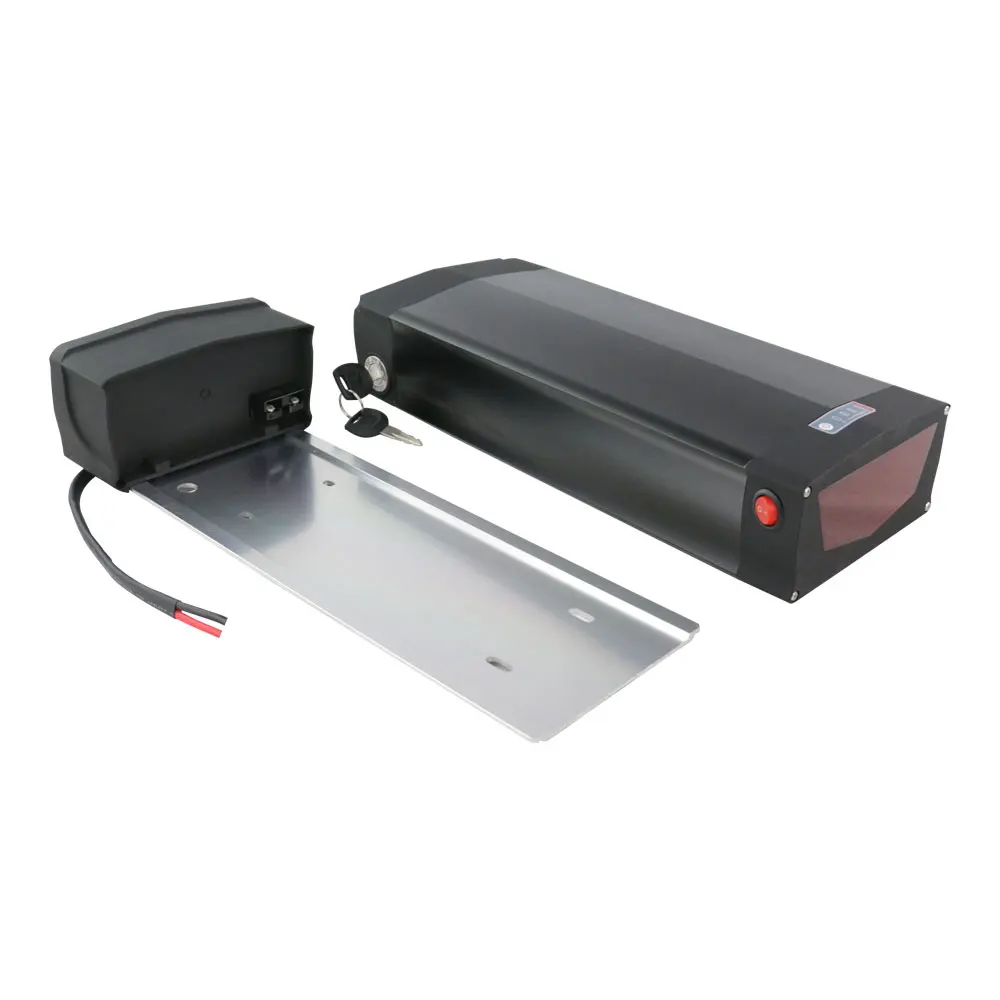

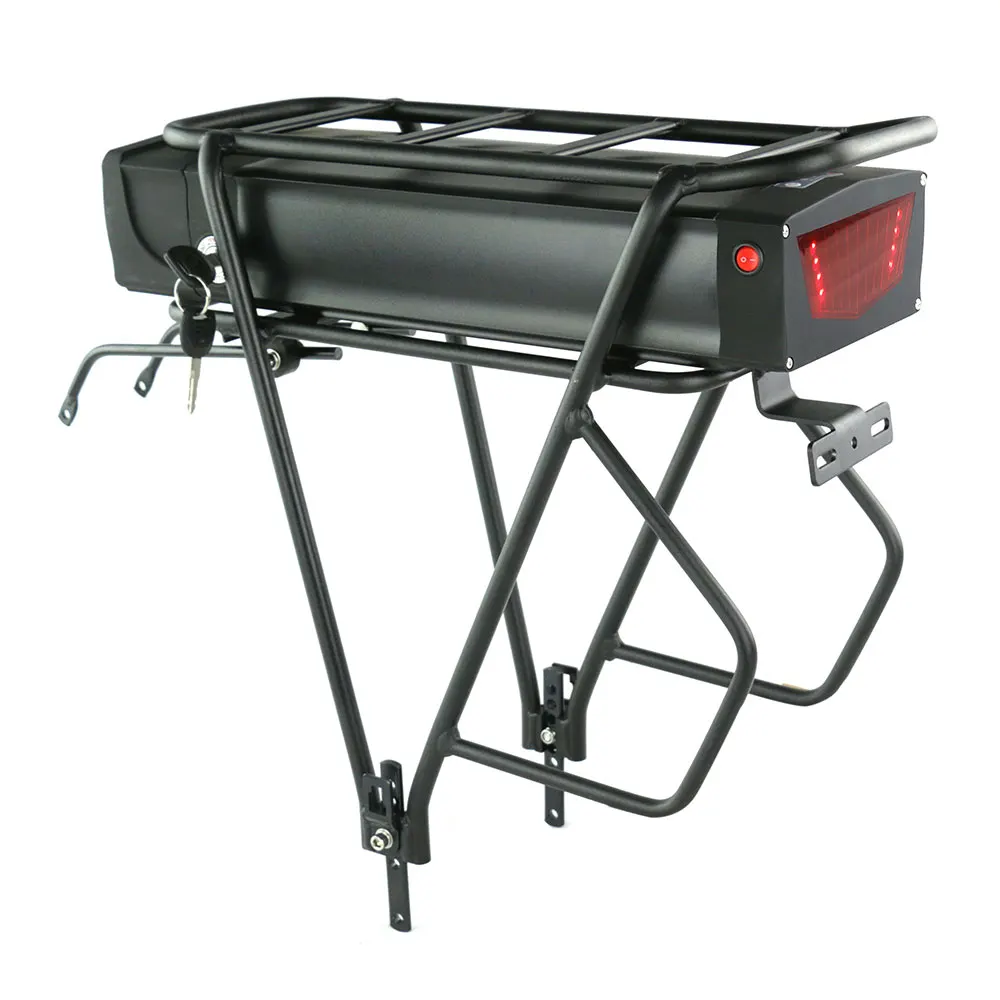

48V 25.6AH Panasonic Li-ion Battery with Rear Carrier Battery Case
Battery Bottom Fixing Plate (Fix and Lock battery on Rear Carrier)
Built-in BMS Board
54.6V 5A High Quality Charger with Cannon charging plug



Parameter	48V 25.6Ah
Nominal Capacity (AH)	25.6Ah
Nominal Voltage (V)	48V
Source Resistance (mΩ)	<40
Cell Specification	3.7V 3200mAH Panasonic Powerful Cell
Cell Combination	13-series, 8-parallels
Cell Size	Cylinder: Diameter-18mm; Height-65mm
Cell Quantity (parallel*series)	104 pcs
Battery Size	430*160*85mm
Discharge Cutoff Voltage (V)	40 +/- 1V
Charge Cutoff Voltage (V)	54.6V
Rated Discharge Current (A)	25.6A
Maximum Continuous Discharge Current (A)	50A
Maximum Continuous Charge Current (A)	10A
Charge Mode	CC/CV
Standard Charge Current (A)	2A
Charge Time under Standard Charge Current	15.4h
Fast Charge Current (A)	5A
Charge Time under Fast Charge Current	6.2h
Charge Temperature Range	0 - 60 ℃
Discharge Temperature Range	-20 - 60 ℃
Charging Cycles	About 700 cycling times left 80%
Battery Net Weight	6.5kgs
Battery Gross Weight (include charger and packing)	8kgs
Battery Application	For less than 2000W Motor



Important Notice:

Do not use or charge the battery under high temperature.

Do not short-circuit the positive (+) and negative (-) terminals of the battery.

Do not immerse the battery into water and acidity liquids, or allow it to get wet.

The battery should be sorted in a clean, dry circumstance.

Please charge the battery by using the special charger with correct voltage.

Do not let the battery near fire.Do not disassemble the battery before get our permission.

The battery should be charged to full every 2-3 months while long time storing.



FAQ:

1. How to ensure quality?

We use only good quality and powerful cell. We produce battery with good welding and pack with good insulate material. We use safe and good quality charger.



2. Which battery shall I choose?

Please choose same voltage battery as your controller, also enough capacity to support your discharge rate.



3. After battery charge full, shall I disconnect charger?

Yes, if charge full, please don't connect charger and battery for long time, please disconnect them.



4. Battery delivery time and deliverty method?

Battery is very special product need aging test and regulated by very strict air transport policy (By air and by local carrier to door).

Production is normally 4-5 days. Delivery time is about 12-15 days (duty free to EU countries).



5. I can't power on,

(1). Please kindly check whether battery is power on (press power on button) and whethet battery has enough power (press power gauge)

(2). Please kindly check whether output voltage from battery discharge port is correct.

(3). Please kindly check whether battery positive and negative poles are correct same as your controller power input cable (not reversed).

(4). Please kindly check whether battery BMS board plug is close plugged

(5). If all above checked still have problem, please kindly contact us





Warranty
Item has one year guarantee. Customer's wrong operation is not include in this warranty.
