Product Overview
Description
Product Paramenters
Specification | length（mm） | 6055 |
width（mm） | 2438 | |
height（mm） | 2896 | |
weight | around 2000kg | |
roof type | flat roof, with internal drainage | |
storey | ≤3 storey | |
Design parameter | life time of steel frame | 20 years |
earth live load | 2.0KN/m2 | |
roof live load | 0.5KN/m2 | |
wind load | 0.6KN/m2 | |
earthquake resistance | grade 8 | |

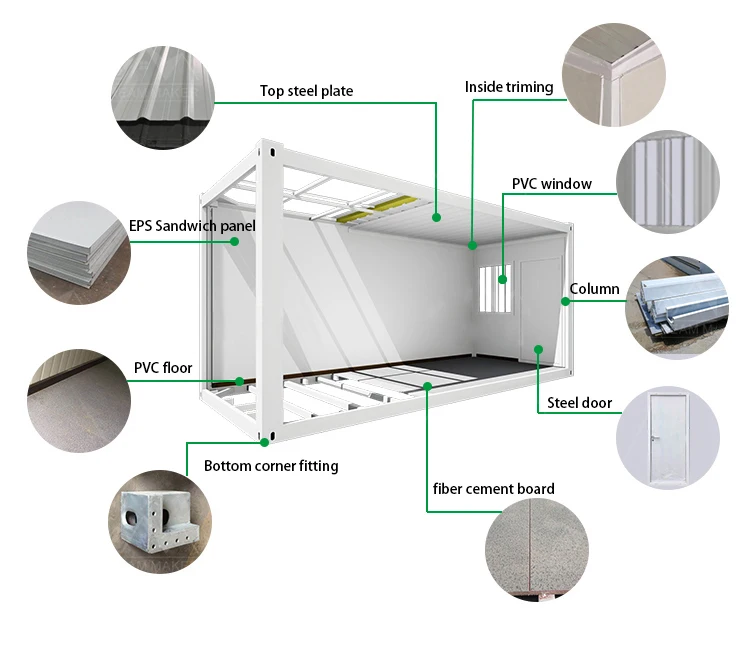

Steel structure | corner column | galvanized cold rolled steel, t=3.0mm, material:Q235B |
roof beam | galvanized cold rolled steel, t=3.0mm, material:Q235B | |
roof secondary beam | C channel steel, t=1.6mm, material:Q235B | |
earth beam | galvanized cold rolled steel, t=3.0mm, material:Q235B | |
earth secondary beam | C channel stee, t=2.0mm, material: Q235B | |
paint | graphene powder spraying(static electricity spray process) | |
Roof | roof panel | 0.5mm thickness galvanized steel sheet, color: white grey |
100mm fiberglass wool insulation with one side aluminum film, desity≥14kg/m³, combustion performace: grade A non-combustible | ||
ceiling | 0.5mm thickness steel sheet, color white grey | |
base panel | 19mm fiber cement board, density≥1.3g/cm³ | |
insulation（optional） | 100mm fiberglass wool with one side aluminum film, density≥14kg/m³, combustion performace: grade A non-combustible | |
block panel （optional） | 0.3mm galvanized steel sheet | |
thickness | 75mm fiberglass sandwich panel, outer panel is 0.5mm orange peel galvanized steel sheet, ivory white color, PE coating, inner panel is 0.5mm galvanized flat steel sheet, white grey, PE coating. | |
75mm fiberglass insulation, density≥64kg/m³, combustion performace: grade A non-combustible | ||
6mm glass+12mm hollow glass+6mm glass, low-e glass, aluminum frame | ||
6mm glass+12mm hollow glass+6mm glass, normal glass, plastic steel frame | ||
specification(mm) | single door, width x height=1660*2030 | |
material | steel door | |
Electric system | voltage | 220V~250V |
electric wire | indoor power line is 6 m2, lighting switching line is 1.5m2 | |
disconnector | miniature circuit breaker | |
lighting | two unit single-tube daylight lamp, 36W | |
socket | with socket | |
water supply | PPR | |
drainage | UPVC |
Product Display
Main Category
Our Advantages
Case Presentation
About Us
Package & Shipping
FAQ
Q: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q: How can I get a quotation for my project?
A: Kindly send us your project drawings and detailed information for a quotation.
Q: When can I get a quotation for my project?
A: 1 or 2 days after project details confirmation.
Q: How can I pay for my order?
A: 30% down payment by TT, 70% balance is paid by TT before shipment.
Q: How many days will it take to produce my order?
A: 30 days after receiving down payment.
Q: How long will it take to ship to my address?
A: For international shipping, it depends on the schedule of the shipping company. We will check and update you the ETD and ETA for your information after we make a deal later.
Q: Can you send engineers or whole team to install my project?
A: Yes sure, but the client should take the cost of engineer salary, round tickets, insurance, visa, etc.
Q: Do you offer after-sales service?
A: Yes we will offer you full installation drawings and online technical support. For further assistance, please contact us any time.
