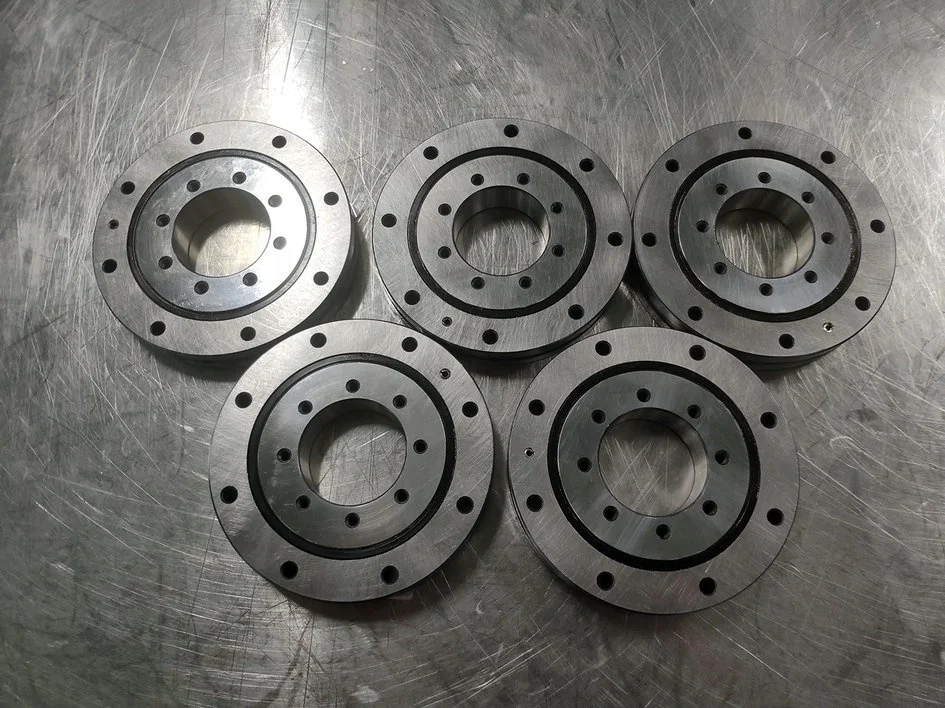

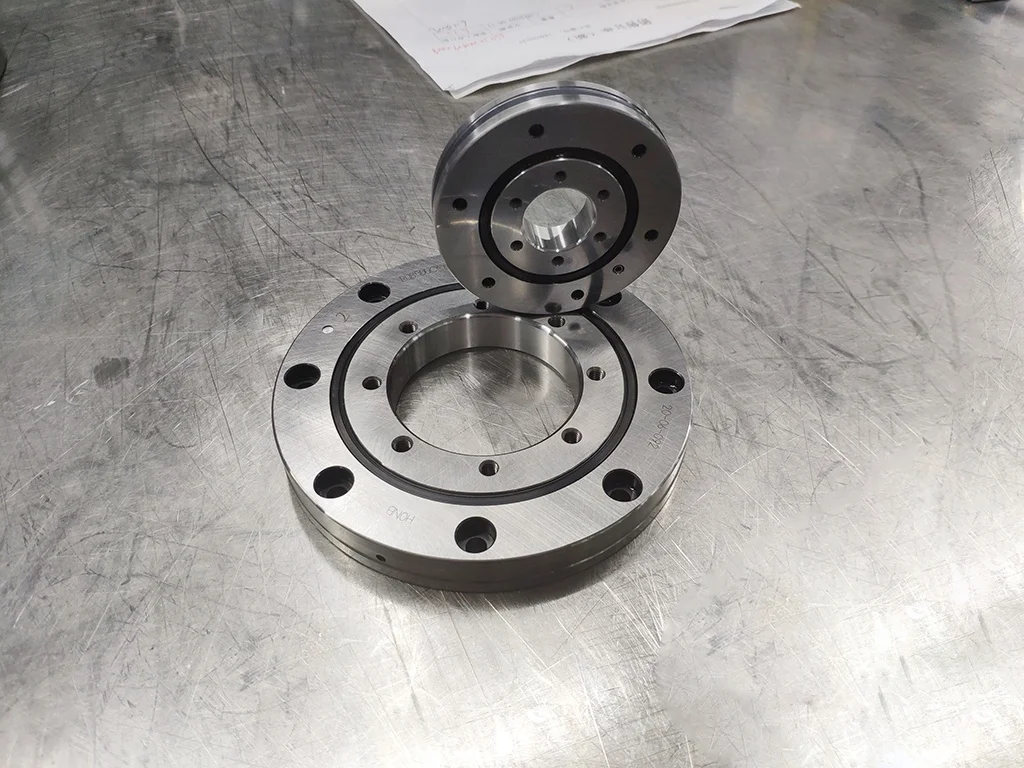

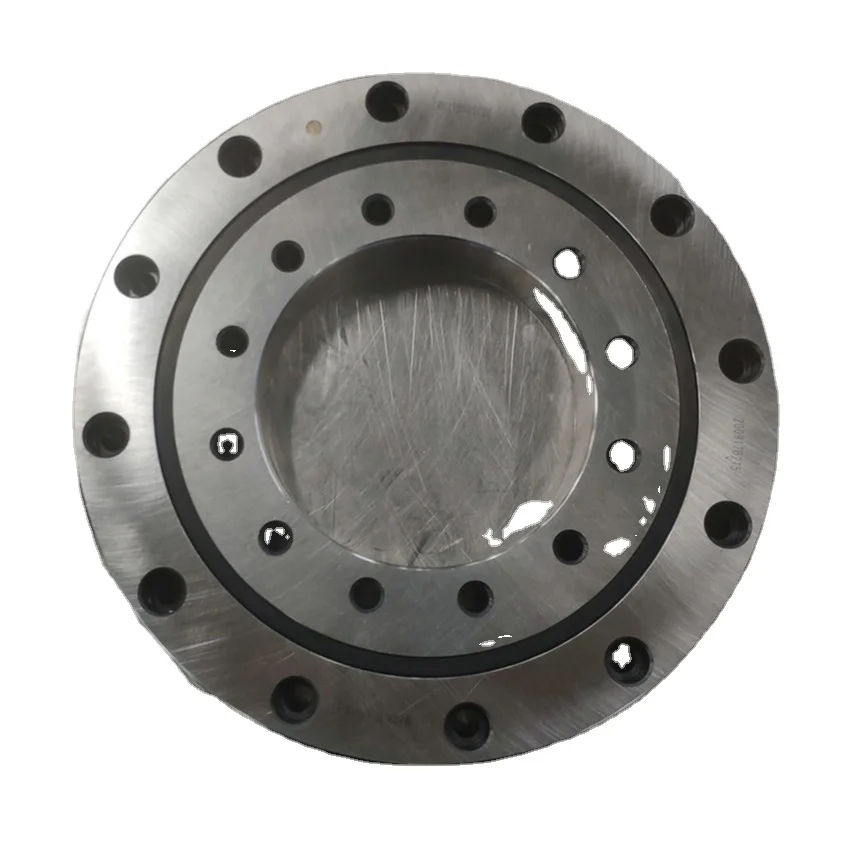

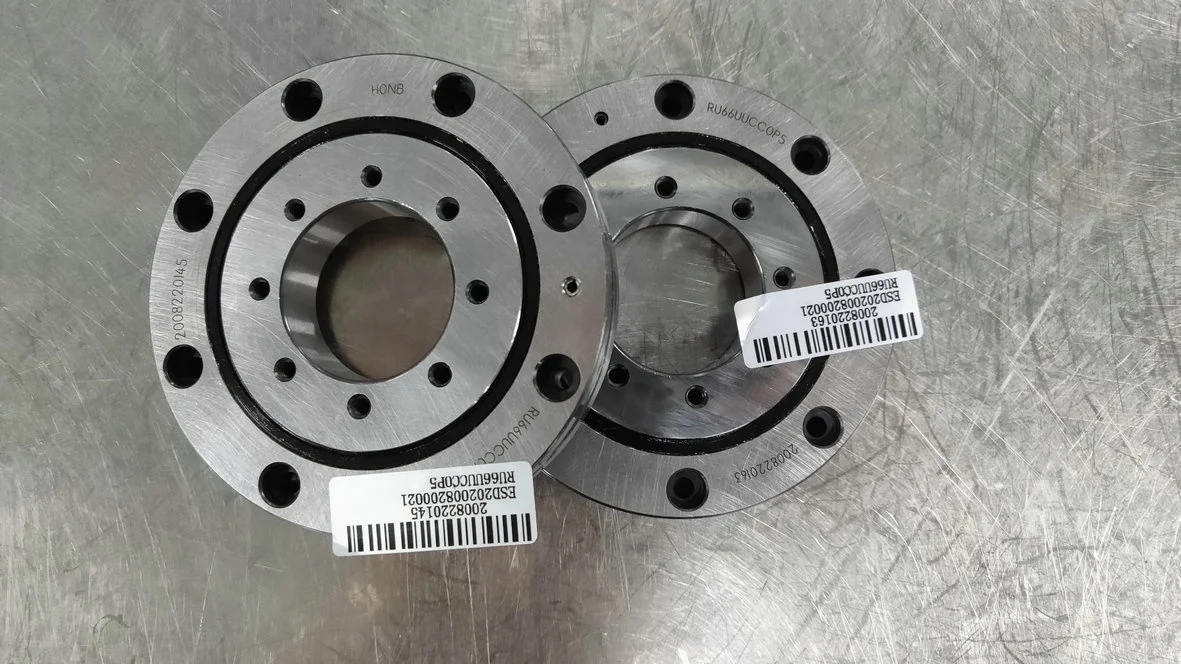

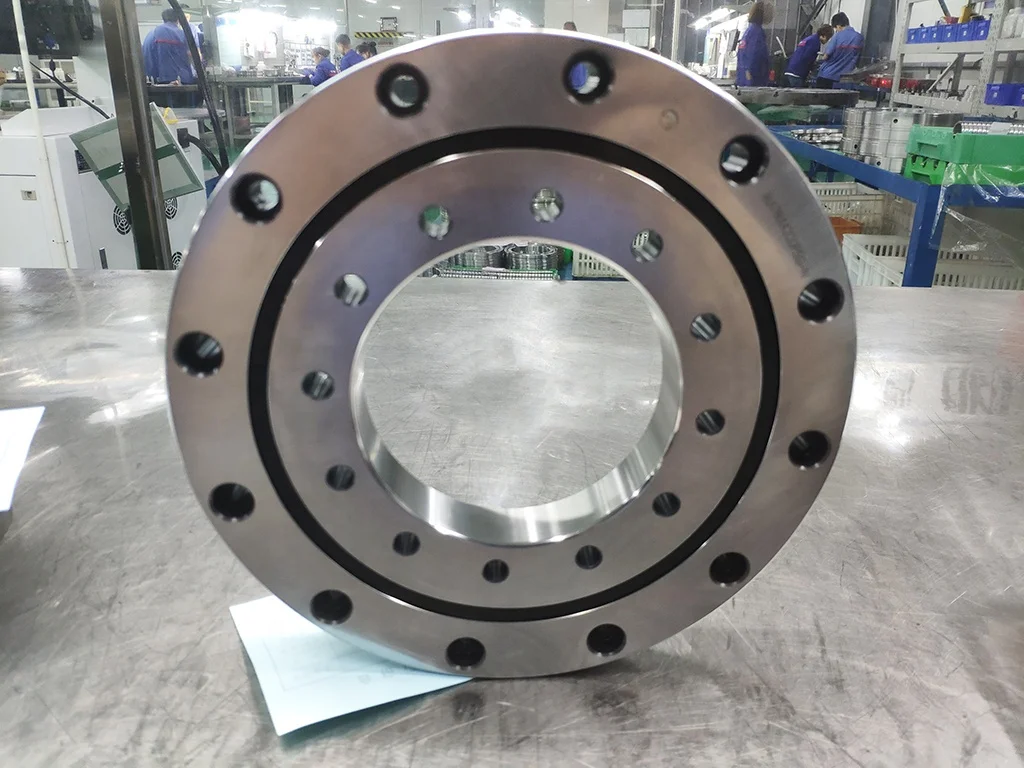

Вращающийся подшипник HONB RU228 RU228X RU228G, поперечный роликовый подшипник
- Category: >>>
- Supplier: Luoyang Hongyuan Bearing Technology Co. Ltd.
Share on (1600748467656):
Product Overview
Description
Products Description
CRBH Cross roller bearings is integrated inner/outer ring type). CRBH bearing has no mounting holes, so it requires flange and supporting pedestal when installation. In addition,, because the outer ring and inner ring are integral structure, installation has no impact on performance.
Product Paramenters

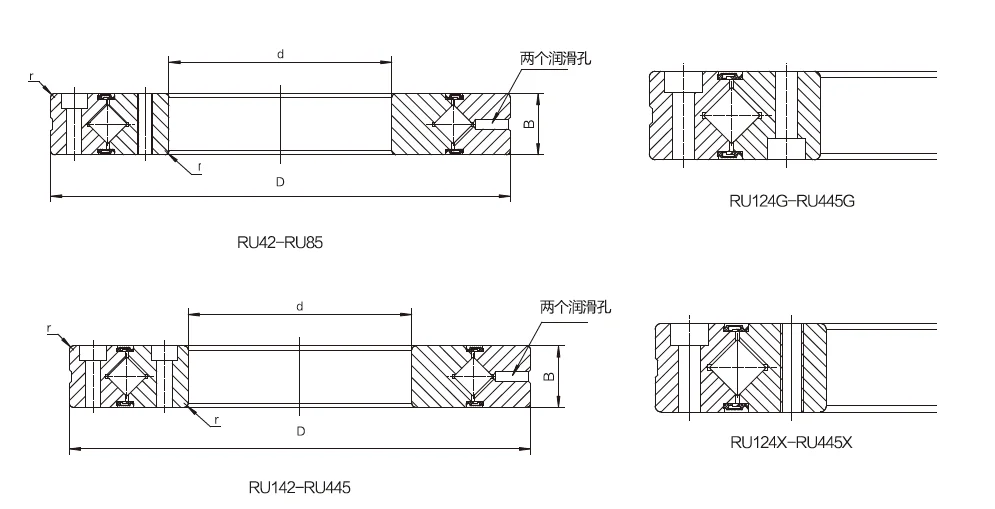

Model | Main dimension | Basic Load Rating(Radial) | Basic Load Rating(Radial) | Weight | ||||
d | D | H | Cr(KN) | Cor(KN) | ≈Kg | |||
HRU28 | 10 | 52 | 8 | 2.9 | 2.4 | 0.12 | ||
HRU42 | 20 | 70 | 12 | 7.35 | 8.35 | 0.29 | ||
HRU66 | 35 | 95 | 15 | 17.5 | 22.3 | 0.62 | ||
HRU85 | 55 | 120 | 15 | 20.3 | 29.5 | 1 | ||
HRU124 | 80 | 165 | 22 | 33.1 | 50.9 | 2.6 | ||
HRU148 | 90 | 210 | 25 | 49.1 | 76.8 | 4.9 | ||
HRU178 | 115 | 240 | 28 | 80.3 | 135 | 6.8 | ||
HRU228 | 160 | 295 | 35 | 104 | 173 | 11.4 | ||
HRU297 | 210 | 380 | 40 | 156 | 281 | 21.3 | ||
HRU445 | 350 | 540 | 45 | 222 | 473 | 35.4 | ||
Manufacturing process
Packing & Shipping
1. Industrial Neutral Packing,Package as your requirements.
2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton
3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box
2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton
3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box
