25mm Rolling Bending Machine hydraulic roller machine
- Category: >>>
- Supplier: Nanjing Beke Cnc Machinery Co. Ltd.
Share on (1600748471997):
Product Overview
Description
Product Description

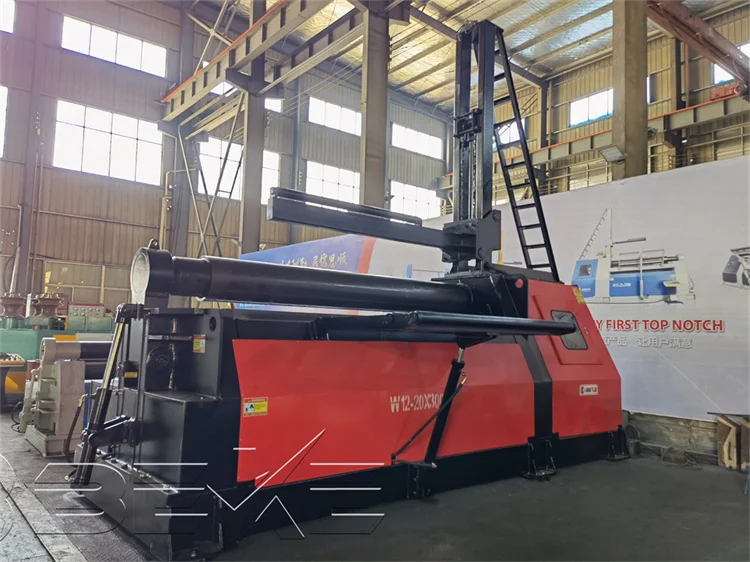

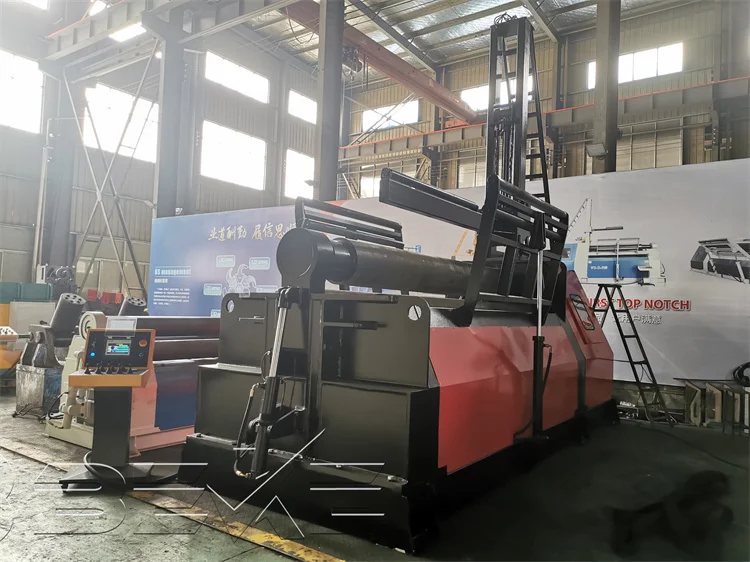

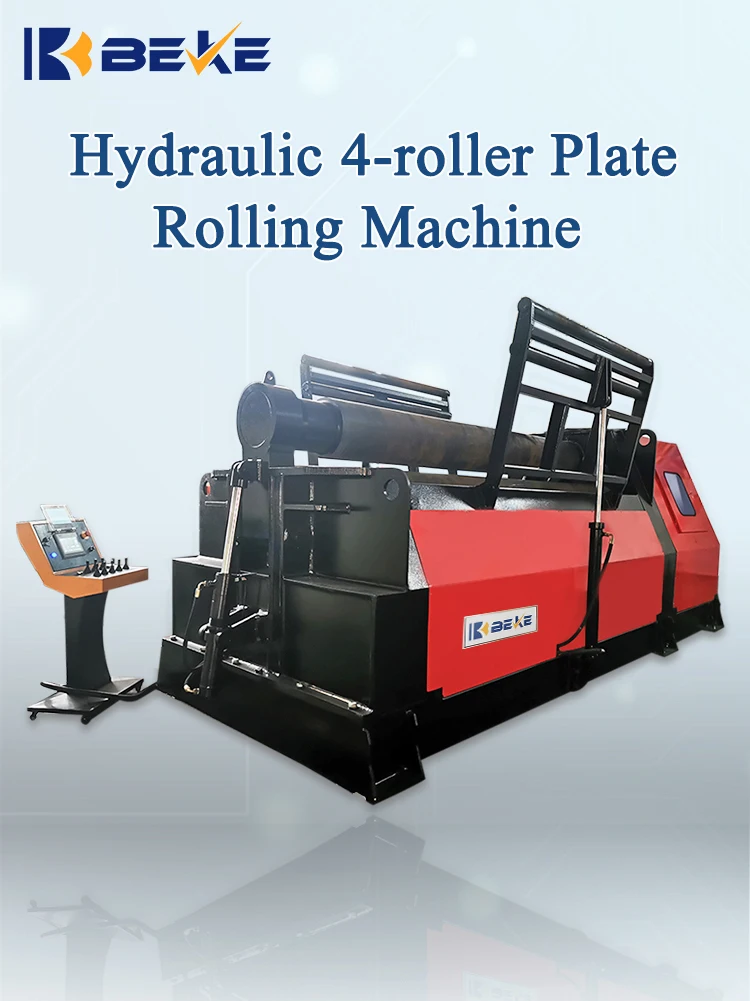

BEKE 4-roller rolling machine introduction
The four-roller plate bending machine is composed of four rollers. The upper roller is mainly driven and the position of the upper roller is fixed. The two ends of the lower roller are driven up and down by hydraulic cylinders. The lower roller can be raised to clamp the head of the plate with the upper roller, and the distance between the side roller and the upper roller can be changed as needed to bend the heads at both ends of the plate. Then the lower roller is lowered, the two side rollers are raised, and the sheet is rolled into a cylindrical shape.

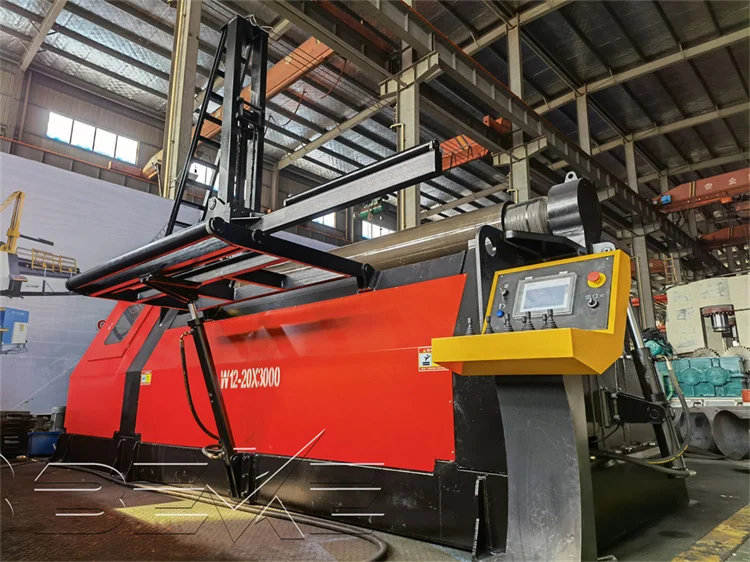

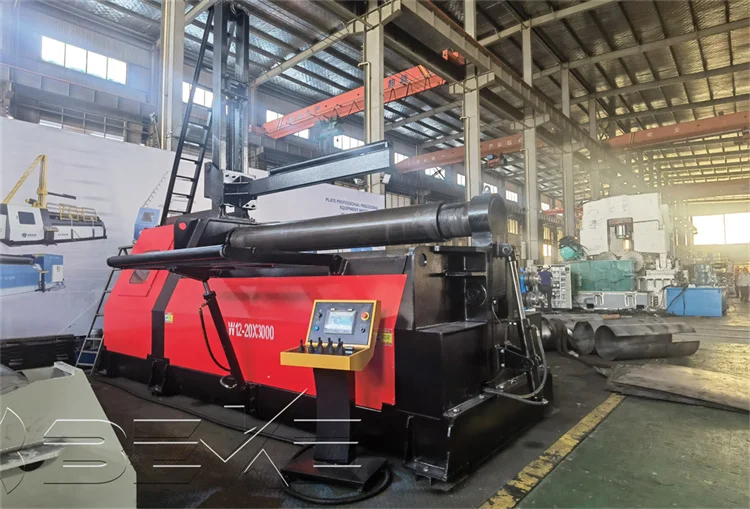

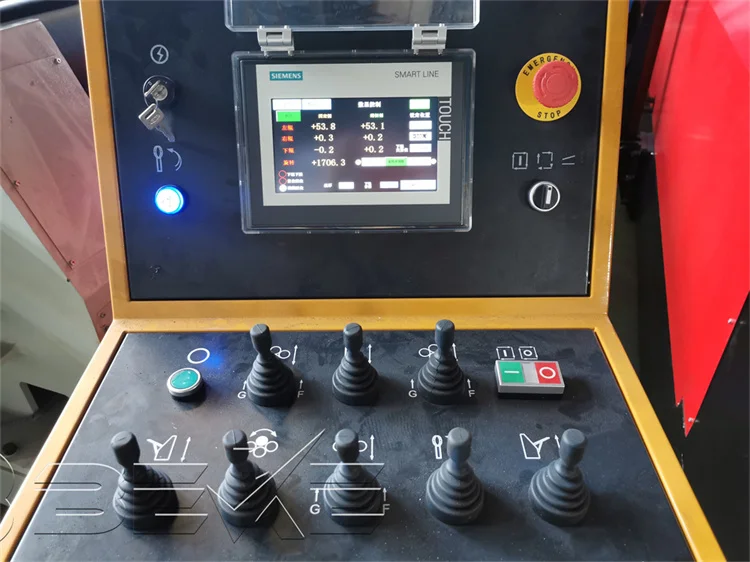

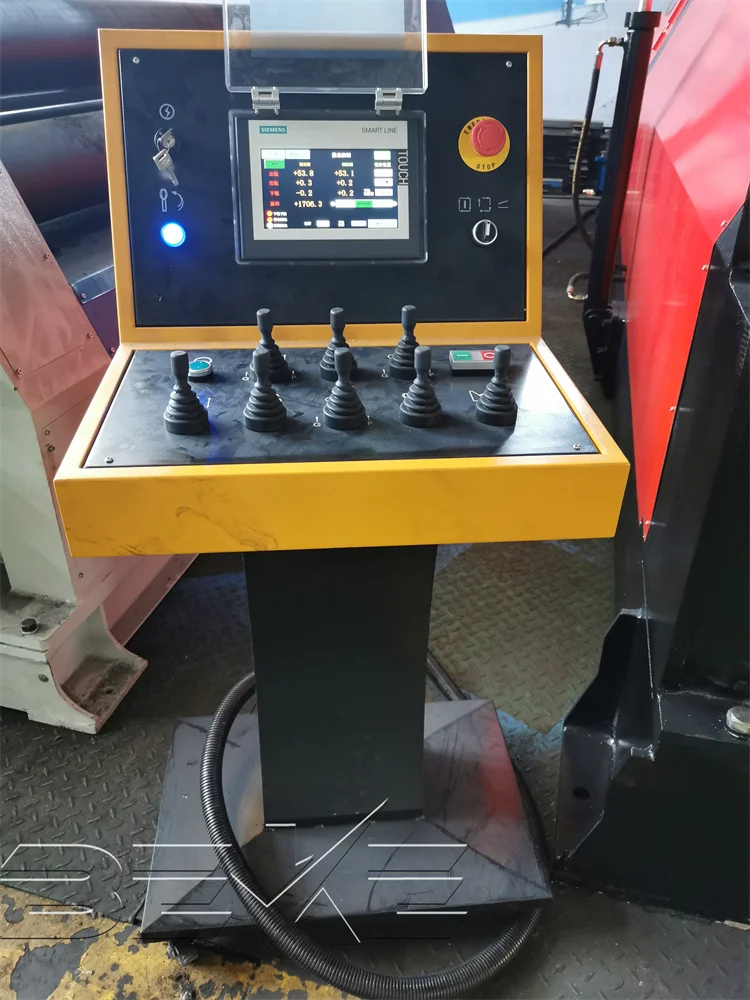

CNC control system

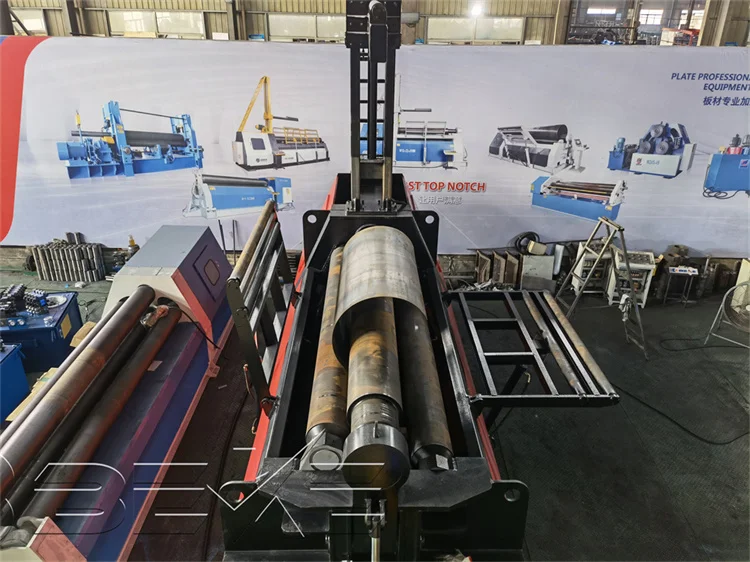

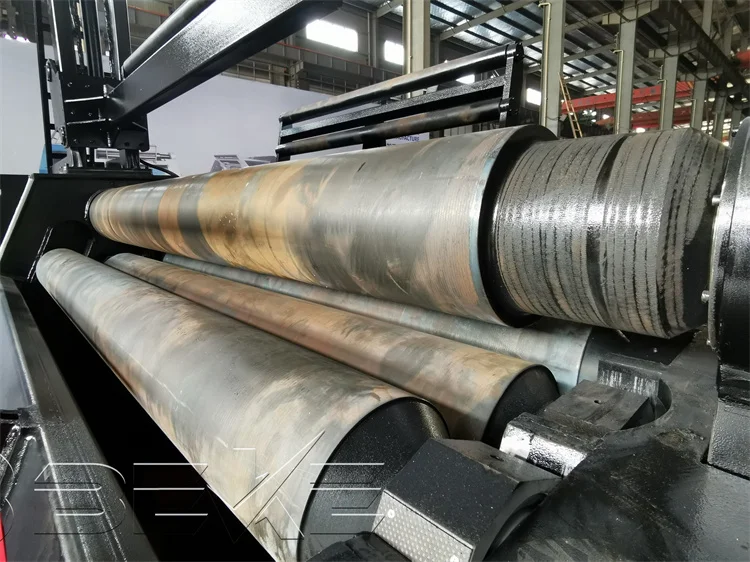

Rollers
The material of tool is 42CrMo

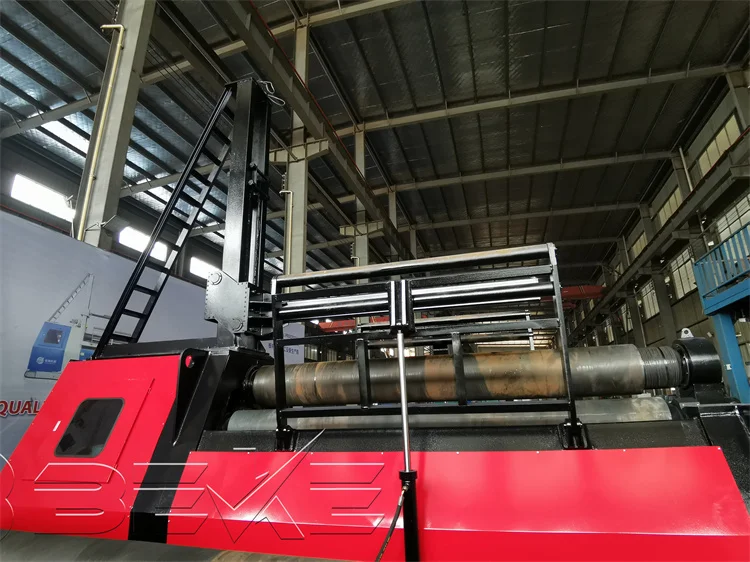

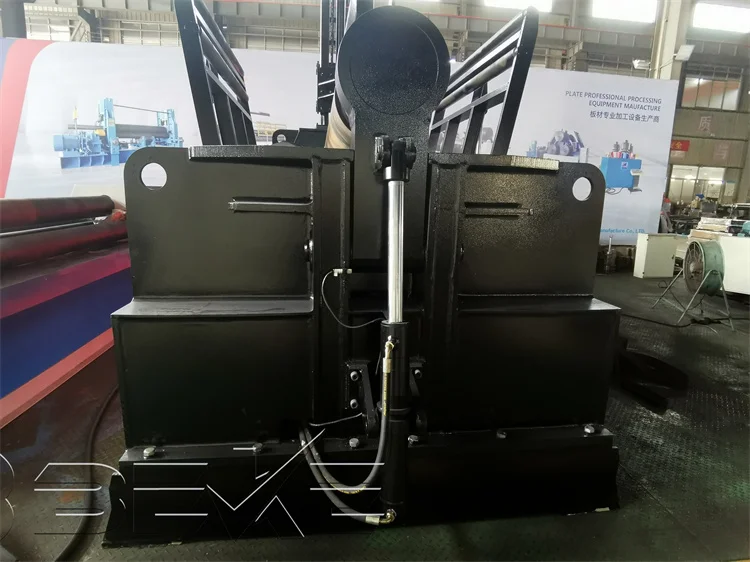

Unloading material device

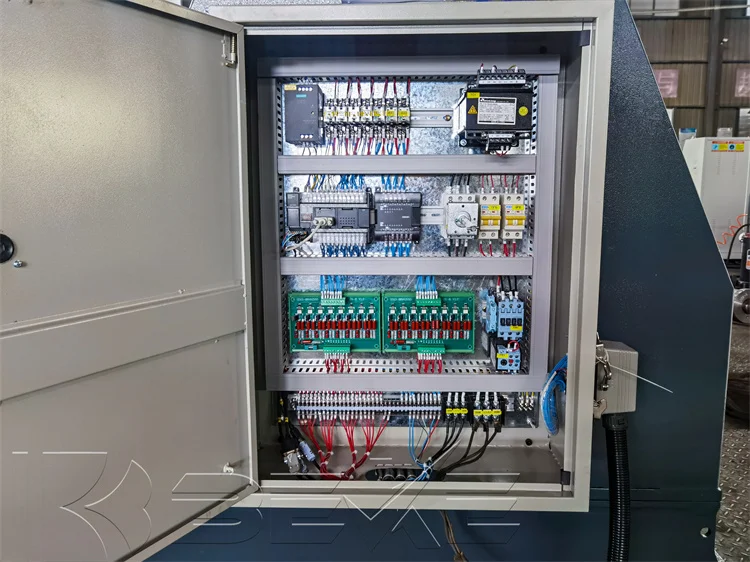

Electric components
Specification
ITEM | VALUE |
Model | W12-20x3000 |
Max. Thickness of plate | 20mm(CS),18mm(SS) |
Max. Pre-bending thickness | 18mm(CS),16mm(SS) |
Max. Width of plate | 3100mm |
The length of working rolls | 3200mm |
Up roller diamete | 390mm |
Bottom roller diameter | 360mm |
Side roller diameter | 300mm |
Minimum bending diameter | 530mm |
Motor Power (kw) | 18.5KW |
Weight (KG) | 25000KGS |
Size | 6400x2250x2550mm |
Material / Metal Processed | Aluminum, Carbon steel, Brass / Copper, ALLOY, Stainless steel |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
Showroom Location | South Africa, Uzbekistan, Malaysia, Brazil, Indonesia, Russia |
Packing & Delivery

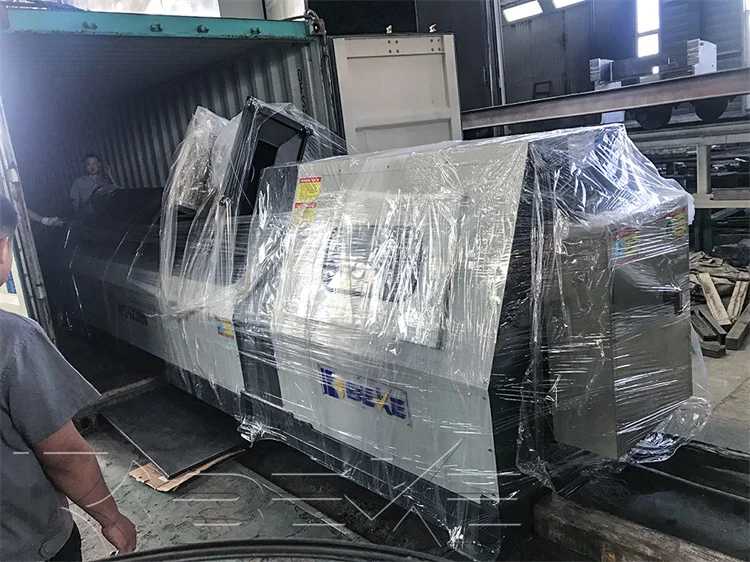

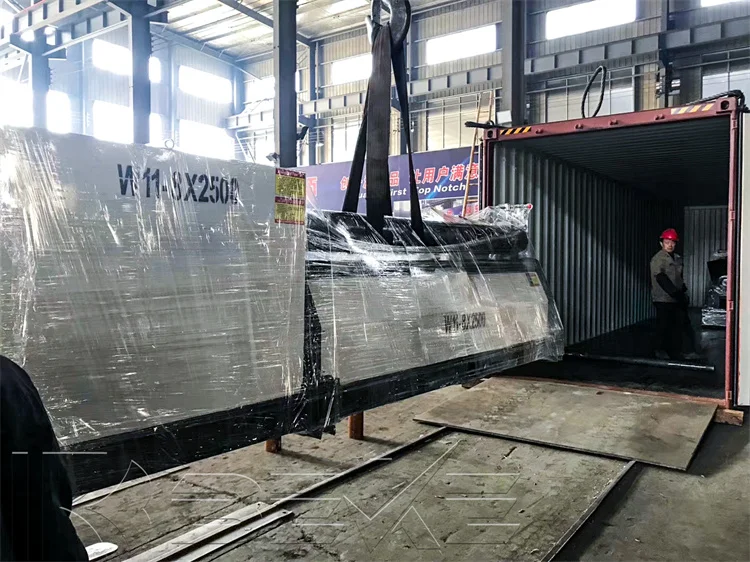

Packing
Machines will be covered with plastic film for FCL

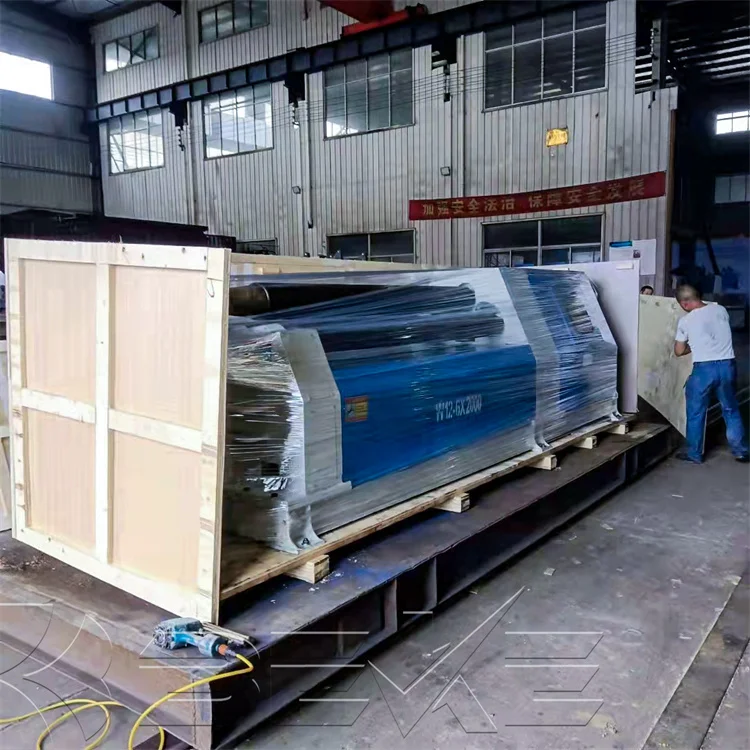

Machines will be packed with wooden package for LCL
Machines will be packed with wooden package for LCL
