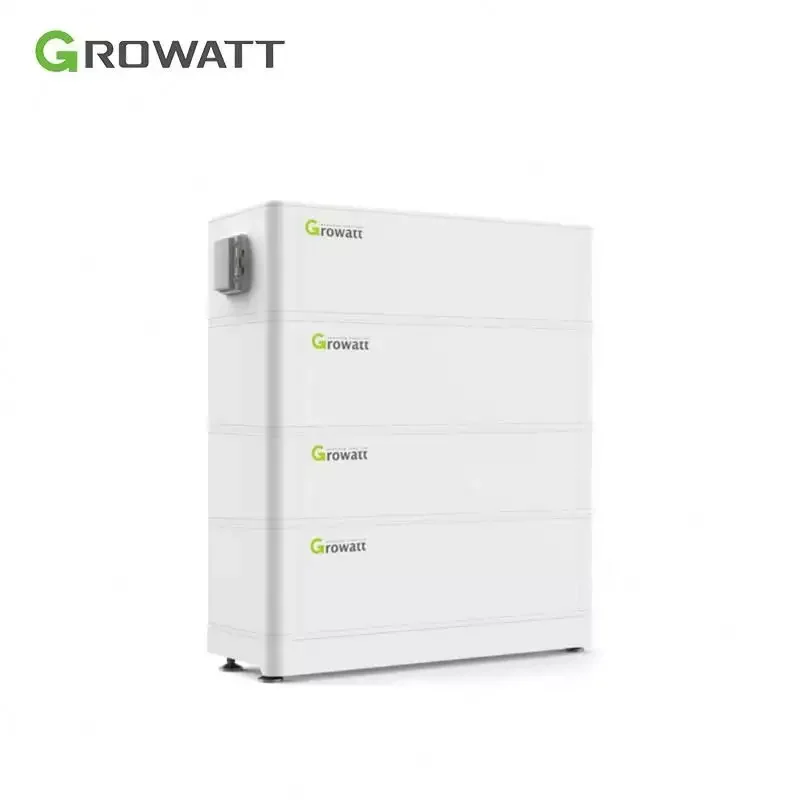

Growatt Lithium Solar Battery AXE 5.0L Modular Battery 5kWh to 400kWh 15 years warranty High voltage
- Category: >>>
- Supplier: Jiangsu Gaoyue New Energy Technology Group Co. Ltd.
Share on (1600748478548):
Product Overview
Description
Product Description
Essential details
Datasheet | AXE 5.0L | AXE 10.0L | AXE 15.0L | AXE 20.0L | AXE 25.0L | AXE 30.0L | AXE 35.0L | AXE 40.0L | AXE 50.0L | |||||||||
Battery Module | AXE 5.0L - C1 (5.0kWh, 51.2V, 40kg) | |||||||||||||||||
Energy Capacity | 5.0kWh | 10.0kWh | 15.0kWh | 20.0kWh | 25.0kWh | 30.0kWh | 35.0kWh | 40.0kWh | 50.0kWh | |||||||||
Dimension (W/D/H) | 650/350/165mm | 650/350/305mm | 650/350/445mm | 650/350/585mm | 650/350/725mm | 650/350/865mm | 650/350/1005mm | 650/350/1145mm | 650/350/1425mm | |||||||||
Weight | 42kg | 82kg | 122kg | 162kg | 202kg | 242kg | 282kg | 322kg | 402kg | |||||||||
Max Charge | 60A | 120A | 150A | 150A | 150A | 150A | 150A | 150A | 150A | |||||||||
Max Discharge | 60A | 120A | 150A | 150A | 150A | 150A | 150A | 150A | 150A | |||||||||
General | ||||||||||||||||||
Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) | |||||||||||||||||
Nominal Voltage | 51.2V | |||||||||||||||||
Operating voltage Range | 48 - 57.6V | |||||||||||||||||
IP Protection | IP 20 | |||||||||||||||||
Operation Temperature | 0~50°C | |||||||||||||||||
Certification | CE , ROHS , IEC62619, UKCA | |||||||||||||||||
Certifications
Packing & Delivery

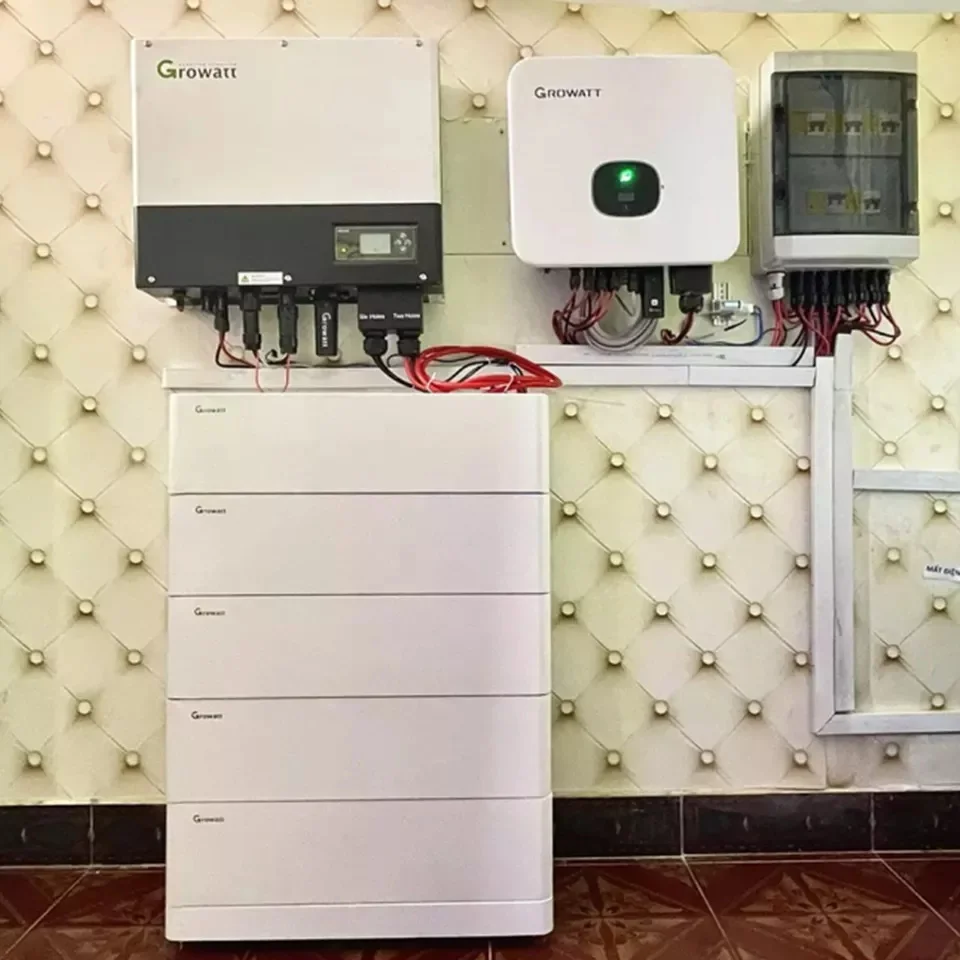

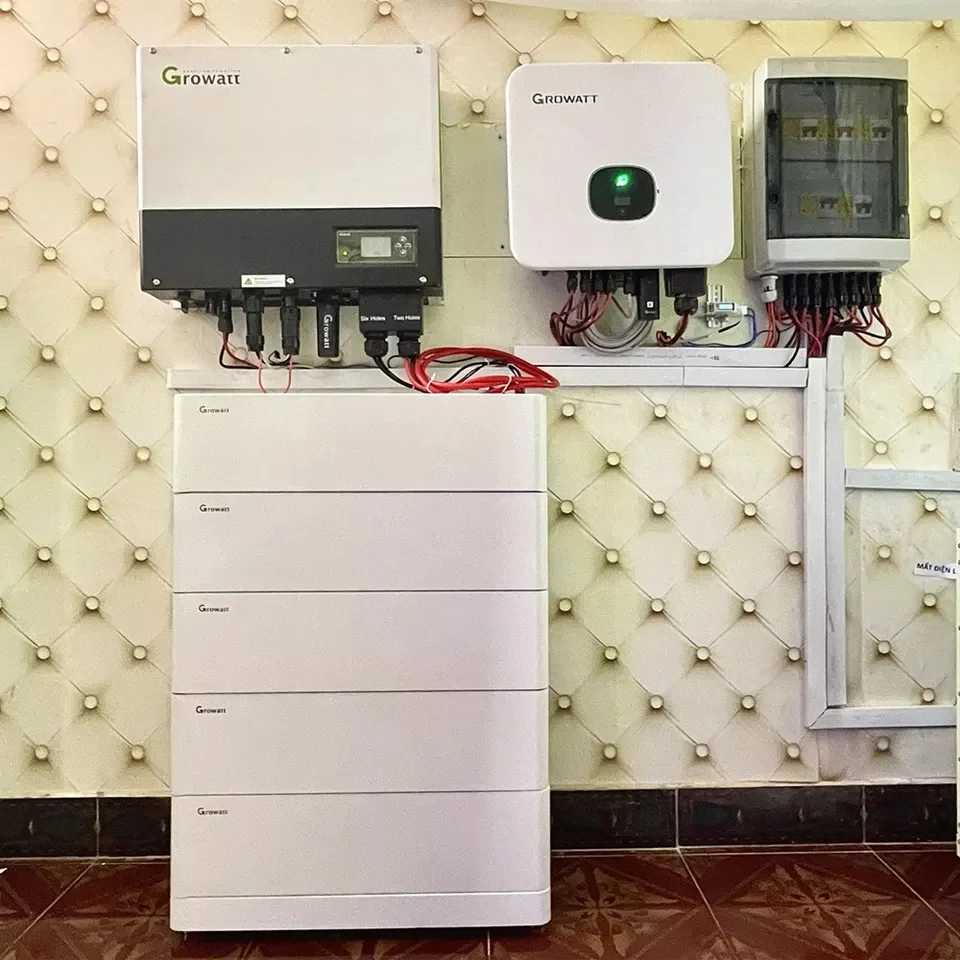

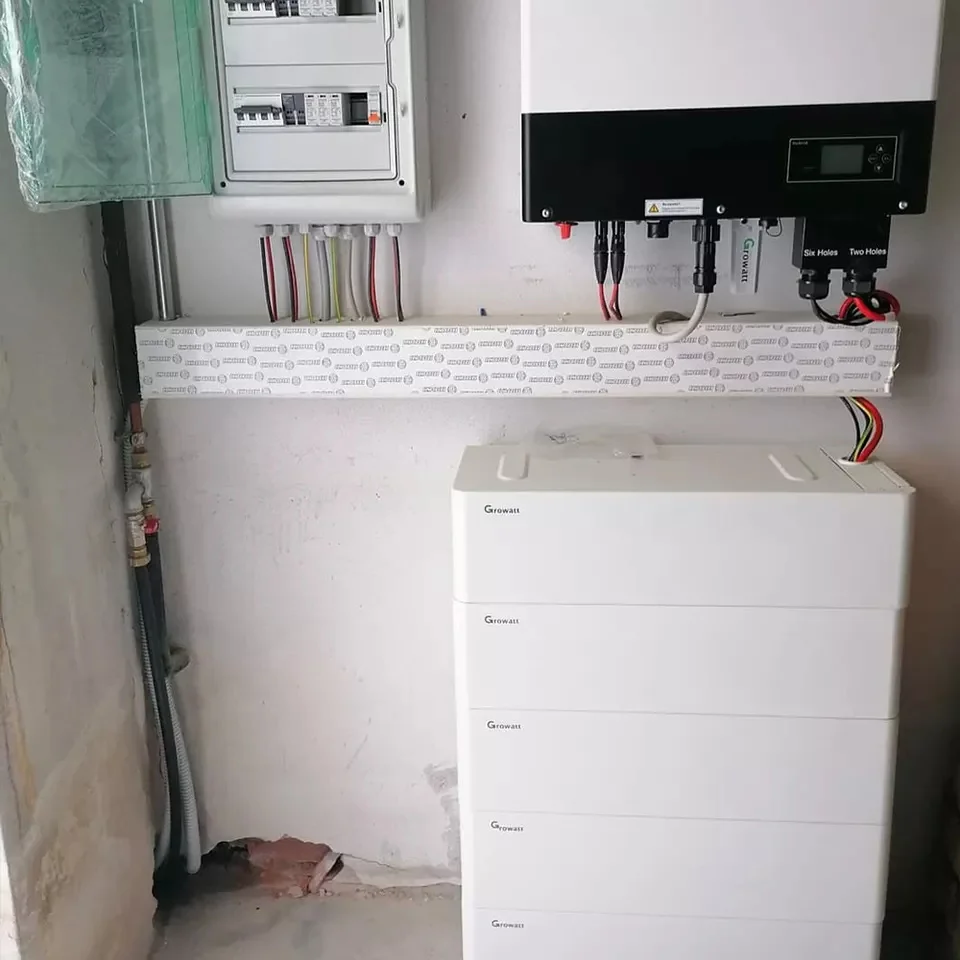

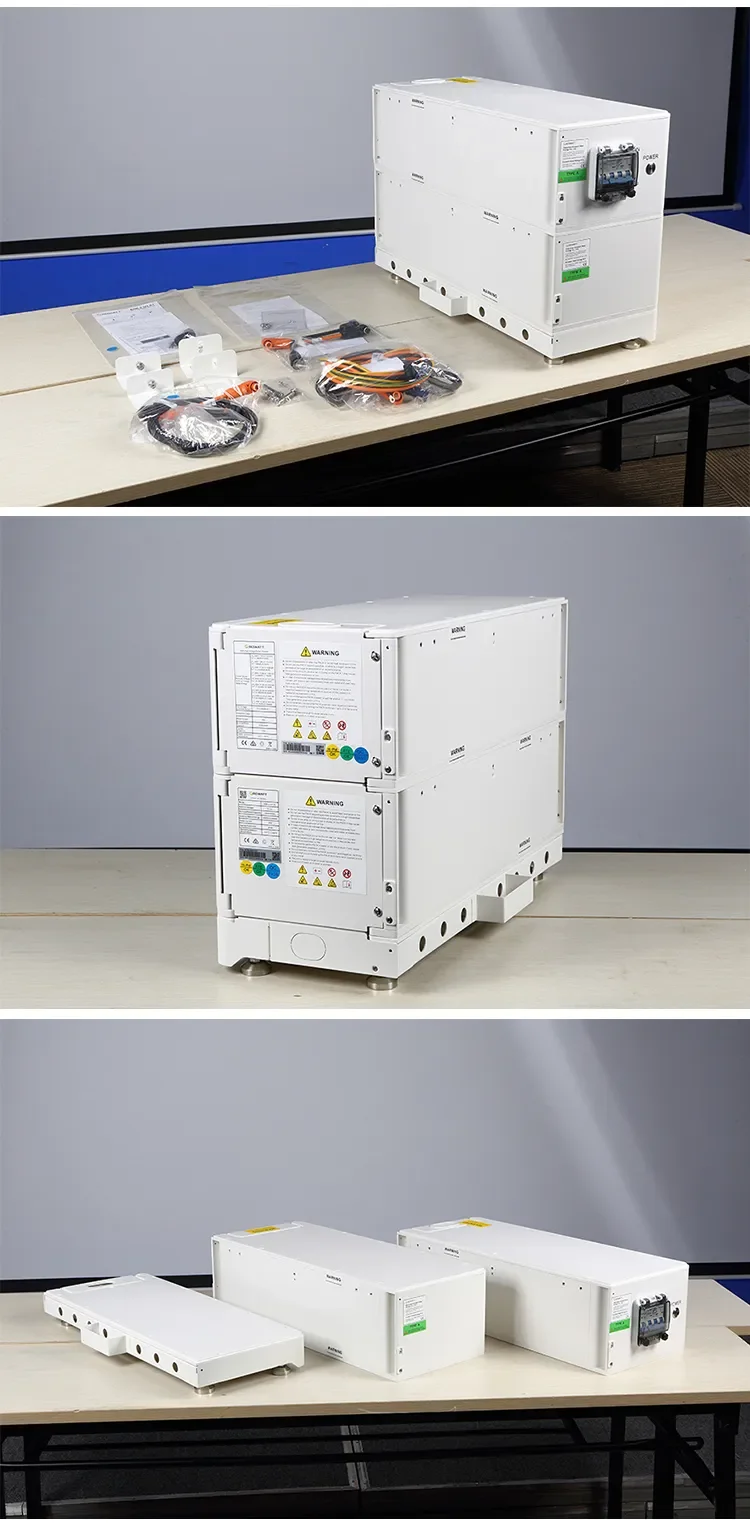

Product case
FAQ
1. What advantages do we have?
The price is cheap, we have a certain price advantage in bulk purchase and factory purchase.The delivery time is short. Many brands, with a variety of brands, a variety of categories. One-stop, you only need to face one of our suppliers, saving you a lot of energy and time.
2.What products can you supply ?
Our products include the whole solar PV system covering residential, commercial and industrial level. Also we supply important components, such as solar panels, solar inverters, combined box, solar battery, mounting bracket, PV cables, etc.
3. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
4. why should you buy from us not from other suppliers?
With over 15 years of combined solar energy experience.
5.How do I ship the product to my home?
First of all, after our engineers have custom-made the machine appropriate for you, We will ship the goods to the destination port by sea. We will aid in the complete process, entire the transportation and customs declaration, and have no issues about customs clearance and clean receipt of goods.
The price is cheap, we have a certain price advantage in bulk purchase and factory purchase.The delivery time is short. Many brands, with a variety of brands, a variety of categories. One-stop, you only need to face one of our suppliers, saving you a lot of energy and time.
2.What products can you supply ?
Our products include the whole solar PV system covering residential, commercial and industrial level. Also we supply important components, such as solar panels, solar inverters, combined box, solar battery, mounting bracket, PV cables, etc.
3. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
4. why should you buy from us not from other suppliers?
With over 15 years of combined solar energy experience.
5.How do I ship the product to my home?
First of all, after our engineers have custom-made the machine appropriate for you, We will ship the goods to the destination port by sea. We will aid in the complete process, entire the transportation and customs declaration, and have no issues about customs clearance and clean receipt of goods.
