Wholesale Sabic heat stabilized polyamide 66/PA66 RA1004 Granules /20% Arylon fiber reinforced for electromagnetic shielding
- Category: >>>
- Supplier: Hebei Molan Import And Export Co. Ltd.
Share on (1600748491383):
Product Overview
Description
Product Description
Specification
Physical property | Standard | Value | Unit |
Density | ISO 1183 | 1.2 | g/cm3 |
Mechanical behavior | Standard | Value | Unit |
Tensile Strength Break 5mm/min | ISO527 | 85 | MPa |
Elongation Break 5mm/min | ISO 527 | 3.6 | % |
Flexural Strength Break 2.0mm/min | ISO 178 | 122 | MPa |
Flexural Modulus 2.0mm/min | ISO 178 | 4000 | MPa |
lzod Notch lmpact 23°C 4.0mm Type A | ISO 180 | 5 | kJ/m2 |
Izod Un-notch lmpact 23°C 4.0mm | ISO 180 | 40 | kJ/m2 |
Friction Coefficient Dynamic | ASTM D3702 | 0.52 | |
Friction Coefficient Static | ASTM D3702 | 0.66 | |
Wear Factor Washer | ASTM D3702 | 59 | ft-lb-hr |
Themal | Standard | Value | Unit |
HDT 1.8MPa 4.0mm | ISO 75 | 199 | °C |
CLE Flow 23~60°C | ISO 11359 | 6E-5 | cm/cm/°C |
CLE xFlow 23-60°C | ISO 11359 | 9E-5 | cm/cm/°C |
Flammability | Standard | Value | Unit |
GWFI 550mm | IEC 60695 | 0.8 | °C |
Packing & Delivery

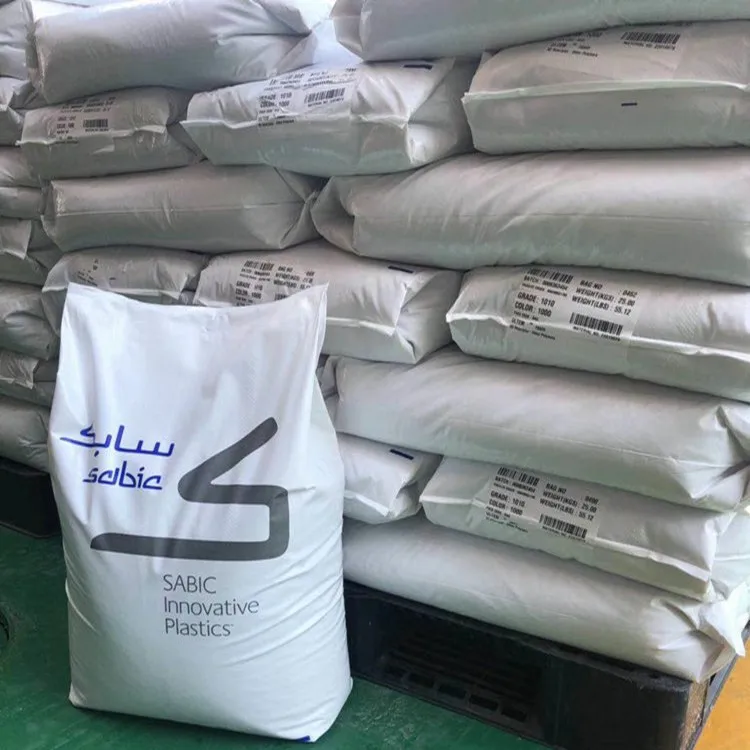

25kg a bag
