Low price small hand hydraulic compress plate press filter machine
- Category: >>>
- Supplier: Zhengzhou,Toper,Industrial,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

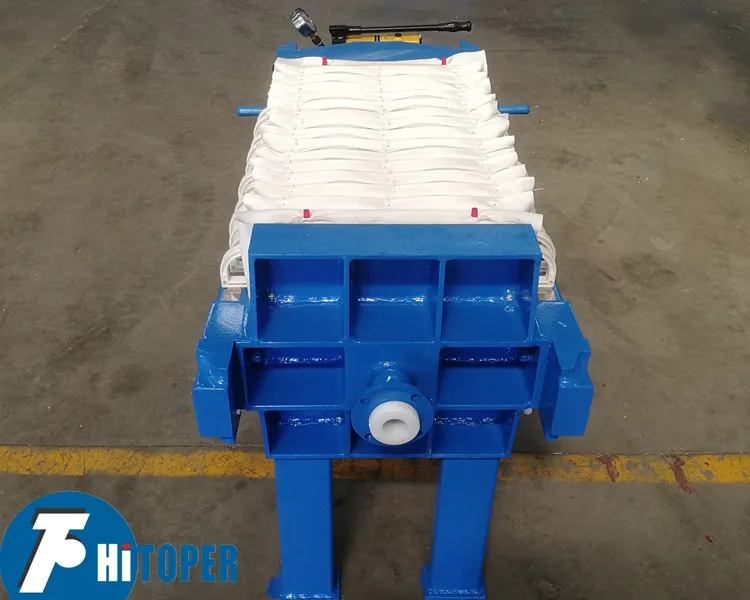

Low price small hand hydraulic compress plate press filter machine
For the small series filter press like plate size of 320mm and 450mm ,Toper provide new compressed type filter press machine which combined the features of jack screw compress type and hydratulic compress type .The filter plate is pressed by hydraulic system ,while drived not by the hydratulic station ,but by hands.Also equipped with roller easy for movement .
The fitler press is widely used in mining ,metallurgy,petroleum,chemical ,environmental protection,electroplating ,food ,pharmacy,oil,biological,beverage,textiles,printing and dreing,papermaking,inorganic salt,coal washing ,sewage treatment,ceramics,leather such industries.

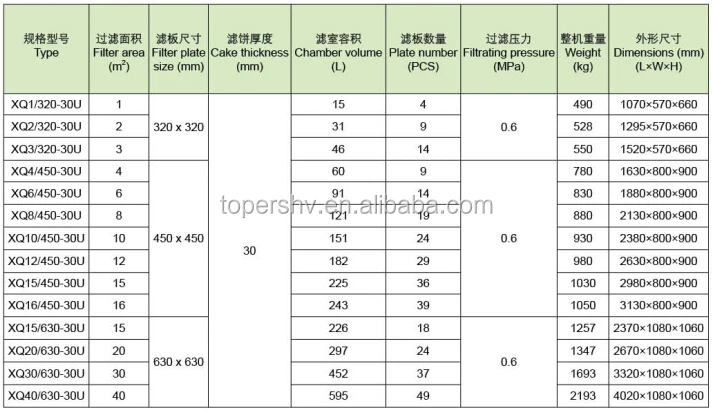

SPECIFICATIONS OF THE CHINA SMALL MANUAL HYDRAULIC COMPRESS CHAMBER FILTER PRESS -----Below jack compress filter press data for reference | ||||||
Working principle of the Low price small hand hydraulic compress plate press filter machine
When the filter press is suitable installation, you can hold the screw which connected to the mini hydraulic compress system,and the hydraulic rod begin to compressed the filter plates and filter cloth between push plate and tail plate.
Filter chamber are formed between pressed filter plates and materials get into the filter chamber through the inlet of tail plate with the help of feeding pump. Solid particles are remainned in filter chambers forming into cakes ,while liquid is discharged out of the machine through press cake and filter cloth.
Detailed Images

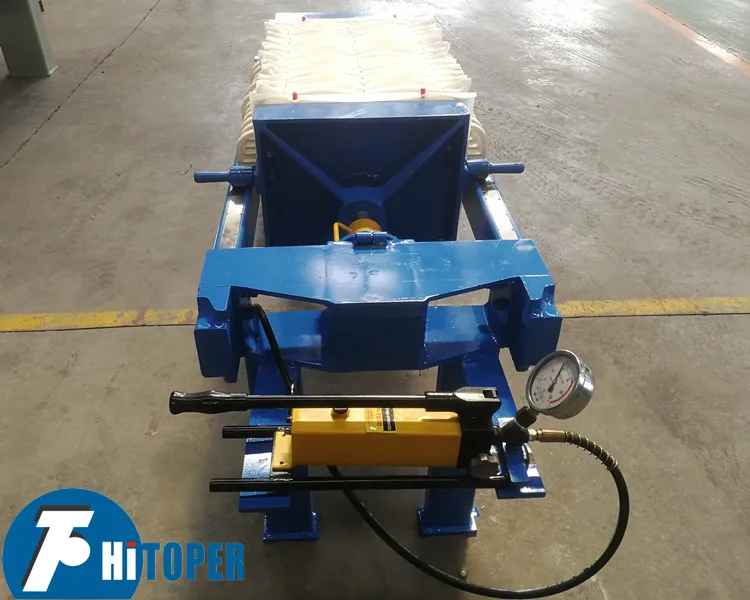

1.Manual hydraulic compression system
The compress system combined the features of the hydraulic system and screw jack system ,that the hydraulic pressure drived by hands operate on the rod.
2.Manual operate,hydraulic compress,easy use,energy and power saving ,cost decrease.
2.Main Beam
Material of high quality carbon steel Q345 ( Length & width & thickness, 120×60×6mm rectangular tube), box welded structural design, automatic submerged arc welding process with weld smooth and beautiful. Still processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance, together with last protection of acrylic polyester anti-corrosion paint spraying.
3.Filter plate
3.11 Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength, producing by using 5000 tons high-pressure compressor, every plates before delivery is tested under high pressure 27MPa.
3.12 External size is 505*505mm, inner size is 450*450mm, thickness is 65mm, and weight is 8.5kg.
4.Easy-movable wheels (optional device )
This small series can equipped with rollers on the supporting legs ,which means the filter press can be easy movable on the using site.
This is the optionl device we provide for customer .Whether equipped or not is based on the customer's choice .
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging for main machine | ||
Size | 1950x700x900mm | |
Weight | 860kgs | |
Packaging Details | The normal package for the main filter press machine is shrink-wrapped, we can also provide export wooden or stainless steel case if requried | |
Packaging for matched parts | ||
Size | 560(L) * 455 (W) * 710(D) | |
Weight | 35kgs | |
Packaging Details | The normal package for the spare parts like the filter plate, filter cloth or handles or feeding pump etc. is export wooden case | |
