Free shipping automatic liquid filling machine,10ml 30ml essential oil bottle filling machine

Product Overview

Description

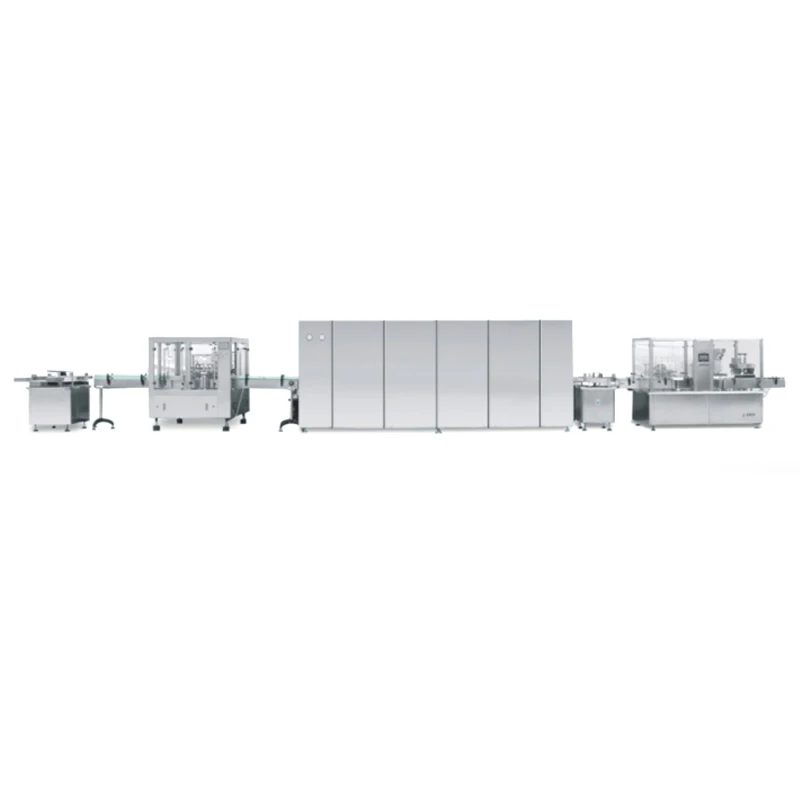

This production line suitable for 5-50 ml  bottle oral liquid Washing Drying,Filling and capping(Roll).Production line composed by SGLCX Vertical ultrasonic wave washing machine,SGRHX Hot aircirculation tunnel oven SGKGZ Oral liquid filling capping(roll)machine.Can use production line or standalone;

 The technological process:Mesh belt into bottle,Ultrasonic wave washing,Three times water and air clean bottle inside and outside,Dry and sterilization,Filling and capping(roll);

This production line performance stable,operstion is very simple,According to customer technological requirements configuration can satisfy different specifications and production speed.

 The machine is suittable for medical,chemical and food industries. The filling head is 8 heads. The filling precision is high.(the applicable specification is from 20ml to 500 ml. Increase the pumps can be increased the production capacity.) It can use positioned filling. The pumps and the parts which contact the liquid are made of 316L stainless steel or health material. The whole machine is made of stainless steel material.

Product No	SGGZ-4	SGGZ-8
Applicable specification	5-50ml	5-50ml
Production speed	40-60bottle/min	80-100bottle/min
Filling error	±1~2%	±1~2%
Water pressure and water consumption	0.3-0.5MPa,0.6~1m³/h	0.3-0.5MPa,0.6~1m³/h
Purify compressed air pressure and air consumption	0.3-0.5MPa,5~15m³/h	0.3-0.5MPa,10-25m³/h
Power supply	380/220v,42.5KW	380/220v,45KW
Exhaust volume	2600m³/h	2800m³/h
Dimension	11000*1550*2000mm	15000*1750*2000mm
Weight	3000kg	3500kg
