Product Overview
Description
Product Overview
Machine Introduction
PVC profile production line is mainly used for PVC doors and Windows profiles, wide door plate, window sill plate perforated thread tube (four holes, six holes, seven holes, nine holes, etc.) extrusion. The production line can choose different specifications of conical twin-screw extruder according to different profiles and moulds,and equipped with the corresponding vacuum shaping table, tractor, cutting machine, turning over platform and other auxiliary
equipment.
equipment.
1.Different model Conical twin screw extruder, suitable for high speed extruding of different profile .
2.According to different moulds, the shaping table can choose 4 meters, 6 meters, 8 meters, 11 meters and other specification，Vacuum shaping adopts special increased eddy current cooling system adopts special increased eddy current cooling system to facilitate cooling and shaping to meet the needs of high-speed extrusion.
3.Traction machine adopts our company's unique lifting technology, smooth work, good reliability, large traction.
4.The moving speed of the cutting machine is synchronized with the traction speed.
3.Traction machine adopts our company's unique lifting technology, smooth work, good reliability, large traction.
4.The moving speed of the cutting machine is synchronized with the traction speed.
PRODUCT SPECIFICATIONS
Model | YF180 | YF240 | YF300 | YF400 | YF500 | YF600 |
Max width | 180mm | 240mm | 300mm | 400mm | 500mm | 600mm |
Extruder | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ80/1156 | SJZ80/156 | SJZ80/156 |
Main power | 22kw | 37kw | 37kw | 55kw | 55kw | 75kw |
Capacity | 100-150KGH | 150-200KGH | 150-200KGH | 250-300KGH | 250-300KGH | 300-350KGH |
FEATURES AT A GLANCE
1.Reliable gear box
2.Bi-metallic screw and barrel
3.Oil cooling for screw and barrel
4.Fast cooling calibration mould
5.Water temperature control automatically
6.Reliable rubber block
7. protection film wrapping on line
8. cutting length control automatically
9.Siemens brand motor and electrical part

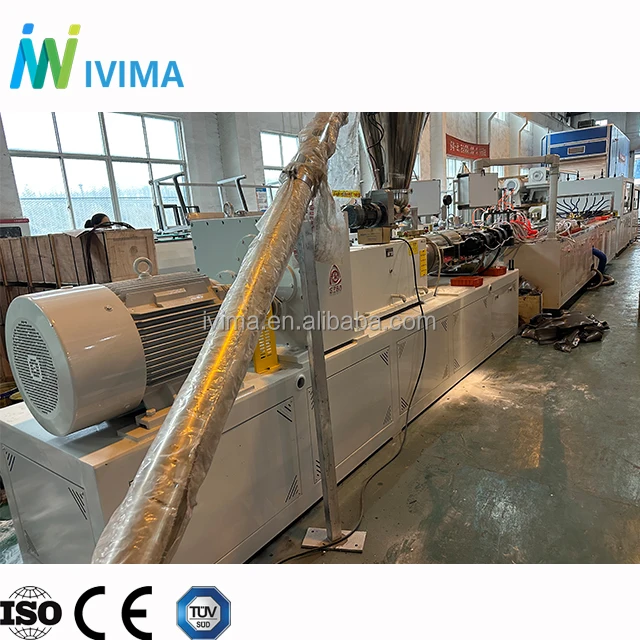

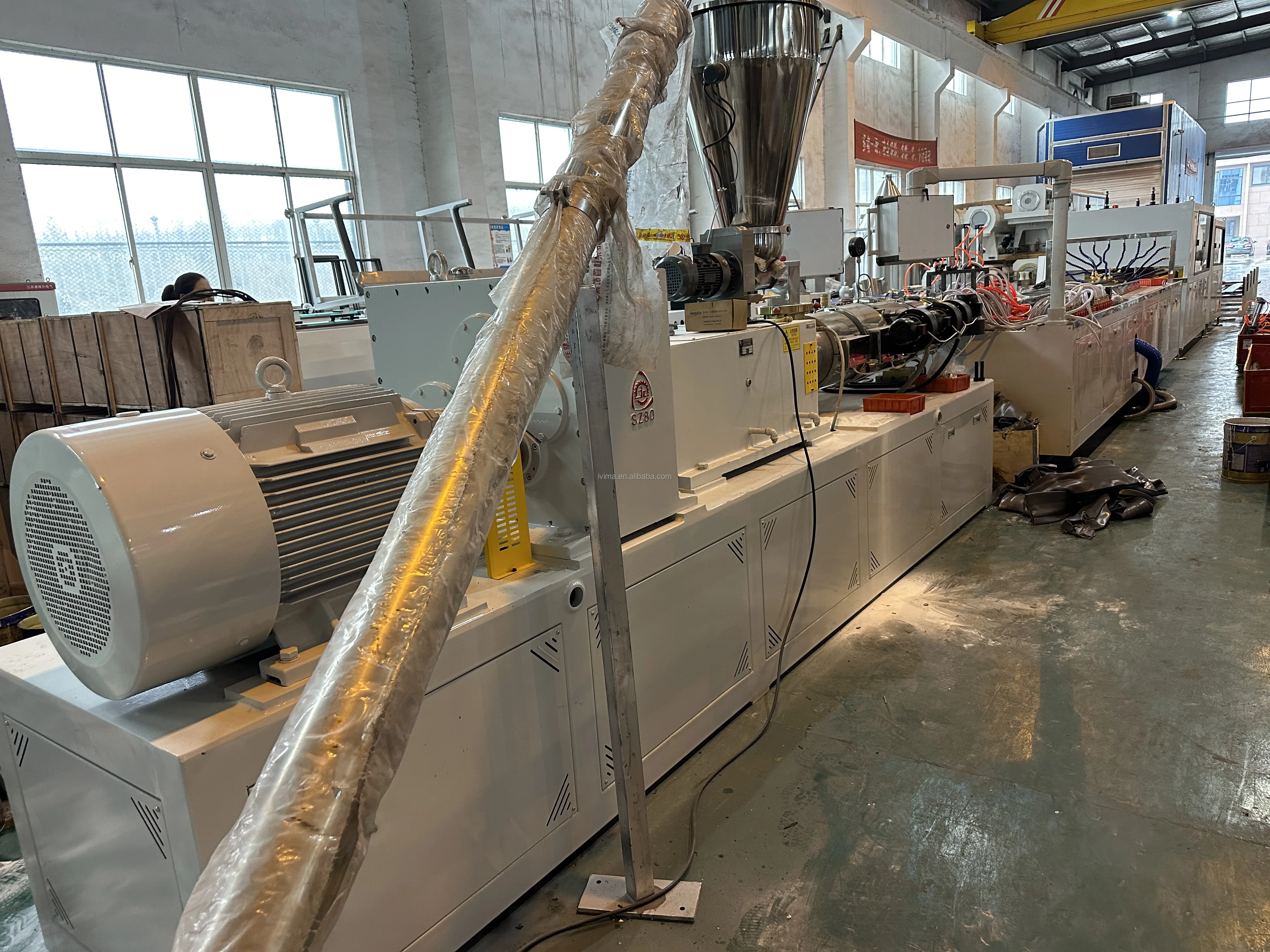

Main extruder

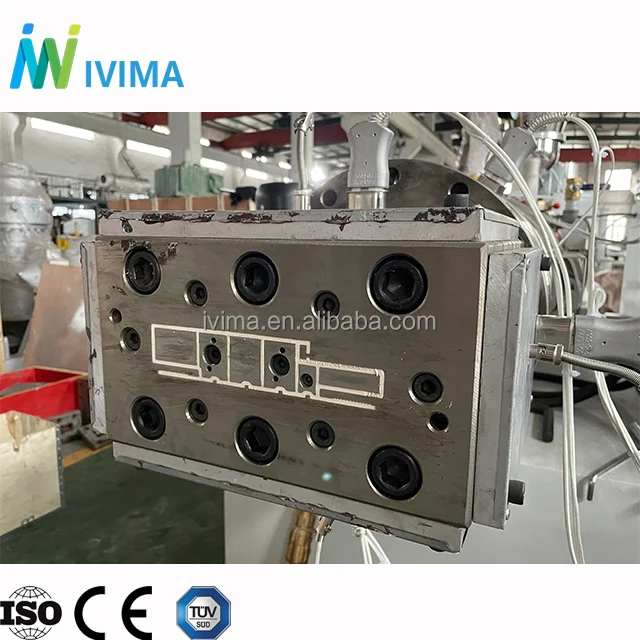

mould

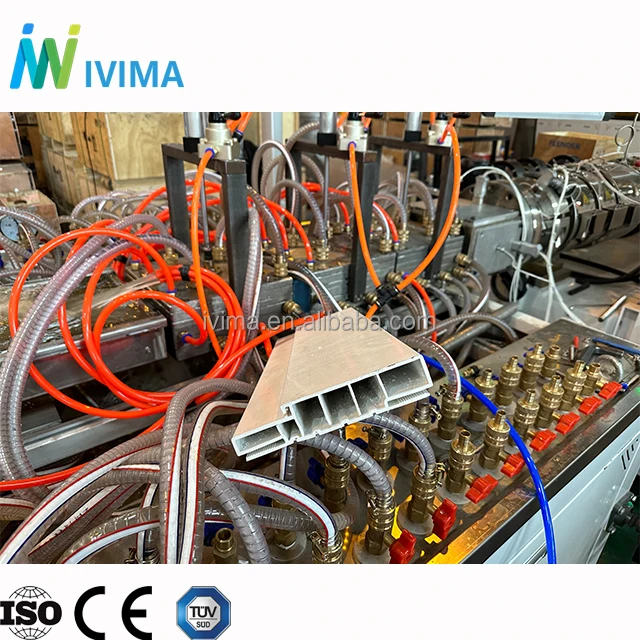

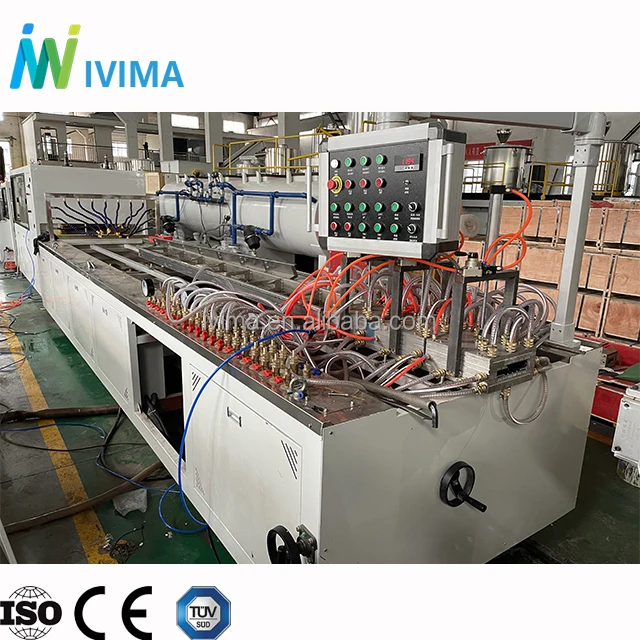

calibration table

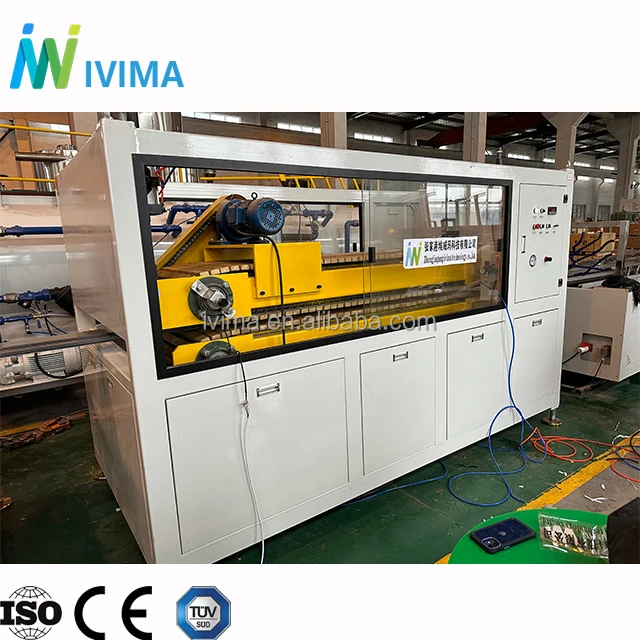

hall off and cutter
cutting machine
final door frame profile
PRODUCT CONFIGURATION
Siemens motor optional
hard teeth gear box
Bi-metallic screw and berral
Siemens electric part
Siemens smart PLC
ABB inverter
Our market is all of the world
Successful Project
Project in Kenya
Project in Saudi
Project in China
Recommend Products
hot and cooling cooling unit
Usage:for pvc resin and other additive material mixing.
waste pvc pipe crusher
Usage:to crush the pvc profile and get pvc scraps for recycling using.
pvc pulverizer
Usage: for waste pvc pipe recycling, to mill the pvc scraps and get pvc powder.
FAQ:
What about the payment way?
●TT,L/C at sight or Alibaba trade assurance.
If you can extend the guarantee time?
●Yes.Our guarantee time is 12 months.
If you will send engineer coming to our factory to install and make training for worker?
●Yes,Every set of machine, we will send professional engineer to your factory and help installation and making training for you.
If you have CE,SGS,ISO certificate?
●Yes,except these,if you also need other certificates,we also can help to apply.
If we buy your machines, can you offer us wear-out spare pats?
●Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free .
Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems
from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers
will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
The voltage,if you can design according to our request?
●Yes.
If you support Alibaba trade assurance pay?
●Yes.100% support.
●TT,L/C at sight or Alibaba trade assurance.
If you can extend the guarantee time?
●Yes.Our guarantee time is 12 months.
If you will send engineer coming to our factory to install and make training for worker?
●Yes,Every set of machine, we will send professional engineer to your factory and help installation and making training for you.
If you have CE,SGS,ISO certificate?
●Yes,except these,if you also need other certificates,we also can help to apply.
If we buy your machines, can you offer us wear-out spare pats?
●Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free .
Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems
from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers
will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
The voltage,if you can design according to our request?
●Yes.
If you support Alibaba trade assurance pay?
●Yes.100% support.
