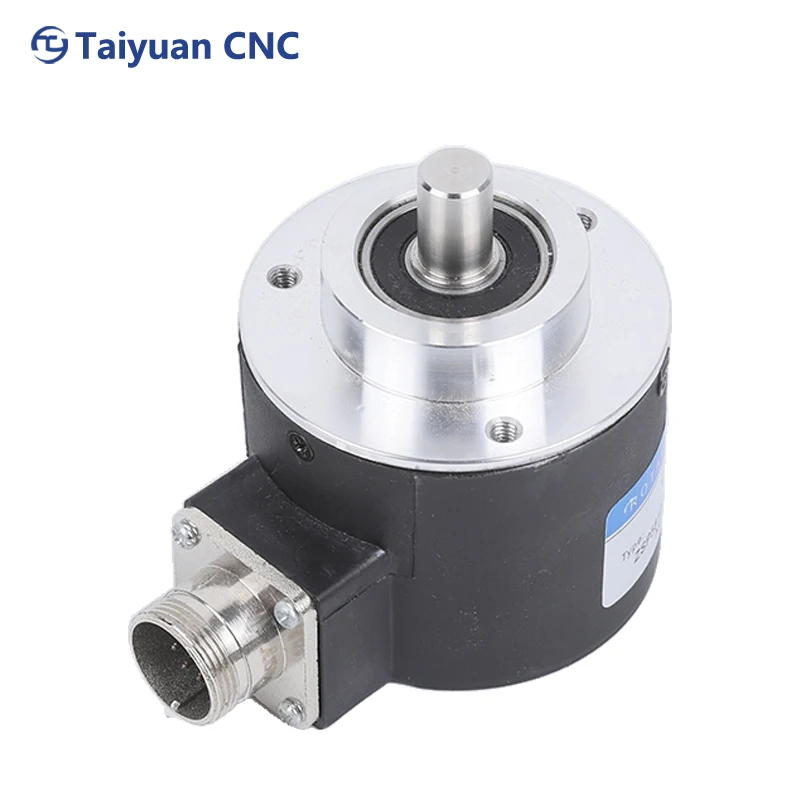

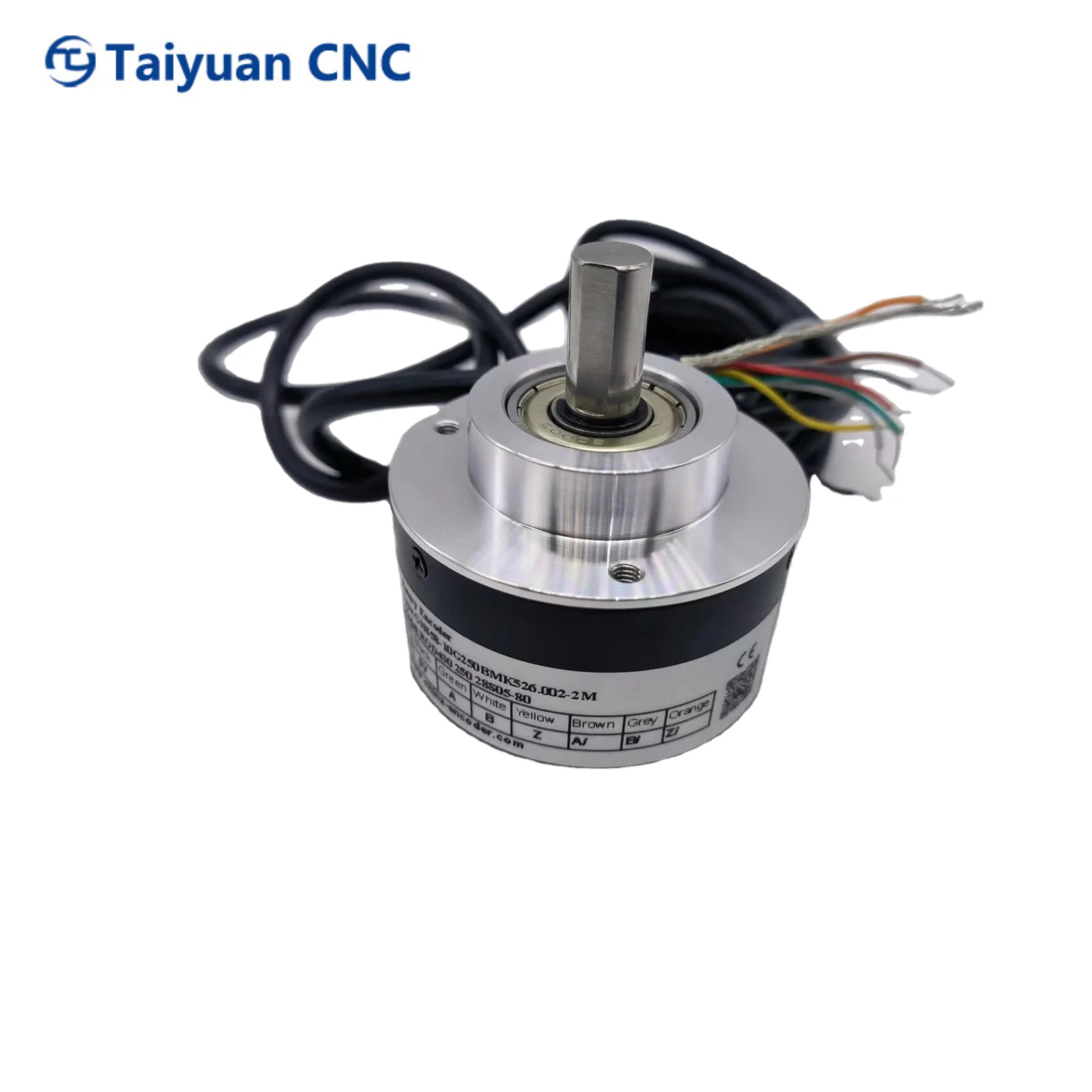

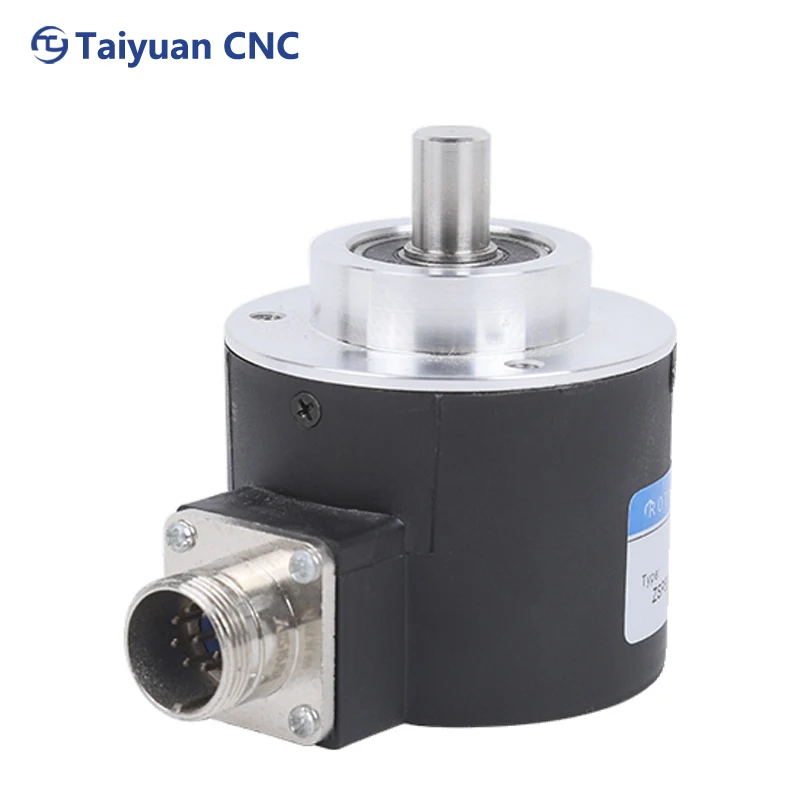

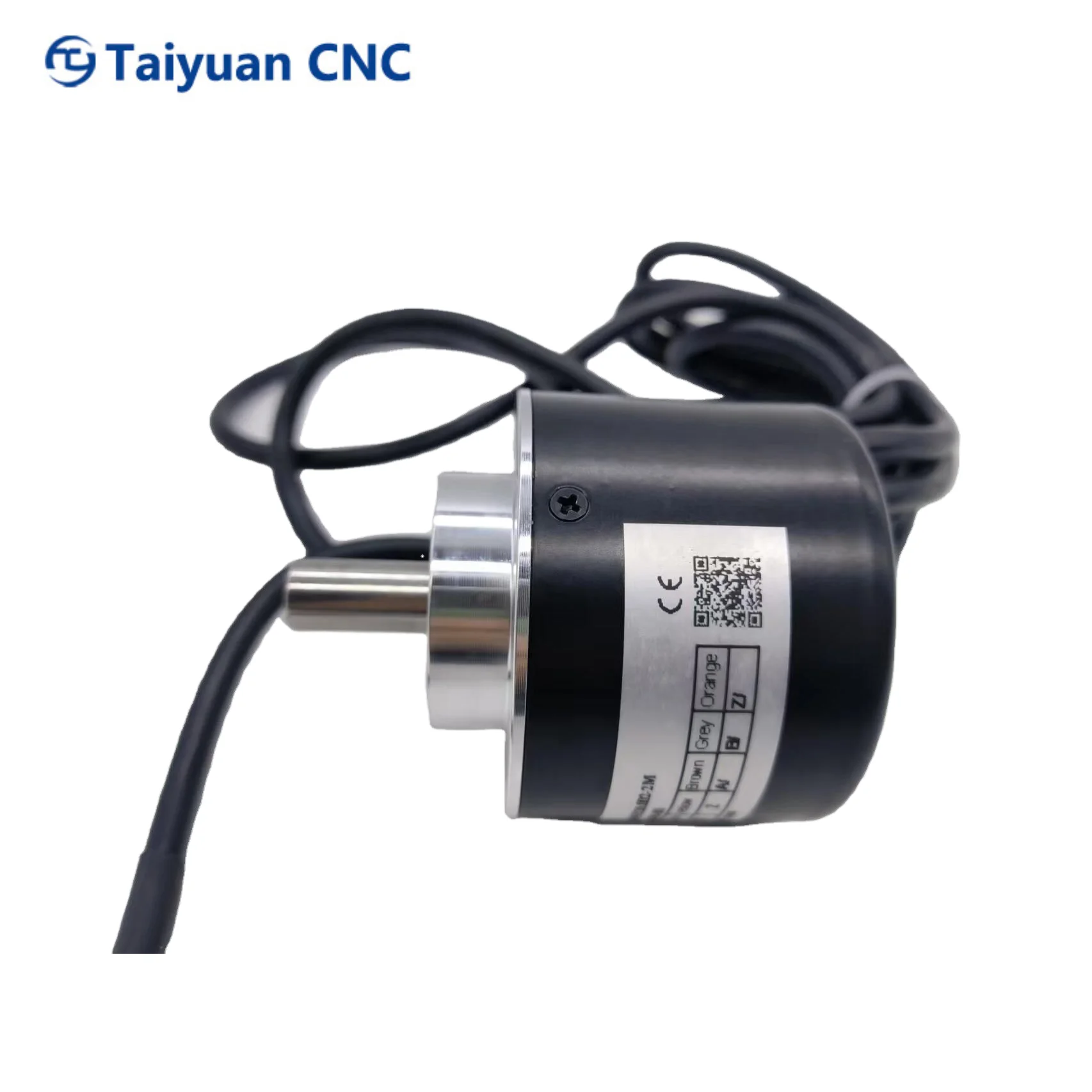

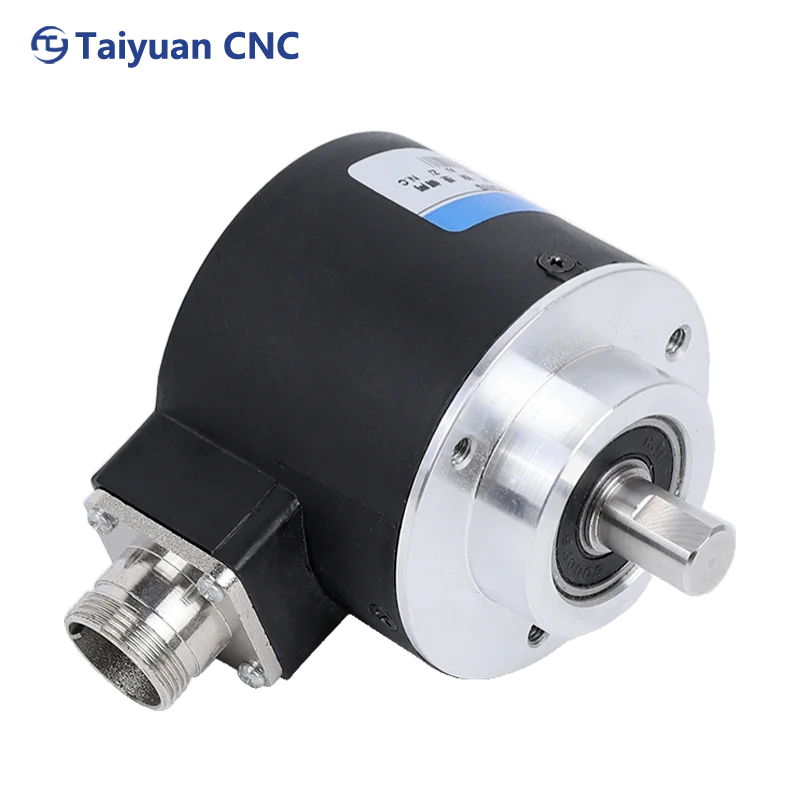

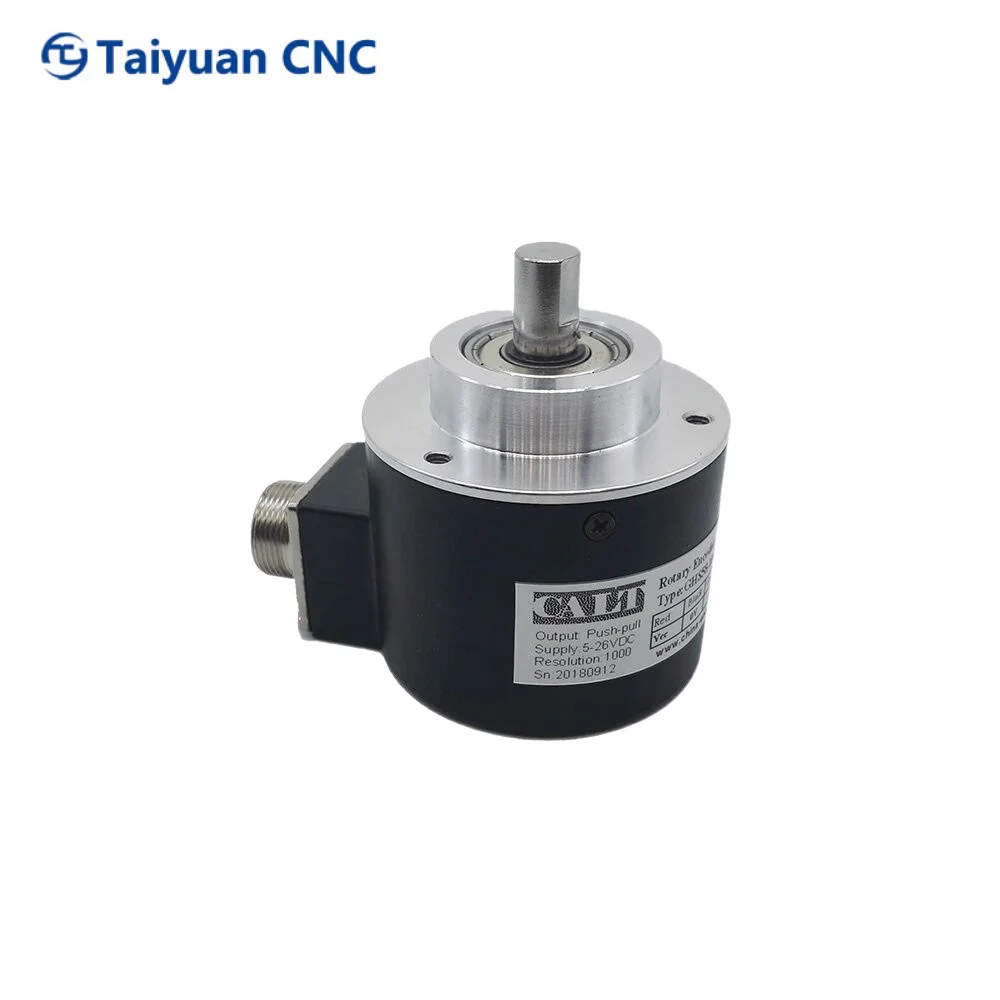

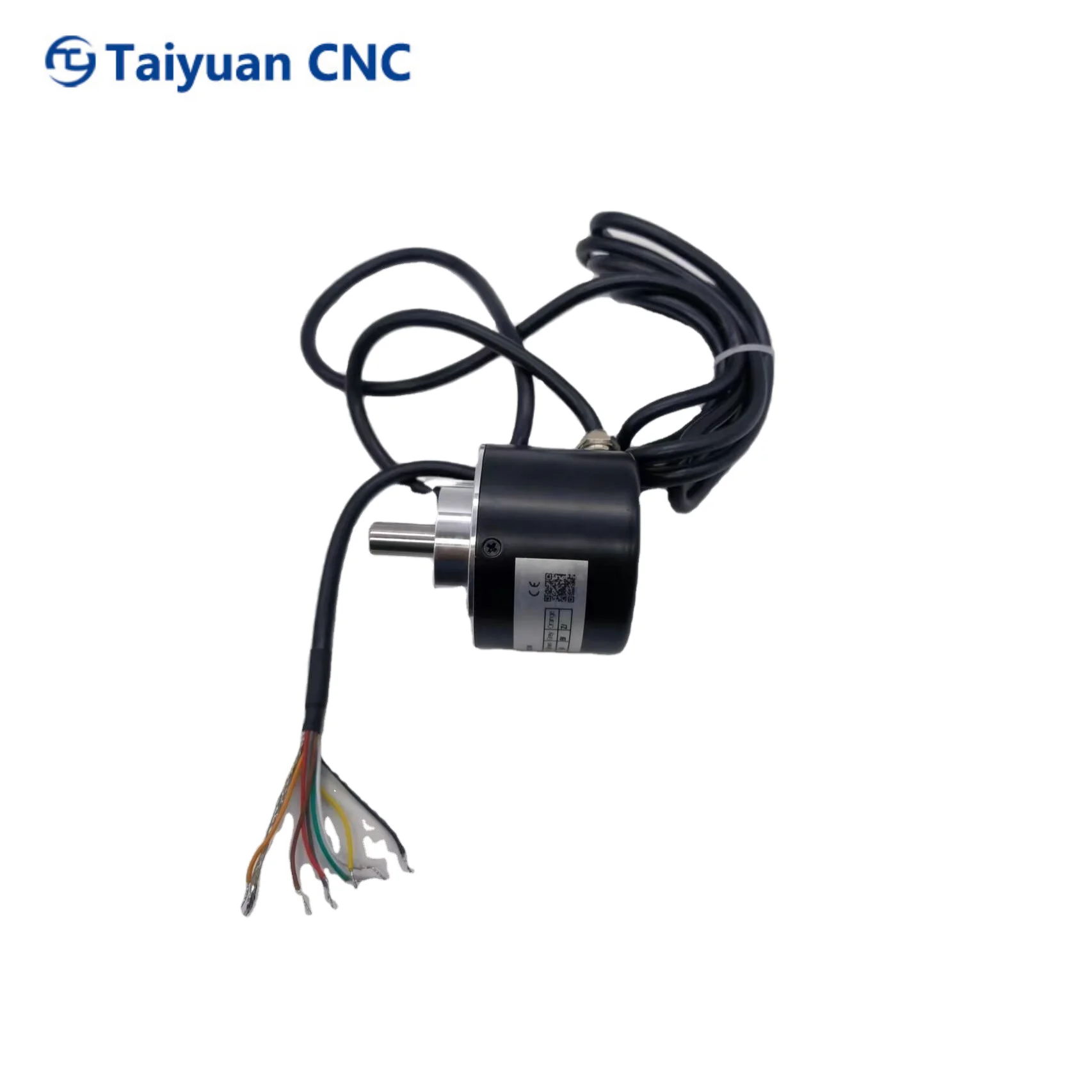

Popular Incremental Optical Rotary Encoder 5 24V 3600 Pulses encoder For CNC Milling Machine CNC Controller Kit
- Category: >>>
- Supplier: Guangzhou Taiyuan Numerical Control Technology Co. Ltd.
Share on (1600748556804):
Product Overview
Description

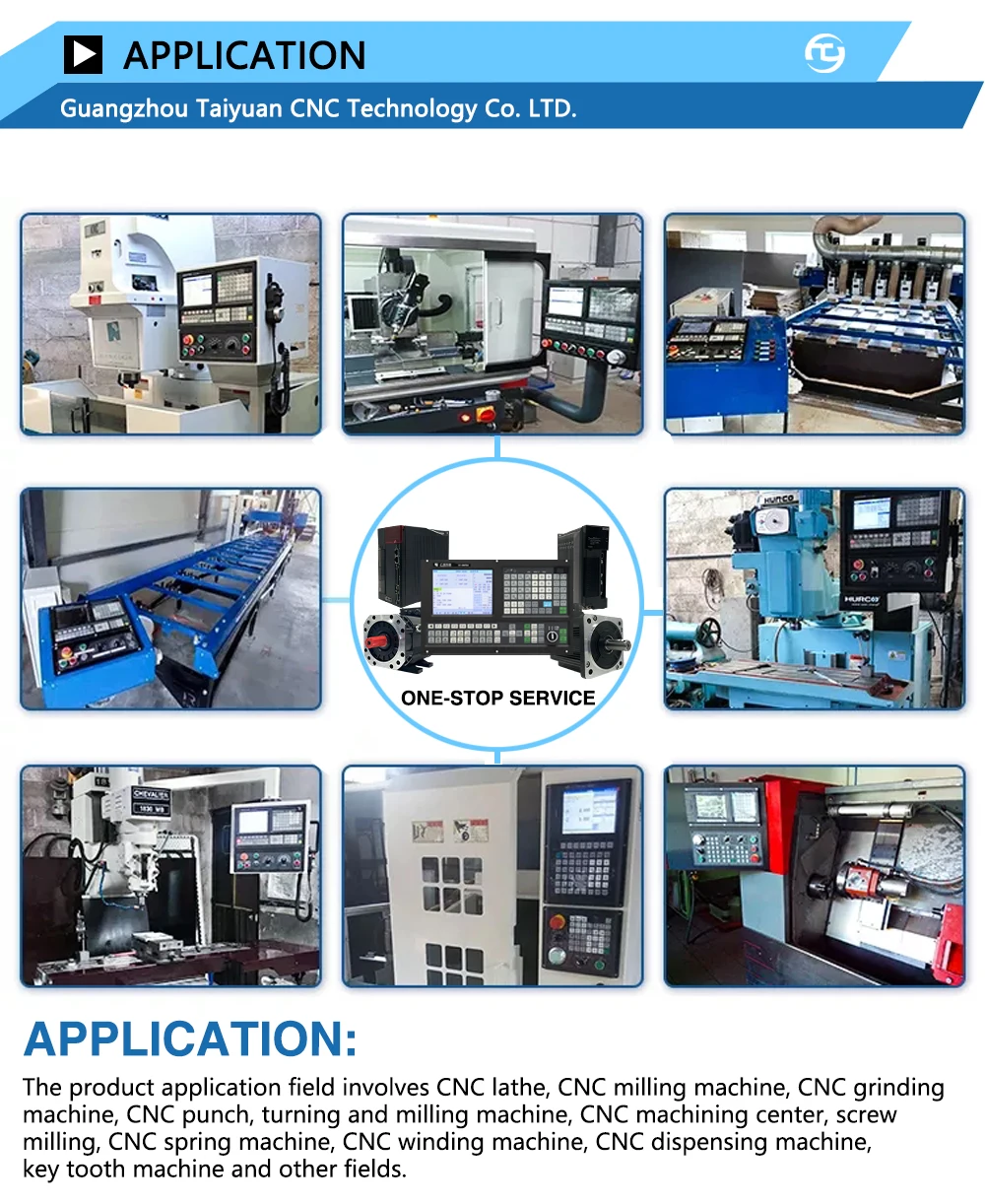

Application：
* Good quality, long life, anti-jamming performance.

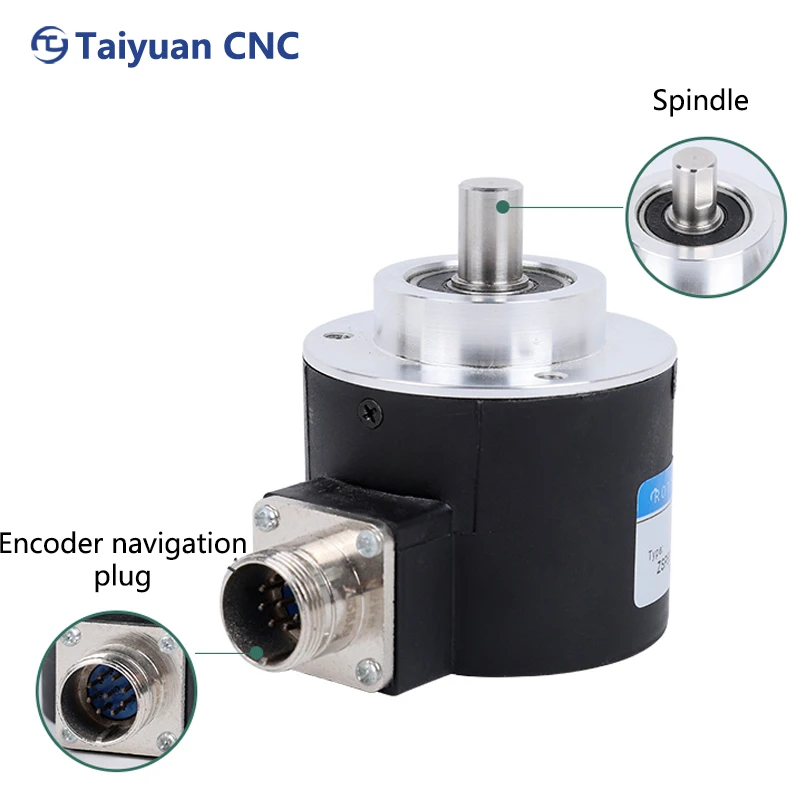

* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* Bearing load heavy, anti-oil and water.
* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* Bearing load heavy, anti-oil and water.
Output circuit | Open-collector output | Voltage output | Push-pull complementary outputs | driver |
Supply voltage | 5~26V | 5~26V | 5±0.25 5~26V | 5±0.25 5~26V |
Current consumption | ≤80mA | ≤80mA | ≤80mA | ≤150mA |
Load current | 40mA | 40mA | 40mA | 60mA |
Output high | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
Output low | MAX 0.4V | MAX 0.4V | MAX 0.8V | MAX 0.4V |
Rise time Tr | MAX 1us | MAX 1us | MAX 1us | MAX 200ns |
Fall time Tf | MAX 1us | MAX 1us | MAX 1us | MAX 200ns |
Highest frequency response | 300kHz | 300kHz | 300kHz | 300kHz |
Max speed r/min | Starting torque | Axis maximum load | Impact | Anti-vibration |
5000 | <0.12Nm | Radial 85N, Axial 50N | 50G/11ms | 10G 10-2000Hz |
Moment inertia | Work Temperature | Storage Temperature | Protection Degree | Weight |
4 x 0.00001kgm² | -30~85ºC | -30~95ºC | IP51 | 600g |
Title goes here.

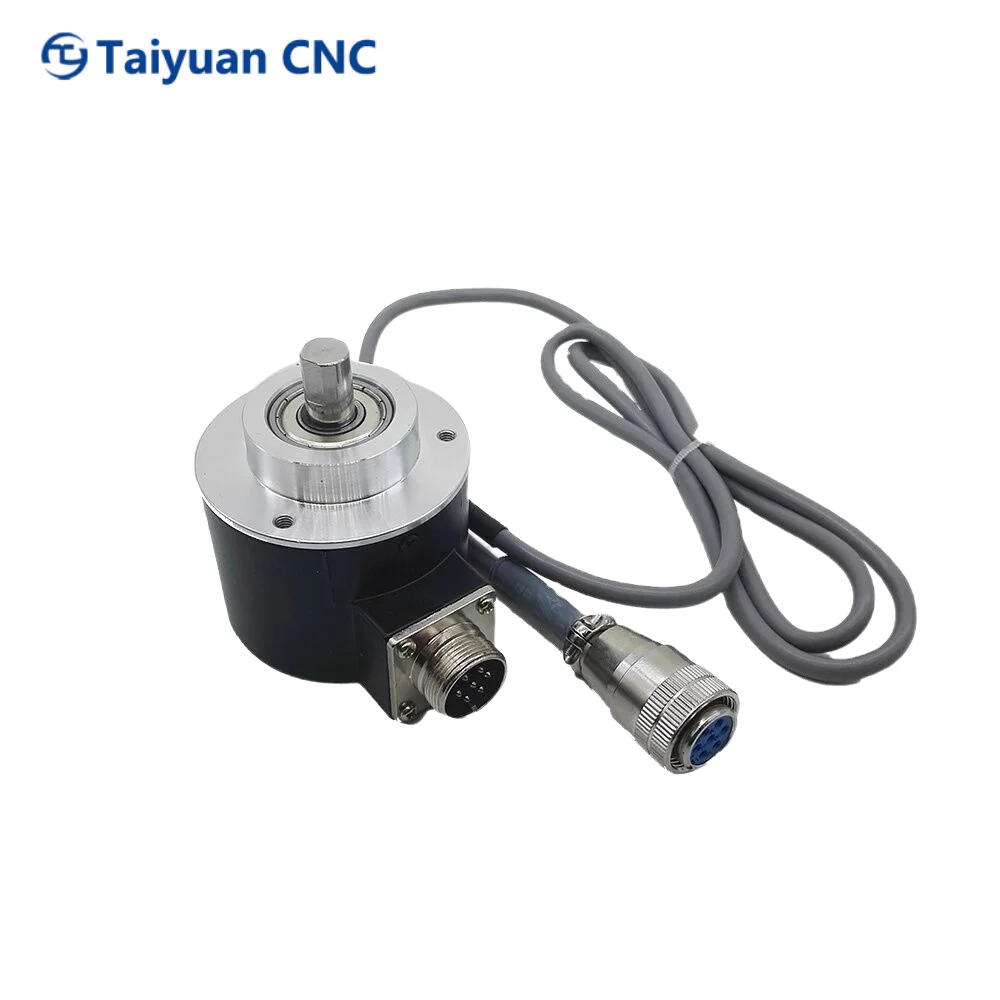

Popular Incremental Optical Rotary Encoder 5-24V 3600 Pulses encoder For CNC Milling Machine CNC Controller Kit
