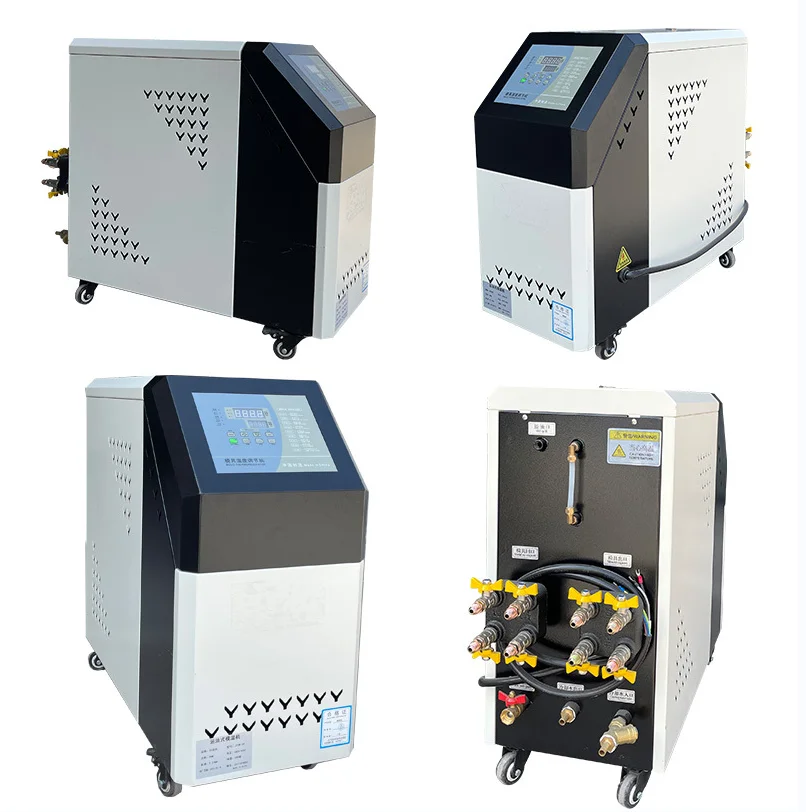

Oil/Water Type Water Heating Mold Temperature Controller Centrifuge Machine For Extrusion Molding Machine
- Category: >>>
- Supplier: Zaozhuang Retain Manufacturing And International Trading Co. Ltd.
Share on (1600748564405):
Product Overview
Description
More than 20 years of Professional Experience !
Specialized in the production of Plastic Crusher , Hopper Dryer, Loader,Vertical Mixer,Industry Chiller,Conveyor Belt and so on-----Plastic Auxiliary Equipment Factory
Production Photos

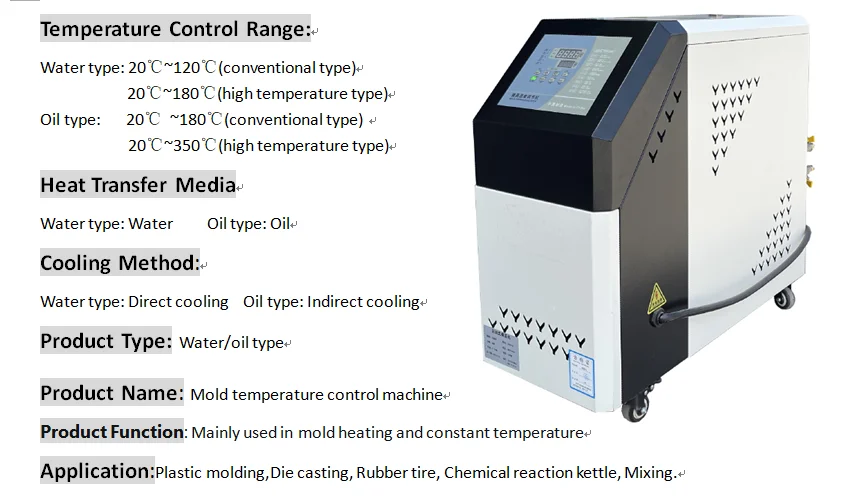

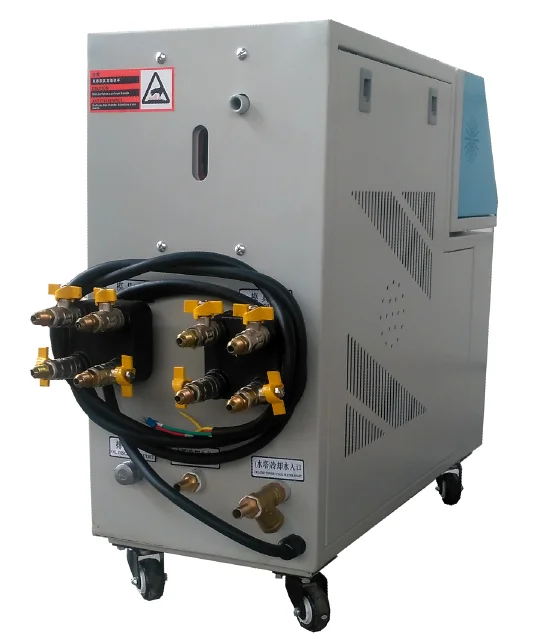

Mold Temperature Control Machine
Production Details
COMPUTER CONTROL SYSTEM
Intelligent microcomputer control system, stable performance, simple operation; Multiple failure and alarm prompts, automatic detection system
CONTACTOR
Using French Schneider contactor, stable performance, long service life.

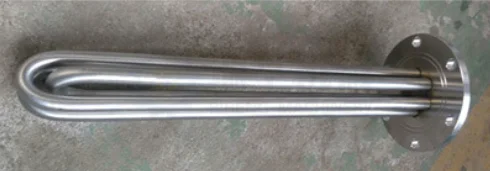

HEATING TUBE
304 stainless steel heating tube, fast heating, long service life.
304 #STAINLESS STEEL

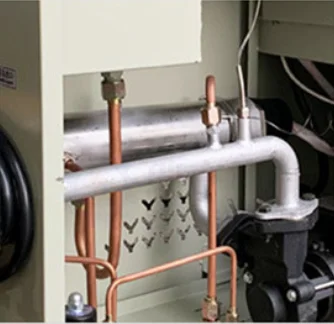

The whole pipeline adopts 304# stainless steel integrated seamless steel pipe, long service life, avoid water leakage/oil leakage and other common problems.
HIGH QUALITY PUMP
Low noise, high temperature and high pressure resistance, stable performance.
PURE COPPER INTERFACE
High temperature resistance, strong corrosion resistance (6KW with 2pcs inlet and 2pcs outlet ;9KW and 12KW with 4pcs inlet and 4pcs outlet)
PRESSURE GAUGE
Brand pressure gauge, scale, number clear, accurate data display.
SOLENOID VALVE
High control precision, low failure rate
Production Parameters
Oil Mold Temperature Controller Parameters | ||||||||||
Model | RTO-06 | RTO-09 | RTO-12 | RTO-18 | RTO-24 | |||||
Control Range(°C) | ±25°C-160°C/ ±25°C-180°C | |||||||||
Temperature Control Accuracy | PID±1°C | |||||||||
Power | AC5 380V 50HZ (Customized) | |||||||||
Heat Transfer Medium | Heat Transfer Fluid | |||||||||
Cooling Method | Indirect Cooling | |||||||||
Heating Capacity(KW) | 6 | 9 | 12 | 24 | 24 | |||||
Pump Power(HP) | 0.5 | 0.5/1 | 1/2 | 2 | 2 | |||||
Pump Flow(L/Min) | 42 | 42/56 | 56/112 | 112 | 112 | |||||
Pump Pressure(KG/CM2) | 1.5 | 1.5/1.8 | 1.8/2 | 2.2 | 2.2 | |||||
Oil Tank Capacity(L) | 8 | 8 | 8 | 35 | 35 | |||||
Alarm | Overheating/Out of Phase/Lock of Oil/Reverse Rotate | |||||||||
Cooling Water Pipe(Inch) | 1/2'' | |||||||||
Circulation of Oil Pipe(Inch) | 3/8''*2'' | 3/8''*3'' | 3/8''*4'' | 3/8''*4'' | 3/8''*4'' | |||||
Dimension(MM) | 680*330*570 | 680*330*570 | 760*390*580 | 910*510*710 | 910*510*710 | |||||
Weight (KGS) | 60 | 75 | 80 | 90 | 160 | |||||
Remark: Color, size, voltage, customer requirements can be customized. | ||||||||||
Water Mold Temperature Controller Parameters | ||||||||||
Model | RTW-06 | RTW-09 | RTW-12 | RTW-24 | RTW-36 | |||||
Control Range(°C) | ±20°C-120°C | |||||||||
Temperature Control Accuracy | PID±1°C | |||||||||
Power | AC5 380V 50HZ 3PHASE (Customized) | |||||||||
Heat Transfer Medium | Water | |||||||||
Cooling Method | Direct Cooling | |||||||||
Heating Capacity(KW) | 6 | 9 | 12 | 24 | 24 | |||||
Pump Power(HP) | 0.5 | 0.5/1 | 1 | 2 | 3 | |||||
Pump Flow(L/Min) | 42 | 42/56 | 56 | 110 | 315 | |||||
Pump Pressure(KG/CM2) | 0.5 | 0.5/1 | 1 | 1.5 | 2.2 | |||||
Cooling Water Pipe(Inch) | 1/2'' | |||||||||
Circulation of Oil Pipe(Inch) | 3/8''*2'' | 3/8''*3'' | 3/8''*4'' | 3/8''*4'' | 3/8''*4'' | |||||
Dimension(MM) | 680*330*570 | 680*330*570 | 760*390*580 | 910*510*710 | 910*510*710 | |||||
Weight (KGS) | 60 | 65 | 160 | 160 | 210 | |||||
Remark: Color, size, voltage, customer requirements can be customized. | ||||||||||
