Sunrain wholesale galvanized steel Evacuated Tube Direct Plug Pre heated Pressure Solar Water Heater
- Category: Solar Water Heaters >>>
- Supplier: Jiangsu,Sunrain,Solar,Energy,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Contact Details:
Regional Director: Mason Xue
Wechat: 159 6134 6352
Mobile/Whatsapp:+86-159 6134 6352
Web: //en.sunrain.comEmail: [email protected]
Regional Director: Mason Xue
Wechat: 159 6134 6352
Mobile/Whatsapp:+86-159 6134 6352
Web: //en.sunrain.comEmail: [email protected]
- good water quality
It use tap water directly, live water but not sedimentary water.
- pressure endurance
The thick of coil is 0.8mm, which can withstand 6-12 bar.
- working automatically
A feed tank on the top, it will supply water automatically. What you need is just to open tap and have a wash.
- no scale, high efficiency
Water in the tank wouldn't be used just to heat the coil, the water in the tank will keep hot and no scale. The vacuum tubes will
be kept clean, and system has a higher efficiency than normal system.
- simple structure
Total 3 valves in whole system only, very simple and safety, maintenance free.
- anti-freezing
Because of all hot water in main tank, the feed tank won't be frozen. It can be working well in -10deg.C.
- good performance in rainy & cloudy days
When tap water comes in and out, it will be just 3deg.C less than water in tank. Viz. if 90deg.C in tank, the outlet water will be
at 87deg.C after exchanging.
If tank water is 90deg.C, and you catch rainy days, no problem, if you use 50L 40deg.C water per day, you can keep getting such
hot water for 15 days!!
The electric heater is only backup, we don't use it anytime practically, except in winter.
- more capacity
Because the water in tank doesn't be used, in fact the circulation is not only water in the tank but also water in the tube. So
for example 300L, actually it has 400L in whole system.
Principle:
The vacuum tubes absorb the sun’s rays and turn the rays into energy, heating the water in the tubes. As the temperature of the
water is rising, The density turns slightly, then the hot water in the tubes floats into the tank, and the cold water in the tank
goes down to the tubes. Keeping natural cycling like this, the water in the tank will be heated.
The vacuum tubes heat the water in the tank, but the users do not use the water in it directly. The cold water comes into the
exchanger from one side and the hot water heated by the exchanger, and then the hot water comes out from the other side for use.
The Solar Water heater tank is a non-pressurized tank, and has an opening to the ambient atmosphere. Solar water heater tank
should always be filled with water to avoid damage caused by dry high temperature working conditions. The stainless steel our use
belong to food grade, and SUS 304 & SUS 316 have better corrosion resistance.
Thermal Performance
The system passes over thermal performance test according to EN12976-2:2006-chapter 5.8, parts of the test conditions are listed below:
The vacuum tubes absorb the sun’s rays and turn the rays into energy, heating the water in the tubes. As the temperature of the
water is rising, The density turns slightly, then the hot water in the tubes floats into the tank, and the cold water in the tank
goes down to the tubes. Keeping natural cycling like this, the water in the tank will be heated.
The vacuum tubes heat the water in the tank, but the users do not use the water in it directly. The cold water comes into the
exchanger from one side and the hot water heated by the exchanger, and then the hot water comes out from the other side for use.
The Solar Water heater tank is a non-pressurized tank, and has an opening to the ambient atmosphere. Solar water heater tank
should always be filled with water to avoid damage caused by dry high temperature working conditions. The stainless steel our use
belong to food grade, and SUS 304 & SUS 316 have better corrosion resistance.
Thermal Performance
The system passes over thermal performance test according to EN12976-2:2006-chapter 5.8, parts of the test conditions are listed below:

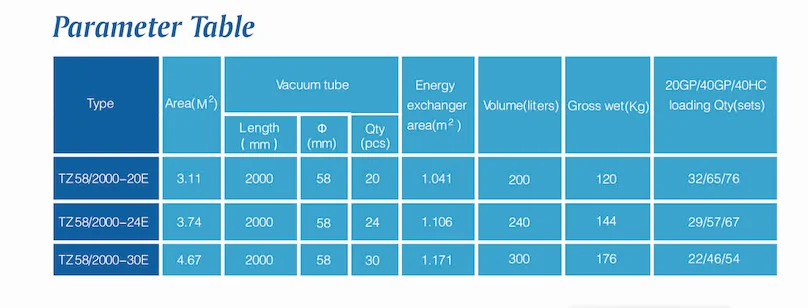

Specification

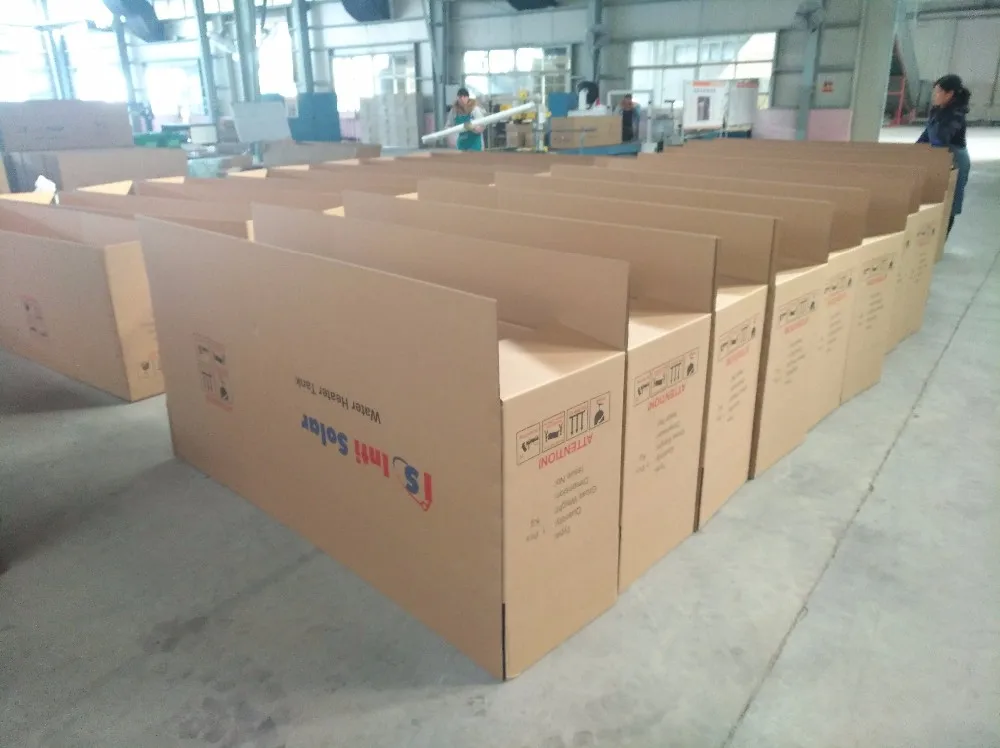

Packing & Delivery
Company Profile
Jiangsu Sunrain Solar Energy Co., Ltd., founded in 1999, which is an innovation-driven renewable energy enterprise, specialized in research and application of solar energy, manufacture and marketing campaign, Devoting to cooperate closely with the global customers and partners, and adhering to the service concept, creatively provide valuable service for customers worldwide in more than 100 countries and regions, foreign trade and export amount ranked No.1 for 6 consecutive years in the solar thermal industry.
China solar thermal industry market inventory occupied 76% in the world total, with strong international competitive strength. As the leading role in the China solar thermal industry, Sunrain has achieved a large number of breakthrough in renewable energy industries: Sunrain became the sole partner for the 2008 Paralympics cheering squad, During the Sichuan earthquake, Sunrain donated the first solar bathroom and anti-seismic Chunlei Primary School, Sunrain set up the first national charitable fund with the financial investment amounting to over ten million in the renewable energy industries-Sunrain Charity Foundation, the products have passed key certifications in more than 30 countries, undertaking a number of National Torch Program projects, the first Chinese enterprise gained the international top award Hottel Prize in solar industry (The world solar energy industry's highest award), and International Quality Golden Star issued by Authority of the Quality Organization B.I.D, meanwhile, founded the first Satellite Business College and Corporate University in the industry, which is to guarantee the corporate talents construction and reserves.
In recent years, Sunrain has maintained a rapid growth consecutively, firstly broke through the production and sale record of one million solar water heaters in the industry in 2009. Meanwhile, Sunrain is speeding up the construction of industrial chains and bases as well as the investment of the five major production bases, Sunrain plans to form the international industry layout completely in three years, which aims at establishing two or three branches abroad, in order to put forward Sunrain internationalization.
Decade of development, Sunrain has continued to lead China solar thermal industry to cast new brilliance. As always to lead the industry, and constantly go beyond.
China solar thermal industry market inventory occupied 76% in the world total, with strong international competitive strength. As the leading role in the China solar thermal industry, Sunrain has achieved a large number of breakthrough in renewable energy industries: Sunrain became the sole partner for the 2008 Paralympics cheering squad, During the Sichuan earthquake, Sunrain donated the first solar bathroom and anti-seismic Chunlei Primary School, Sunrain set up the first national charitable fund with the financial investment amounting to over ten million in the renewable energy industries-Sunrain Charity Foundation, the products have passed key certifications in more than 30 countries, undertaking a number of National Torch Program projects, the first Chinese enterprise gained the international top award Hottel Prize in solar industry (The world solar energy industry's highest award), and International Quality Golden Star issued by Authority of the Quality Organization B.I.D, meanwhile, founded the first Satellite Business College and Corporate University in the industry, which is to guarantee the corporate talents construction and reserves.
In recent years, Sunrain has maintained a rapid growth consecutively, firstly broke through the production and sale record of one million solar water heaters in the industry in 2009. Meanwhile, Sunrain is speeding up the construction of industrial chains and bases as well as the investment of the five major production bases, Sunrain plans to form the international industry layout completely in three years, which aims at establishing two or three branches abroad, in order to put forward Sunrain internationalization.
Decade of development, Sunrain has continued to lead China solar thermal industry to cast new brilliance. As always to lead the industry, and constantly go beyond.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 1997,sell to Domestic Market(72.00%),Western Europe(10.00%),Africa(8.00%),South Asia(5.00%),Oceania(3.00%),South America(2.00%). There are total about 1000+ people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Heat Pump, Solar Water Heater, Solar Collector
4. why should you buy from us not from other suppliers?
the fist solar thermal stock emterprise in China, with advantage equipment and techonogy. with the core value of integrity, responsibility appreciation, our company insists to donating itself to the society's harmony and sustainability.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,French,Russian,Korean
We are based in Jiangsu, China, start from 1997,sell to Domestic Market(72.00%),Western Europe(10.00%),Africa(8.00%),South Asia(5.00%),Oceania(3.00%),South America(2.00%). There are total about 1000+ people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Heat Pump, Solar Water Heater, Solar Collector
4. why should you buy from us not from other suppliers?
the fist solar thermal stock emterprise in China, with advantage equipment and techonogy. with the core value of integrity, responsibility appreciation, our company insists to donating itself to the society's harmony and sustainability.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,French,Russian,Korean
