Sony FCB CV7100/FCB EV7100 Drone UAV Aerial Photograph Field Serach and Rescue HD SDI LVDS IP Output Interface Camera Module
- Category: >>>
- Supplier: Shenzhen SafeEye Technology Co. Ltd.
Share on (1600748732376):
Product Overview
Description
Product Description

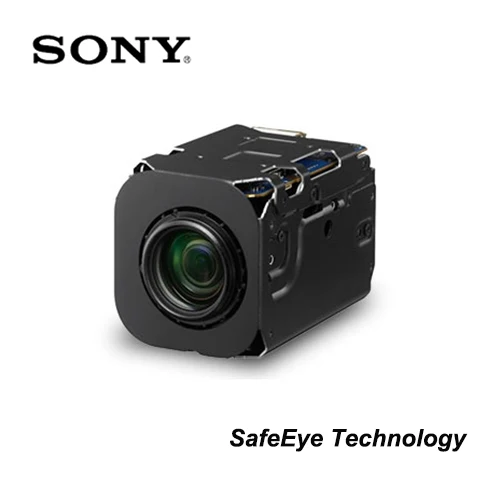

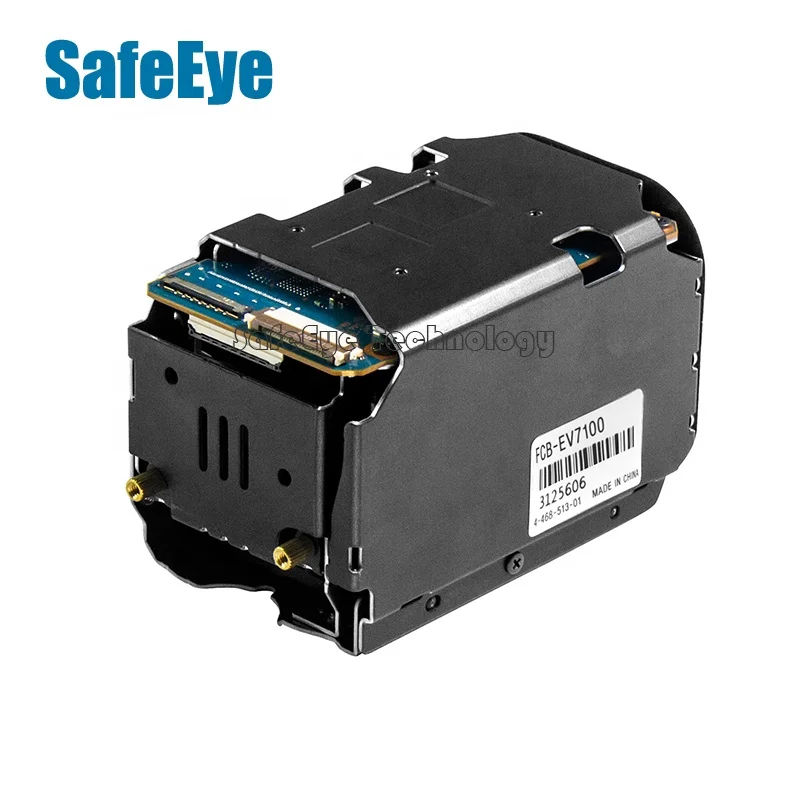

Sony FCB-CV7100/FCB-EV7100 Drone UAV Aerial Photograph Field Serach and Rescue HD SDI LVDS IP Output Interface Camera Module
Note:About FCB-EV and FCB-CV:
They are the same products Sales in China is called CV. Sales outside China is called EV.
There are not any parameter differences.
Customers can select FCB-EV or FCB-CV
Main features
> Wide dynamic range (Wide-D) :
> Visibility Enhancer (VE)
> Defog
> Focus Planedistortion Reduction
> Auto ICR
> Digital Zoom (12x)
> Privacy Zone Masking
> Motion Detection
> Auto ICR
> Color Enhancement
> Slow AE Response
> Image Stabilizer
> StableZoom™
> Picture Effects
> Temperature readout
> Picture Effects
> E-Flip
> Internal synch
> VISCA protocol (CMOS 5 V Level)
Features & Fuctions:
Capture crisp, clear Full HD (1080/60p) images*2
The high-performance 1/2.8-type Exmor™ CMOS image sensor achieves superb Full HD (1920 x 1080) picture quality, even in lowlight environments. Progressive scanning assures smoother pictures with reduced blur – ideal for capturing the detail in moving images.
The high-performance 1/2.8-type Exmor™ CMOS image sensor achieves superb Full HD (1920 x 1080) picture quality, even in lowlight environments. Progressive scanning assures smoother pictures with reduced blur – ideal for capturing the detail in moving images.
10x Optical zoom lens
FCB-EV7100 is equipped with a bright F1.8 maximum aperture 10x optical zoom lens.
StableZoom™
Image stabilizer and optical/digital zoom are combined to enhance picture quality while maintaining the original horizontal angle of view, ensuring no compromise in image size and reduced blurring.
2D/3D Noise Reduction
Advanced noise reduction technology filters noise from the image for clearer results, especially in low light conditions. Noise reduction can be selected from five levels to suit a wide range of operating environments.
Advanced noise reduction technology filters noise from the image for clearer results, especially in low light conditions. Noise reduction can be selected from five levels to suit a wide range of operating environments.
See more clearly with Visibility Enhancer and De-fog
Picture quality is enhanced dynamically and adaptively on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range. There’s also a de-fog feature that allows clearer viewing in foggy or misty scenes.
Wide dynamic range
Wide-D image processing technology gives the ability to see clear detailed images in high-contrast or backlit environments.
Wide-D image processing technology gives the ability to see clear detailed images in high-contrast or backlit environments.
Clear vision round the clock with Day/Night
Benefit from optimized picture quality in changing light conditions – a frequent challenge in round-the-clock security operations. In high sensitivity mode the camera can operate eff ectively in lighting
levels as low as 0.35 lx (ICR on).*5
levels as low as 0.35 lx (ICR on).*5
Auto ICR (Auto IR-cut Filter Removal)
In low light conditions the camera automatically switches from day to night mode, removing the IR-cut fi lter to boost sensitivity for clear pictures in near-darkness.
In low light conditions the camera automatically switches from day to night mode, removing the IR-cut fi lter to boost sensitivity for clear pictures in near-darkness.
Spherical privacy zone masking
Areas of view can be selectively masked for privacy. Masked areas are automatically interlocked with the camera’s pan/tilt/zoom movements.
Areas of view can be selectively masked for privacy. Masked areas are automatically interlocked with the camera’s pan/tilt/zoom movements.
Choice of HD and SD output modes
Video signal outputs are available in a range of HD (digital and analog) and SD formats, reducing integration cost and complexity by avoiding the need for additional analog/digital converters. Video
output modes can be changed ‘on the fly’ during normal operation, without a hardware reboot of the camera.
Video signal outputs are available in a range of HD (digital and analog) and SD formats, reducing integration cost and complexity by avoiding the need for additional analog/digital converters. Video
output modes can be changed ‘on the fly’ during normal operation, without a hardware reboot of the camera.
One-cable connection for simpler integration
A single cable carries HD video signals plus VISCA communication and power supply. Integration flexibility is further supported by both 30-pin micro coaxial (digital output) and 24-pin FFC (analog output) interfaces.
A single cable carries HD video signals plus VISCA communication and power supply. Integration flexibility is further supported by both 30-pin micro coaxial (digital output) and 24-pin FFC (analog output) interfaces.
Wide range of features for versatile operation
Versatile operation is ensured by a wide range of functions and adjustments, including: White Balance modes; Picture effects (E-Flip, Nega Art, Black & White, Mirror Image, Colour Enhancement);
Motion Detection/Alarm; Picture freeze; Temperature readout; Slow AE response; Electronic shutter/slow shutter; Title display/ Camera mode display (English).
Versatile operation is ensured by a wide range of functions and adjustments, including: White Balance modes; Picture effects (E-Flip, Nega Art, Black & White, Mirror Image, Colour Enhancement);
Motion Detection/Alarm; Picture freeze; Temperature readout; Slow AE response; Electronic shutter/slow shutter; Title display/ Camera mode display (English).
Sprcifications:
| FCB-CV7100/FCB-EV7100 | ||||
| Camera | ||||
| Image Sensor | 1/2.8-type Exmor CMOS | |||
| Image Sensor | Approx.2.38 Megapixels | |||
| (Number of effective pixels) | ||||
| Signal System | 1080p/59.94,1080p/50, 1080p/60, 1080p/30, 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 1080i/60, 1080i/30, 720p/59.94, 720p/50, | |||
| 720p/60, 720p/30, 720p/29.97, 720p/25, NTSC*1, PAL*1 | ||||
| Minimum illumination (50%) | High Sensitivity Mode | Color: 0.35 lx (F1.8, AGC on, 1/30 s) | ||
| Normal Mode | Color: 1.4 lx (F1.8, AGC on, 1/30 s) | |||
| S/N Ratio | More than 50 dB | |||
| Gain | Auto/Manual 0 to 43.5 dB | |||
| (0 to 28 steps +2 step/total15 steps) | ||||
| Max. Gain Limit | ||||
| 9.3 to 43.5 dB | ||||
| (6 to 28 steps +2 step/total 12 steps) | ||||
| Shutter Speed | 1/1 s to 1/10,000 s, 22 steps | |||
| Sync System | Internal | |||
| Exposure Control | Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE, Spot Exposure | |||
| Backlight Compensation | Yes | |||
| Aperture Control | 16 steps | |||
| White Balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual | |||
| Lens | 10X optical zoom f = 3.8 mm (wide) to 38 mm (tele) F1.8 to F3.4 | |||
| Digital Zoom | 12x (120x with optical zoom) | |||
| Focusing System | Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on | |||
| Horizontal viewing angle | 1080p mode | 67.0° (wide end) to 7.6° (tele end) | ||
| 720p mode | 67.0° (wide end) to 7.6° (tele end) | |||
| SD | 50.3° (wide end) to 5.7° (tele end) | |||
| Minimum Object Distance | 10 mm (wide end) to 800 mm (tele end) (Default: 320 mm) | |||
| Camera Features | ||||
| Auto ICR | Yes | |||
| Wide-D*2 | Yes | |||
| Visibility Enhancer | Yes | |||
| De-fog | Yes | |||
| HLC | Yes | |||
| Noise Reduction | Yes (6 steps) | |||
| Image Stabilization | No | |||
| StableZoom | Yes | |||
| Spherical Privacy Zone Masking | Yes | |||
| Motion detection | Yes | |||
| Alarm | Yes | |||
| Slow AE response | Yes | |||
| Picture Effects | E-Flip, Nega Art, Black & White, Mirror image, Color enhancement | |||
| Picture Freeze | Yes | |||
| Slow Shutter | Yes | |||
| Temperature Readout | Yes | |||
| Title Display | Yes | |||
| Camera Mode Display | Yes | |||
| Key Switch Control | No | |||
| Camera Operation Switch | No | |||
| Interface | ||||
| Video Output | HD | Analog: Component (Y/Pb/Pr) | ||
| Digital: Y/Cb/Cr 4:2:2 via LVDS | ||||
| (Signal format conforms to SMPTE 274/SMPTE 296.) | ||||
| SD | VBS | |||
| Camera Control Interface | VISCA (CMOS 5 V level) | |||
| Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps, Stop bit: 1 bit | ||||
| General | ||||
| Power Requirements | 6.0 V to 12.0 V DC | |||
| Power Consumption | 3.4 W (zoom/focus inactive) | |||
| 3.7 W (zoom/focus active) | ||||
| Operating Temperature | -5°C to +60°C (23°F to 140°F) | |||
| Storage Temperature | -20°C to +60°C (-4°F to 140 °F) | |||
| Operating Humidity | 20% to 80%, Absolute humidity: 36 g/m3 | |||
| Storage Humidity | 20% to 95%, Absolute humidity: 36 g/m3 | |||
| Dimensions (W x H x D) | 45.6 x 48.8 x 78.0 mm | |||
| (1 13/16 x 115/16 x 3 1/8 inches) | ||||
| Weight | 150 g (7.4 oz) | |||
