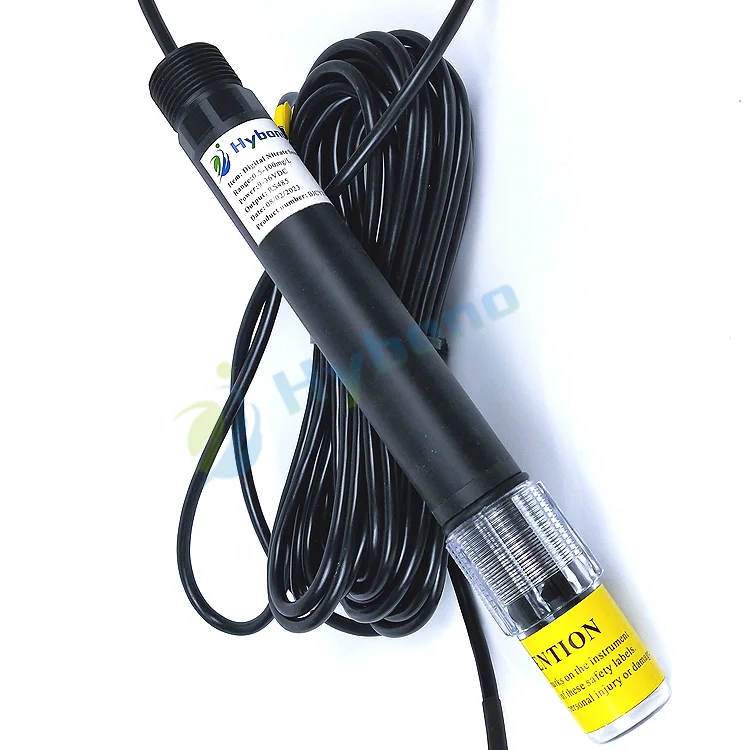

RS485 Online water ammonia analyzer meter water hardness sensor nitrate ammonium Ion Sensor / Probe
- Category: >>>
- Supplier: Shaanxi Hybono Electronic Technology Co. Ltd.
Share on (1600749006414):
Product Overview
Description
Product Description
Product introduction

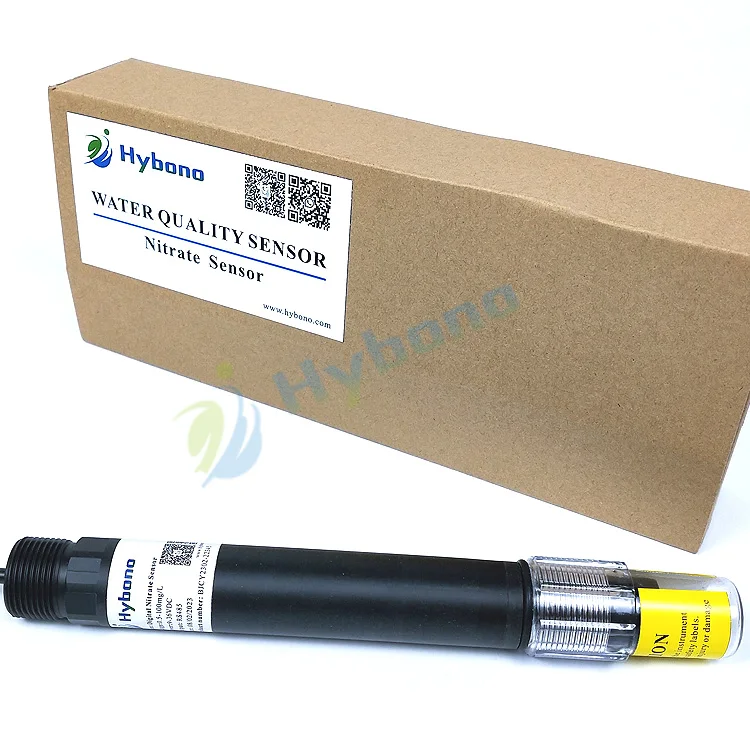

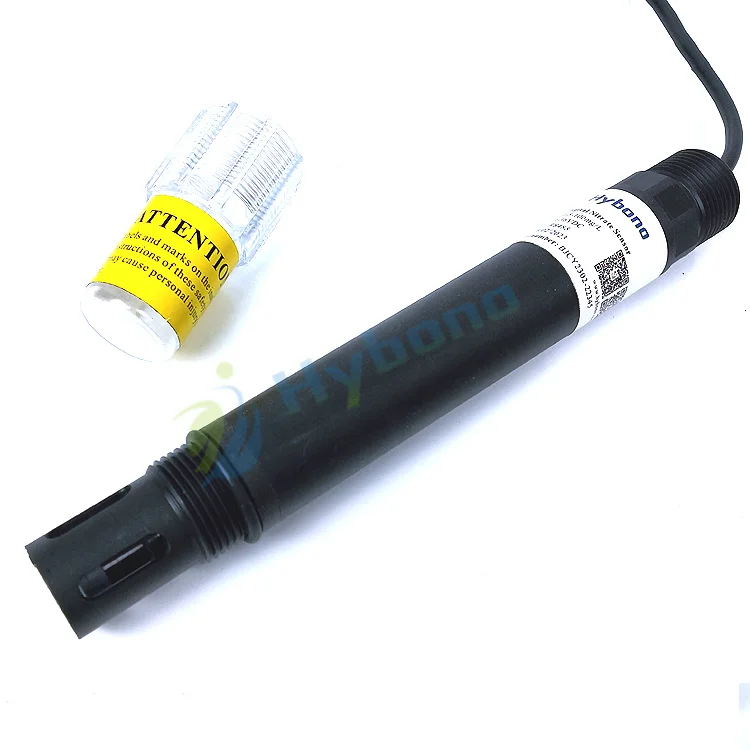

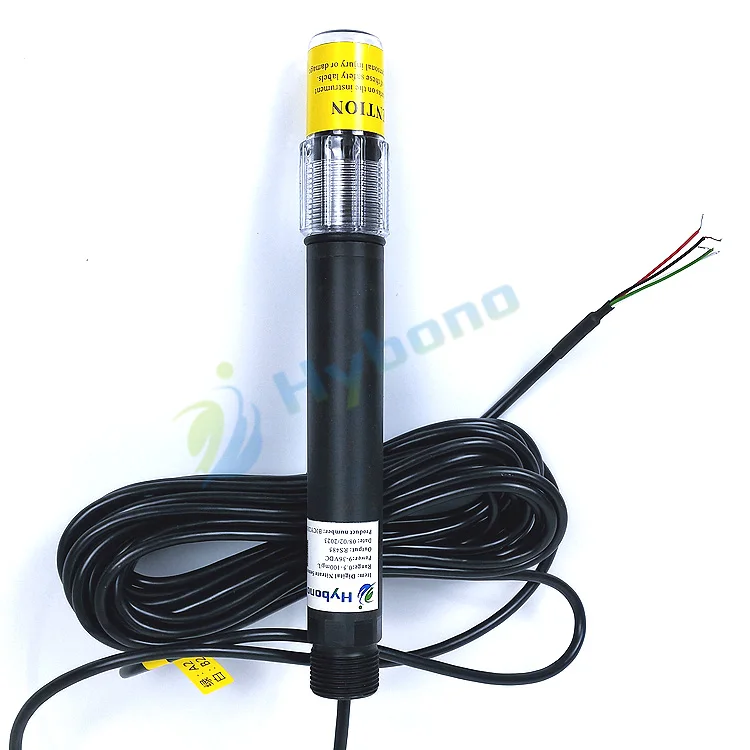

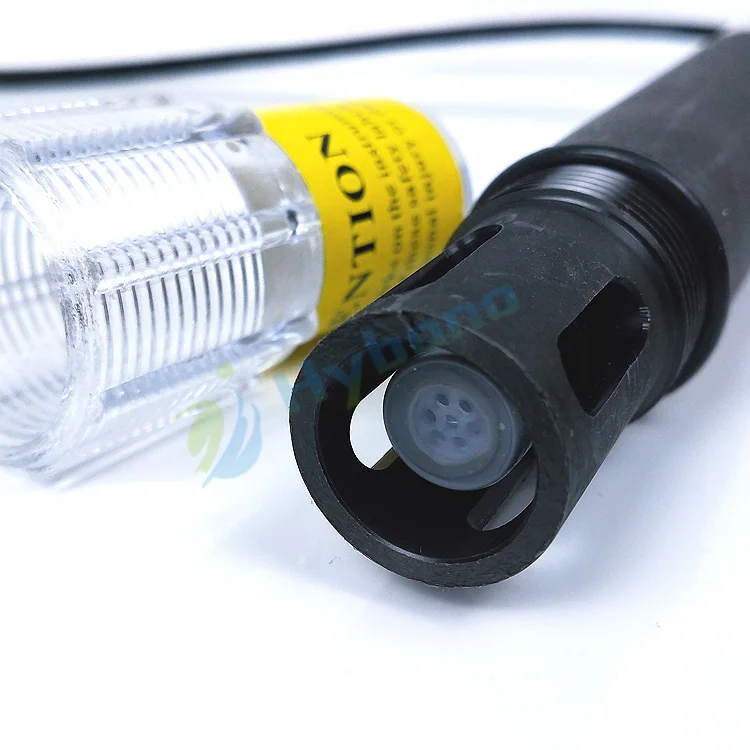

HY-6710AD is a basic type of digital nitrate sensor for water quality monitoring; Using industrial online electrode, PVC film nitrate ion selective electrode produced, selective testing of nitrate ion content in water, fast response, accurate measurement. Built-in temperature sensor, automatic temperature compensation, suitable for online long-term monitoring environment.
Product advantages
1. Digital sensor, direct output OF RS-485 digital signal, MODBUS/RTU support
2. Built-in temperature sensor, automatic temperature compensation
3. 3/4 "NPT upper and lower mounting thread design for easy installation
4. Low power consumption of sensor, anti-interference design of internal circuit
Specification
Parameter | HY6720AD |
Measured Range | 0-1000mg/L(Customizable) |
Principle | lon selective sensor |
Temp Range | 0-50°C |
Output Signal | RS485 or 4-20mA |
Pressure Range | 0-0.1MPa |
Temperature Sensor | NTC10K |
Housing Materials | PP+PVC |
Membrane Resistance | <500MQ |
Calibration | Standard liquid calibration |
Accuracy | 2.50% |
resolution | 0.1mg/L |

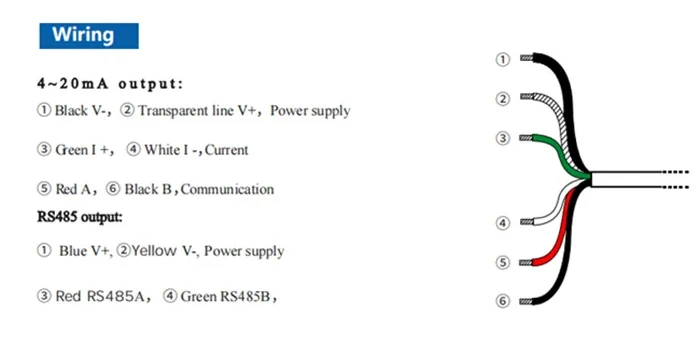

Connection method | 4 or 6 core cable |
Threaded connection | NPT3/4” |
Cable Length | 1Om or Customize |
Wire Connection | Pin, BNC or Customize |

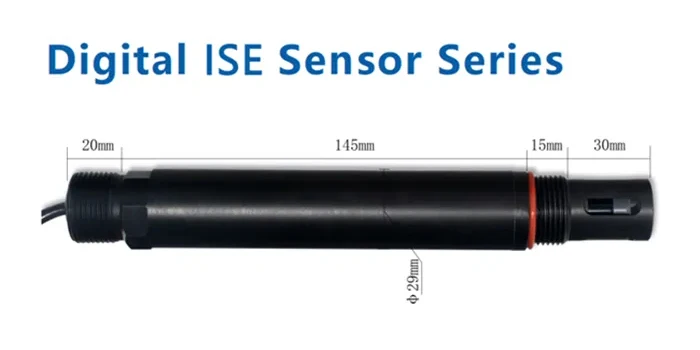

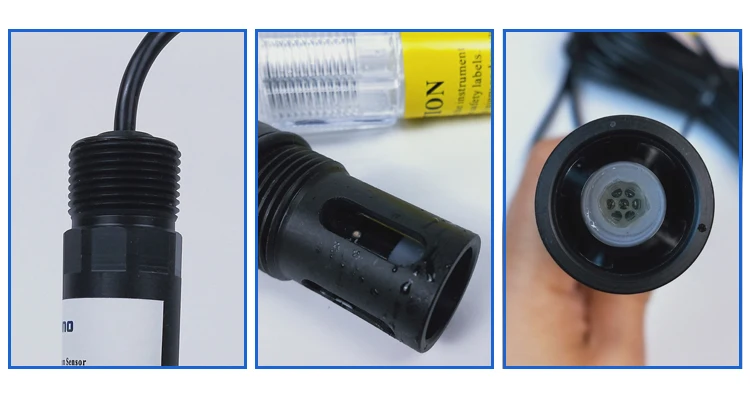

Detail Display

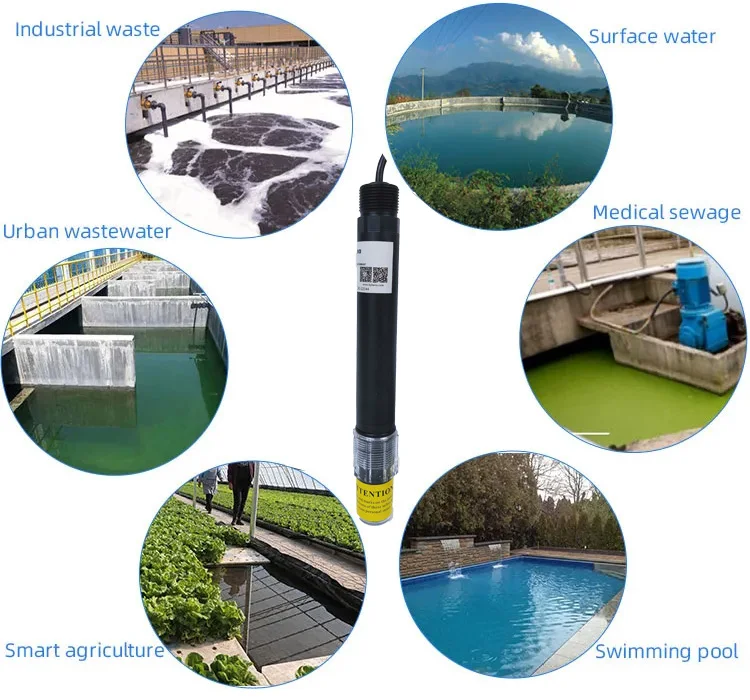

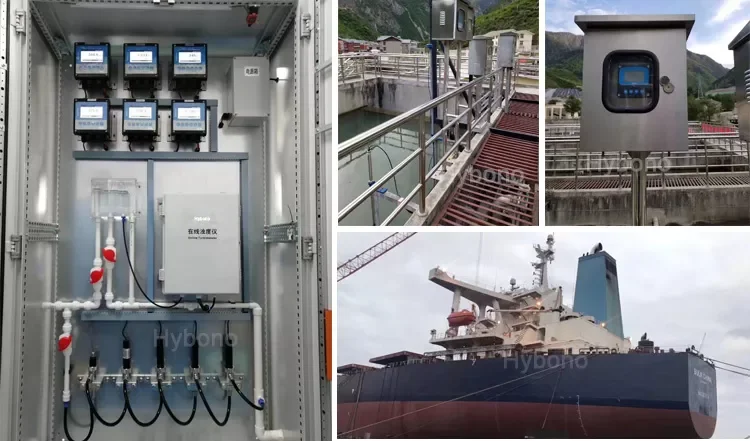

Application scope and customer cases

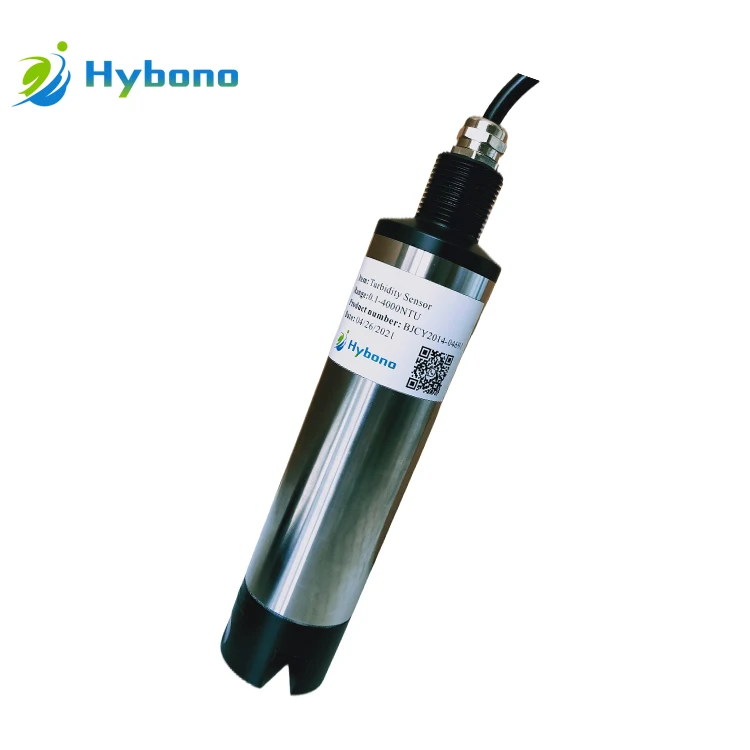

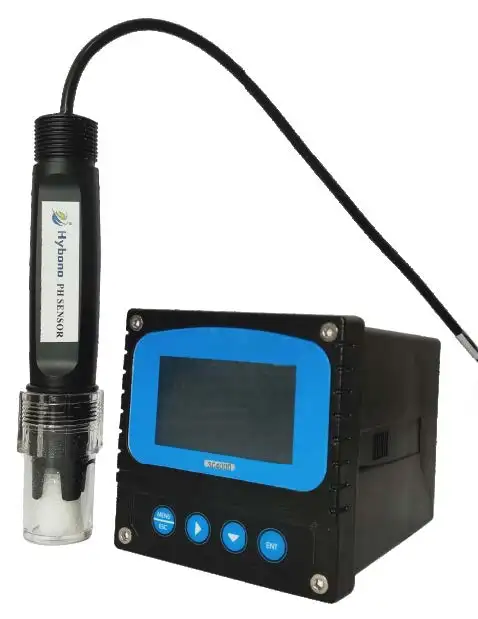

Related products
Packing & Delivery
Why Choose Us
Company profile
Headquartered in xian, China, Hybono Technologies designs and manufactures water quality monitoring equipment. Combining optical sensing and mobile internet technologies, Hybono brings innovative and cost competitive solutions to global water quality monitoring market. Hybono provides smart dissolved oxygen sensors based on state of art luminescent lifetime technologies. With different configurations intended for both field and laboratory uses, our products are ideal for measuring dissolved oxygen in wastewater, drinking water, aquaculture and general water quality applications.
Hybono focuses on smart sensor development with complete product offerings include turbidity, pH, conductivity, multi-parameter probes and more. Our smart meters and online controllers support wireless communications such as Bluetooth, Zigbee and GPRS. Together with cloud data services, we bring innovative IoT (Internet of Things) solutions to water quality monitoring market.
Hybono in strict accordance with the ISO9001 standard management of product development and production. Since its establishment, it has applied for more than 30 soft books and patents. We are based on technological innovation, to "quality first, technological innovation, customer satisfaction" is our principle, adhere to the development of reliable sensors, to provide customers with high quality services.
Hybono focuses on smart sensor development with complete product offerings include turbidity, pH, conductivity, multi-parameter probes and more. Our smart meters and online controllers support wireless communications such as Bluetooth, Zigbee and GPRS. Together with cloud data services, we bring innovative IoT (Internet of Things) solutions to water quality monitoring market.
Hybono in strict accordance with the ISO9001 standard management of product development and production. Since its establishment, it has applied for more than 30 soft books and patents. We are based on technological innovation, to "quality first, technological innovation, customer satisfaction" is our principle, adhere to the development of reliable sensors, to provide customers with high quality services.
FAQ
Q: How can I get the quotation?
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of the sensor?
A: This product adopts high-sensitivity gas detection probe,stable signal, high precision, fast response and long service life. It has the characteristics of wide measuring range, good linearity, convenient use, easy installation and long transmission distance.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What is the output signal?
A: A: Multi-parameter sensors can output a variety of signals. Wired output signals include RS485 signals and 0-5V/0-10V voltage output and 4-20mA current signals; wireless outputs include LoRa, WIFI, GPRS, 4G, NB-lOT, LoRa and LoRaWAN.
Q: Can you supply the matched server and software?
A: Yes, we can supply the matched cloud server and software with our wireless modules and you can see the real time data in software in the PC end and we can also have the matched data logger to store the data in excel type.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivery in 7-10 working days after receiving your payment. But it depends on your quantity.
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of the sensor?
A: This product adopts high-sensitivity gas detection probe,stable signal, high precision, fast response and long service life. It has the characteristics of wide measuring range, good linearity, convenient use, easy installation and long transmission distance.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What is the output signal?
A: A: Multi-parameter sensors can output a variety of signals. Wired output signals include RS485 signals and 0-5V/0-10V voltage output and 4-20mA current signals; wireless outputs include LoRa, WIFI, GPRS, 4G, NB-lOT, LoRa and LoRaWAN.
Q: Can you supply the matched server and software?
A: Yes, we can supply the matched cloud server and software with our wireless modules and you can see the real time data in software in the PC end and we can also have the matched data logger to store the data in excel type.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivery in 7-10 working days after receiving your payment. But it depends on your quantity.
Q: What are your terms of payment?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally.
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally.
