Заводская поставка, сварная габионная коробка, Подпорная Стена, сварная габионная стена
- Category: >>>
- Supplier: Hebei Baidi Wire Mesh Products Co. Ltd.
Share on (1600749111159):
Product Overview
Description
Applications for Gabion Baskets
Gabion baskets are used in many situations, including the stabilisation of earth movement and erosion, river control, reservoirs,

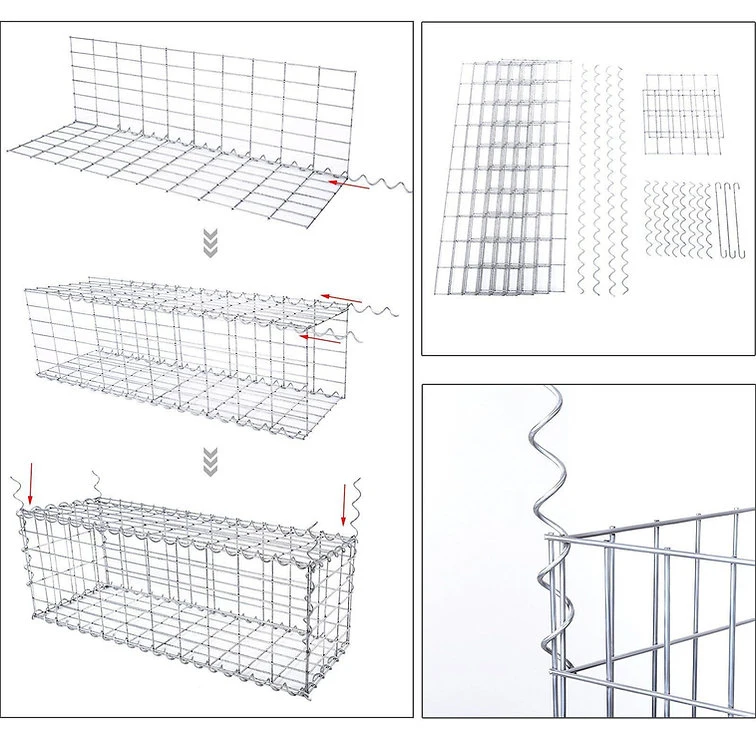

canal refurbishment, landscaping and retaining walls. Welded mesh gabions are faster to erect and do not need tensioning. This
allows them to keep their shape, to be free from bulges and depressions and fit easily against the wall. It is possible to cut
holes in them if needed to pass pipes through and welded gabion baskets can also be machine filled.
Gabion Wire Baskets
We also sell gabion baskets to the public for bespoke or small projects. Gabions can be manufactured in welded mesh or woven wire
and custom sizes are available.
Leading China Gabion Suppliers
Leading Chna Gabion Suppliers
As a UK gabion manufacturer & gabion supplier, we won't be beaten on price. Our welded mesh panels are made from the highest
quality Grade A Galfan gabion wire. Even though there are now many poor weld strength and lightly coated imported gabion baskets
now on the market, we will beat any like for like gabion prices. In doing so, our superior Galfan gabion baskets are available to
those looking to buy cheap gabion baskets, but with no compromise on quality.
As a UK gabion manufacturer & gabion supplier, we won't be beaten on price. Our welded mesh panels are made from the highest
quality Grade A Galfan gabion wire. Even though there are now many poor weld strength and lightly coated imported gabion baskets
now on the market, we will beat any like for like gabion prices. In doing so, our superior Galfan gabion baskets are available to
those looking to buy cheap gabion baskets, but with no compromise on quality.
Customized Gabion Baskets
Customized Gabion Baskets

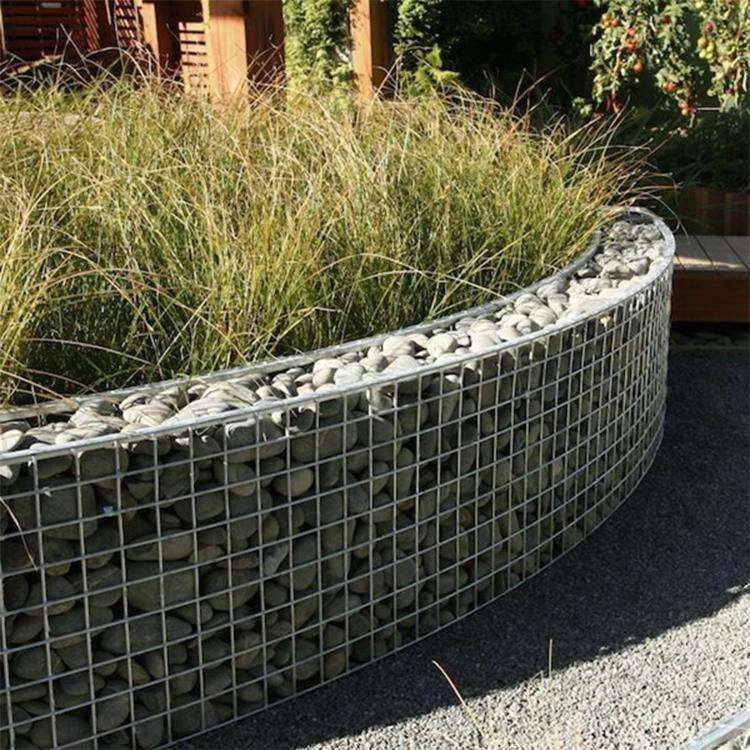

Gabions are customizable and you can sit them within each other to give a curved effect for home garden use, such as this example

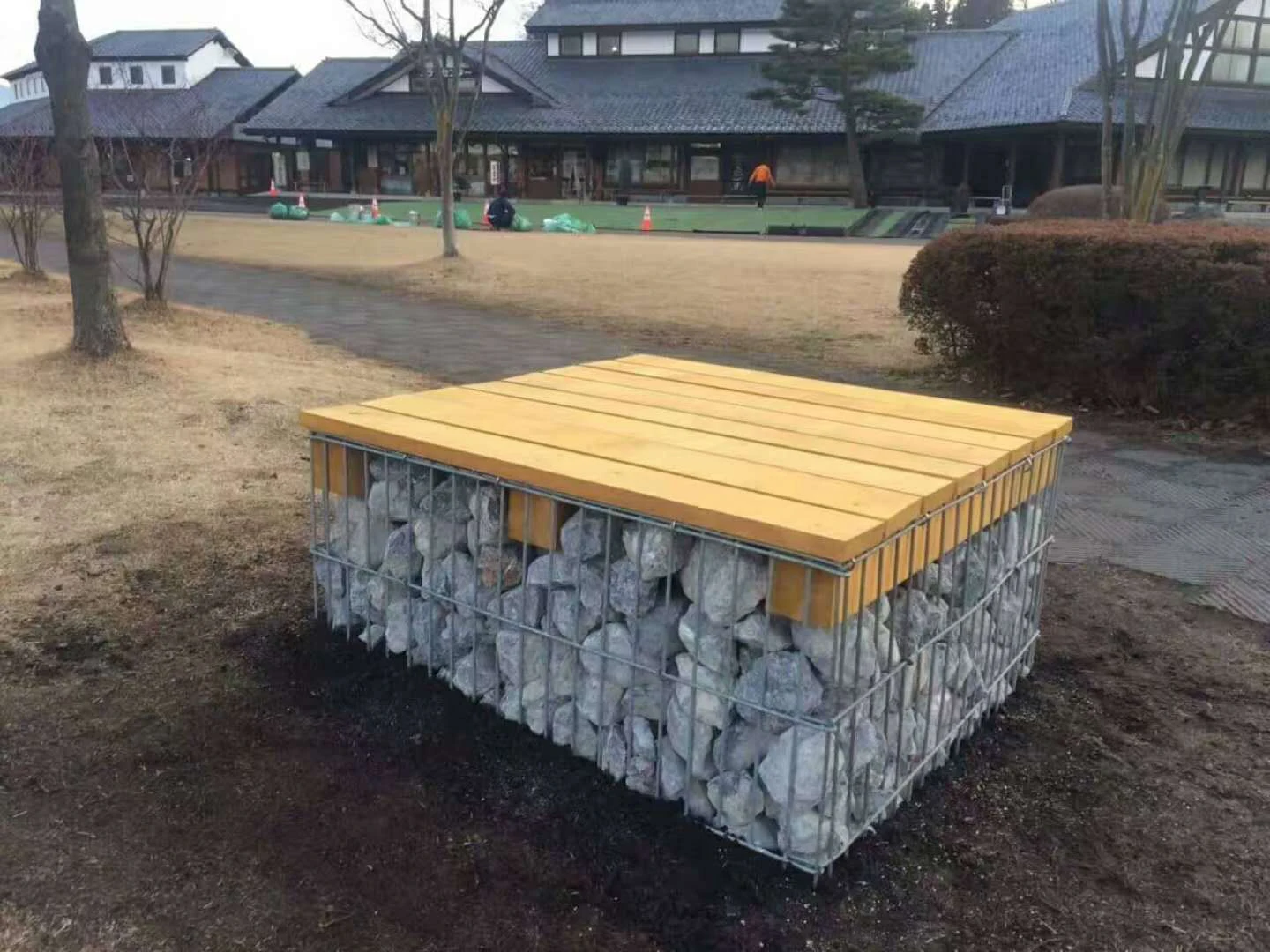

from the Chelsea Flower Show. Gabions can be planted in to soften edges, or if used for seating areas, slabs can be cut and placed
on top of the wall to make a striking feature. When used for landscaping purposes, their versatility is limited only by
imagination. For example, wine bottles have been used as an infill, or a recent trend is to half fill with stones and half fill
with timber logs (please note this kind of fill is only suitable for decorative and not structural purposes).
Gabions are customizable and you can sit them within each other to give a curved effect for home garden use, such as this example
from the Chelsea Flower Show. Gabions can be planted in to soften edges, or if used for seating areas, slabs can be cut and placed
on top of the wall to make a striking feature. When used for landscaping purposes, their versatility is limited only by
imagination. For example, wine bottles have been used as an infill, or a recent trend is to half fill with stones and half fill
with timber logs (please note this kind of fill is only suitable for decorative and not structural purposes).

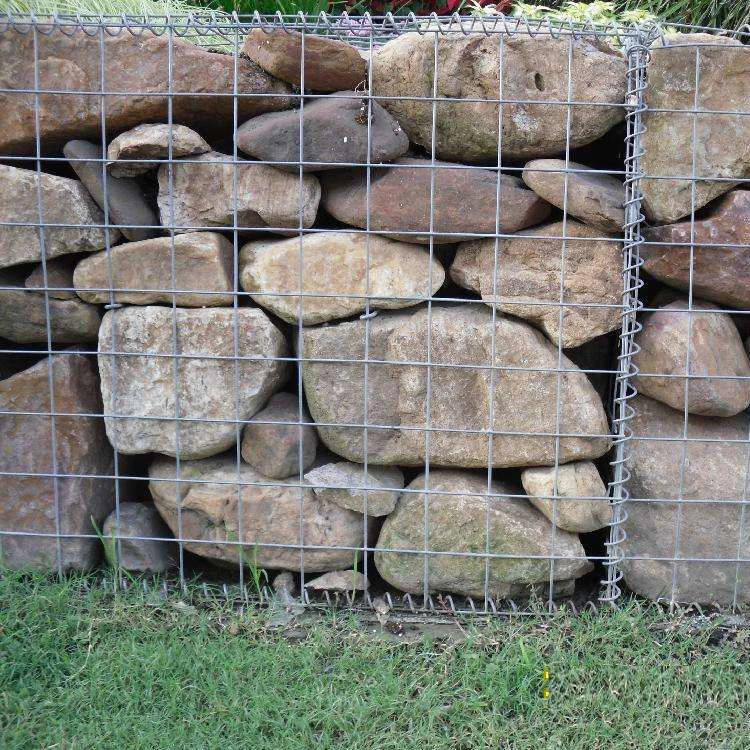

Custom Gabion Walls
Fine Mesh Metals can insert a partition at the front of the gabion baskets so that expensive stone can be used at the front,
whilst the rest of the gabion can be filled with lower quality aggregate.

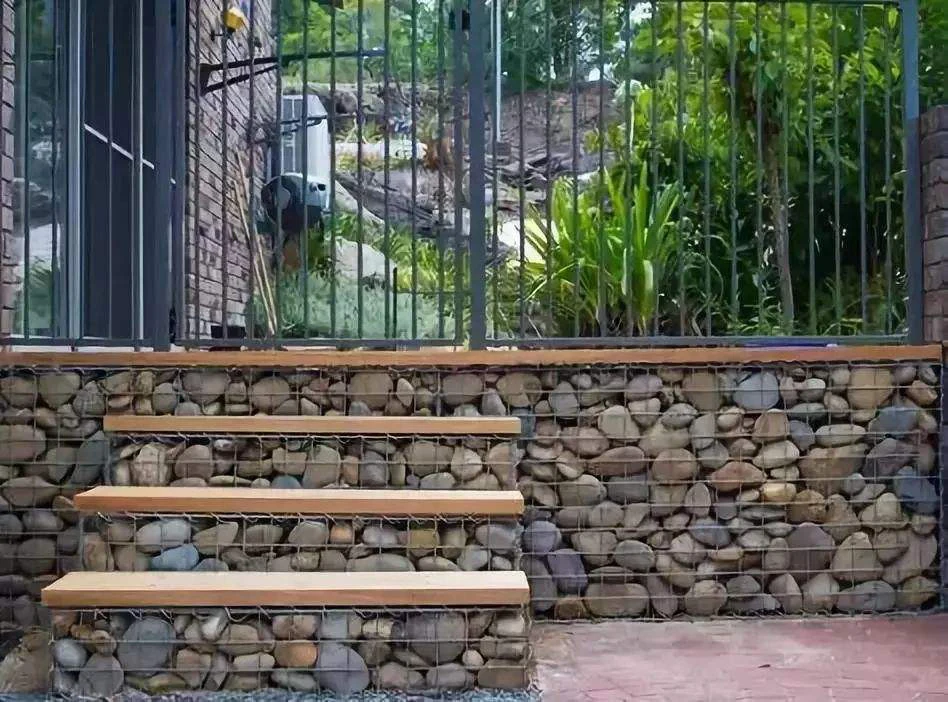

We can also offer bespoke gabions for specific designs, from curves to steps.
An example of a domestic gabion baskets project is shown below. In this case, over the course of a weekend, a family dramatically
improved their back garden, clearing away an old fence and installing a smart gabion wall. Gabion baskets are easy enough to
install that no experience is necessary to get a good result. For larger projects, We are happy to point you in the
right direct of trusted gabion wall installers to help.

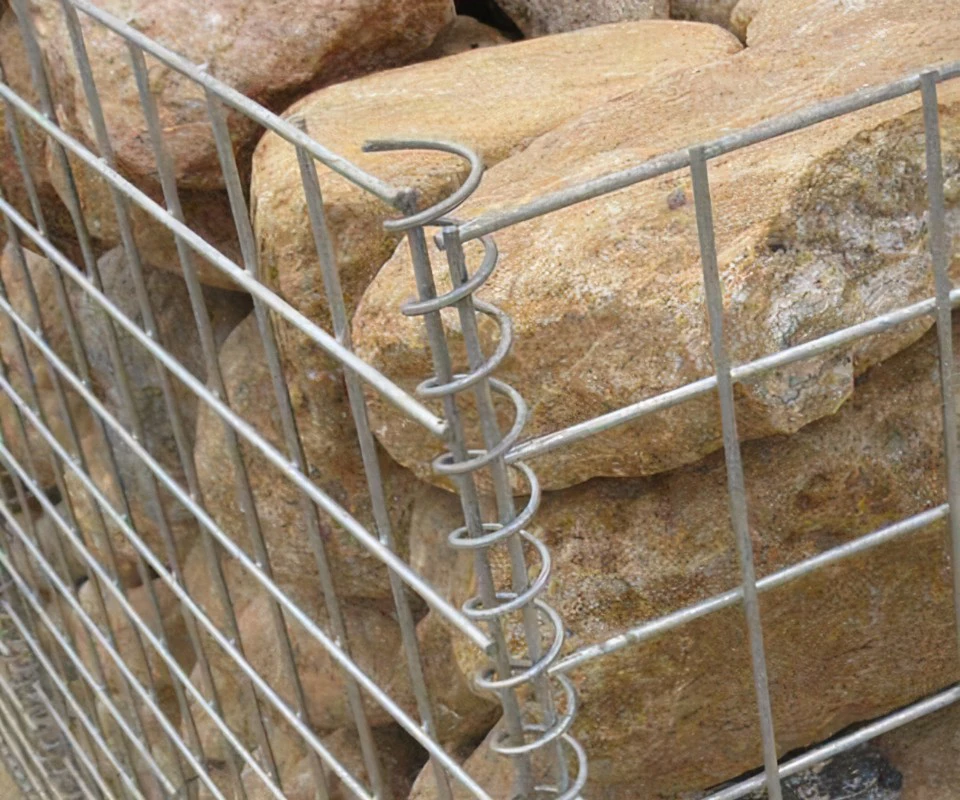

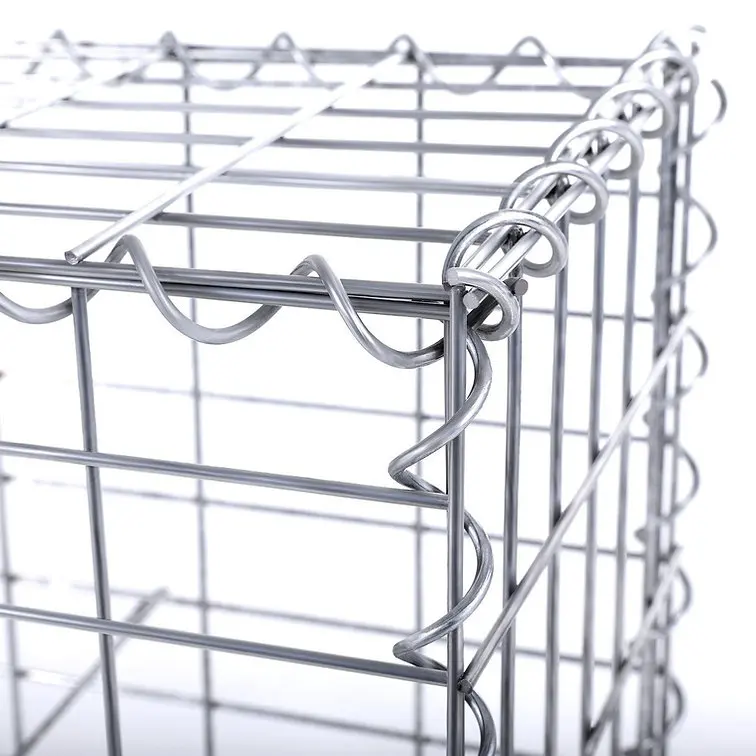

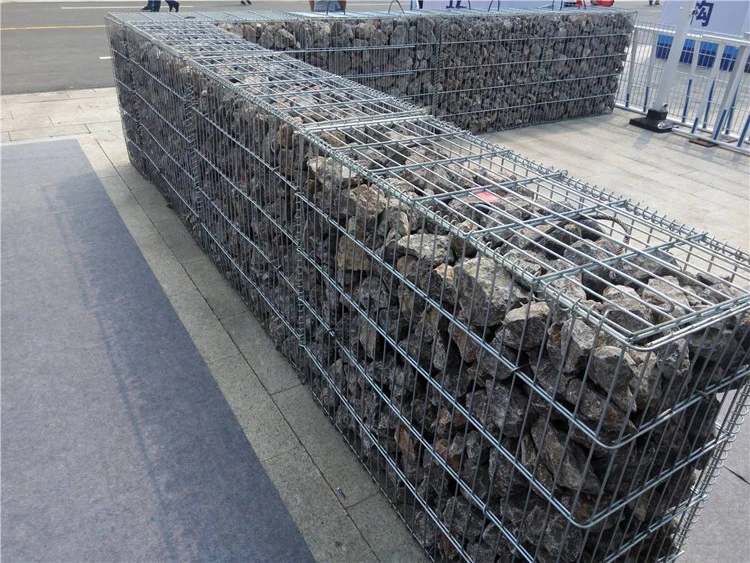

Welded Gabion Mesh Baskets
Welded mesh gabions are manufactured from Galfan Wire or triple life coated. Galfan is a zinc-aluminium alloy coating which
delivers corrosion protection compared with standard zinc coating. We supply a range of gabion mesh products, with varied finishes
for each scenario.
Galfan Gabion Baskets
Galfan Gabion Baskets
3" x 3" (76.2mm x 76.2mm) x 3, 4 or 5mm Galfan coated (95% Zinc 5% Aluminium for up to 4 times the life of a galvanised finish)
welded mesh Gabion baskets wire as per EN 10218-2. All mesh panels used to produce our baskets are European sourced and conform to
EN10244-2 with a tensile range of 540-770N/mm2, steel grade 0.10% Carbon max, Weld sheer strength minimum 75% of the tensile
strength of the wire.
3" x 3" (76.2mm x 76.2mm) x 3, 4 or 5mm Galfan coated (95% Zinc 5% Aluminium for up to 4 times the life of a galvanised finish)
welded mesh Gabion baskets wire as per EN 10218-2. All mesh panels used to produce our baskets are European sourced and conform to
EN10244-2 with a tensile range of 540-770N/mm2, steel grade 0.10% Carbon max, Weld sheer strength minimum 75% of the tensile
strength of the wire.
Green Nature Gabion Baskets
We also supply gabion baskets in the same specification as the above but in Green Nature coated. Full specification 3” x 3”
(76.2mm x 76.2mm) x 2.77/3.22mm 4life “4 times the life of a galvanized finish", then Nature coated welded mesh. Nature coated to
an overall diameter or 3.22mm, average coating thickness is no less than 0.25mm, Nature" coating is based on PE and is superior to
PVC in UV resistance or behaviour in cold temperatures. Main advantage is the environmental aspects including storage, use and
recycling. Apart from that "Nature" is comparable to PVC. All mesh panels used to produce our baskets are European sourced from a
European supplier IS0 9001, ISO4001, OHSAS 18001 registered and conform to EN10244-2 with a tensile range of 540-770N/mm2, steel
grade 0.10% Carbon max, Weld sheer strength minimum 75% of the tensile strength of the wire.

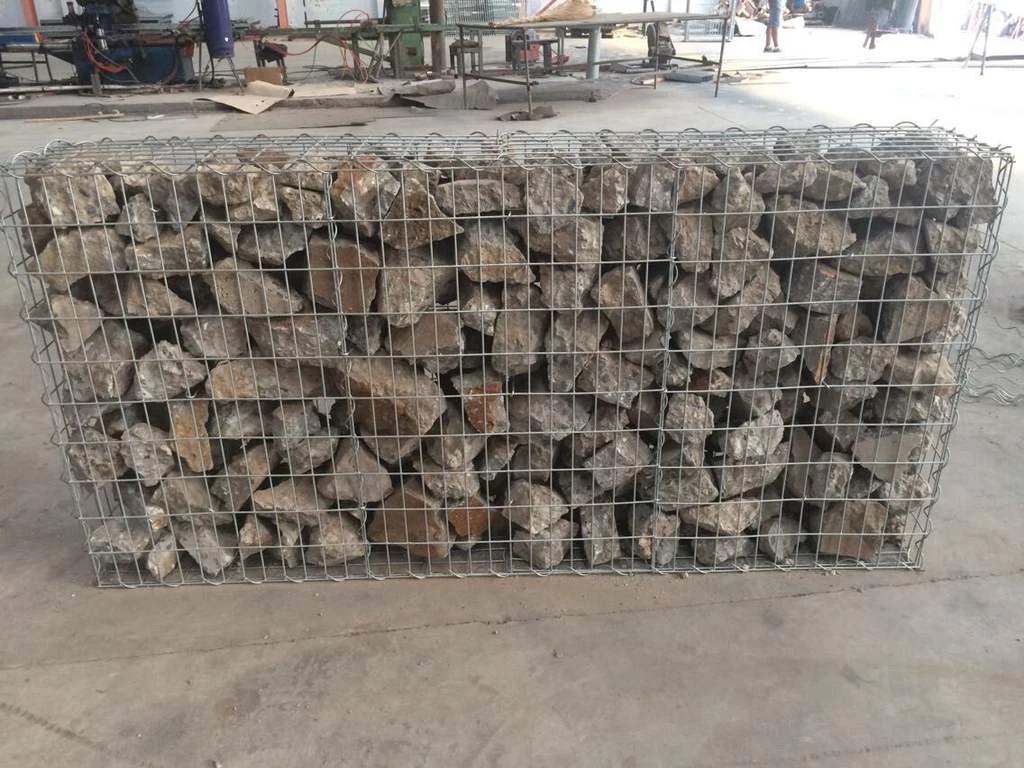

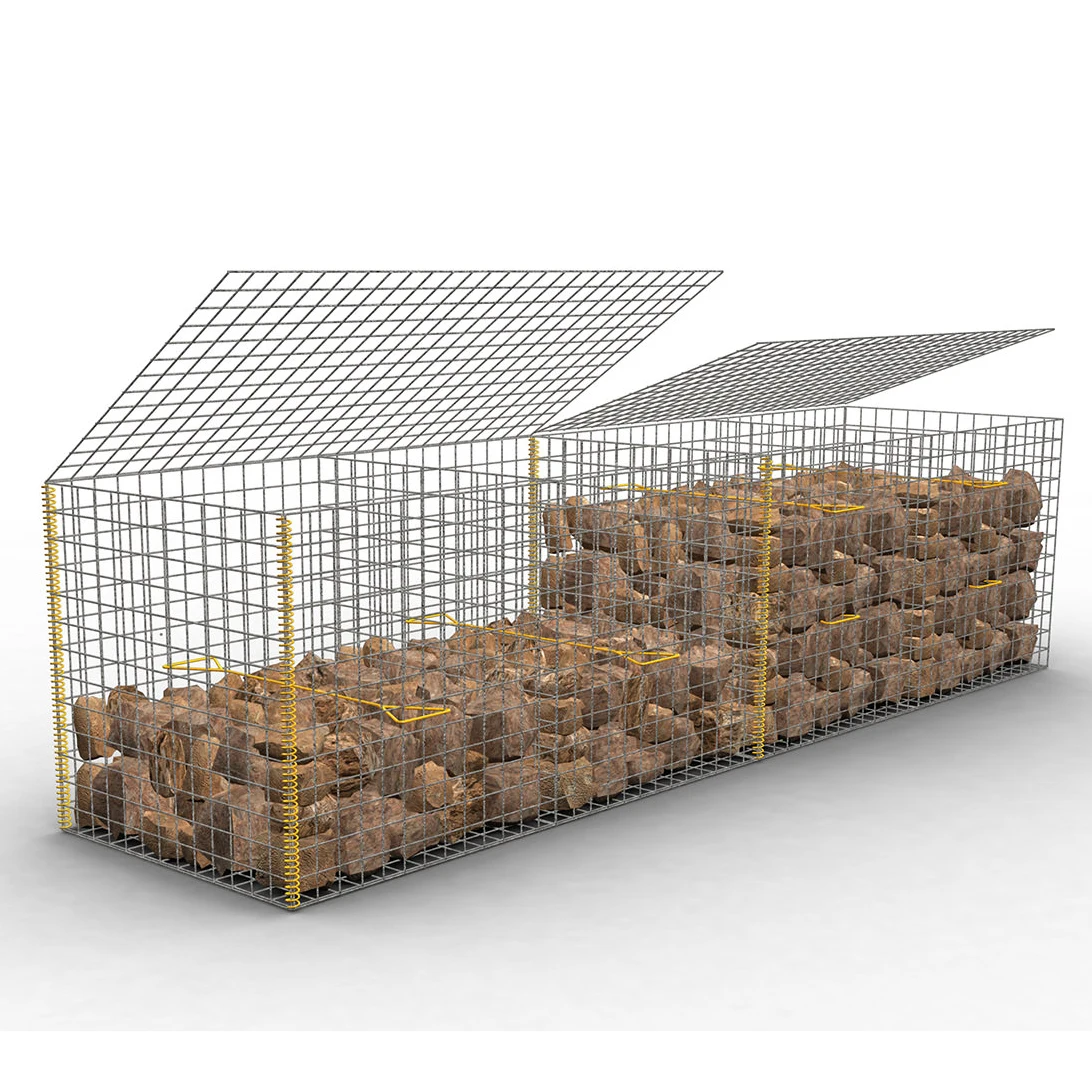

Gabion Boxes & Mattresses

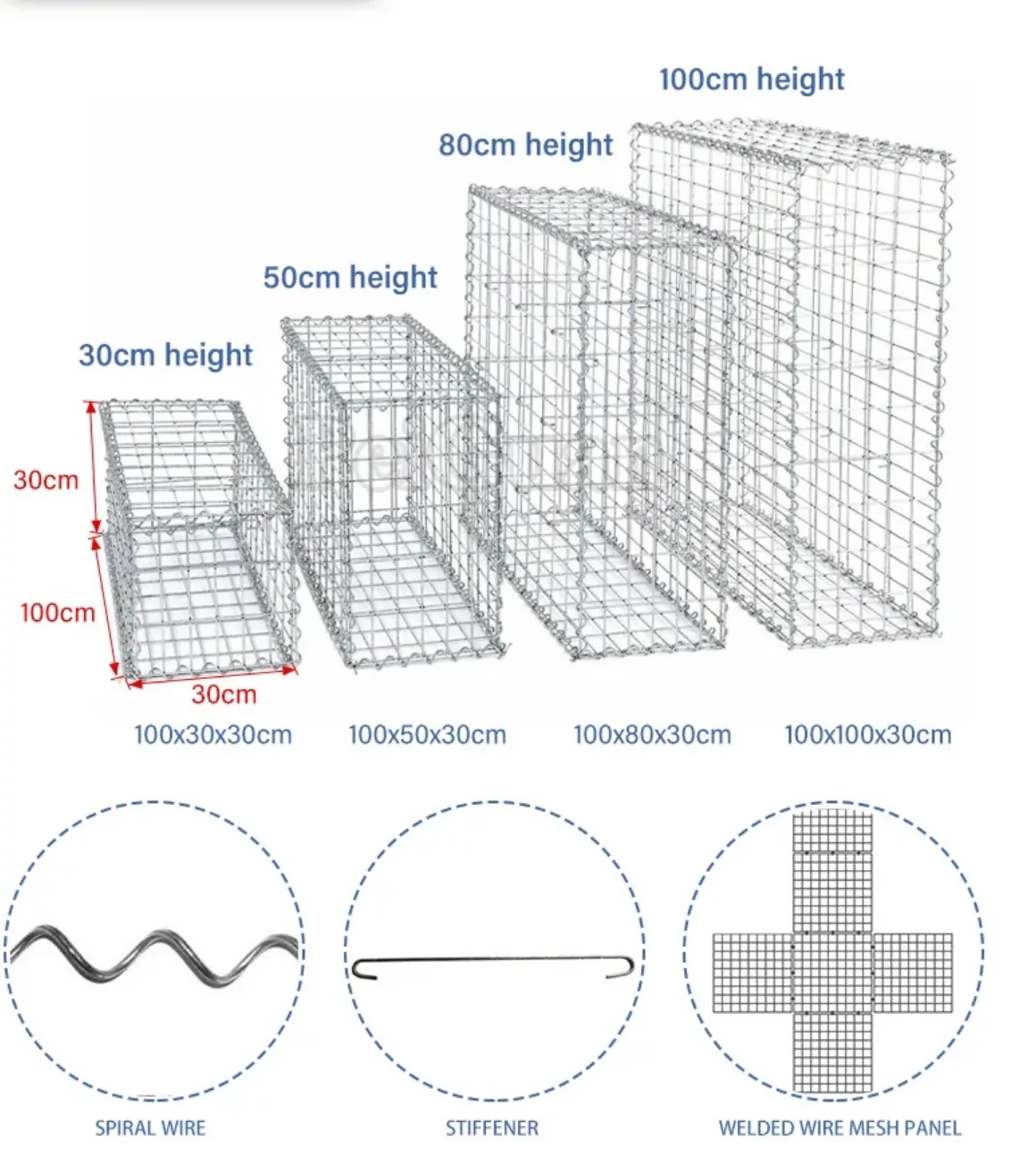

Gabion boxes and mattresses are made from 76.2mm x 76.2mm nominal (3" x 3") Welded Mesh, divided by diaphragms at 1 metre centres
where necessary with wire diameters 3mm, 4mm or 5mm.

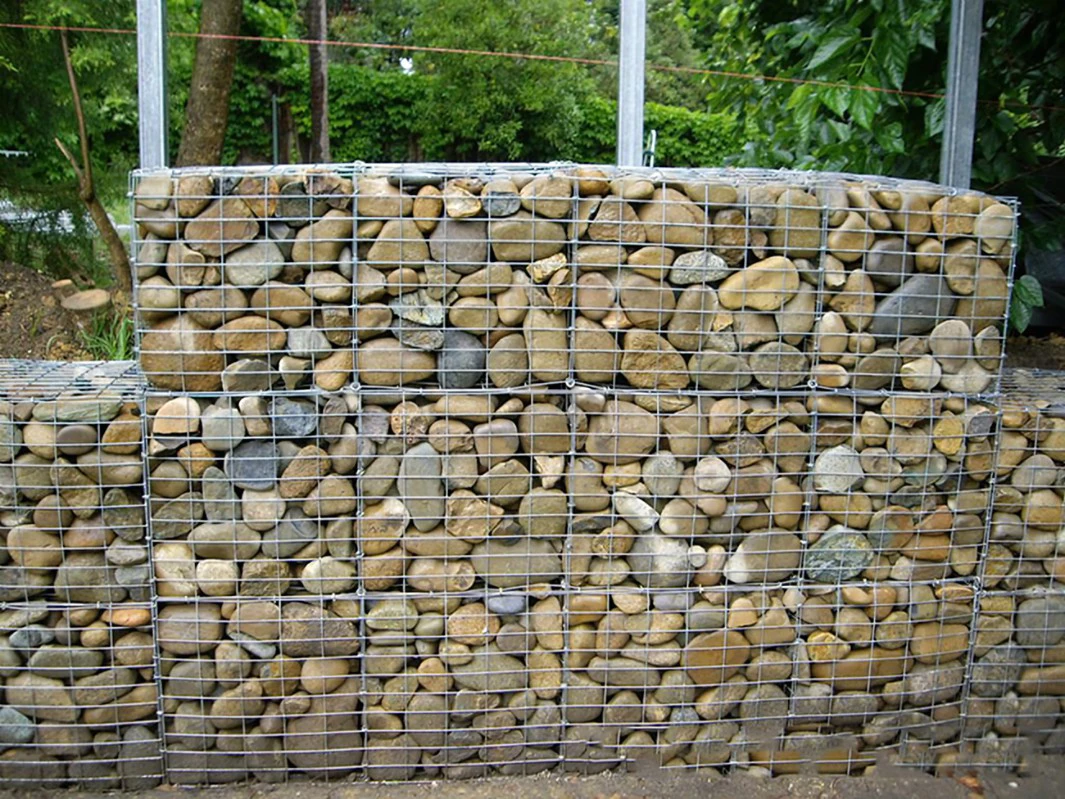

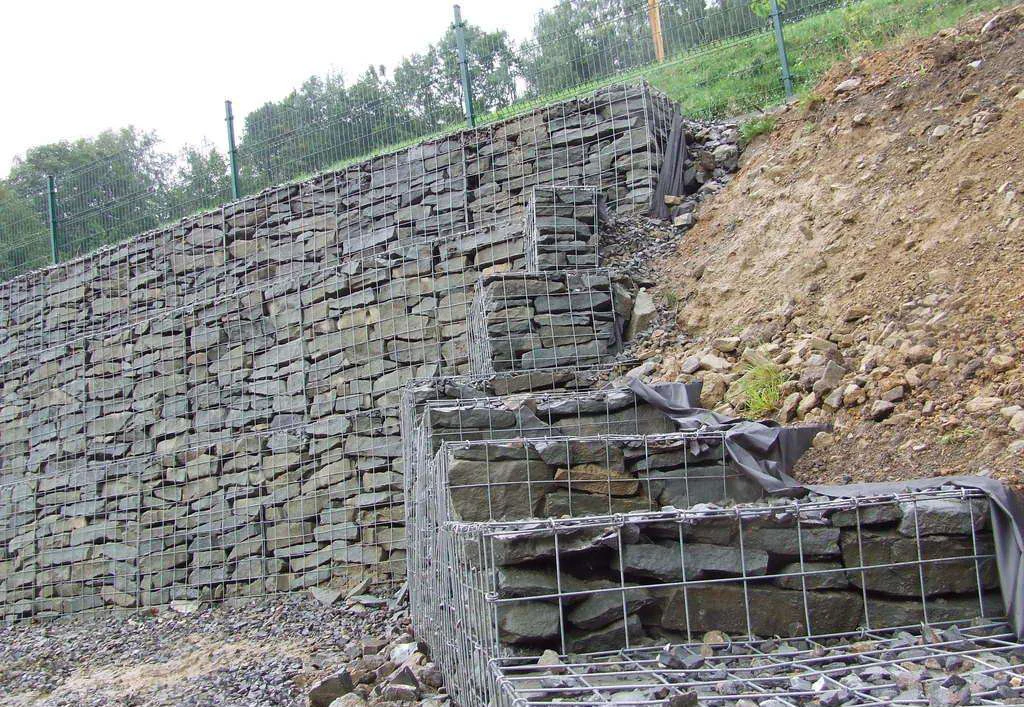

3mm diameter wire is used on lower retaining walls, 4mm diameter wire on medium to high retaining walls and the heaviest 5mm wire
for the highest structures. Fine Mesh Metals also fabricate our gabion baskets in mixed diameter wire panels for clients where
cost saving is important, providing customers with cheap gabion baskets which will still stand the test of time.
Gabion Cladding
Gabion baskets used as cladding can provide an attractive finish to buildings, walls and many other situations. Gabions of 0.3m to
0.5m are generally used and need to be attached to the existing building using clamp bars. At heights of 4 to 5m 4mm dia wire
baskets should be used and above this height 5mm dia wire. The baskets are supplied with internal diaphragms, dividing the basket
into partitions of no more than 700mm square.

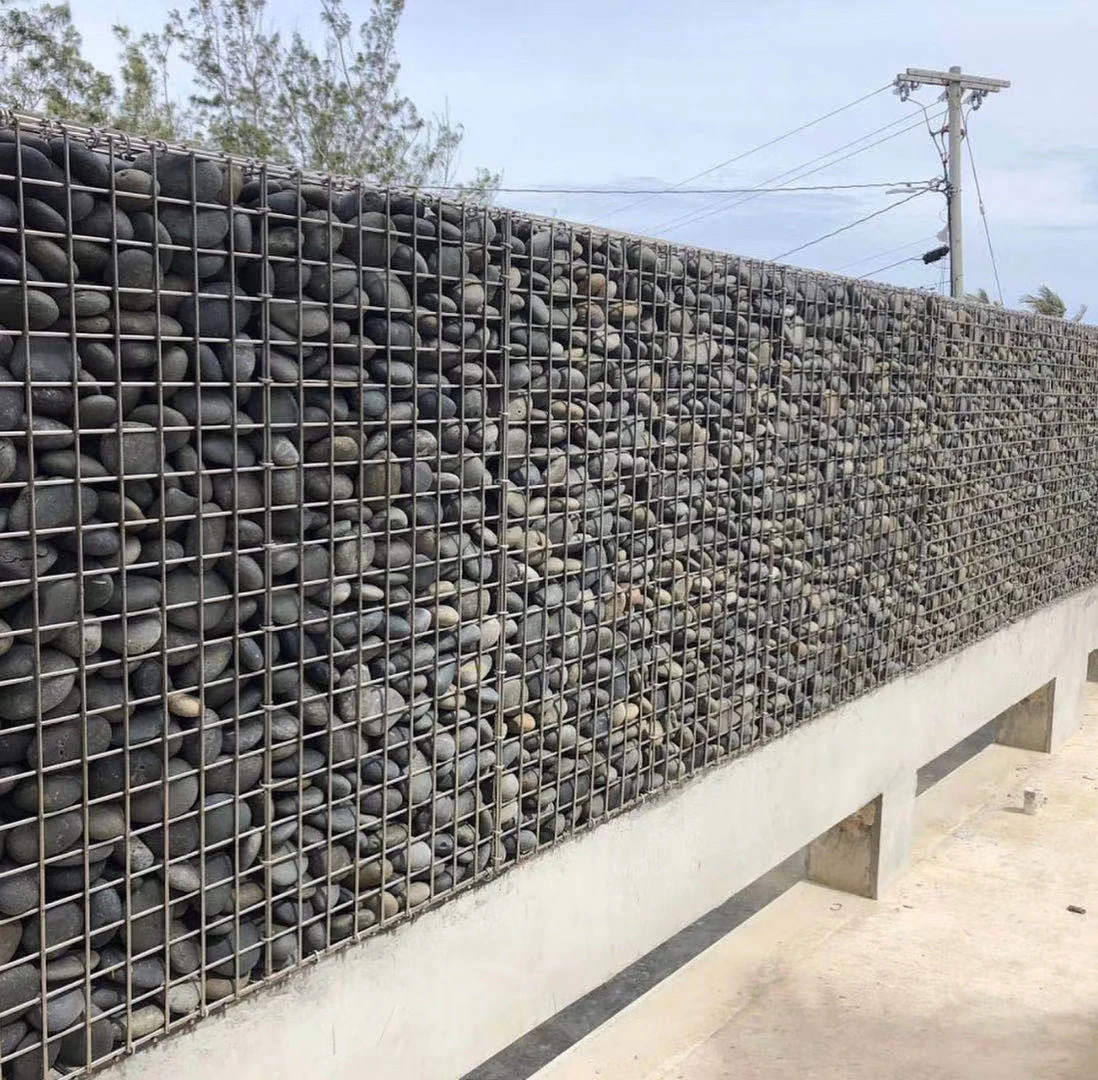

Gabion Walls for Fencing

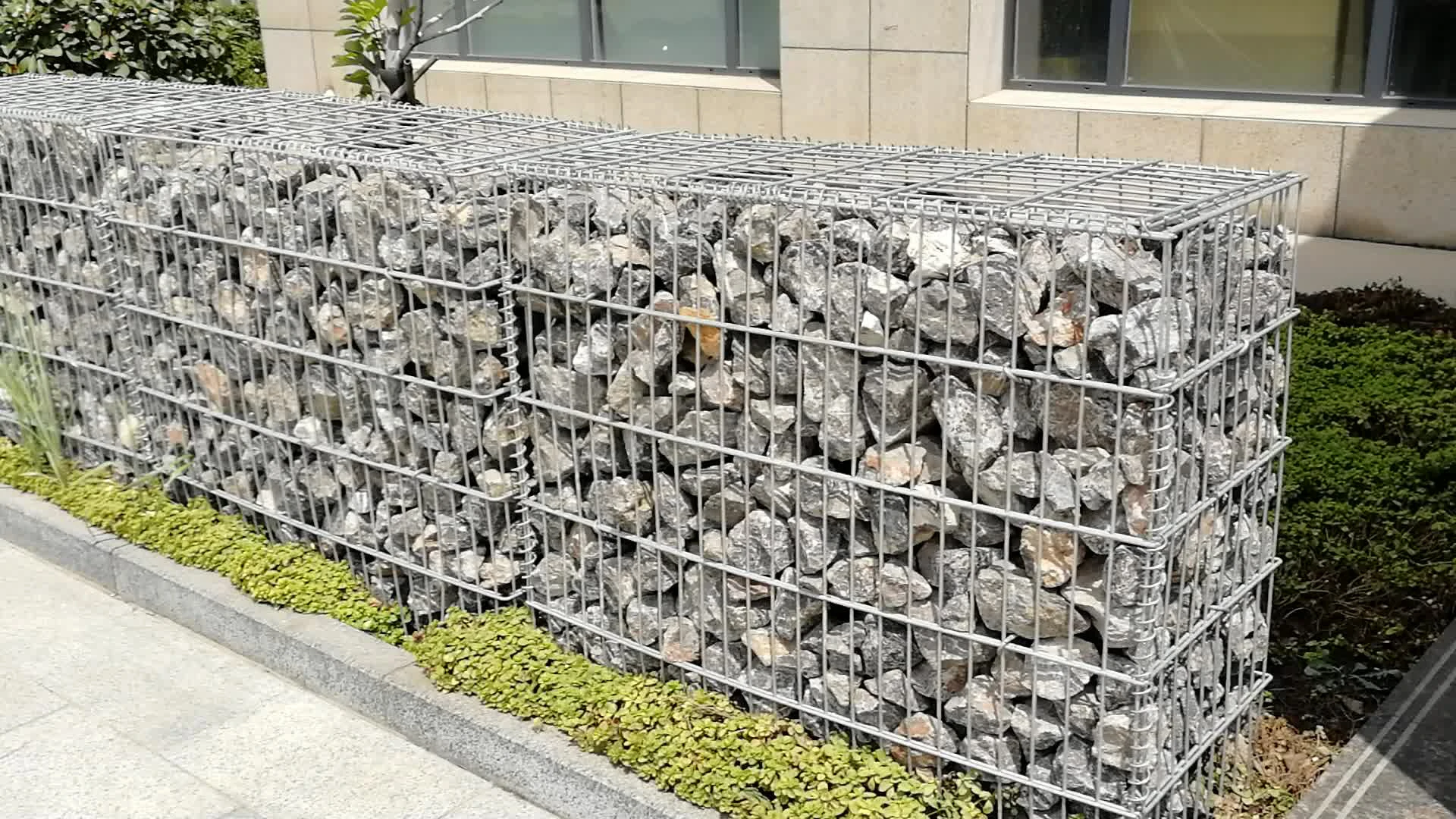

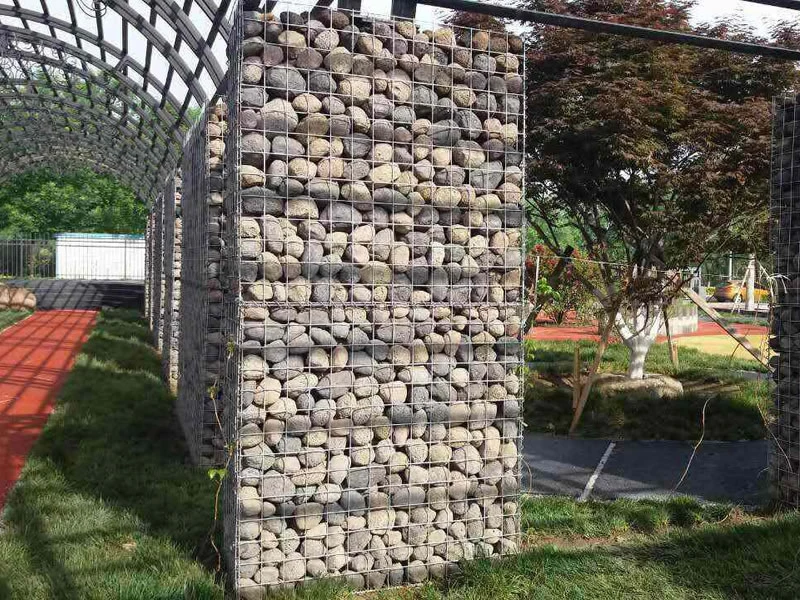

Gabions have now become a trending outdoor feature and the construction of thin walls or cladding made from narrow depth gabions,
have become popular in spaces where there isn't room for a retaining wall that follows the standard designs. As gabions require
vertical faces and are narrow depth, extra support to provide stability is necessary. This can be provided by using metal or
concrete posts at regular intervals inside the gabion basket.
Gabion Mattresses
Gabion mattresses are useful when trying to avoid erosion in streams, river beds, reservoir beds and canal beds. The gabion
mattress goes into the river and underneath a gabion wall to stop the river undercutting the wall at the edge where the water
speed is fastest. For gabion cages more suited to preventing embankment erosion, a gabion wall is a better option.

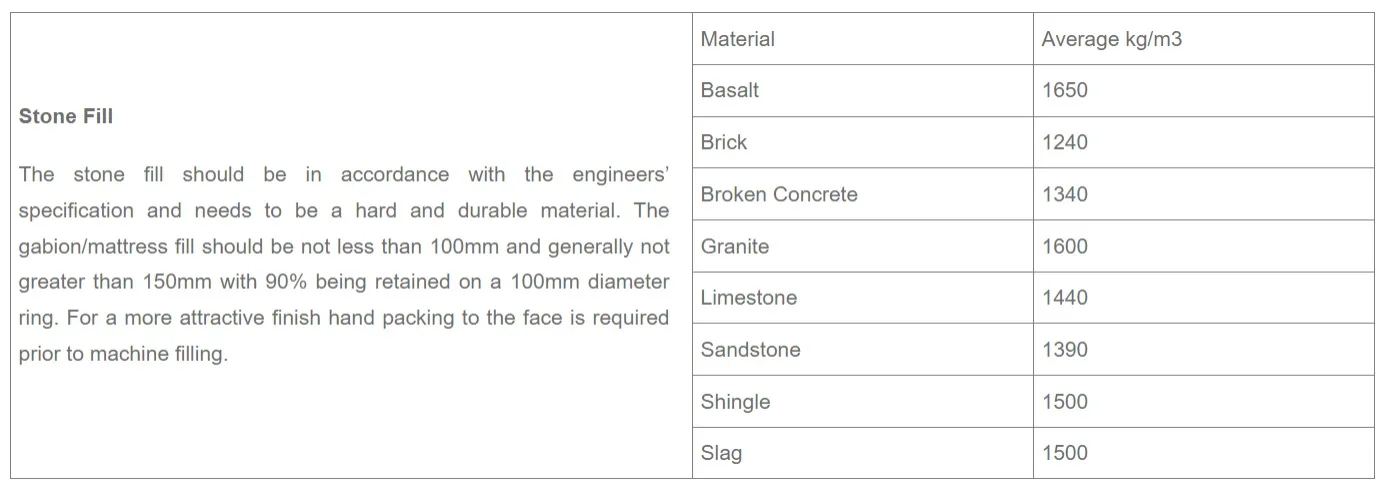

Gabion Stone & Filling Guidance
we have vast experience in gabion cages and the correct type of gabion stone dependent on the use of the gabion
baskets once installed. We are happy to provide advice on what gabion stone is best suited to your project.
