Roller glass coating machine
US $30000
2023 promotion! double glazing making equipment double glazed window making machine glass process machine for insulating glass
- Category: Glass Production Machinery >>>
- Supplier: Jinan Hiwoc Group Co. Ltd.
Share on (1600749283217):
Product Overview
Description
Product Description

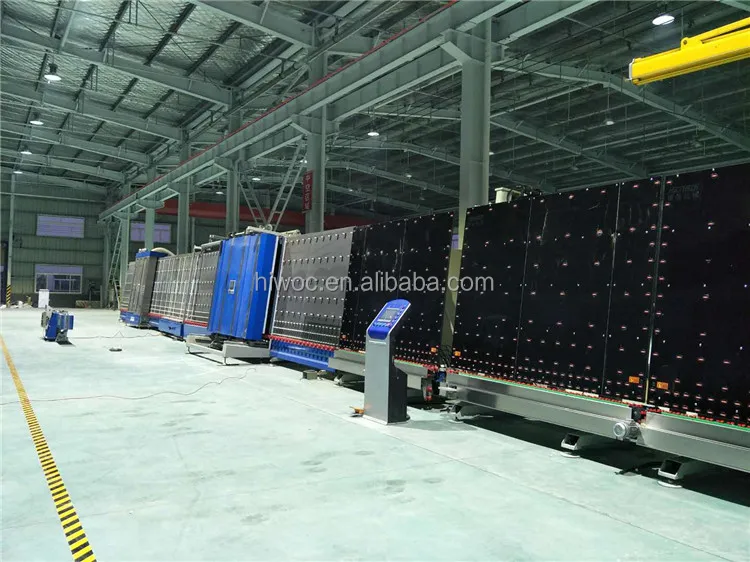

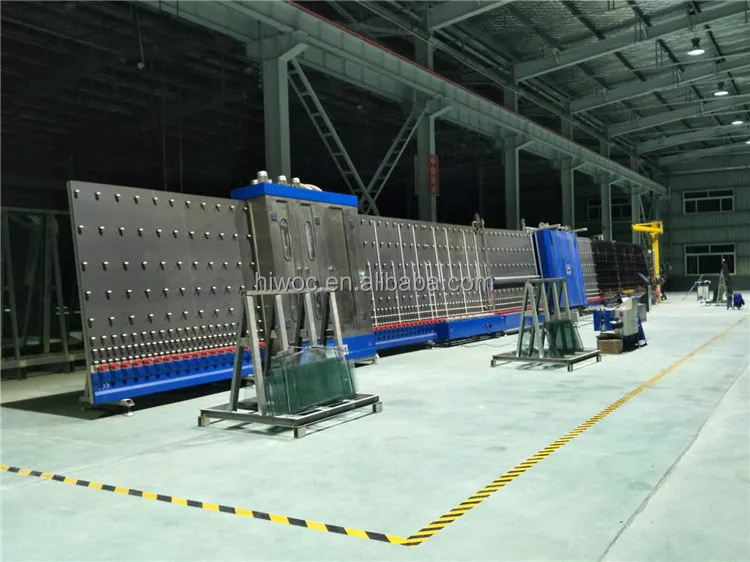

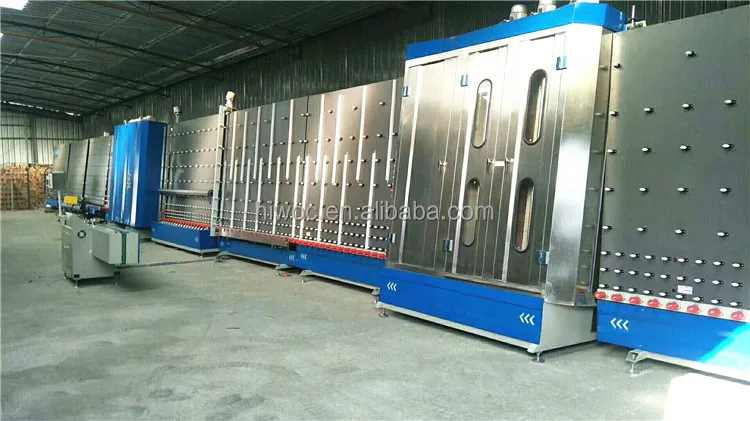

automatic hollow glass producing machine insulating glass production line

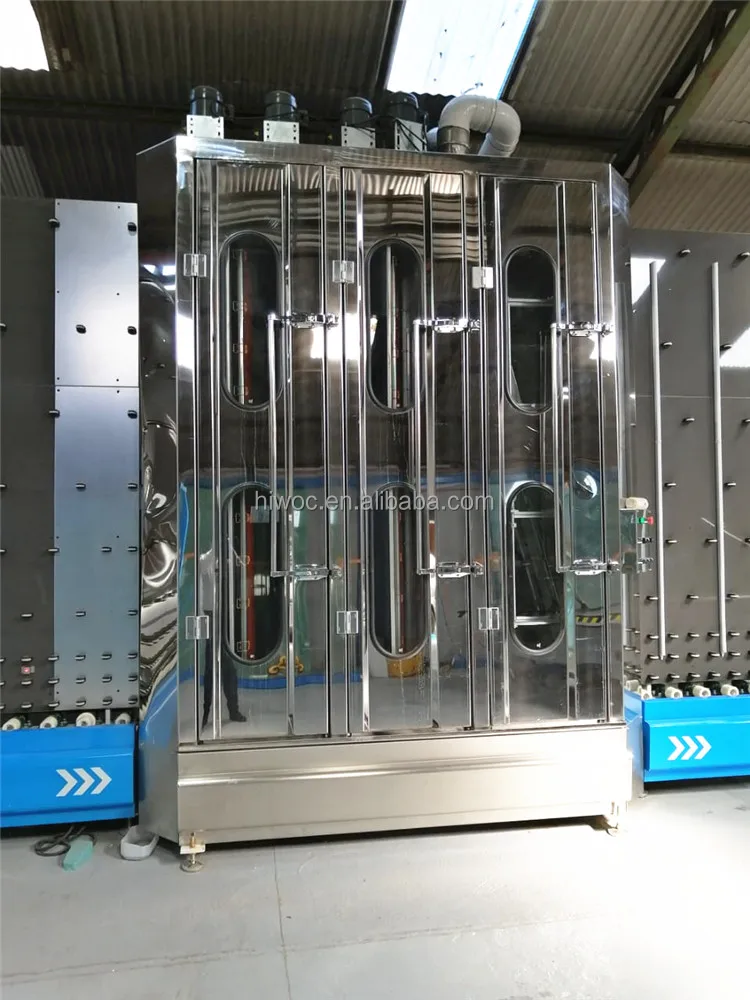

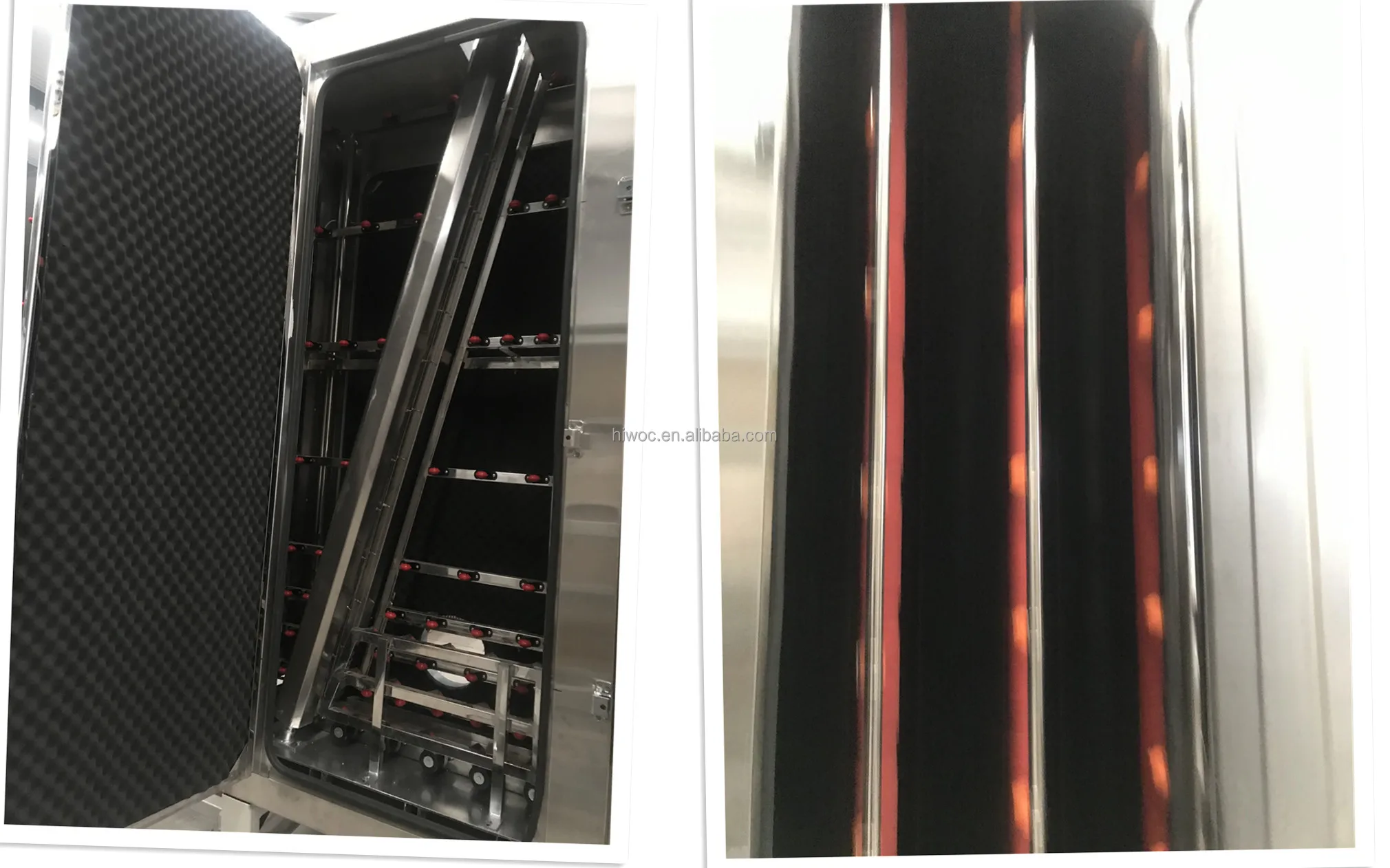

The coating and Low-E automatic distinguish system is installed on the input section before washing. When coating side is incorrectly put inside, the glass convey will be automatically stop. On washing section, inverter control of brush for Low-E glass, oil-less bearing, separate cabinet and water tank for two steps of washing and mist separating system are applied. Advanced static electricity releasing system is set at exit of washing section (option).
The first glass after washing-drying and inspecting stop at the assembly machine and position precisely by X-Y axis. Put spacer frame manually and then the glass stay at assembly section, which will be move backward after the glass arrive at position. At the same time the second glass after washing-drying are waiting at the assembly machine for positioning by guide bar. The panel reset and two pieces of glass are assembled and go to press. When processing triple glass, the assembly section goes backward again to let The third glass come in. The roller pushes 3 pieces of glass together and convey the IG units to press machine for pressing.After pressing, the IG unit is finished with the first seal and will be conveyed to the next section for second sealing.
The whole glass movement (stop or convey) is automatically controlled by the PLC system to reach a high productivity and flexible control of the production procedure.
The first glass after washing-drying and inspecting stop at the assembly machine and position precisely by X-Y axis. Put spacer frame manually and then the glass stay at assembly section, which will be move backward after the glass arrive at position. At the same time the second glass after washing-drying are waiting at the assembly machine for positioning by guide bar. The panel reset and two pieces of glass are assembled and go to press. When processing triple glass, the assembly section goes backward again to let The third glass come in. The roller pushes 3 pieces of glass together and convey the IG units to press machine for pressing.After pressing, the IG unit is finished with the first seal and will be conveyed to the next section for second sealing.
The whole glass movement (stop or convey) is automatically controlled by the PLC system to reach a high productivity and flexible control of the production procedure.
Specification
Machine Type | LBZ-2000P | LBZ-2500P | |
Production Capacity | 100% | 100% | |
Place of Origin | CHINA | China | |
Power | 30 kw | 45kw | |
Warranty | 2 years | 2 years | |
Glass Thickness | 12-40 mm | 12-40 mm | |
Core Components | PLC Pump | PLC, Pump | |
Power supply | 380V or according to customer need | 380V/220V/Customer Specification | |
Total Power | 30 KW | 45 KW | |
Max.glass size | 2000*2500mm | 2500*3000mm | |
Min.glass.size | 300*500 mm | 300*500 mm | |
Production Capacity | 700-800Pcs/8h | ||
Washing and drying speed | 0-8m/min | ||
Transmission glass speed | 45 m/min | 45m/min | |
Packing & Delivery
Company Profile
JINAN HIWOC GROUP CO., LTD is specialized in the production of upvc window door machine, aluminum window door machine, curtain wall making machine and insulating glass machine. Company sets research and development, production, sales, maintenance services as a whole.
We are found in 2013, but export from export agent company. We started our own export team in 2015, and has exported 35 countrys already with very good reputation and service.
Hiwoc company takes the "quality, integrity, innovation, service" spirit, always adhere to the customer demands as the guide, it was well welcomed by almost all customers with its high-quality product and good after-sales service.
We are found in 2013, but export from export agent company. We started our own export team in 2015, and has exported 35 countrys already with very good reputation and service.
Hiwoc company takes the "quality, integrity, innovation, service" spirit, always adhere to the customer demands as the guide, it was well welcomed by almost all customers with its high-quality product and good after-sales service.
FAQ
1. who are we?
We have many years experience for insulating glass machines and window door making machines
2. how can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
pvc window door machine,aluminum window door machine,insulating glass machine,Lifter
4. why should you buy from us not from other suppliers?
We have professional manufacturing, sales and after sales team for more than 8 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic
We have many years experience for insulating glass machines and window door making machines
2. how can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
pvc window door machine,aluminum window door machine,insulating glass machine,Lifter
4. why should you buy from us not from other suppliers?
We have professional manufacturing, sales and after sales team for more than 8 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic
