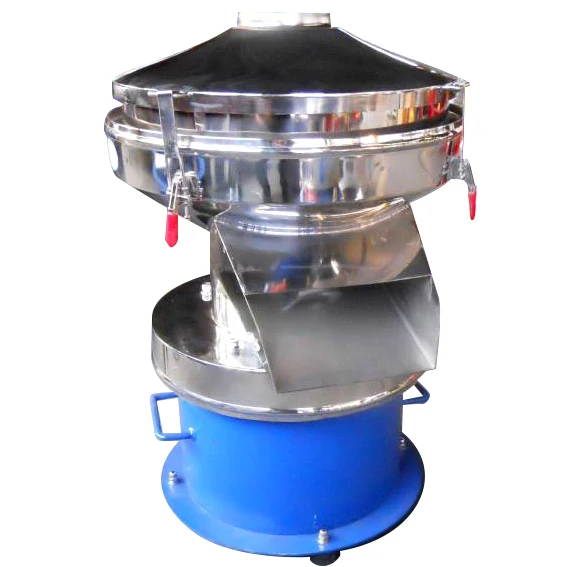

Vibration Sieving Sifter Vibro Separator Machine For Powder
- Category: >>>
- Supplier: Trenfull Industrial (Shanghai) Co. Ltd.
Share on (1600749312263):
Product Overview
Description
Product Description

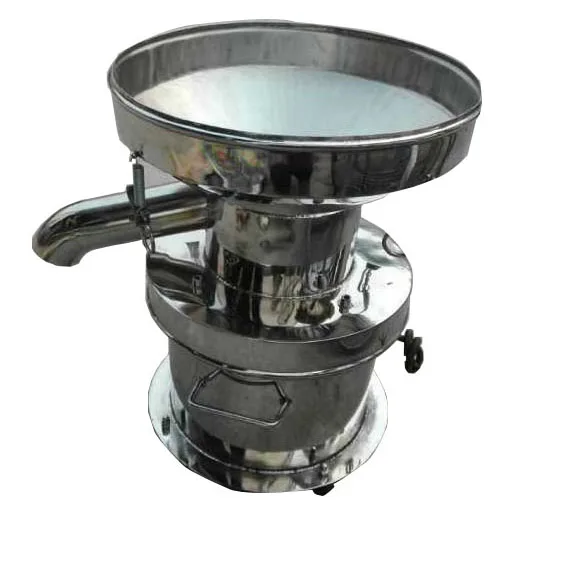

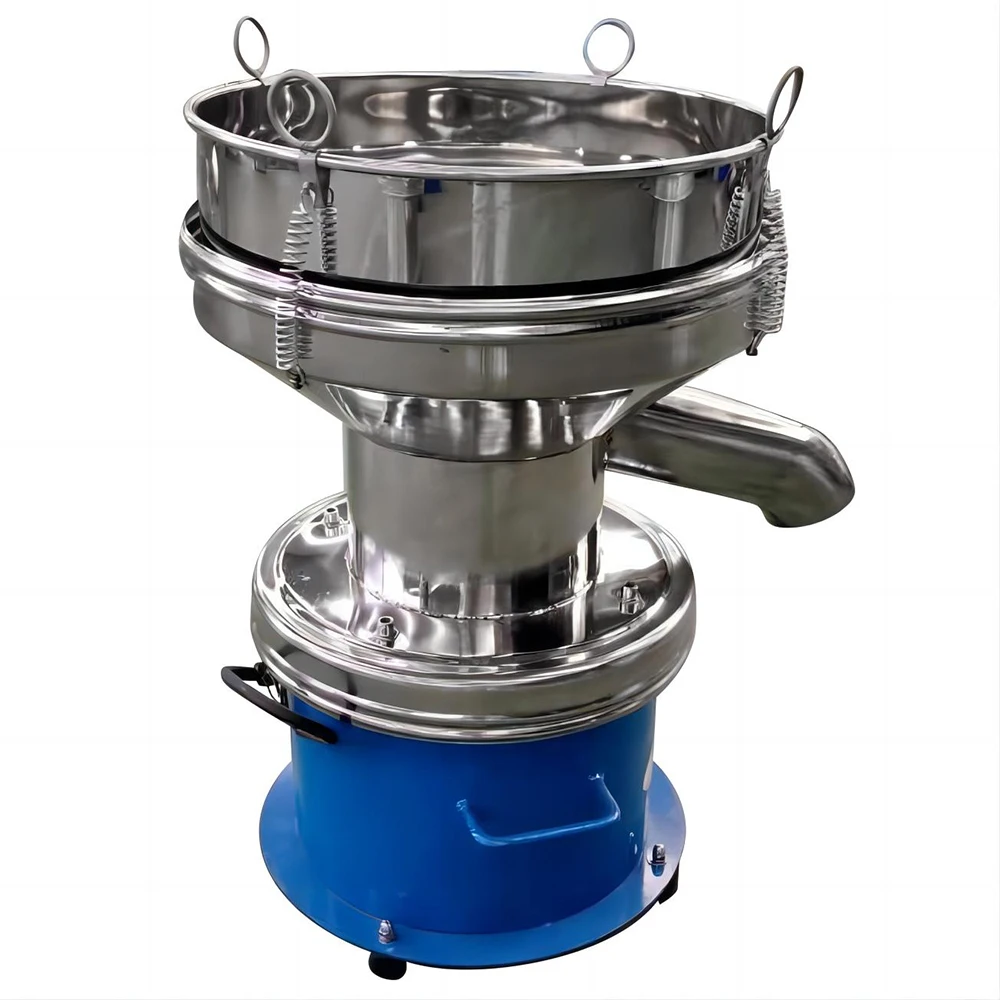

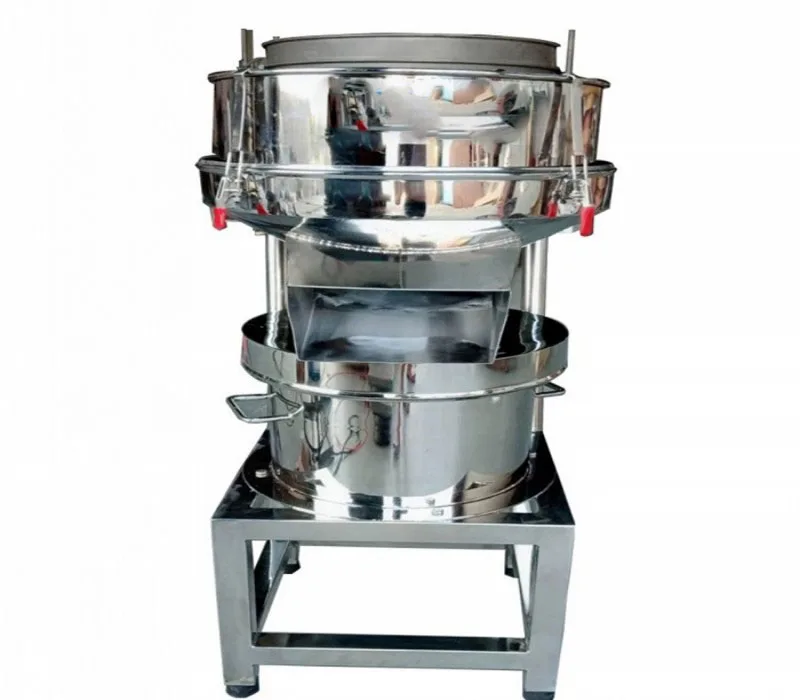

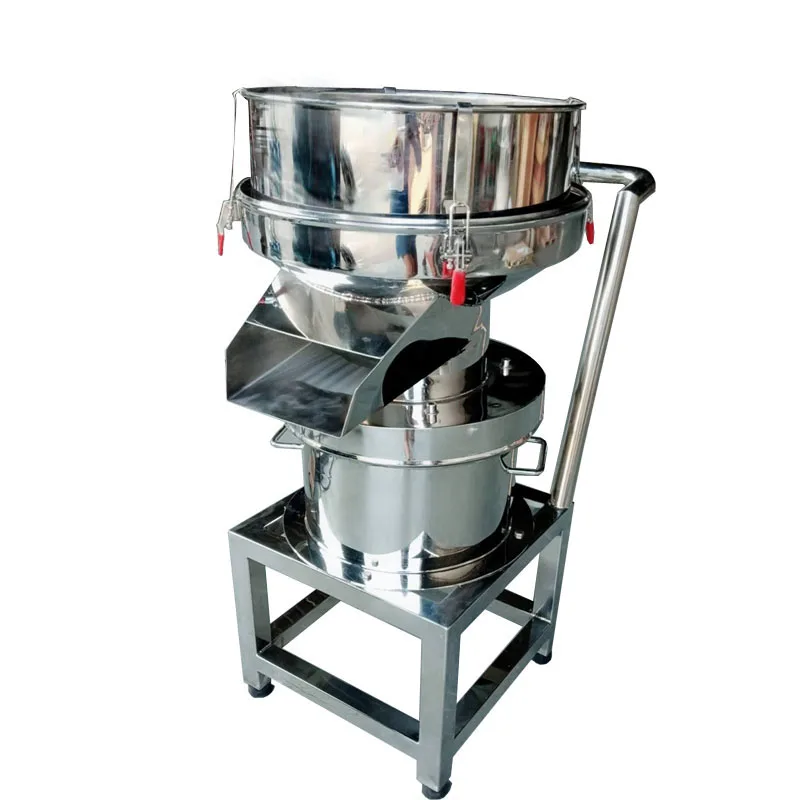

Vibration Sieving Sifter Vibro Separator Machine For Powder
Vibration Sieving Sifter Vibro Separator Machine For Powder is a small vibrating screen filter with low noise, high efficiency and easy movement. It is a single-layer vibrating screen integrating powder grading and liquid filtration. It is suitable for single-layer screening and filtration of manufacturers in various industries to deal with materials with small production capacity or less impurities, such as powder screening and slurry filtration with large particle content; 325 mesh filter paint with specific gravity of 1.1, up to 1200 liters per hour; 30 mesh sieved flour can handle 700 kg per hour. Stainless steel (304) material, small model, light weight, can move freely without occupying space.

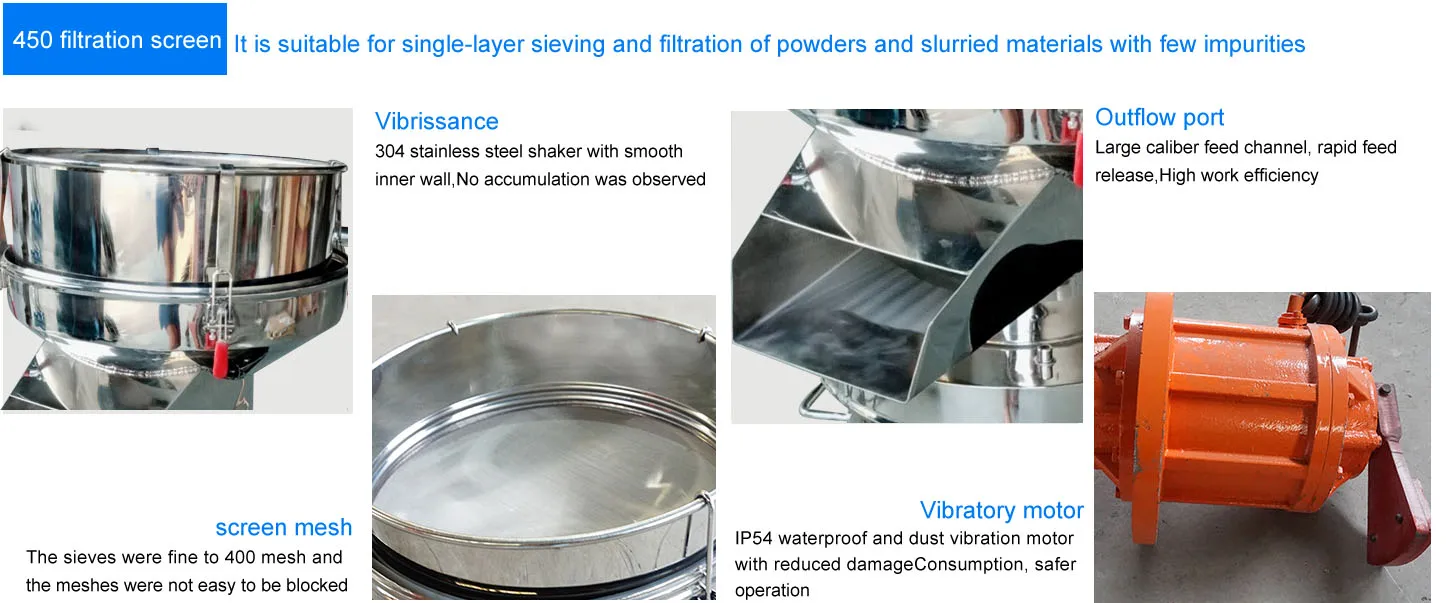

Product advantages
1.High efficiency, refined design, durable, it can apply to any powders and mucilage screening.
2.Replace the screen cloth easily, easy operation and cleaning.
3.No mesh plug, no powder flying.
4.Impurity and coarse material discharged automatically and can be continuous operation.
5.Unique screen frame design, long life screen cloth.
6.Small in size, moving easily.
2.Replace the screen cloth easily, easy operation and cleaning.
3.No mesh plug, no powder flying.
4.Impurity and coarse material discharged automatically and can be continuous operation.
5.Unique screen frame design, long life screen cloth.
6.Small in size, moving easily.
Specification
NAME | UNIT | Parameters | ||
Standard sieve frame layer number | s | 1 | ||
Screening size | mm | 0.038-5 | ||
Noise | dB | ≤85 | ||
Amplitude | mm | ≤5 | ||
Motor | Voltage | V | 380 | |
Rotaing speed | rpm | 1450 | ||
Power | kw | 0.18 | ||

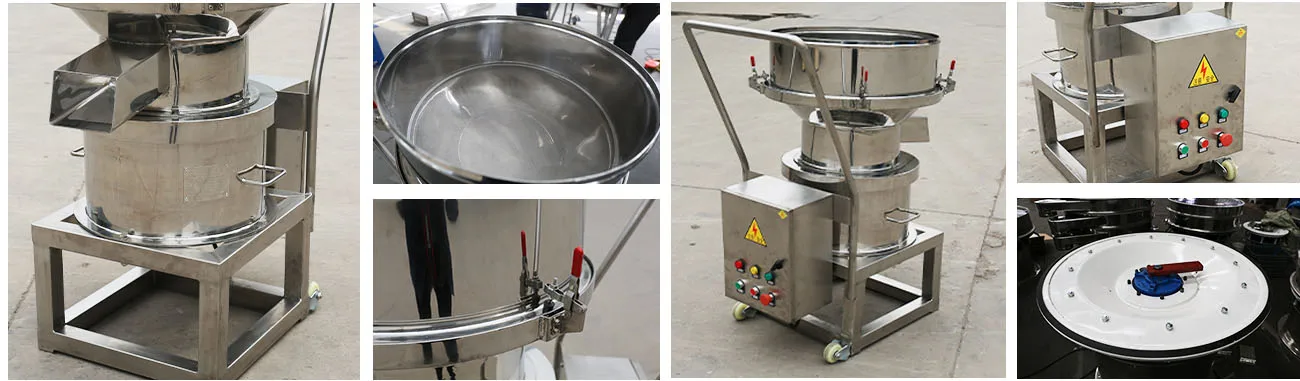

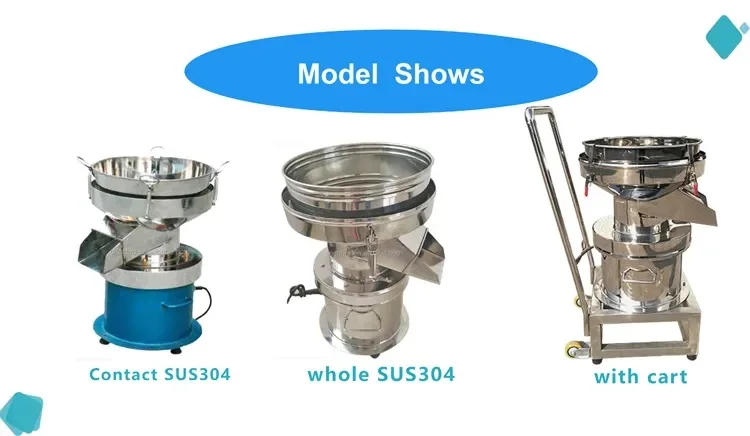

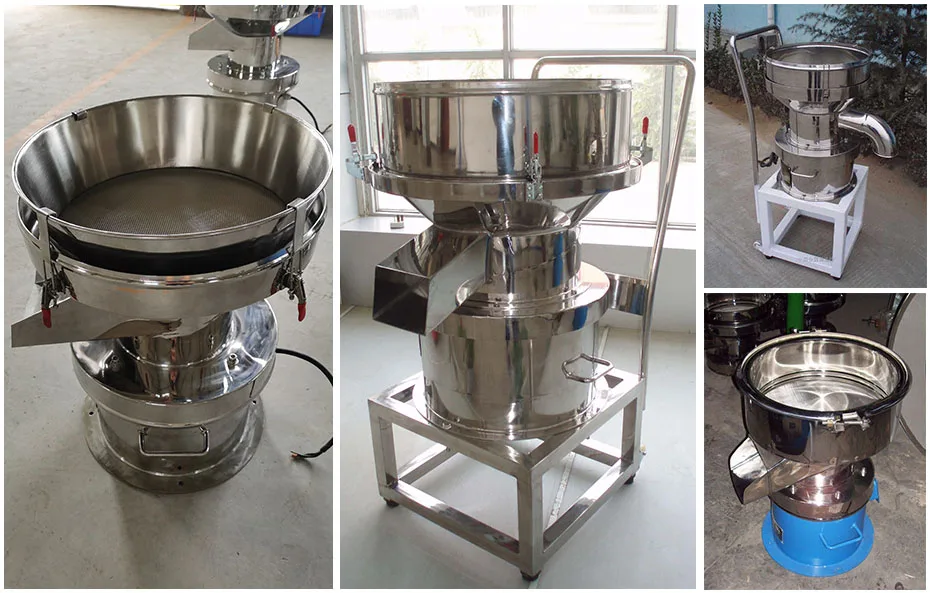

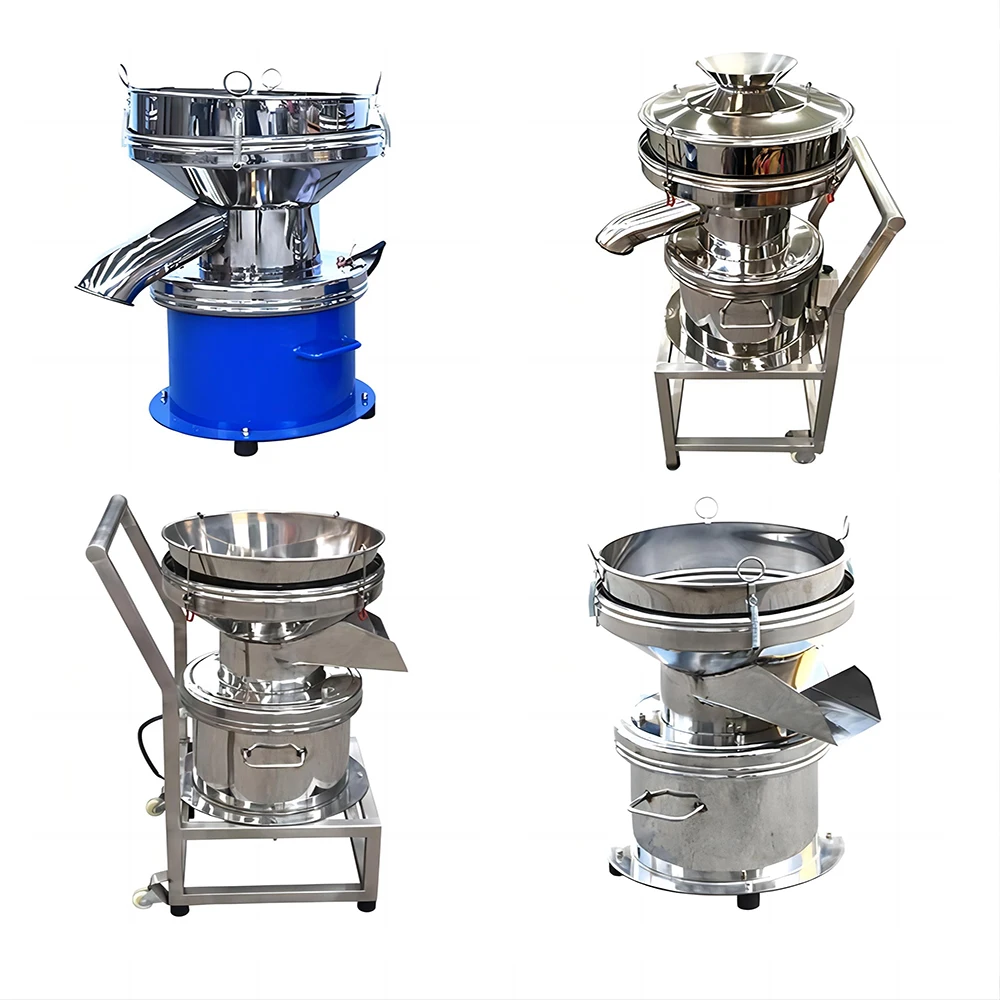

Product Show：
Application industry
1.Chemical Industry: colophony, dope, industry leechdom, cosmetic, paint.
2.Grinding Materials and China Industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust.
3.Food Industry: sugar, amylum, salt, rice powder, milk powder, soyabean milk, angel cake, sauce, juice.
4.Paper-making Industry: dope, white soil slurry, black and white liquid, disposed liquid,paper-making liquid and waste water recycling.
5.Metallurgy, Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, electomagnetism material, rubbing powder, fire-proof material, kalin, lime, heavy calcium carbonate.
6.Pharmacy Industry: Chinese herbal medicine liquid, medicine powder, liquid and particle.
7.Disposal of social wastes: disposed oil, water and assistant detergent.
2.Grinding Materials and China Industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust.
3.Food Industry: sugar, amylum, salt, rice powder, milk powder, soyabean milk, angel cake, sauce, juice.
4.Paper-making Industry: dope, white soil slurry, black and white liquid, disposed liquid,paper-making liquid and waste water recycling.
5.Metallurgy, Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, electomagnetism material, rubbing powder, fire-proof material, kalin, lime, heavy calcium carbonate.
6.Pharmacy Industry: Chinese herbal medicine liquid, medicine powder, liquid and particle.
7.Disposal of social wastes: disposed oil, water and assistant detergent.

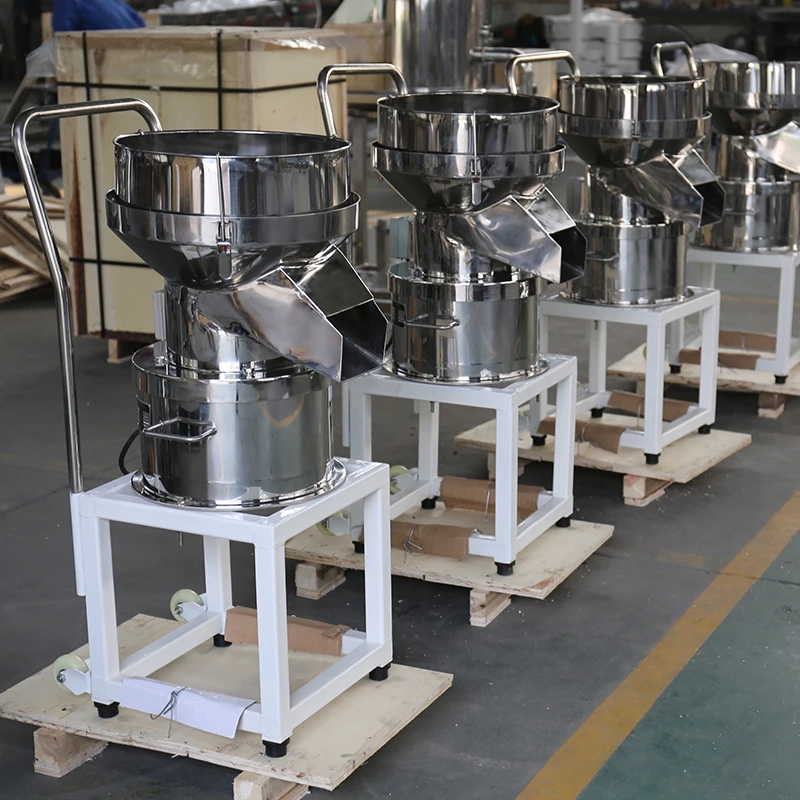

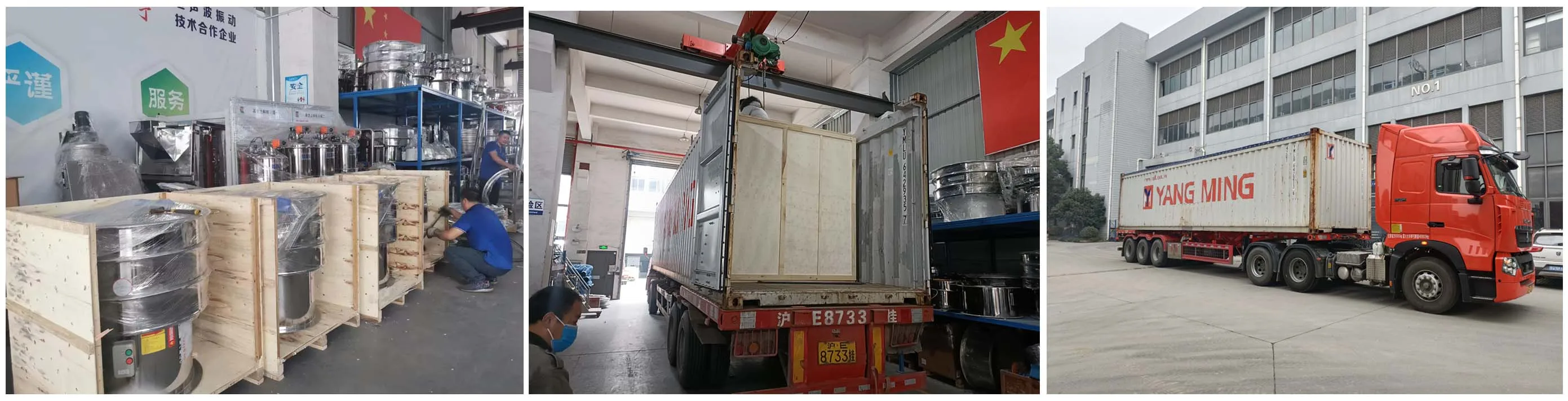

Packing & Delivery
standard export(fumigation-free wooden case, plywooden case, steel construre according to your requirement) for type filter vibrating screen sieve.
Company Profile
Trenfull is an enterprise specializing in powder screening equipment, vacuum conveyor equipment, mixing equipment, and automation overall solutions. With reliable quality and advanced technology, our products enjoys good reputation among domestic and foreign customers.
Our products include: ultrasonic system equipment, three-dimensional rotary vibrating screen, linear screen, swing screen,straight screen, 450 filter screen, test screen, etc.; vacuum conveying equipment: electric vacuum feeding machine, pneumatic vacuum feeding Mixing equipment: double-cone mixer, V-type mixer, three-dimensional mixer, horizontal ribbon mixer, single-cone twin-screw mixer, etc.
Our products include: ultrasonic system equipment, three-dimensional rotary vibrating screen, linear screen, swing screen,straight screen, 450 filter screen, test screen, etc.; vacuum conveying equipment: electric vacuum feeding machine, pneumatic vacuum feeding Mixing equipment: double-cone mixer, V-type mixer, three-dimensional mixer, horizontal ribbon mixer, single-cone twin-screw mixer, etc.
Related products
FAQ
Q1: What’s your production lead time?
A1: Usually our production lead time is 30 days. Depending on the your order quantity and our production schedule, the time can be shorter or longer.
Q2: Can you do OEM for me?
A2: We accept OEM orders. Send us your logo and requirement, then we will arranged the production for you.
Q3: What's your payment terms ?
A3: T/T and LC at sight are both acceptable for us. 50% advance payment, and balance paid before shipment.
Q4: What’s your MOQ?
A4: We don’t have requirement of MOQ for the order. But for order of bigger quantity, we can provide more discount.
Q5: What packages do you use for the machine?
A5: Usually we use plywood boxes for packing, which requires no fumigation for exportation. If you have any special requirement for the package, please advise us when placing the order.
Q6: What warranty do you provide for the machine?
A6: The warranty period is one year, and we will be responsible for repair and replacement of any quality problems during the warranty period (except for improper operation and wearing parts); And for those problems beyond the warranty period, we will provide lifelong tracking service and wearing parts with preferential prices.
A1: Usually our production lead time is 30 days. Depending on the your order quantity and our production schedule, the time can be shorter or longer.
Q2: Can you do OEM for me?
A2: We accept OEM orders. Send us your logo and requirement, then we will arranged the production for you.
Q3: What's your payment terms ?
A3: T/T and LC at sight are both acceptable for us. 50% advance payment, and balance paid before shipment.
Q4: What’s your MOQ?
A4: We don’t have requirement of MOQ for the order. But for order of bigger quantity, we can provide more discount.
Q5: What packages do you use for the machine?
A5: Usually we use plywood boxes for packing, which requires no fumigation for exportation. If you have any special requirement for the package, please advise us when placing the order.
Q6: What warranty do you provide for the machine?
A6: The warranty period is one year, and we will be responsible for repair and replacement of any quality problems during the warranty period (except for improper operation and wearing parts); And for those problems beyond the warranty period, we will provide lifelong tracking service and wearing parts with preferential prices.
