Product Description

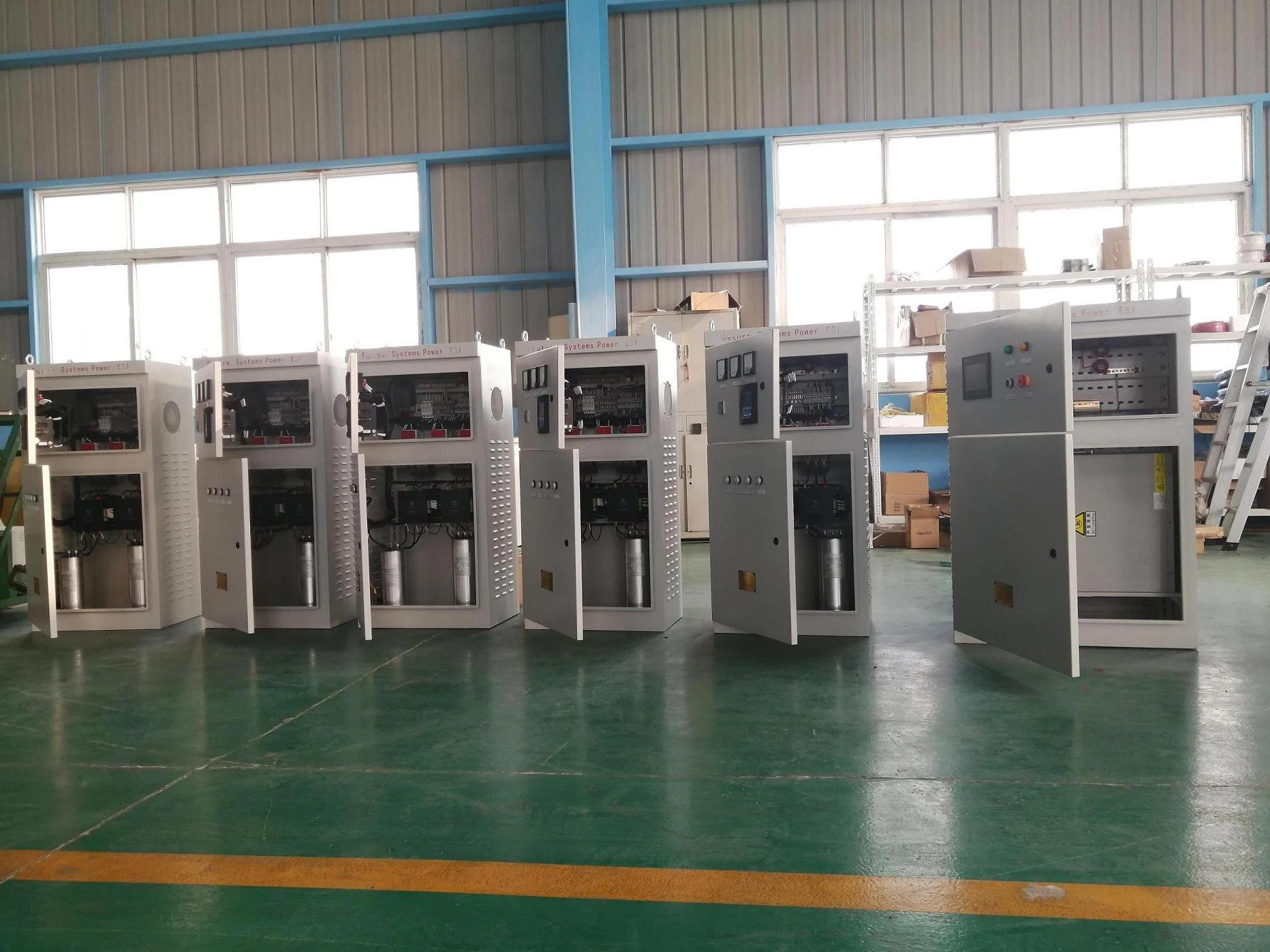

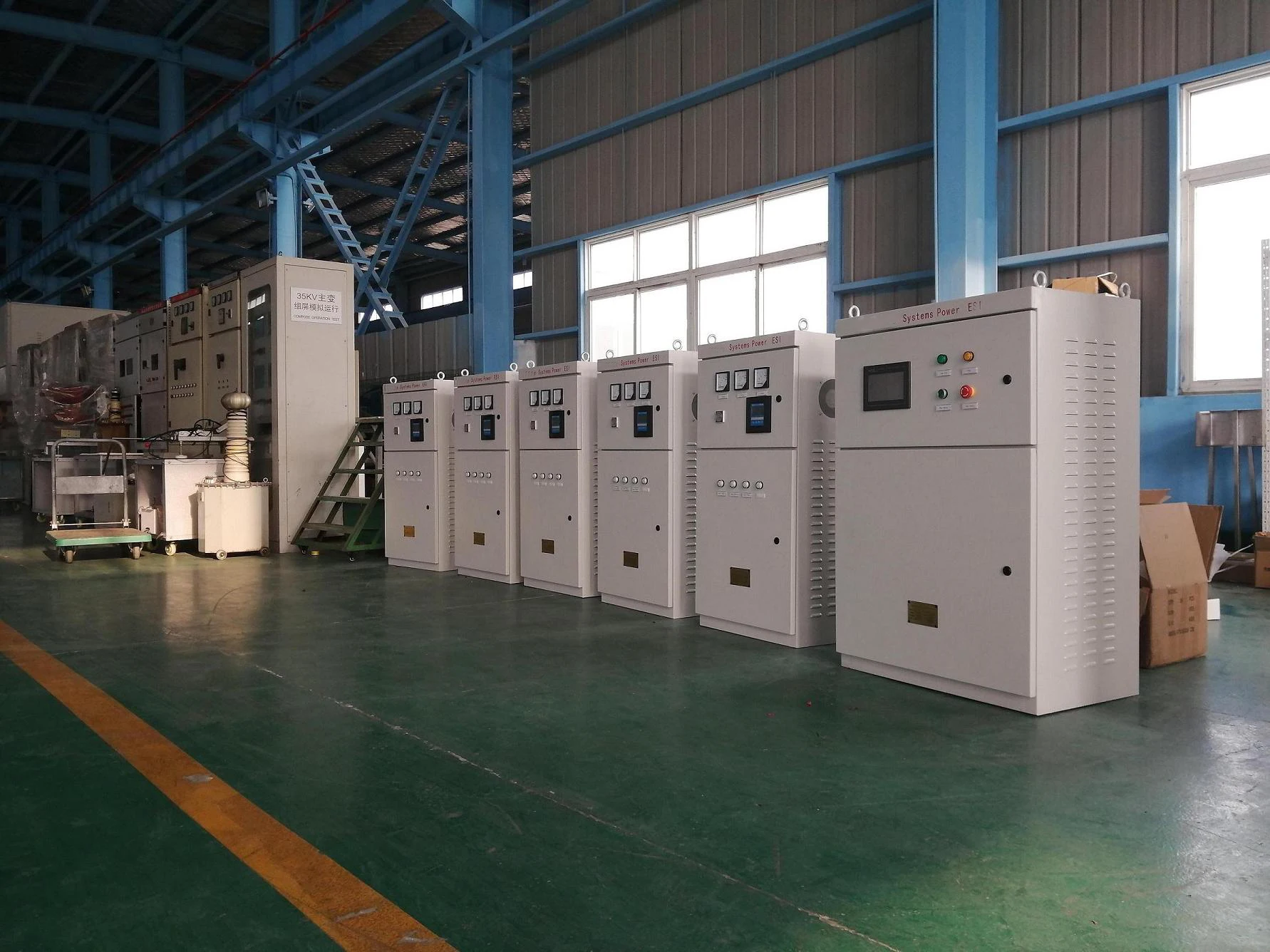

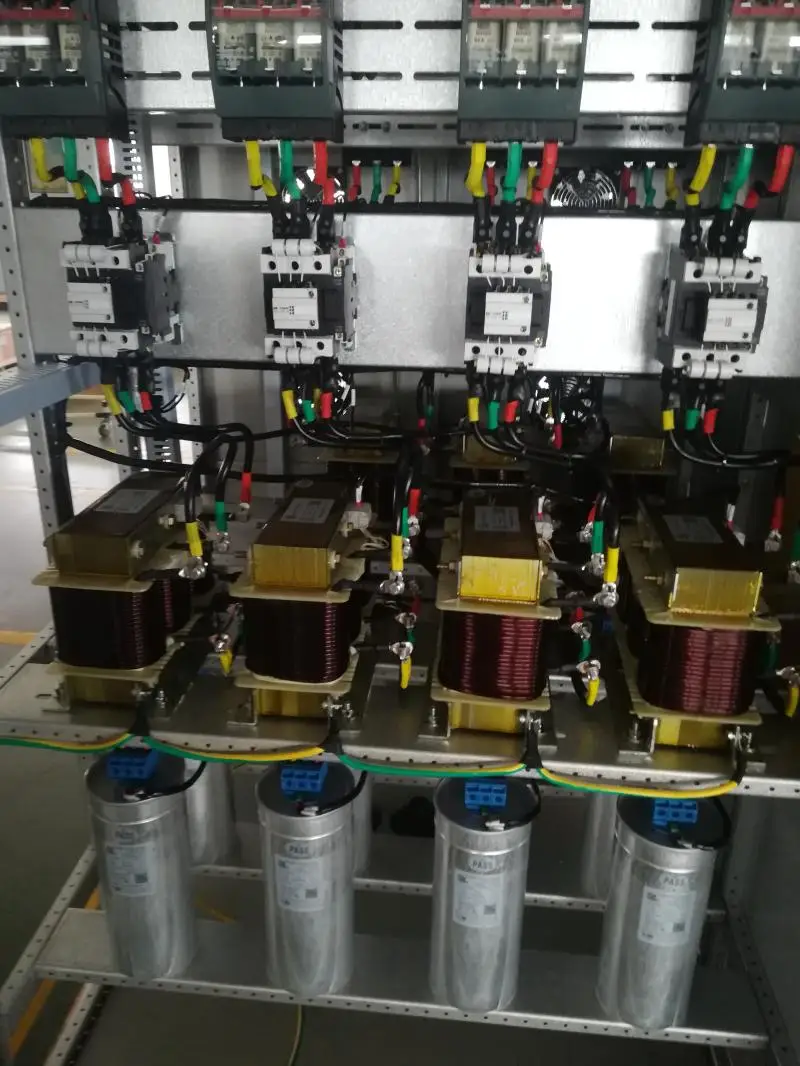

ZD-DWJ Static Var Compensator/Automatic power factor correction panels
ZDDQ offers wide range of automatic switched capacitor banks panels for Power Factor correction in various configurations for a wide range of application. The Panels are Contactor switched type static VAR compensator,it is a set of electrical devices for providing fast-acting reactive power compensation in real time on electricity transmission networks. with the high performance for regulating voltage, power factor, harmonics and stabilizing the system.




Specifications









Electrical properties
Rated voltage
AC 380V-690V
Operating frequency
50Hz/60Hz
Electrical connection
Three-phase Three wire/four-wire
Capacity of whole cabinet
50~450kvar
Compensation mode
Either three-phase compensation or single pahse compensation
Compensation effect
≥0.95
Measuring CT
1 or 3
Active loss of system
<3%
Number of units connected in parallel
≤10 units
MTBT
>100,000 hours
Control properties
Controller
ZD-MCB
Configuration
Delta/ Star floating/ Star grounding
Series ReactorS
5%, 5.5%, 5.67%, 6%,7%,8%,12.5%,14%
Communication mode
Adopt Modbus remote
Panel Type
Stand alone/ Modular/ Customized
Environmental requirements
Ambient temperature
-20~55℃
Relative humidity
Maximum 95%, without
Altitude above sea level
≤1,000m


Features


1.Increase the load rate and improve the efficiency of the electrical equipment
2.Automatically switch fast response;
3.Accurate compensation;
4.With inner protection device reliable enough,high performance and low-cost operation.
5.Closed structure module design.

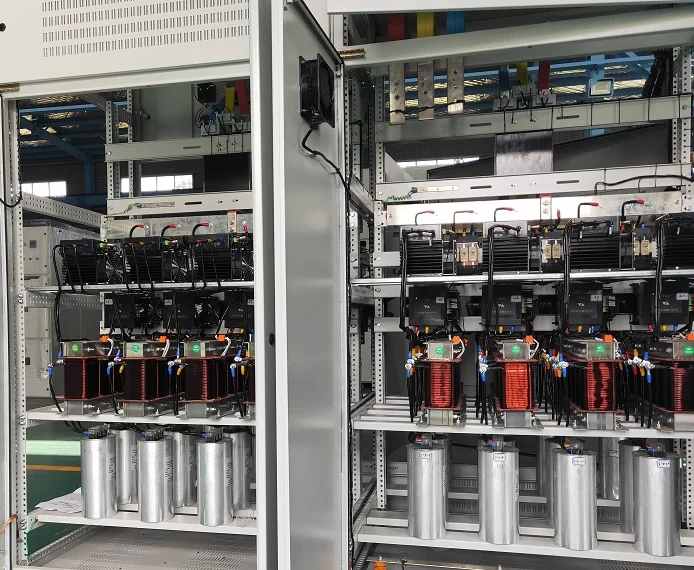

6.Adopts dry self-healing capacitor, small volume, light enough, large capacity;
7.Intelligent operation: it can automatically analyze and calculate system voltage, current, active power, reactive power, power factor, operate in real time automatically.
