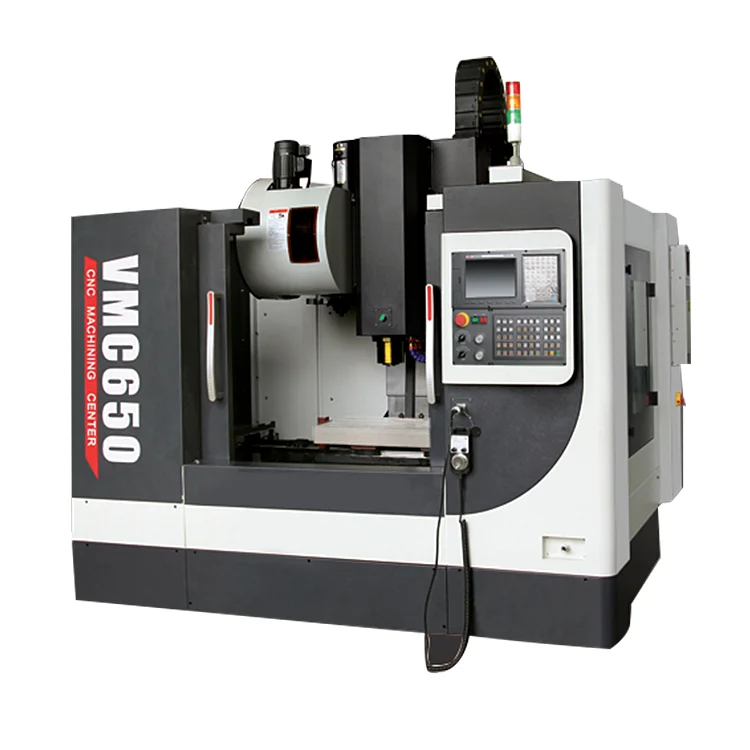

Promotional products high quality practical variable speed mini cnc machine lathe
- Category: >>>
- Supplier: Zibo Jepps Trading Co. Ltd.
Share on (1600749840864):

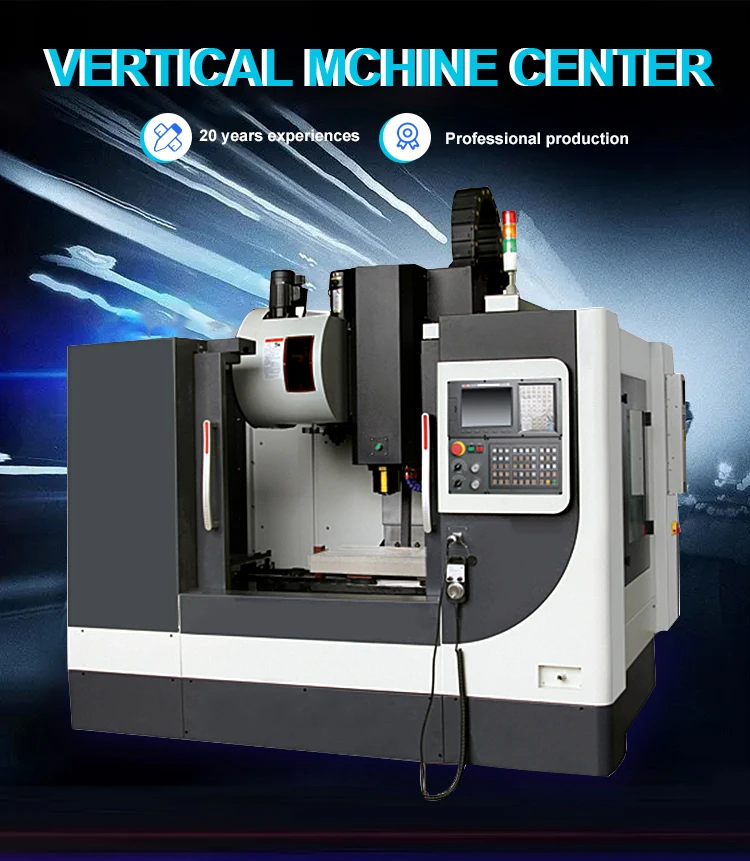

Product Overview
Description
Product Description

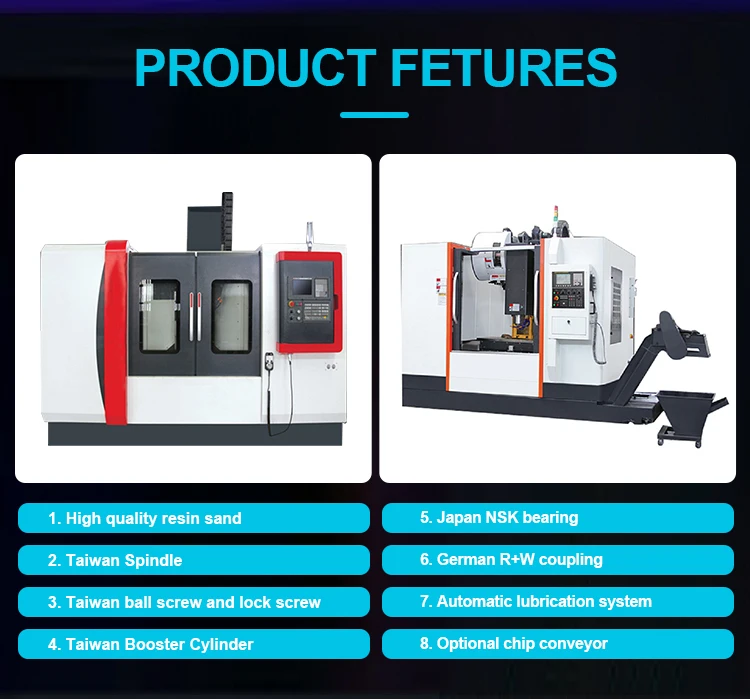

Our Advantages
Specification
Specifications | Units | VMC1050 |
Table size | mm | 1000x530 |
X axis travel | mm | 1000 |
Y axis travel | mm | 500 |
Z axis travel | mm | 600 |
Max. worktable load | kg | 600 |
T slot(number-width-pitch) | 5-18x100 | |
Max. spindle speed | rpm | 8000(Optional:10000 ) |
Spindle taper | mm | BT40 |
Main motor power | kw | 7.5/11 |
X/Y/Z rapid traverse speed | m/min | 24/24/12 |
Cutting feed speed | mm/min | 1-8000 |
Guide rail type | Hard rail (Box type) | |
Distance from spindle axis to column surface | mm | 600 |
Distance between spindle nose and worktable surface | mm | 130-680 |
Positioning accuracy | mm | ±0.0075 |
Repeat positioning accuracy | mm | ±0.005 |

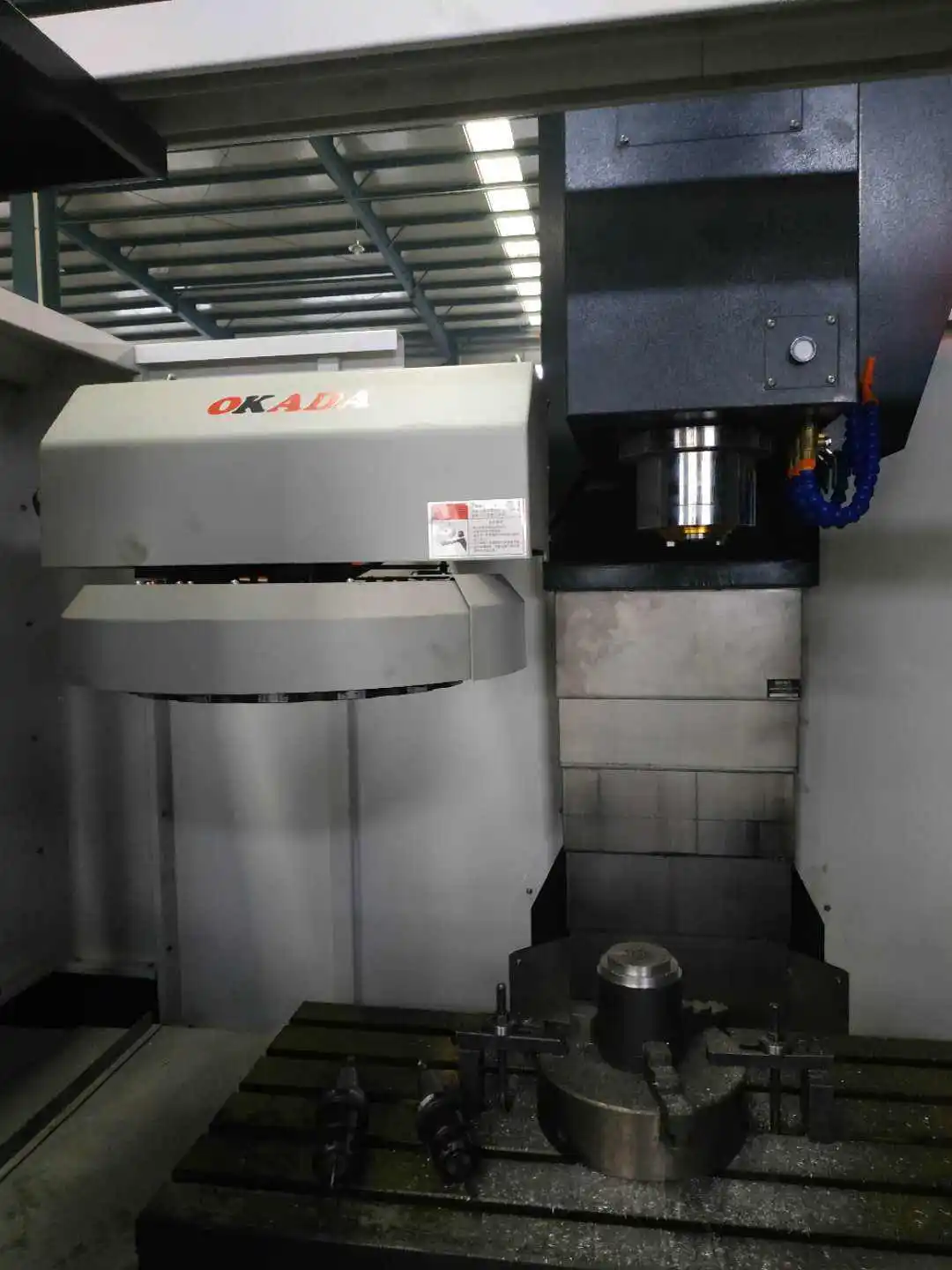

Tool magazine | Arm 24 | |
Max. tool diameter | mm | φ78 (Adjacent)/ φ120(Apart) |
Max.tool weight | kg | 8 |
Machine weight | kg | 6000 |
Overall dimension | mm | 3300x2400x2400 |

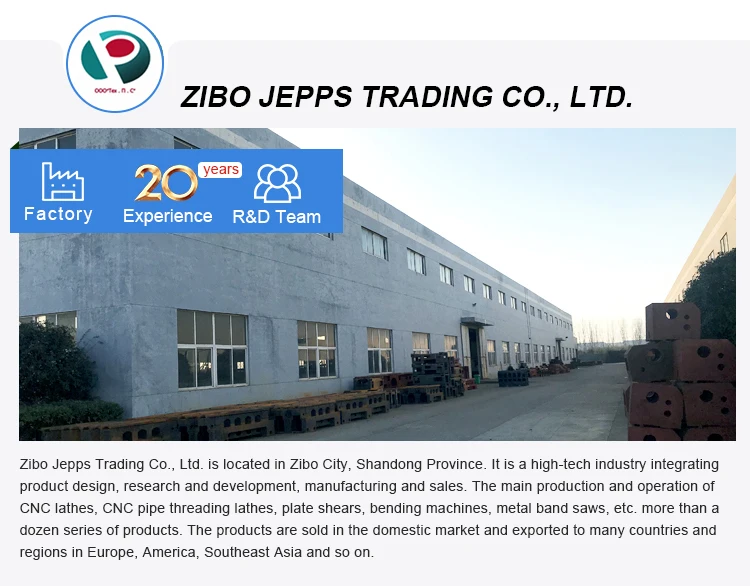

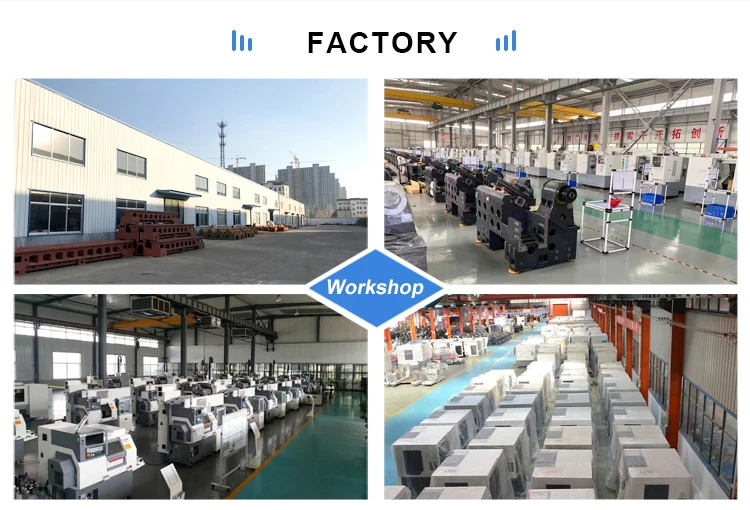

Company Profile
