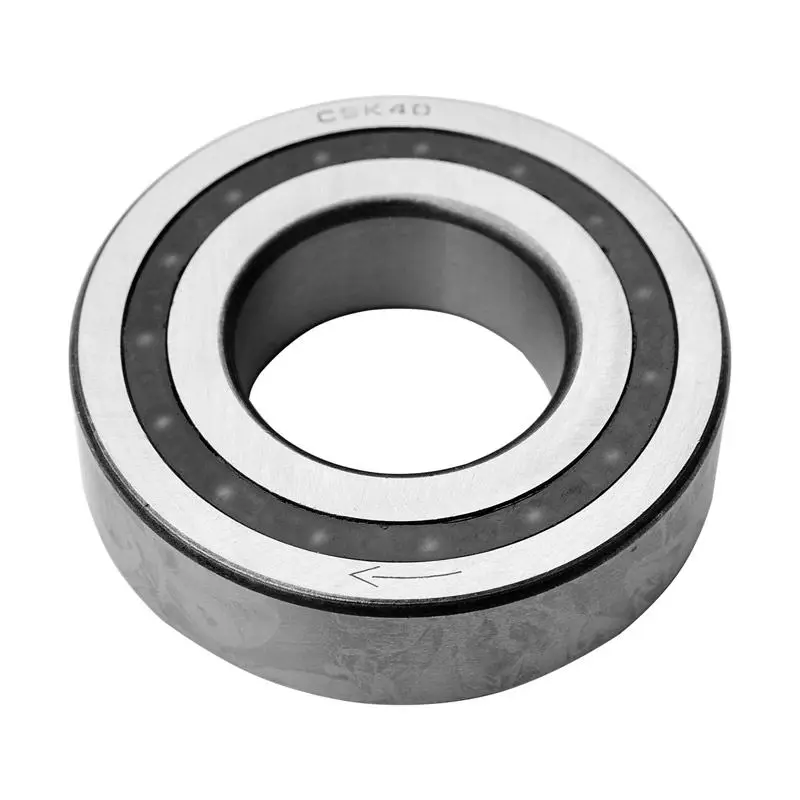

High Torque One Way Bearing CSK25P CSK25 K CSK12 KK CSK35PP Sprag Way Bearing One Way Freewheel Backstop Clutch
- Category: >>>
- Supplier: Changzhou Tianniu Transmission Equipment Co. Ltd.
Share on (1600749972006):
Product Overview
Description
Product Description
Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40). It is bearing supported,delivered grease lubricated and protected against dust of more than 0,3 mm. The use of additional “nylos” type seals is recommended especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
All the CSK versions are equipped with “formchromed” sprags. This process increases several times the overrunning life time.Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if using the press fit as specified.
Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C. CSK..2RS is 5 mm wider but is equiped with lip seals to be water splash resistant.
All the CSK versions are equipped with “formchromed” sprags. This process increases several times the overrunning life time.Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if using the press fit as specified.
Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C. CSK..2RS is 5 mm wider but is equiped with lip seals to be water splash resistant.

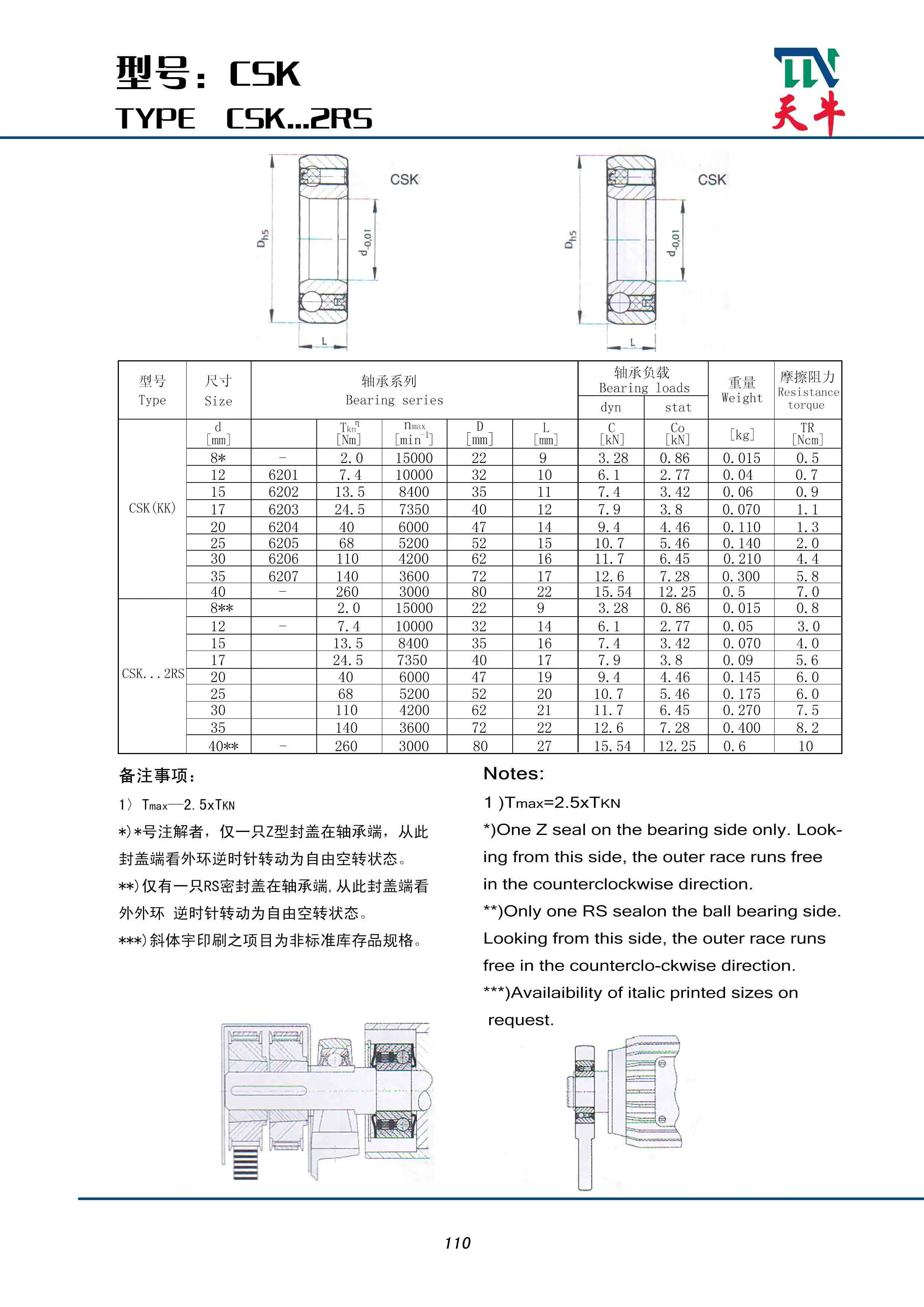

Product Parameters
Notes
1) T max = 2 × T KN
*) One Z seal on the bearing side only. Looking from this side, the outer race runs free in the counterclockwise direction
**) Only one RS seal on the ball bearing side looking from this side, the outer race runs free in the counterclock-wise direction
*) One Z seal on the bearing side only. Looking from this side, the outer race runs free in the counterclockwise direction
**) Only one RS seal on the ball bearing side looking from this side, the outer race runs free in the counterclock-wise direction

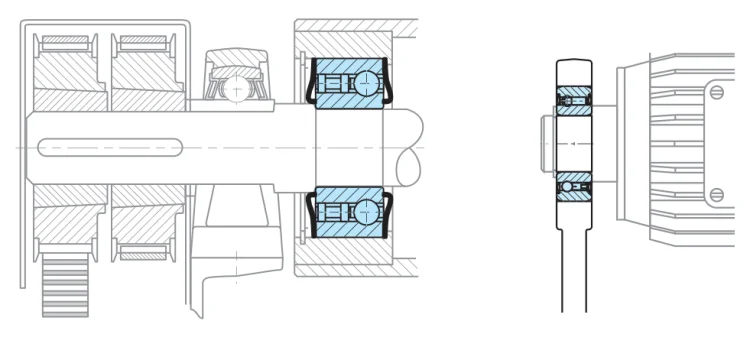

Mounting example
Technical Data
Item | CSK35 kk |
Material | GCr15 |
Inner dia. | 35 mm |
Outer dia. | 72 mm |
Width | 17 mm |
Weight | 0.3 kg |
Torque | 140 Nm |
Port | Shanghai:Ningbo |
Delivery time | 10-20 days |

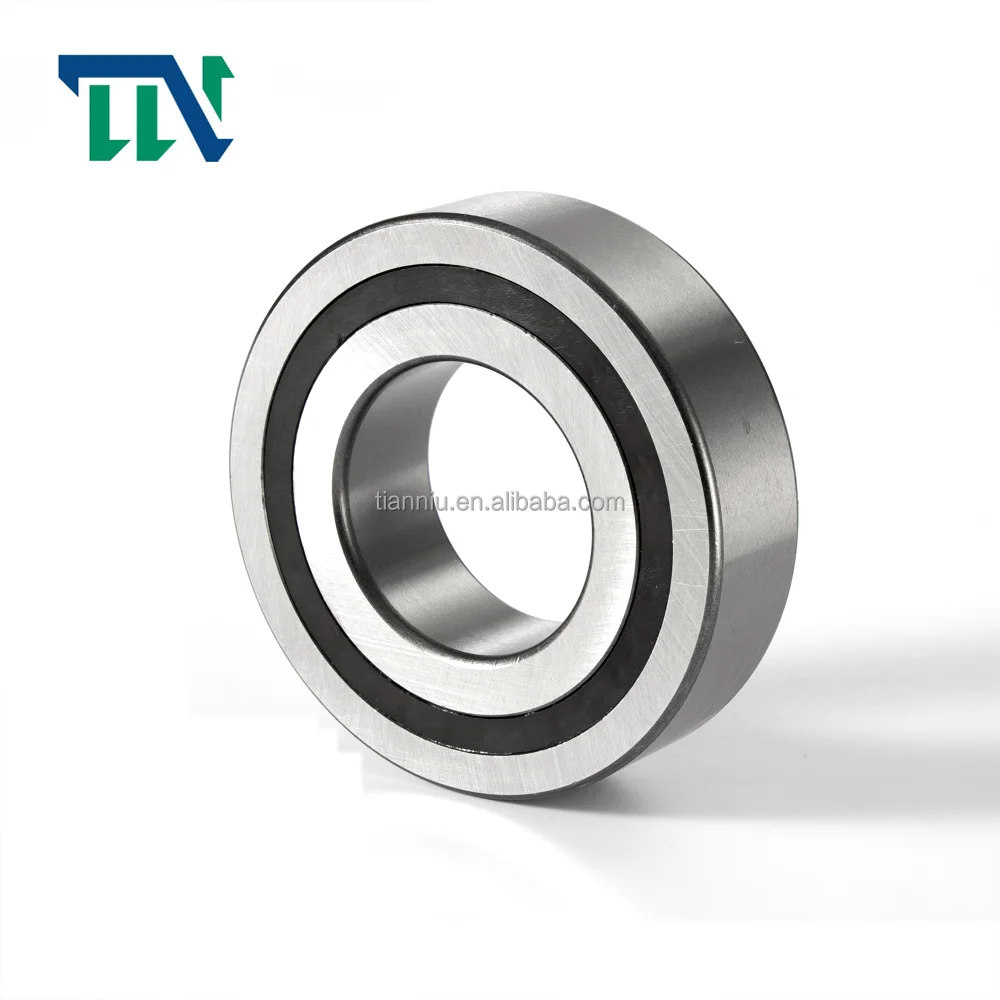

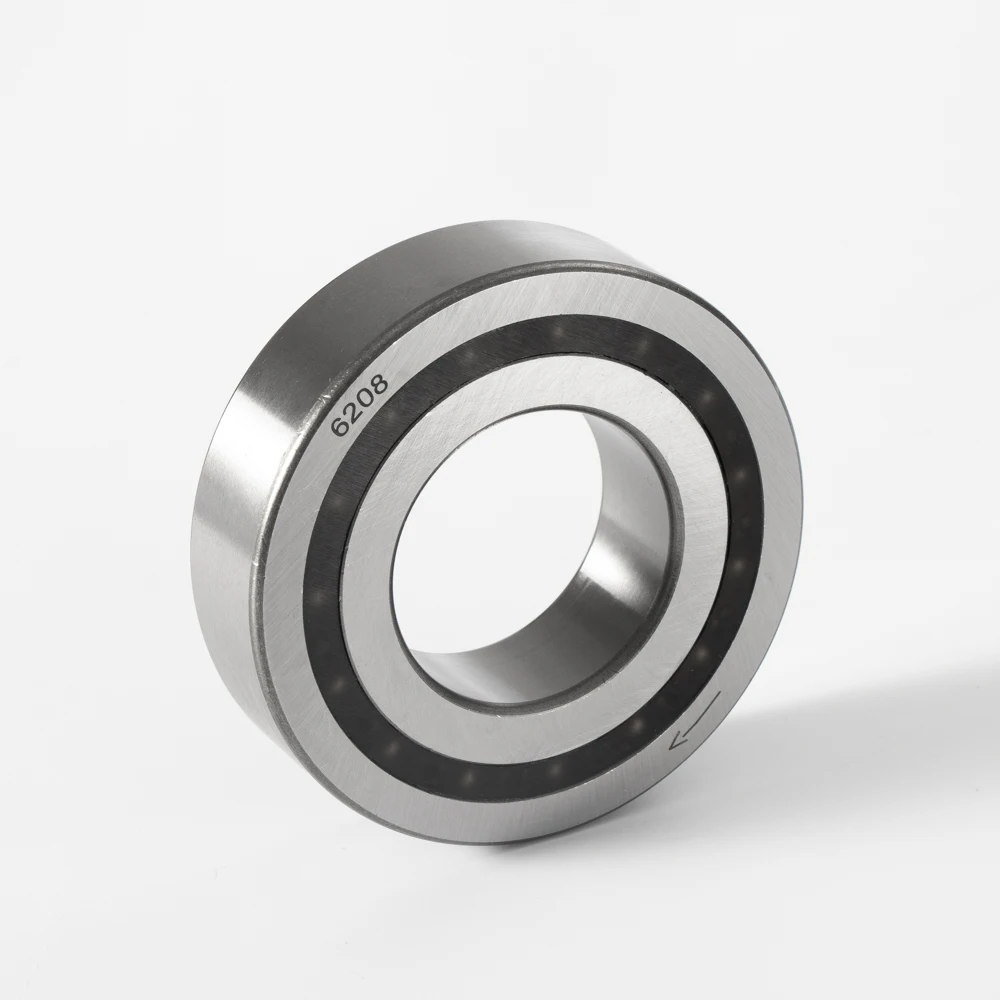

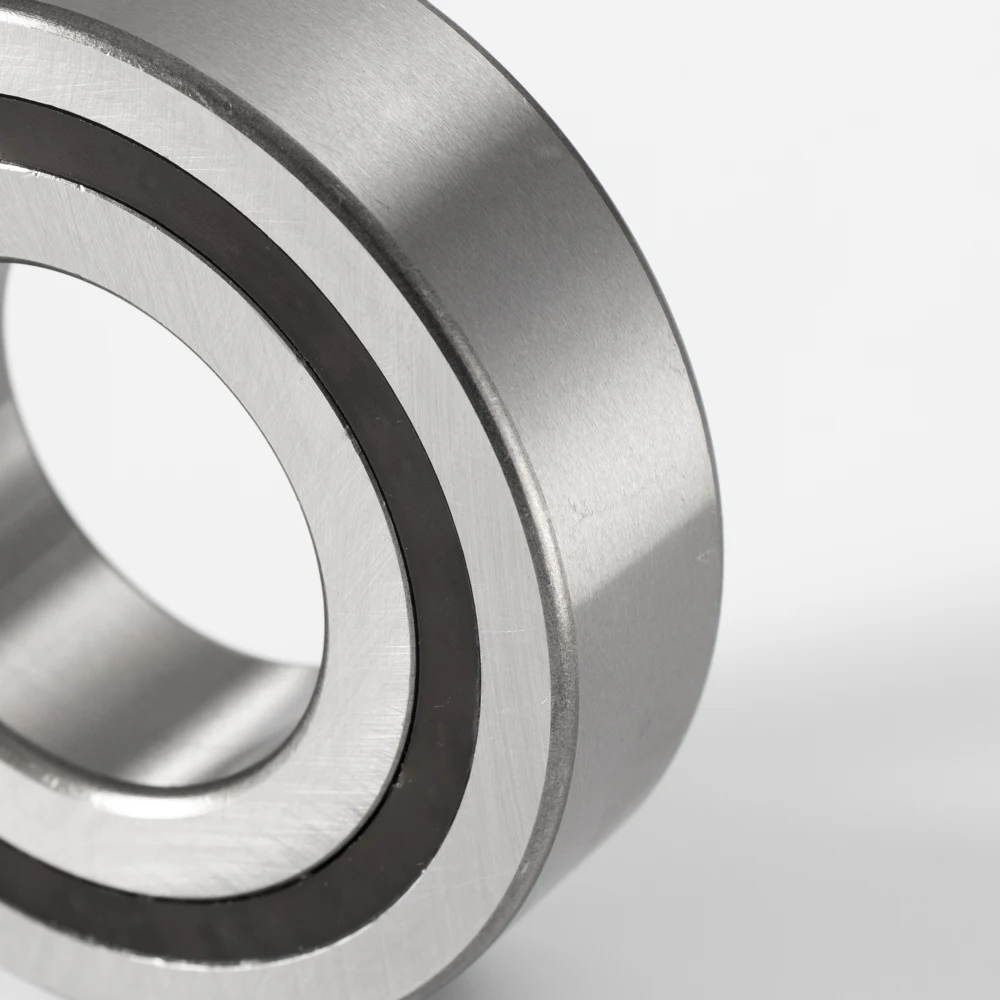

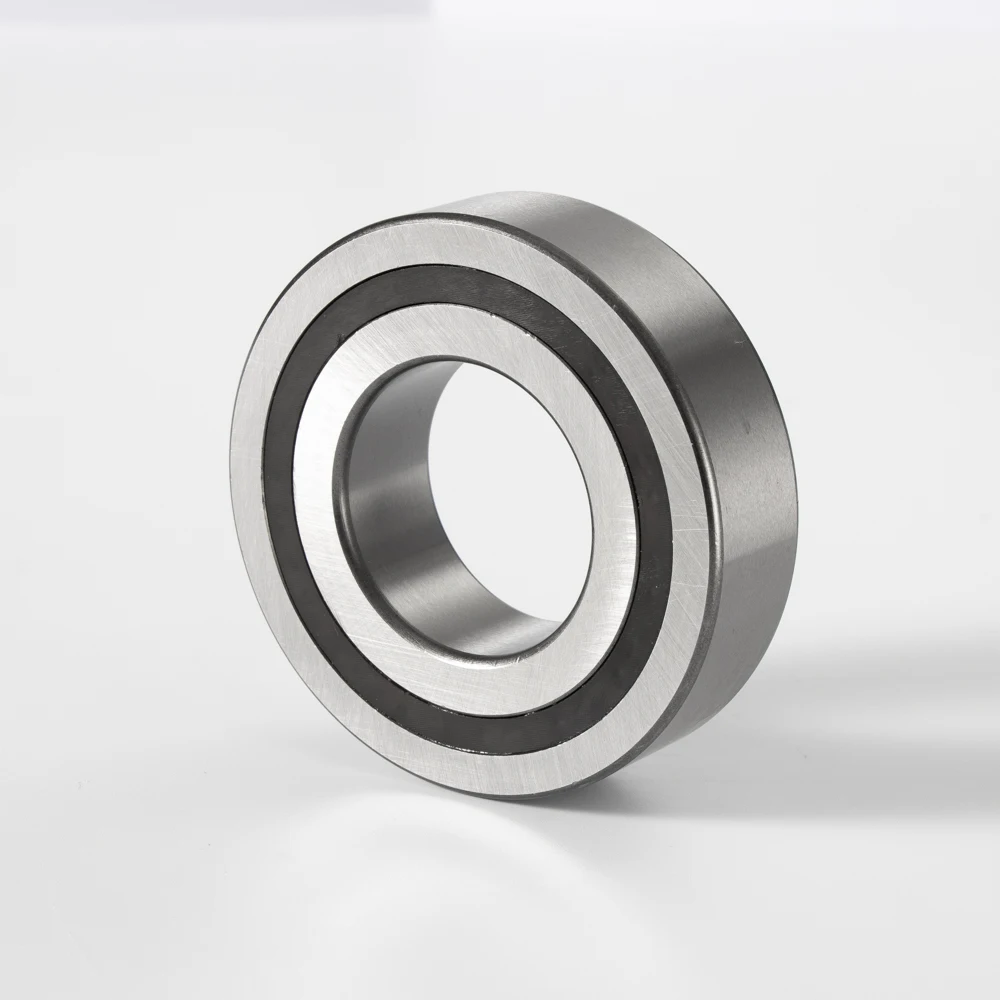

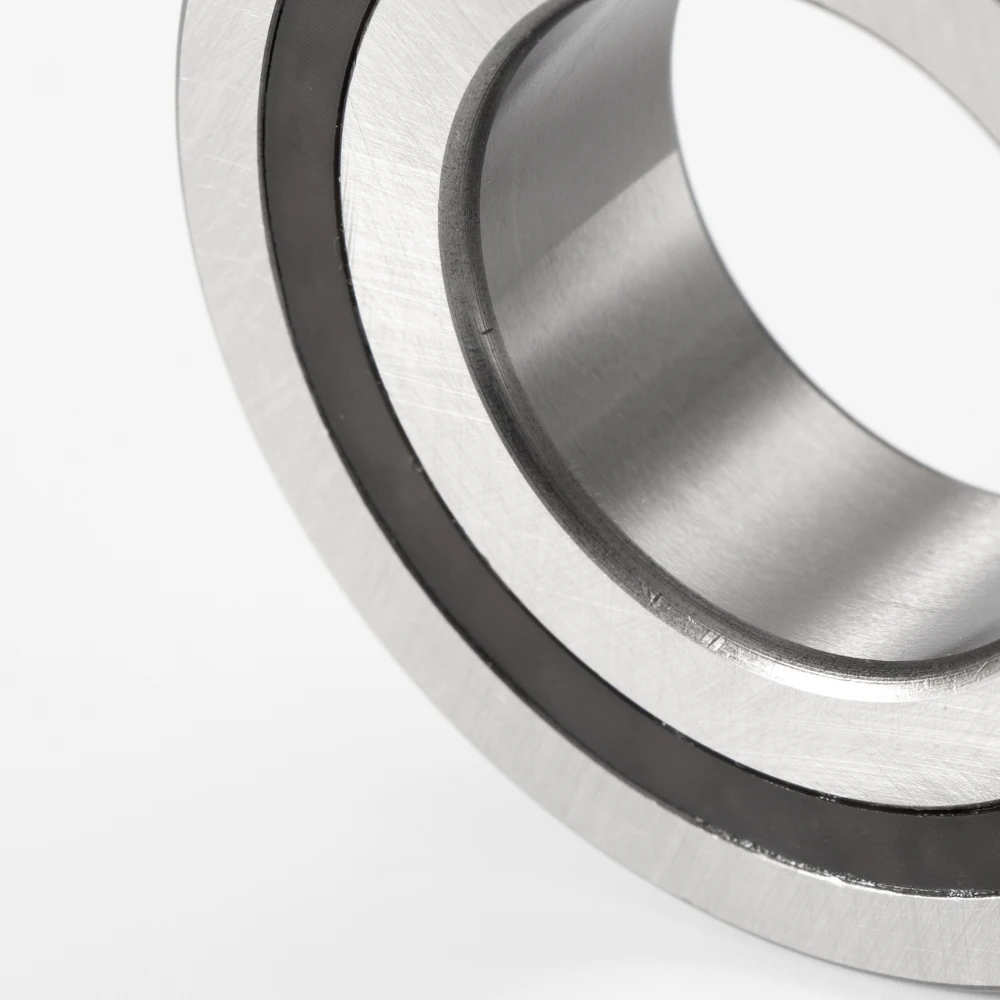

Product Display
Production Flow
Packaging & Shipping
Product application
Certifications
Clients Visit
Company Information
FAQ
Q: Why do we choose your company?
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
