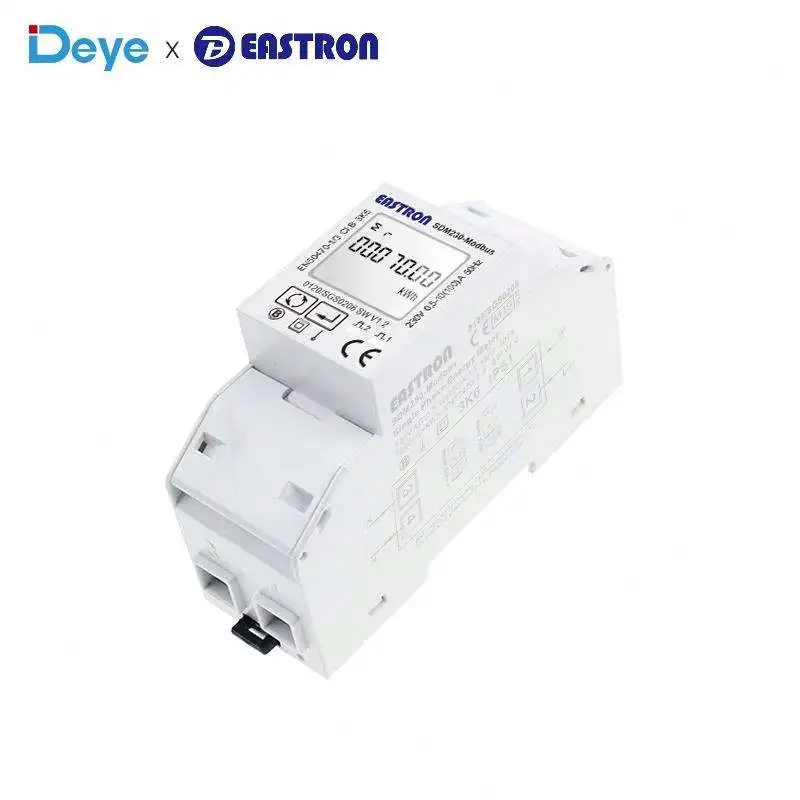

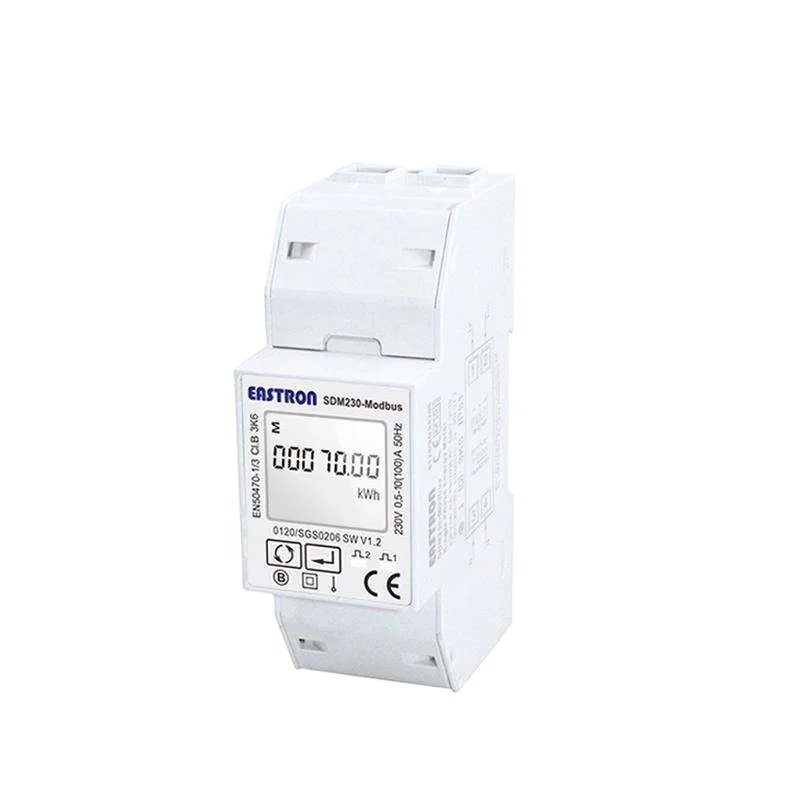

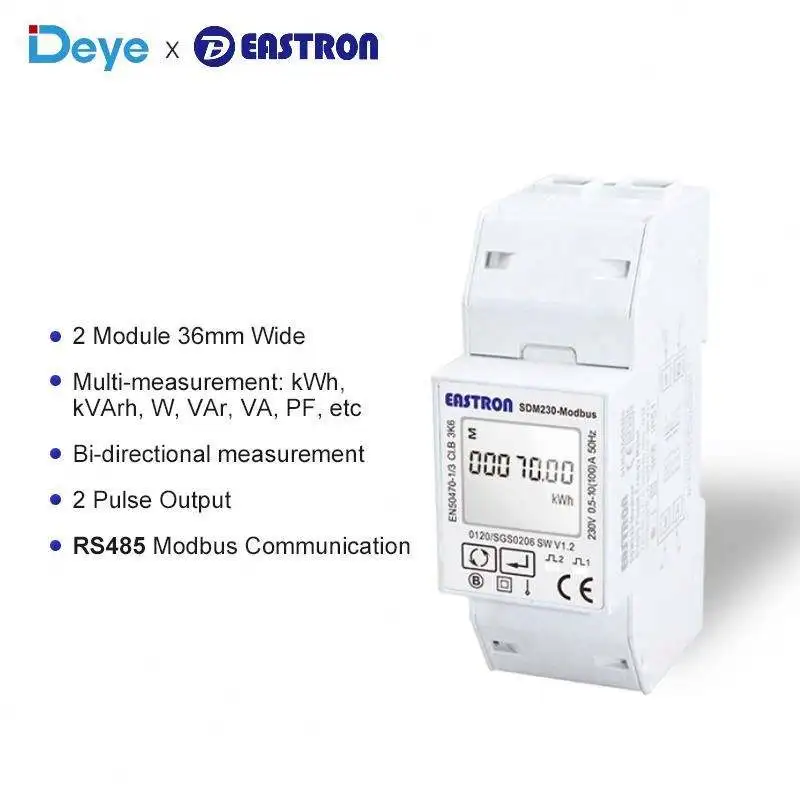

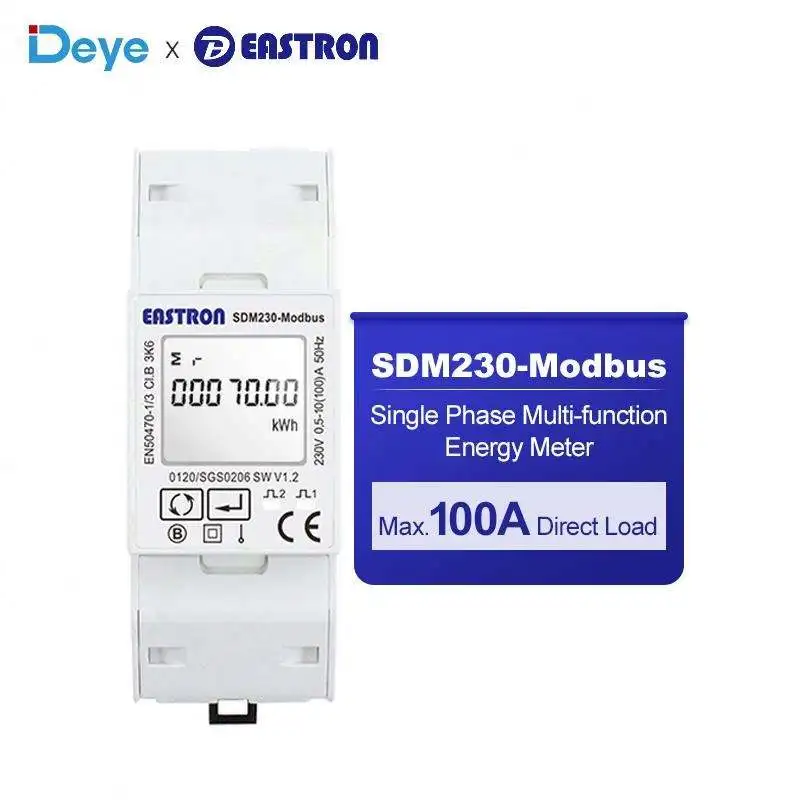

Hot Sale Eastron SDM230 Modbus 220V PV Sensor Meter Intelligent Digital Display A SINGLE Phase Miniature Electronic
- Category: >>>
- Supplier: Ningbo Dcloud Information Technology Co. Ltd.
Share on (1600749987231):
Product Overview
Description
Model | SDM230-Modbus |
General Specifications | |
Voltage AC (Un) | 230V |
Voltage Range | 176~276V AC |
Base Current (Ib) | 10A |
Max. Current (Imax) | 100A |
Mini Current (Imin) | 0.5A |
Starting Current | 0.4% of Ib |
Power Consumption | <2W/10VA |
Frequency | 50/60Hz(±10%) |
AC Voltage Withstand | 4KV for 1 minute |
Impulse Voltage Withstand | 6KV-1.2uS waveform |
Overcurrent Withstand | 30 Imax for 0.01s |
Pulse Output Rate | |
-Pulse Output 1 | 1000/100/10/1 imp/Exp/kWh/kVArh (configurable) |
-Pulse Output 2 | 1000imp/kWh (default) for import kWh |
Display | LCD with white backlit |
Max. Reading | 999999.9 kWh/kVArh |
Accuracy | |
Voltage | 0.5% of range maximum |
Current | 0.5% of nominal |
Frequency | 0.2% of mid-frequency |
Power factor | 1% of Unity |
Active power | 1% of range maximum |
Reactive power | 1% of range maximum |
Apparent power | 1% of range maximum |
Active energy | Class 1 IEC62053-21 |
Class B EN50470-1/3 | |
Reactive energy | Class 2 IEC62053-23 |
Environment | |
Operating temperature | -25℃ to +55℃ |
Storage and transportation temperature | -40℃ to +70℃ |
Reference temperature | 23℃±2℃ |
Relative humidity | 0 to 95%, non-condensing |
Altitude | up to 2000m |
Warm up time | 5s |
Installation category | CAT II |
Mechanical Environment | M1 |
Electromagnetic environment | E2 |
Degree of pollution | 2 |
Mechanics | |

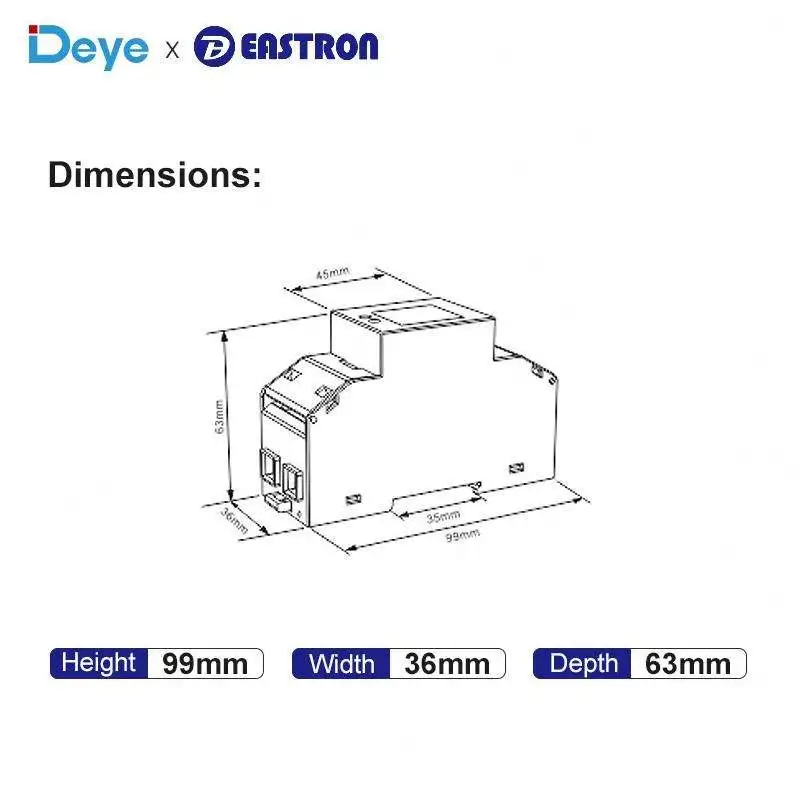

Din rail dimensions | 36x100x63 (WxHxD) DIN 43880 |
Mounting | DIN rail 35mm |
Ingress protection | IP51 (indoor) |
Material | self-extinguishing UL94V-0 |
We have established long term strategic partnershipswith the following brands: Deye, Goodwe, Solis,Growatt, SRNE, SMA,Hoymiles,MUST, HUAWEl, etc
FAQ
1.Do you offer sample for testing purpose?
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents
2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116.RD1699. UNE 206006 IN, UNE 206007-1 IN,IEEE1547.Please double check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders, dates may vary depending on quantity.
