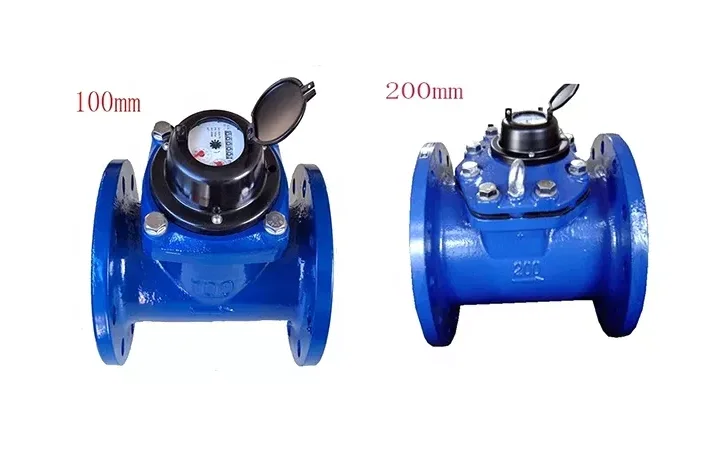

8 inch DN200 china wholesale price water meter mechanism detachable agricultural irrigation water flow meter
- Category: >>>
- Supplier: Kaifeng Xintai Valve Co. Ltd.
Share on (1600750053552):
Product Overview
Description
Product Description
Specification
Nominal Size | L mm | H mm | Connection Thread | Weight kg | ||||||
Model | Flange Outer Φ mm | Thread Hold center circle Φ mm | Thread connect Numbers | |||||||
LXLC-50E | 50 | 200 | 232 | 380 | 165 | 125 | 4*M16 | 12 | ||
LXLC-65E | 65 | 200 | 232 | 380 | 185 | 145 | 4*M16 | 13 | ||
LXLC-80E | 80 | 225 | 252 | 360 | 200 | 160 | 8*M16 | 16 | ||
LXLC-100E | 100 | 250 | 262 | 380 | 220 | 180 | 8*M16 | 18 | ||
LXLC-125E | 125 | 250 | 275 | 380 | 250 | 210 | 8*M16 | 20 | ||
LXLC-150E | 150 | 300 | 325 | 420 | 285 | 240 | 8*M20 | 38 | ||
LXLC-200E | 200 | 350 | 352 | 420 | 340 | 295 | 8*M20 | 64 | ||
LXLC-250E | 250 | 450 | 470 | 660 | 395 | 350 | 12*M20 | 94 | ||
LXLC-300E | 300 | 500 | 492 | 660 | 445 | 400 | 12*M20 | 114 | ||
LXLC-400E | 400 | 600 | 631 | 750 | 565 | 515 | 16*M20 | 199 | ||
LXLC-500E | 500 | 80 | 740 | 840 | 670 | 620 | 20*M20 | 340 | ||
Remarks:
1. Temperature Class: T30
2. Pressure Class: MAP10
3.Pressure Loss Grade: △P40
4.Up Stream Flow Sensitivity Class: U0
5.Down Stream Flow Sensitivity Class: D0
6. Low Area(Q1≤Q≤Q2) Max Permit Erro: ±5%
7. High Area (Q2≤Q≤Q4)Max Permit Erro: ±2%
8. Flange connection shall be in accordance with GB/T17241.6-2008, PN10 integral cast iron flange size regulations,
special specifications of the order. Size and weight, main technical parameters to the product and order requirements prevail.
special specifications of the order. Size and weight, main technical parameters to the product and order requirements prevail.

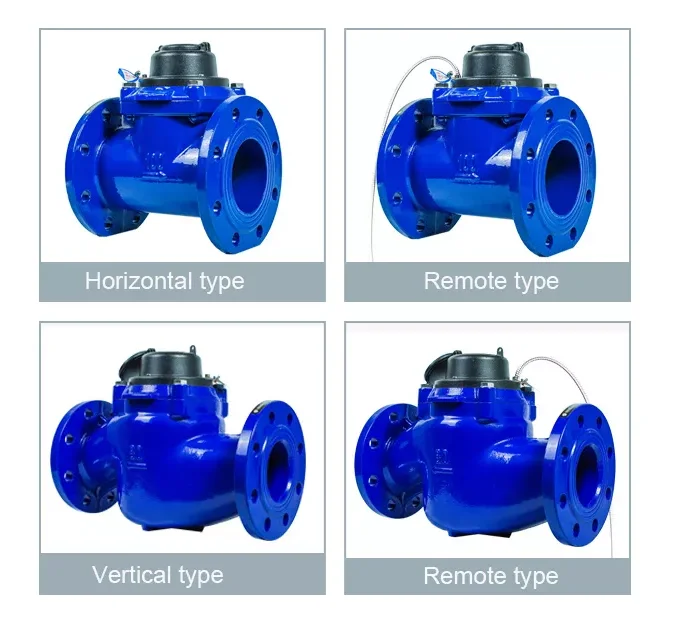

9.A magnetic drive,dry dial and helix type water meter with an interchangeable measuring unit.
10.It has the advantages of small resistance,negligible head loss,big capacity,excellent accuracy,high mesuring capacity,and long life of service.

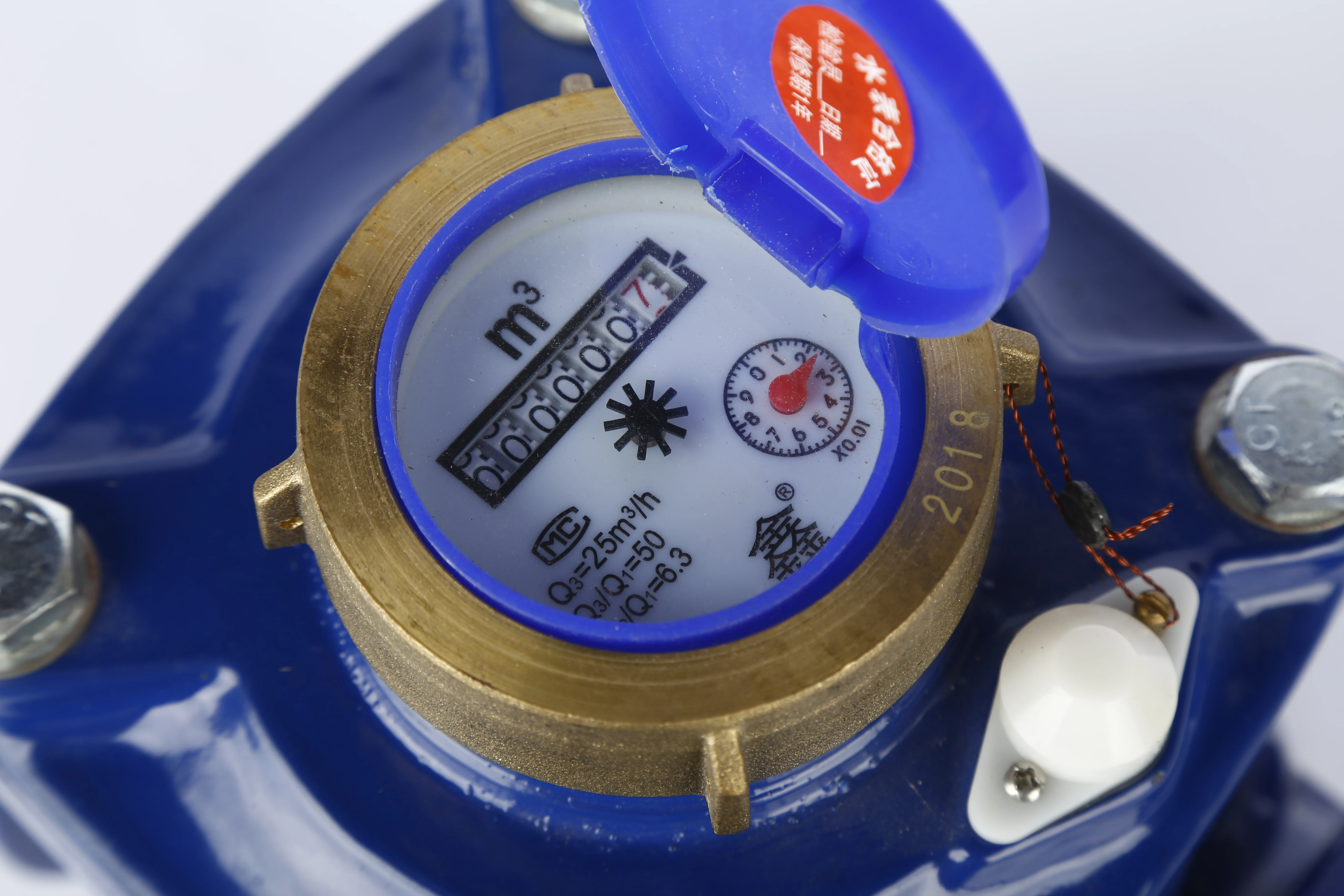

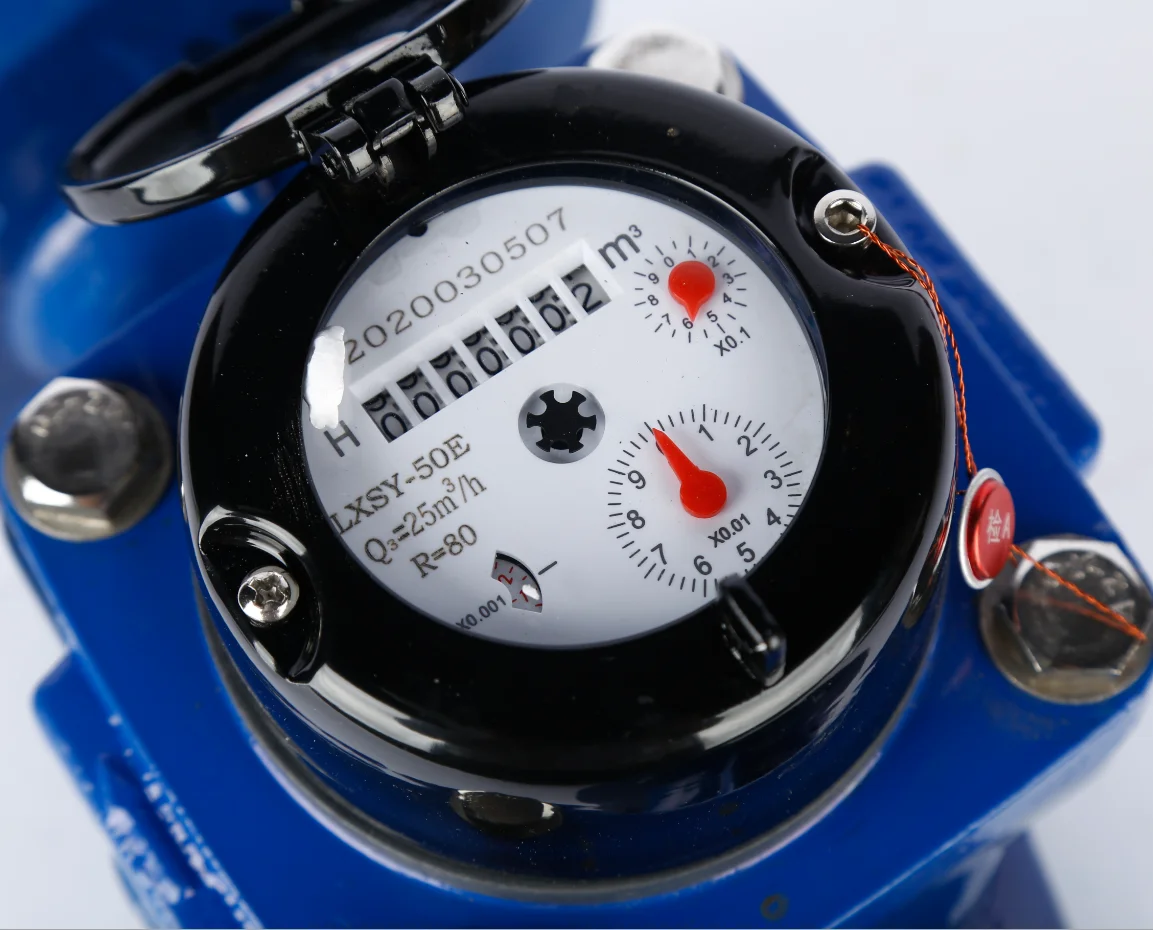

11.The measuring unit with sealed indicator offers the meter with very clear reading condition.
12.The meters can be equipped with a kind of remote transmission Device,the pulse generating volume could be 100,1000 or 10000liter/pulse.
13.Selected high quality materials for steady and reliable characteristic;
14.Technical data conform to international standard ISO 4064.
10.It has the advantages of small resistance,negligible head loss,big capacity,excellent accuracy,high mesuring capacity,and long life of service.
11.The measuring unit with sealed indicator offers the meter with very clear reading condition.
12.The meters can be equipped with a kind of remote transmission Device,the pulse generating volume could be 100,1000 or 10000liter/pulse.
13.Selected high quality materials for steady and reliable characteristic;
14.Technical data conform to international standard ISO 4064.
Company Profile
Certifications

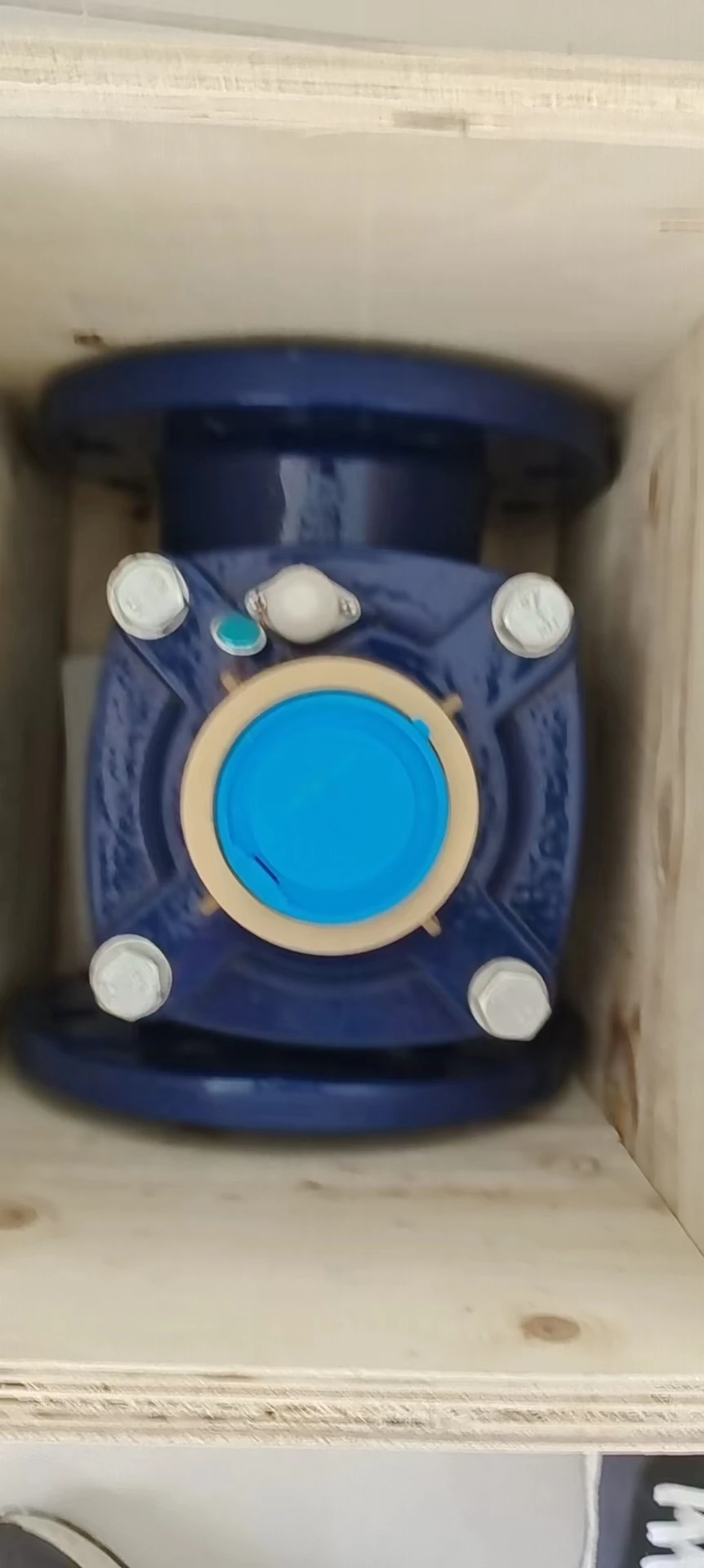

Packing & Delivery
