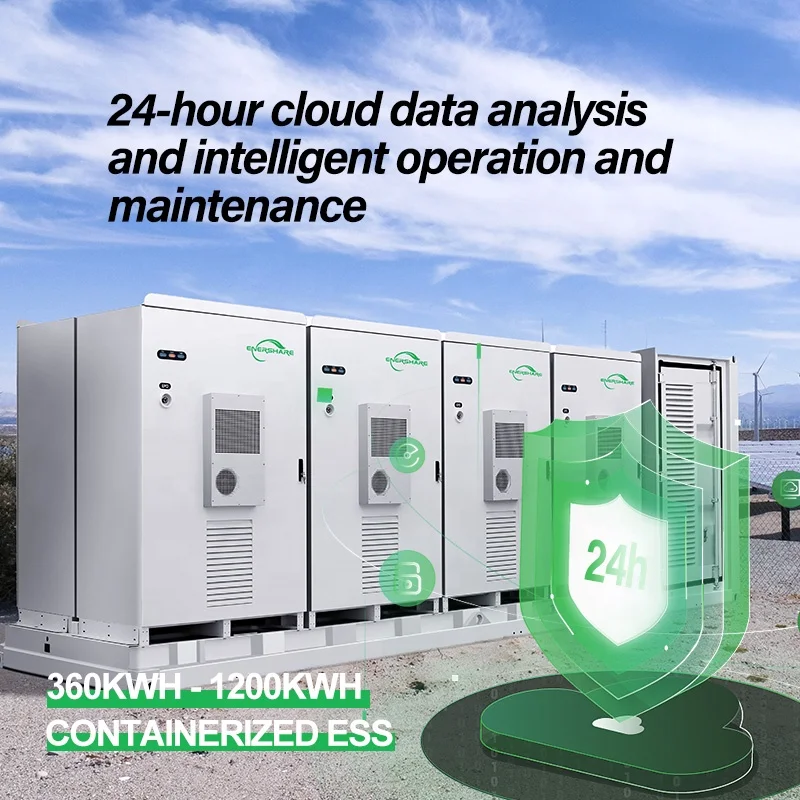

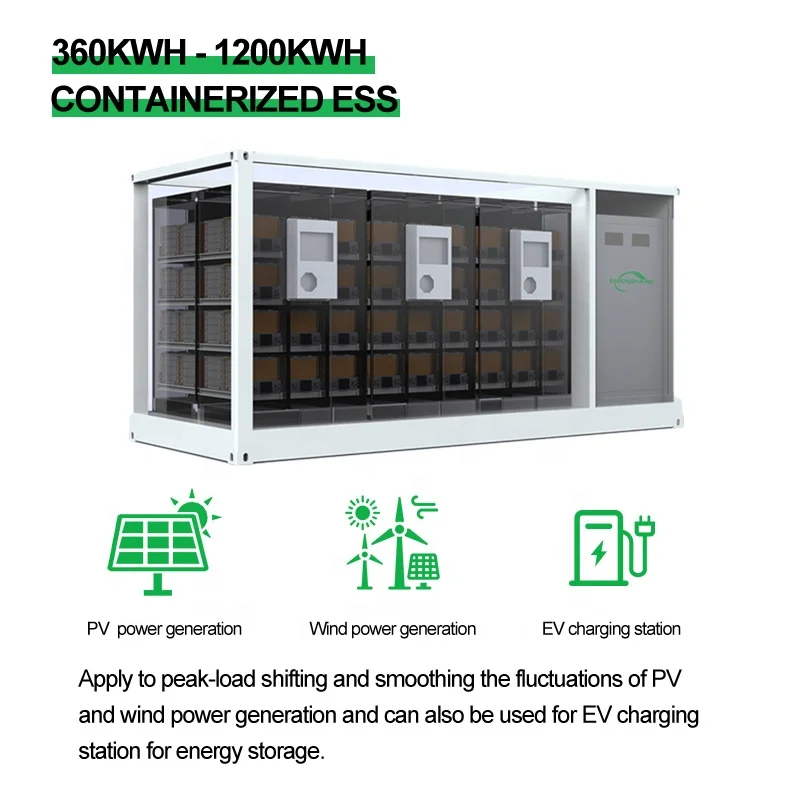

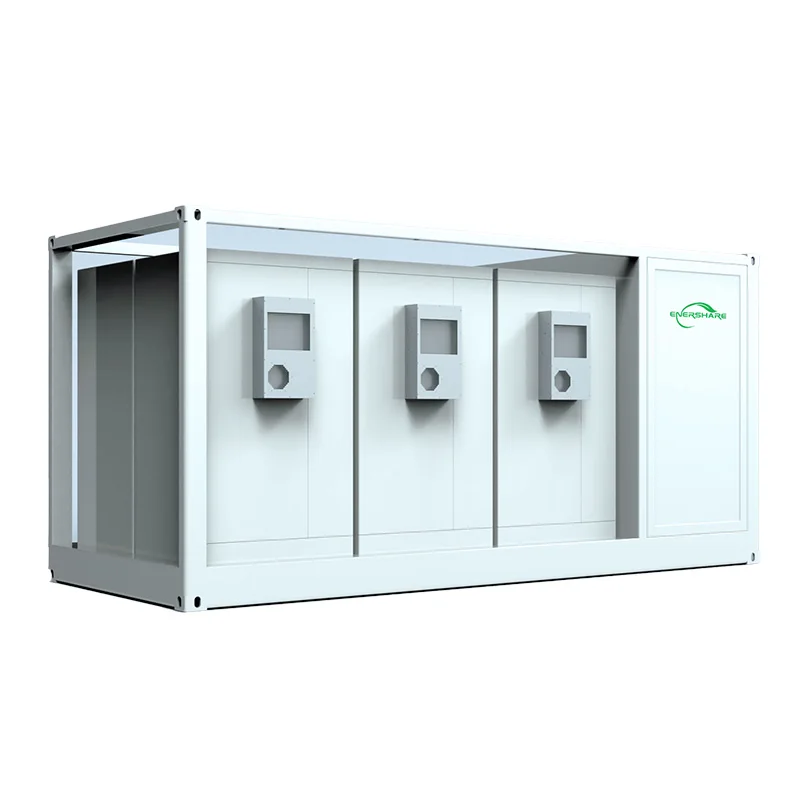

BESS Container battery Lifepo4 Energy Storage System 50KW 100KW 500KW lithium ion battery off grid High Voltage power System
- Category: >>>
- Supplier: Enershare Tech Company Limited
Share on (1600750121940):
Product Overview
Description
Video Description
Products Description
Enershare is a leading manufacturer of battery energy storage systems (BESS) with solutions for utility applications, commercial and residential use.
If you are looking for Lithium Battery system solutions,Enershare is your trusted choice.
If you are looking for Lithium Battery system solutions,Enershare is your trusted choice.
Item | 10ft | 20ft | 40ft | |||
◎DC input parameters | ||||||
Single model | LFP-220Ah | LFP-220Ah | LFP-320Ah | |||
Module model | 1P8S | 1P8S | 1P9S | |||
System configuration | 2*1P240S | 4*1P240S | 8*1P225S | |||
Initial battery nominal energy | 300kWh | 700kWh | 1300kWh | |||
Battery voltage range | 692V~838V | 692V~838V | 630V~810V | |||
◎AC output parameters | ||||||
AC rated power | 120kW | 240kW | 500kW | |||
Rated voltage | 400V±15% | |||||
Rated frequency | 50Hz | |||||
Grid frequency range | 47~52Hz | |||||
Maximum harmonic current | ≤3% | |||||
Battery compartment protection class | IP54 | |||||
Protection class of PCS compartment | IP34 | |||||
Operating temperature range | -10℃~50℃ | |||||
Maximum working altitude | ＜2000m | |||||
Cooling method of battery compartment | HVAC | |||||
ESS container fire fighting system | HFC-227eaFire Extinguishing system | |||||
Communication interface | Ethernet | |||||
Communication protocol | Modbus TCP/IP | |||||
Container Size | 10/20/40ft | |||||
ax containers in parallel | βMWh (Customized based on your installation site) | |||||

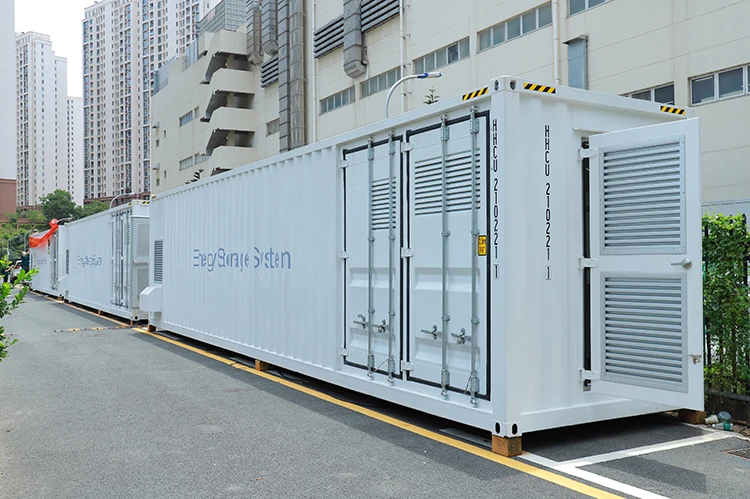

Project
