500kg 1000kg 1500 kg three forklift truck for sale container ramp small automatic electric fork lift
- Category: >>>
- Supplier: New Newton International Trading (Tianjin) Co. Ltd.
Share on (1600750181731):
Product Overview
Description

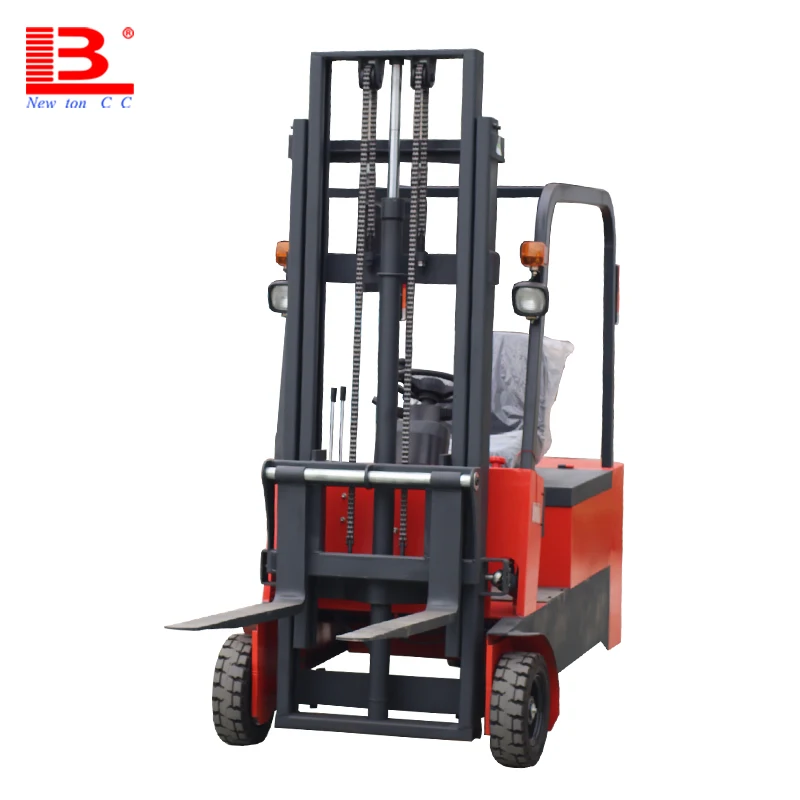

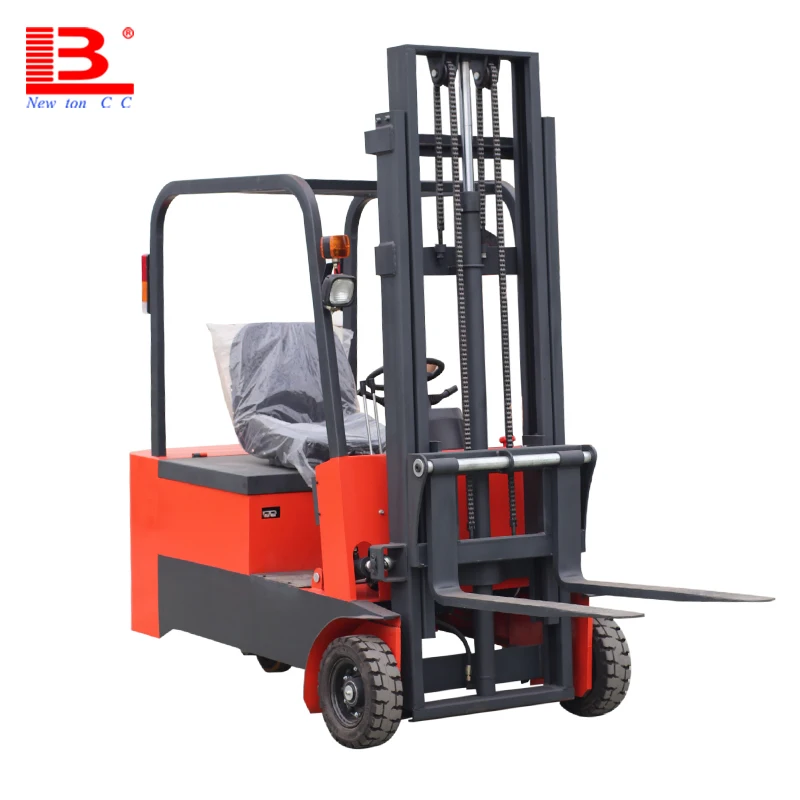

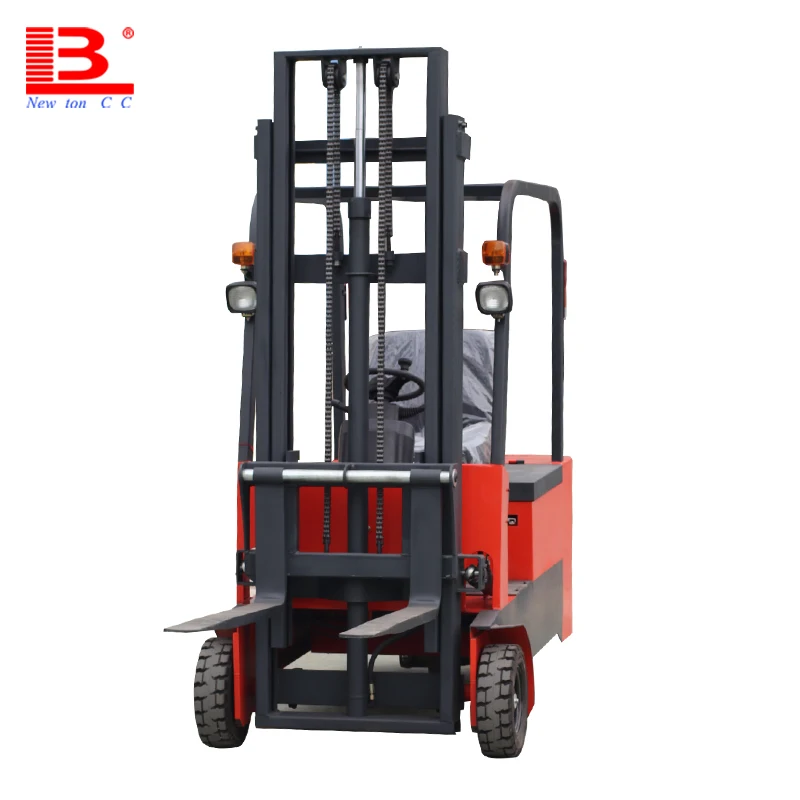

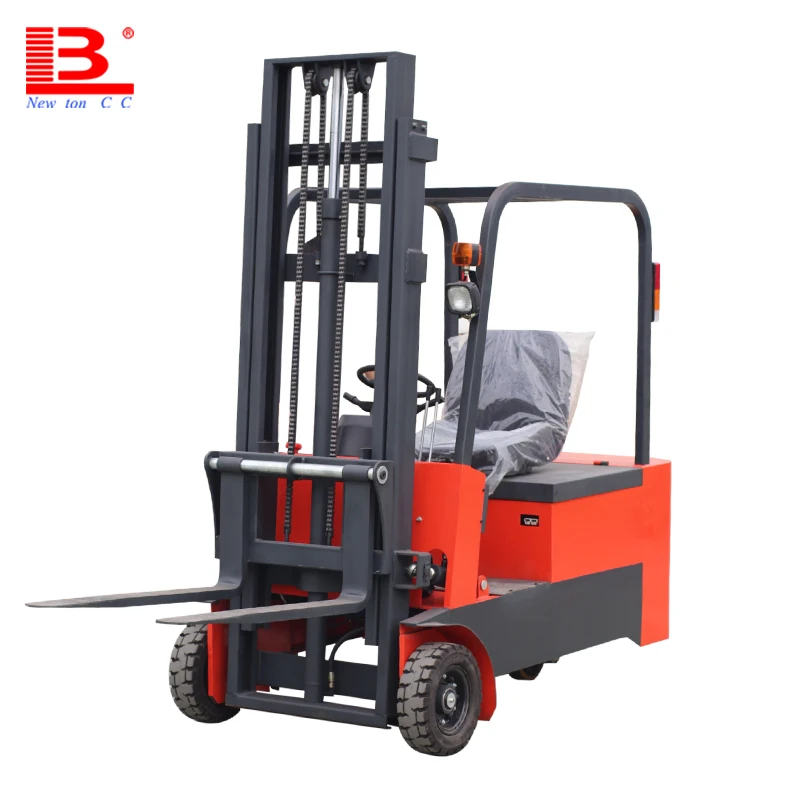

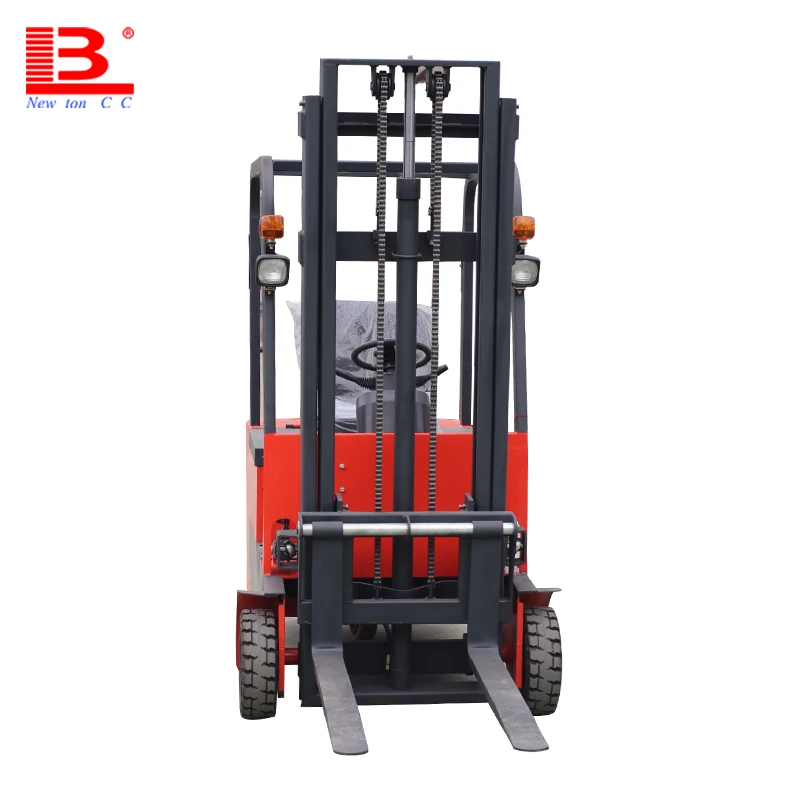

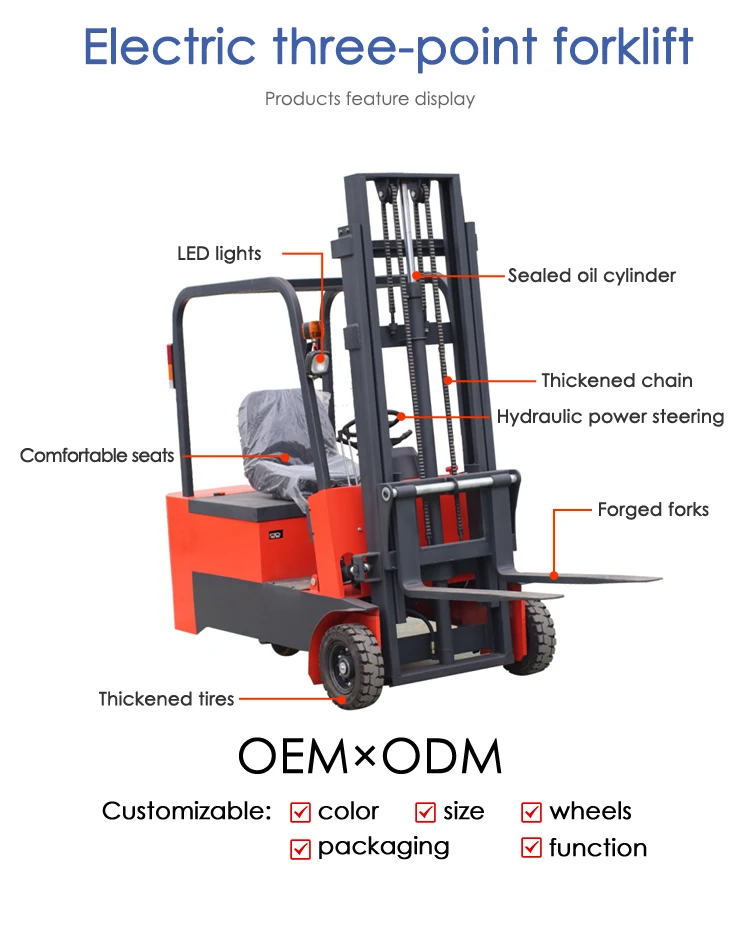

500kg 1000kg 1500 kg three forklift truck for sale container ramp small automatic electric fork lift
Product Description

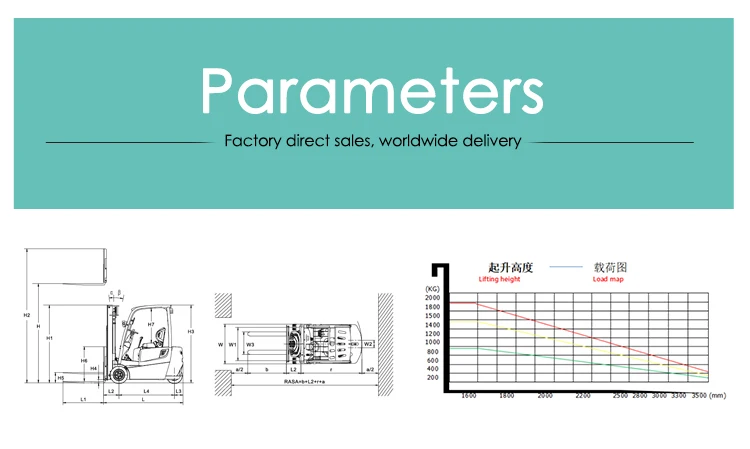

| model | LBCPD-15/18/20(C/H)-16/20/25/30/35 |
| Load (kg) | 1500/1800/2000 |
| Form of steel | C/H |
| Lifting height (mm) | 1600/2000/2500/3000/3500 |
| Frame static height (mm) | 2150/1950/1950/2150/2400 |
| After lifting the total height (mm) | 2300/2650/3150/3650/4150 |
| Load center distance (mm) | 500 |
| Fork minimum clearance from the ground(mm) | 40 |
| Wheelbase (mm) | 1540 |
| Turning radius (mm) | 3460 |
| Minimum channel requirement (mm) | 3300 |
| Minimum ground clearance (body / gantry) (mm) | 120/120 |
| Overhead guard height (mm) | 1940 |
| Total length (with fork / without fork) (mm) | 3150/2150 |
| Total body width (mm) | 940 |
| Fork width (mm) | 210-700 |
| Fork size (forging) mm | 1000*100*35 |
| Chassis height from the ground (mm) | 80 |
| Number of front / rear wheels (*=drive wheel) | 2/2+1* |
| Front/rear auxiliary wheel size (mm) | 590*179/250*80 |
| Front track (mm) | 980 |
| Front suspension (mm) | 430 |
| Lifting speed (full load / no load) (mm/s) | 100/140 |
| Falling speed (full load / no load) (mm/s) | 260/120 |
| Driving speed (full load / no load) (km / h) | 4.5/5.5 |
| Maximum gradient (full load / no load) (mm / s) | 5.0/8.0 |

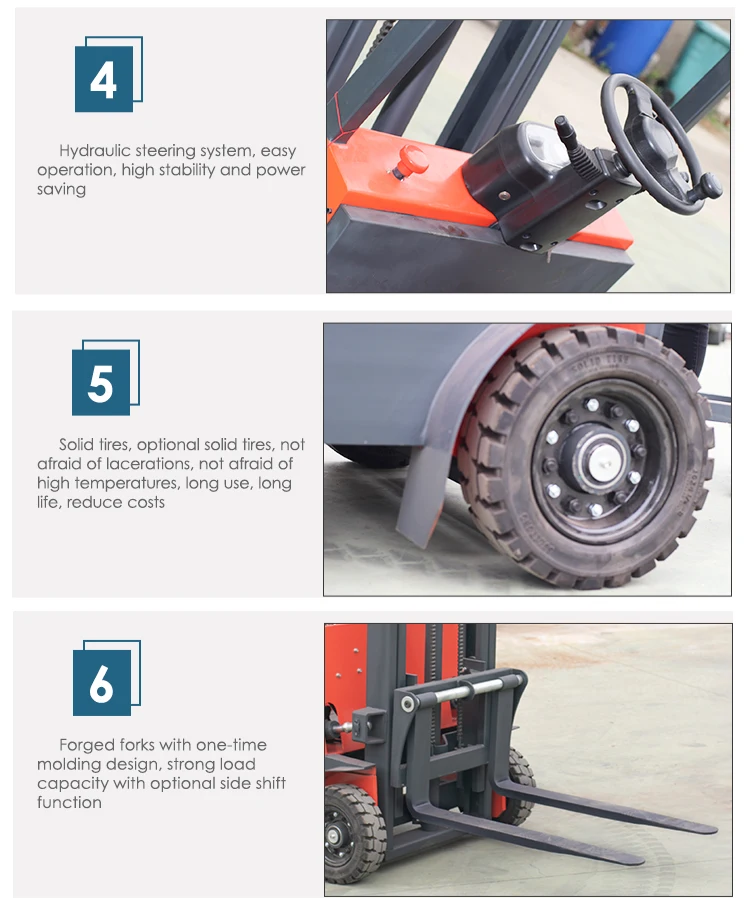

| Tire | Vacuum pneumatic tire/Solid rubber tires |
| Driving method | Sitting and driving |
| Drive form | electric |
| Braking method | Electromagnetic brake |
| Battery (V/AH) | DC24/120AH*4P |
| Lift the motor | 2.2KW |
| Walking motor | 1.2KW |
| Hydraulic oil | 46# |
| Total Weight(KG) | ≈1850/2150/2350 |
Company Information
New Newton Inernational Trading(Tianjin) Co., Ltd.is engaged in the sales of forklife tricks for nearly 15 years and has been working on forklift production for nearly 10 years.In the past ten years,we have continuously developed and expanded our products.
Nowadays,the mature New Newton has made customers more worry-foree and save money.The company has high tech technicians and has 100T hydraulic presses,large EDM cutting and machining centers,welding robot,large surface treatment machines,drying lines and fully automatic spray lines imported from the UK; The company equipment production capacity reaches the production lever of 1 hundred thousand sets of series of trucks and stacker.
FAQ
1. How about the sample policy?
We can accept sample order for testing quality. But sample and express charge should be on customer’s account.
2. How long does it take to execute my order?
Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.
3. How can I know the completion of my order?
Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.
4. Can you arrange to deliver the goods for us?
Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.
5. Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
