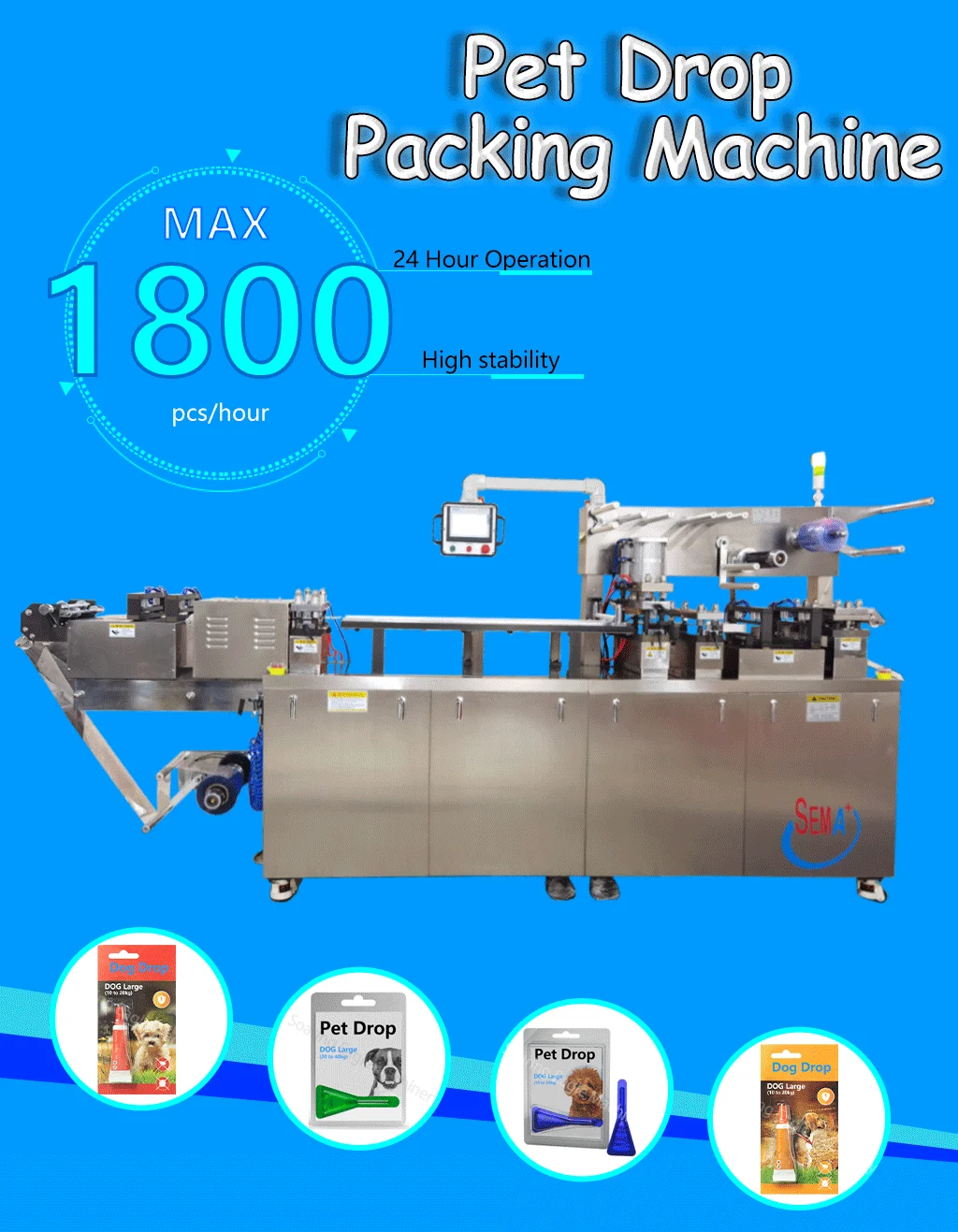

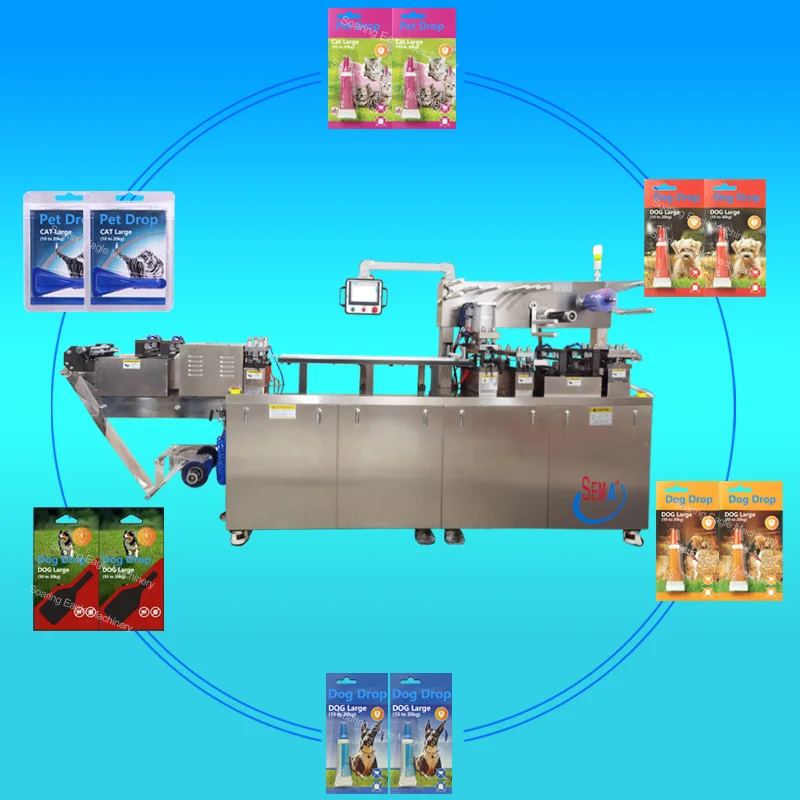

Liquid Aluminum Plastic Blister Packing Machine for Pet Dog Drops blister pack machine
- Category: >>>
- Supplier: Liaoning Soaring Eagle Machinery Co. Ltd.
Share on (1600750312972):
Product Overview
Description

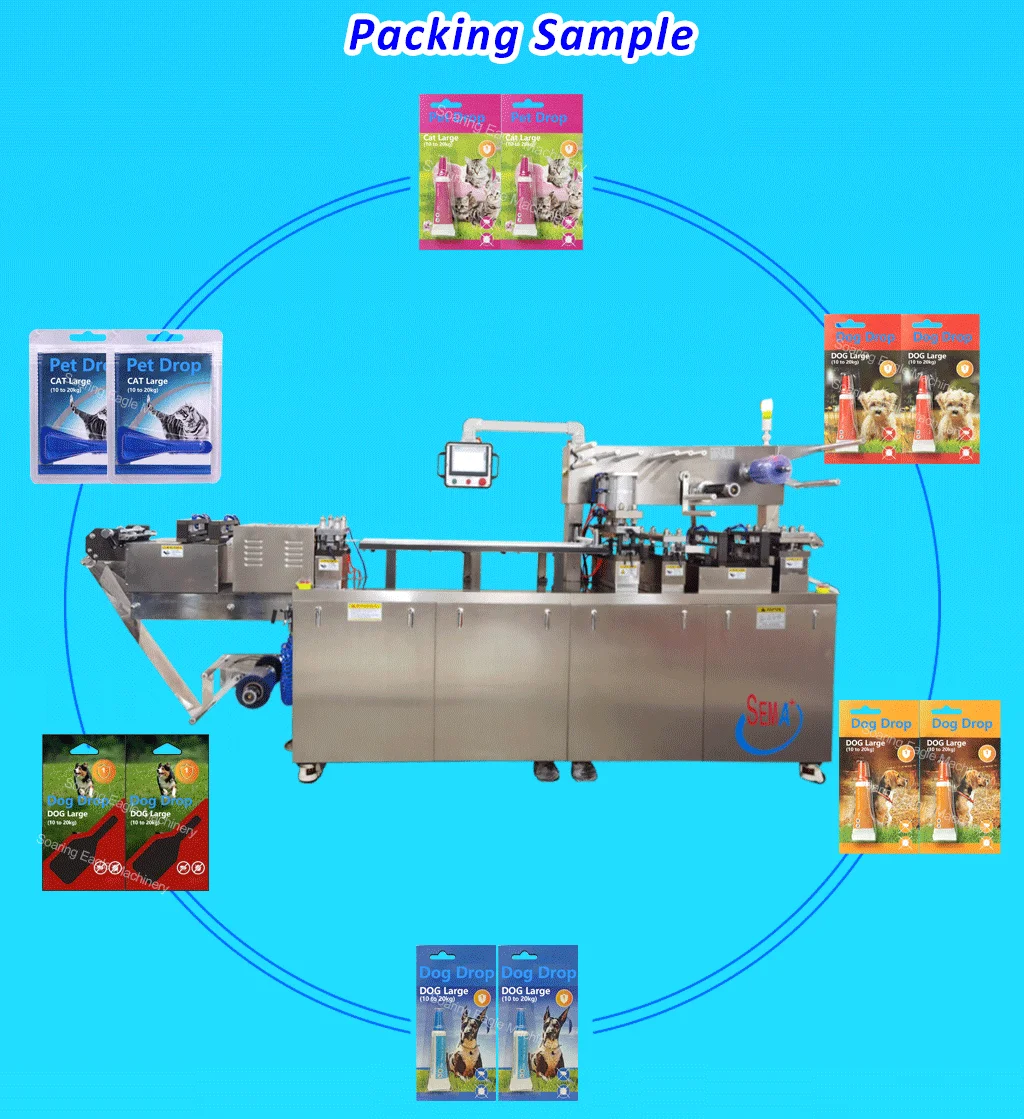

Automatic Flat Type Liquid Aluminum Plastic Blister Packing Machine For Cat Medicine Drops
Application:
Application:

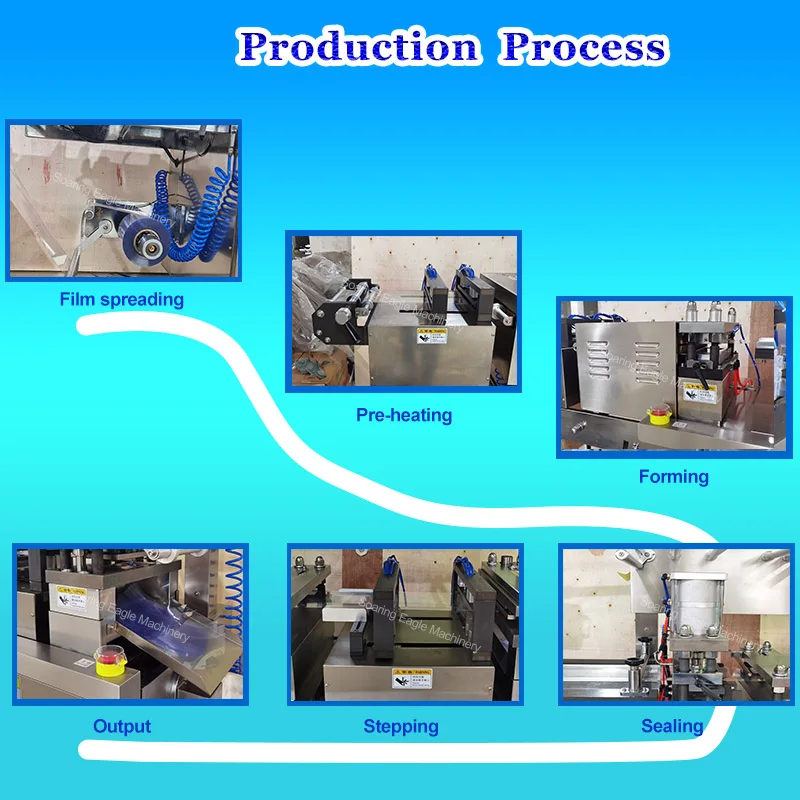

This machine is suitable for packaging medicines, foods products, such as tablets, capsules, pills, children's candies, sugar gums, etc.Working process :

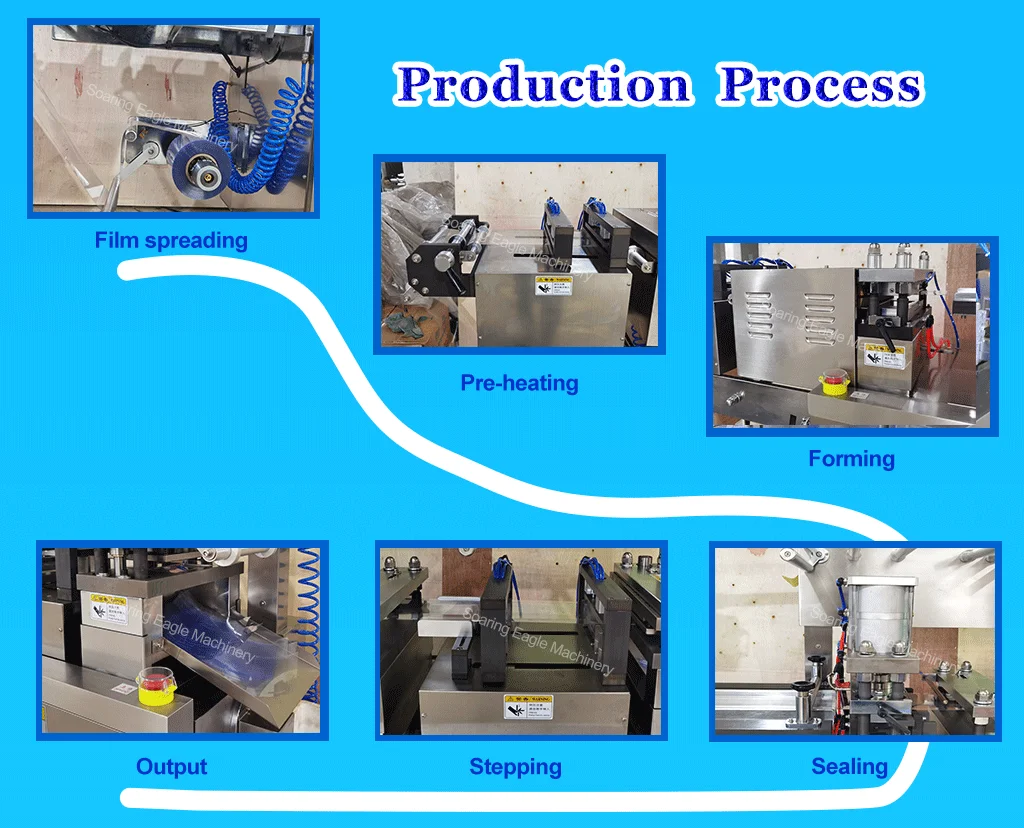

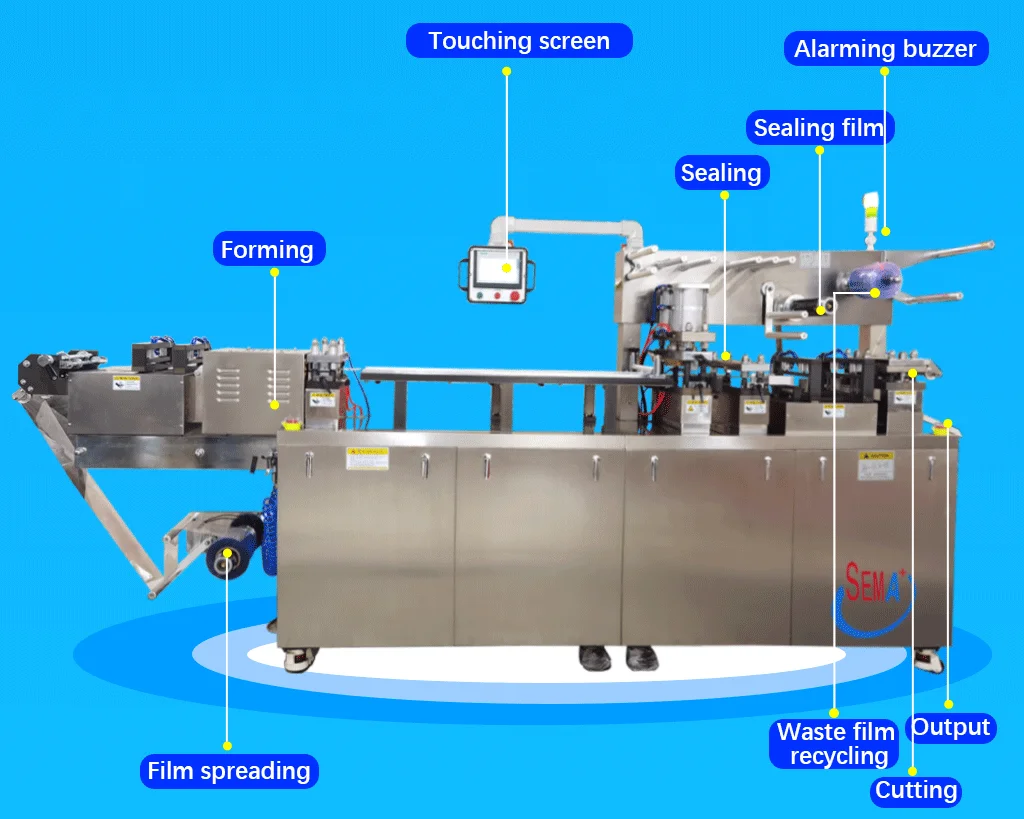

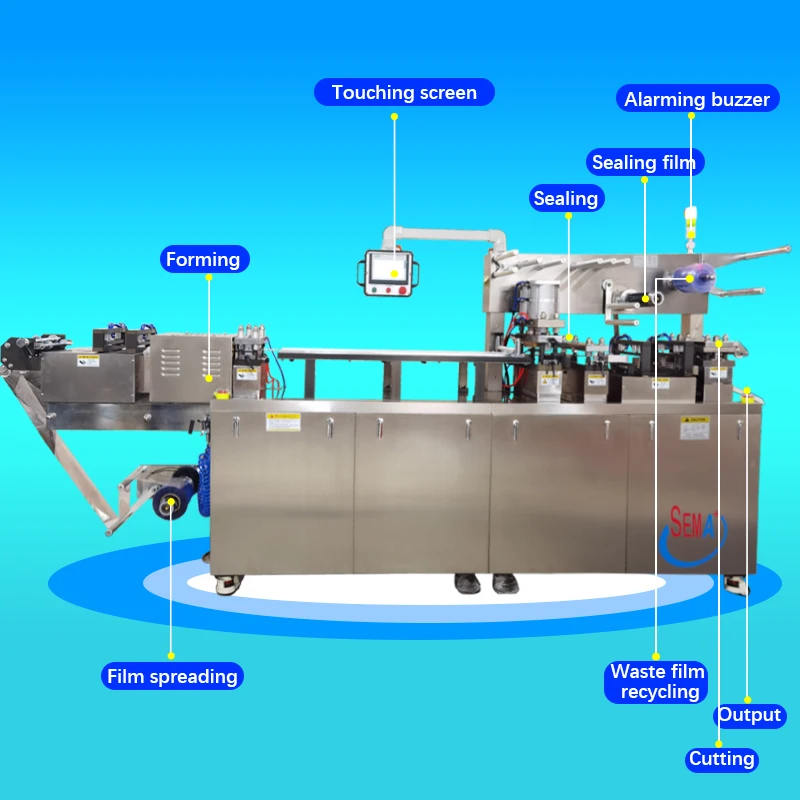

film spreading, forming , feeding , sealing , cutting . Output
Product design:

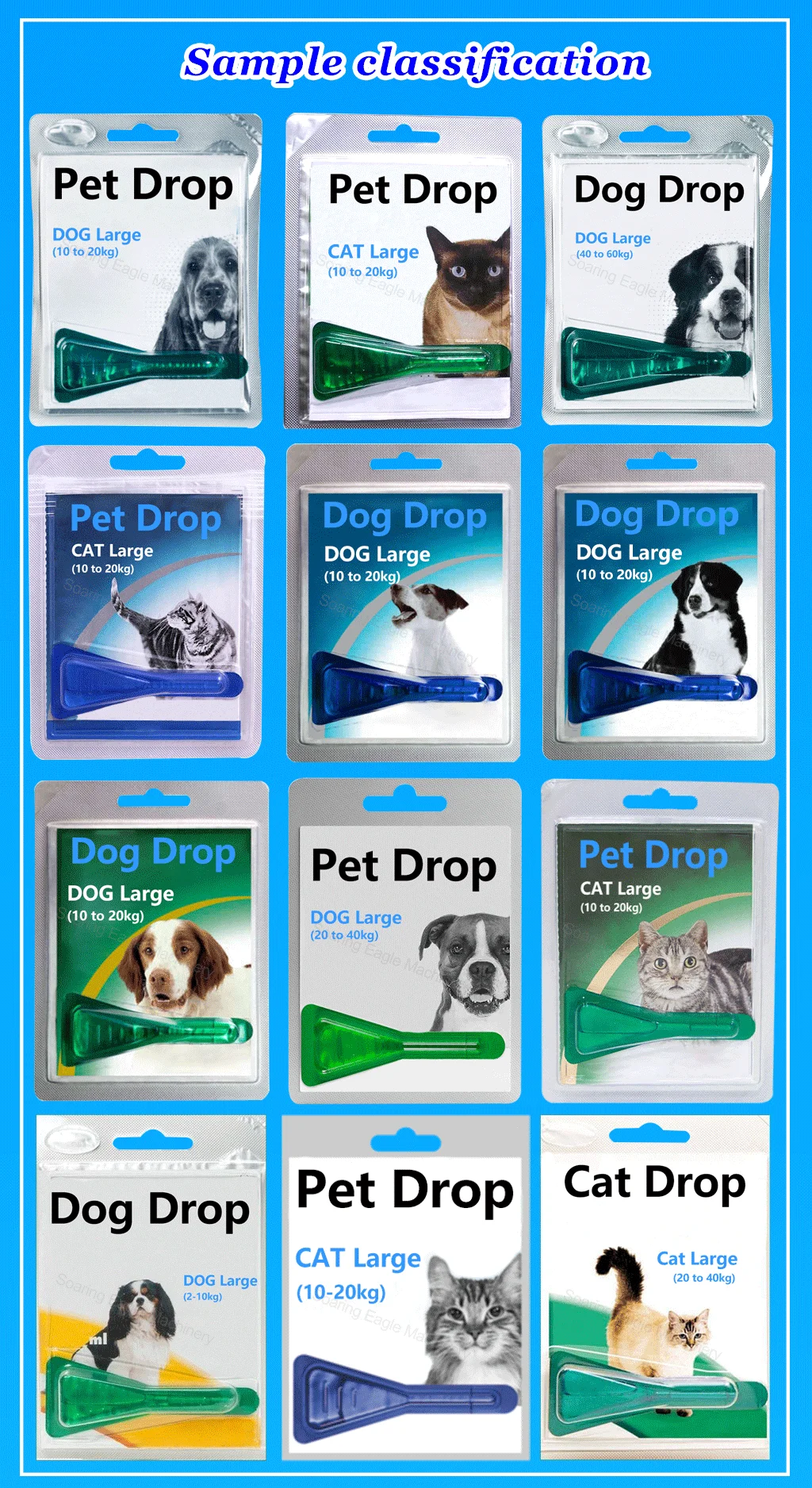

Product design: OEM/ODM custom design the shape and size of the blister product
Feature:

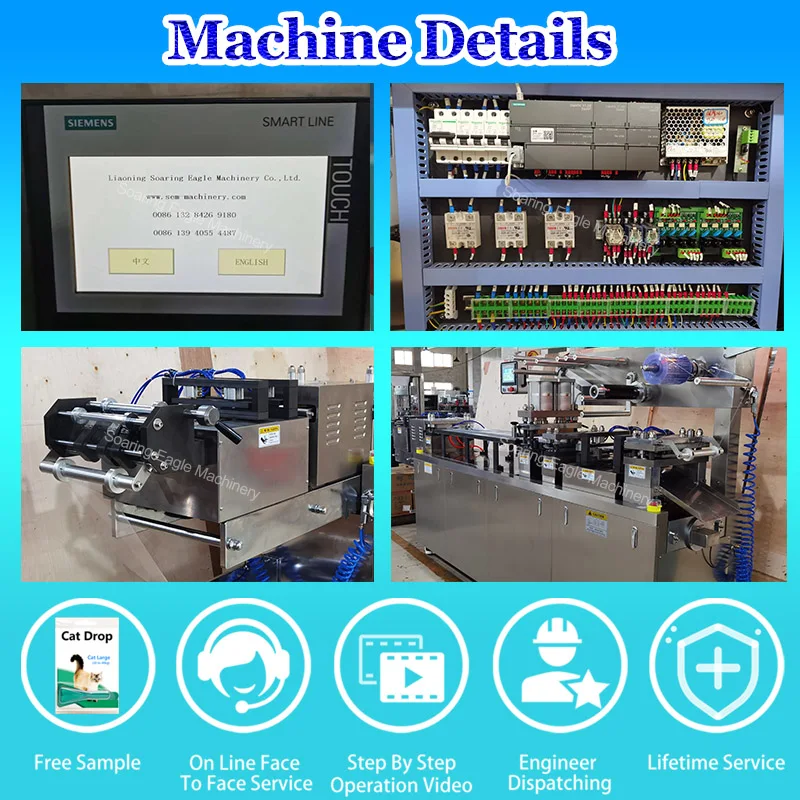

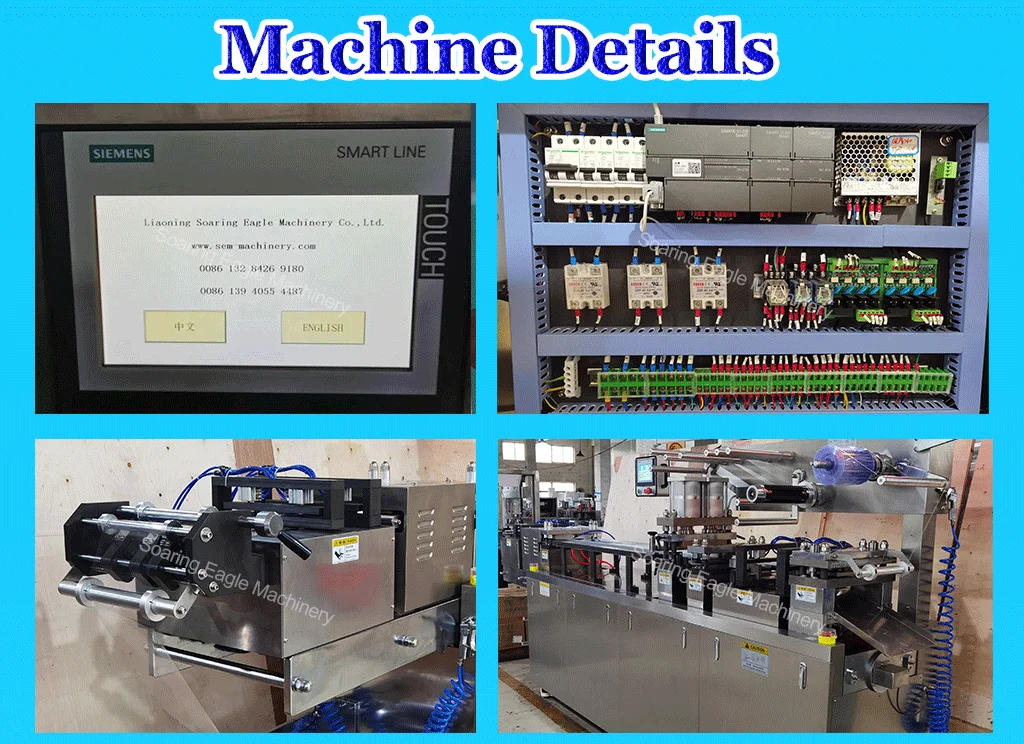

PLC control, touch screen English operation.Siemens Brand
PID temperature control.
Power supply:According to the requirements of customers in various countries. Each machine has a CE certificate.
Product design:
Product design: OEM/ODM custom design the shape and size of the blister product
Feature:
PLC control, touch screen English operation.Siemens Brand
PID temperature control.
Power supply:According to the requirements of customers in various countries. Each machine has a CE certificate.
Machine Model
Model | DPP-80 | DPP-140 | DPP-250 | ||
Cutting Frequency | 10-33 times/min | 10-35 times/min | 10-35 times/min | ||
Packing Film Width | 110mm | 150mm | 260mm | ||
Max Forming Depth | 25mm or Customized | ||||
Max Forming Area | 105*70mm | 145*110mm | 250*140mm | ||
Air pressure | 0.6-0.8MA | ||||
Total Powder Supply (or Customized) | 220V 50Hz, 2.8KW | 380V 50Hz, 3.8KW | 380V 50Hz, 8.5KW | ||
PVC Hard Film | (0.15-0.5)*110mm | (0.15-0.5)*150mm | (0.15-0.5)*250mm | ||
PTP Aluminum Film | (0.02-0.035)*110mm | (0.02-0.035)*150mm | (0.02-0.035)*250mm | ||
Dialysis Paper | 50-100g*110mm | 50-100g*150mm | 50-100g*250mm | ||
Mould Cooling | Tap Water or Recycling Water | ||||
Overail Dimension (L*W*H) | 1840*590*1100mm | 2315*635*1405mm | 3250*710*1700mm | ||
Machine Weight | 450kg | 820kg | 1400kg | ||
Price | |||||
Note: For Alibaba APP user, click " Chat Now " or " Send Inquiry ", and then you will get the best price.
FAQ
Q1:Do you supply ODM/OEM service?
Yes, according to customer product requirements to design product shape and size,3D drawing provided. We warmly welcome you to visite our factory if you have a travel plan.
Q2:What about the production time?
15-30 days
Q3:How to install and operate machine?
1）All machines with U disk for English Language Manual;
2）Each working unit installation and operation video;
3）3D drawing for product shape and size;
4）24h e-service online and on site operation live video for teaching;
5）Each machine working unit drawing provide.
Q4:How can I trust you for the first time bussiness？
1）Our business license and certificates has been certified by Alibaba and we are SGS certified factory. Back to our home page has the SGS report.
2）It also could use the Alibaba trade assurance service, guarantee your money and guarantee your machines' on time delivery and machine quality.
3）Each Machine has CE certificate.
Q5:How could we know the machine quality after place order?
After machine finish production, will take photos for each working unit, whole machine, machine testing video, finished product sample video and photo will be sent by mail. Technical support is available 24/7.
Q6:How to contact you?
Please leave messages and click "send " to send us inquiries.
Please find the contact information on this page, Please click to send us inquiry!
