Strong Crushing Granulator Recycled Mineral Water Bottle PVC Plastic Crusher 40HP 180HP
- Category: >>>
- Supplier: Suzhou Famous Machinery Co. Ltd.
Share on (1600750341925):
Product Overview
Description
Product Image
fixed blades: | 4pcs |
Feeding Size | 800*600mm |
Shaft Design | one |
Bearing | Heavy Duty Bearing |
Screen Size | 7mm |
Motor Brand | Simo, Wannan, Siemens, Weg |
Main Motor Power | 55kw |
Crusher Rotary Speed | 520rpm |
Gear Box | GUOMAO or BONENG |
Main Electrics | Schneiders/ Siemens |
Output | 500-700 Kg/Hr |
Machine Weight | 4000 Kg |
Dimension(L*W*H) | depends on model |
Color | customer choice |
Voltage | According to Customer |
Delivery Time | 45Days |
Key Selling Points | Very cost-effective |
Marketing Type | New Product |
Function | waste raw material shredding/crushing |
Keywords | Plastic Crusher |
Raw material | Wood, Films, Bags, Barrel, Container, Foam, Lump, Bottle,Bucket,Block,Paper,Profile,etc |
Output Product | Small Plastic Scraps |
After Warranty Service | Video technical support, Online support, Free spare parts, Field installation, commissioning and Trainning, Field Maintenance and Repair Service |
Local Service Location | Egypt,Czech Republic,Tanzania,Portugal,Chile,Peru,Thailand,Vietnam,Russia,Ukraine,Saudi Africa, South Africa, Turkey,India,Libya,Algeria,Tunisia,Indonesia,USA,Japan,Spain |
HS Code | 84778000 |
Products Description
Waste Profile/Bottle/Paper Plastic Crusher Machine
It is used to crush the big waste plastics to small size scraps.
Materials can be: PVC Profile, PC water bottles, PP PE plastic films, PP PE bags, PP woven bags, Jumbo bags, Waste papers, etc.
Materials can be: PVC Profile, PC water bottles, PP PE plastic films, PP PE bags, PP woven bags, Jumbo bags, Waste papers, etc.
Description:
FHC series heavy-duty crusher is widely used for direct crushing and recycling of various hollow plastic products, such as large household appliance shells, car bumpers, barrels, drums, water bottles, pvc profiles, pc bottles, oil drums, etc., and can also be used as a fine crusher after crushing block materials. The blade is made of D2 material, the highest standard in the plastic recycling machine industry.
Performance and structure:
1. Integral processing of rotor. General machine rotor parts are processed and then welded into a rotor. However, some rotors and parts will be deformed by welding, and the accuracy will be problematic. First weld the whole rotor, then process it after overall heat treatment, determine the overall accuracy, and adjust the gap between the rotor knife and the fixed knife for overall processing, so that every point can be the same.
2. Overall processing of chassis. the full-automatic CNC machining equipment of the chassis makes the machine precise.
3. Annealing the whole chassis. After welding, the steel plate of the chassis has internal tension. In order to solve this
problem, the whole chassis is annealed, which makes the whole chassis stronger after long-term use.
1. Integral processing of rotor. General machine rotor parts are processed and then welded into a rotor. However, some rotors and parts will be deformed by welding, and the accuracy will be problematic. First weld the whole rotor, then process it after overall heat treatment, determine the overall accuracy, and adjust the gap between the rotor knife and the fixed knife for overall processing, so that every point can be the same.
2. Overall processing of chassis. the full-automatic CNC machining equipment of the chassis makes the machine precise.
3. Annealing the whole chassis. After welding, the steel plate of the chassis has internal tension. In order to solve this
problem, the whole chassis is annealed, which makes the whole chassis stronger after long-term use.
Product Parameters:
Model | FHC600/450 | FHC800/450 | FHC800/600 | FHC1000/600 | FHC1200/600 | FHC1200/800 |
Main rotor length(mm) | 600 | 800 | 800 | 1000 | 1200 | 1200 |
Rotor revolving diameter(mm) | 450 | 450 | 600 | 600 | 600 | 800 |
speed(rpm) | 580 | 580 | 520 | 520 | 520 | 480 |
Rotating blades(pcs） | 2x3 | 2x3 | 2x5/2x7 | 2x5/2x7 | 2x5/2x7 | 2x7 |
Fixed blades(pcs） | 2 | 4 | 4 | 4 | 4 | 4 |
Motor power(KW） | 30 | 37 | 55 | 55/75 | 75/90 | 132 |
Hydraulic motor(KW) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 3 |
Mesh screen(mm） | 10-50 | 10-50 | 10-50 | 10-50 | 10-50 | 12-50 |
Feeding opening size(mm） | 530x600 | 530x800 | 705x800 | 800x1000 | 850x1200 | 1200x1200 |
Size(L*W*H）(mm） | 2000x1550x2550 | 2000x1750x3150 | 2100x1750x3200 | 2300x1950x3350 | 2300x2150x 3350 | 3200x2400x 4500 |
Weight(kg） | 2600 | 3100 | 3500 | 4500 | 5500 | 9500 |
Note: The above technical parameters are only for your consideration, real technical parameters of crusher machine will be different based on crushing different material requirements, please call us for more information before purchasing.

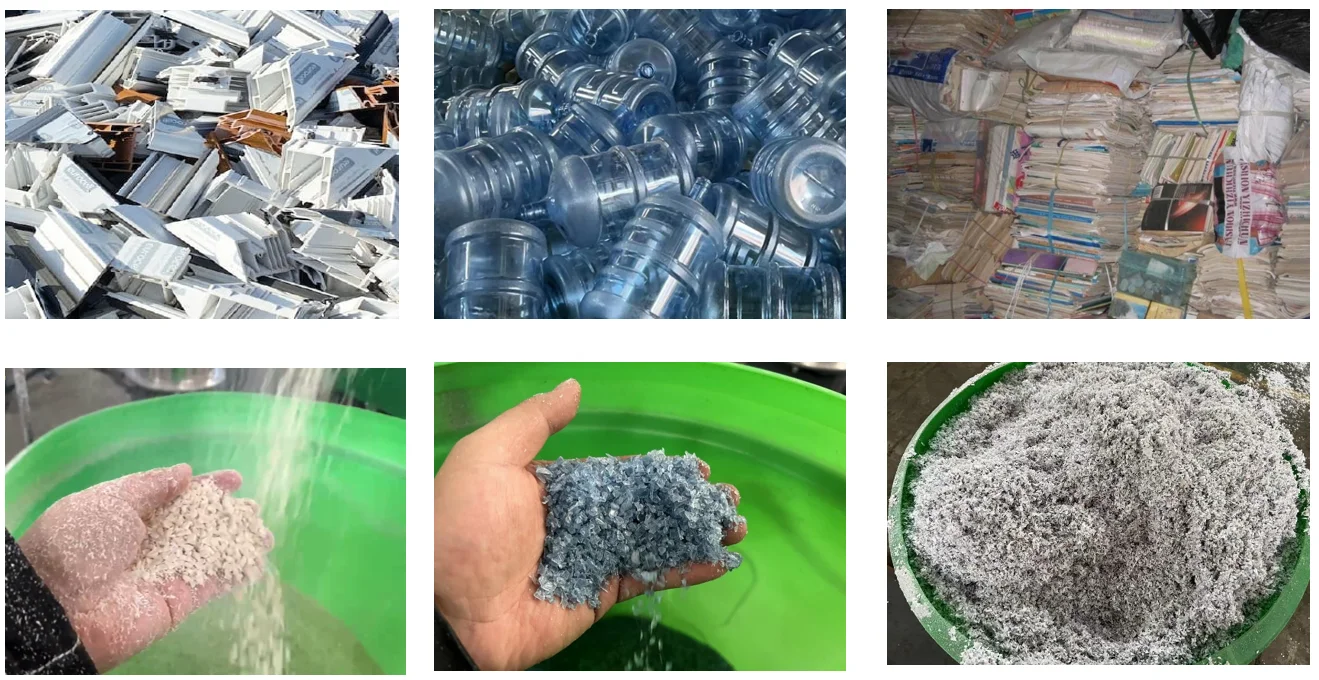

Suitable Materials but not Limited(it can crush more plastics......):
Product Details

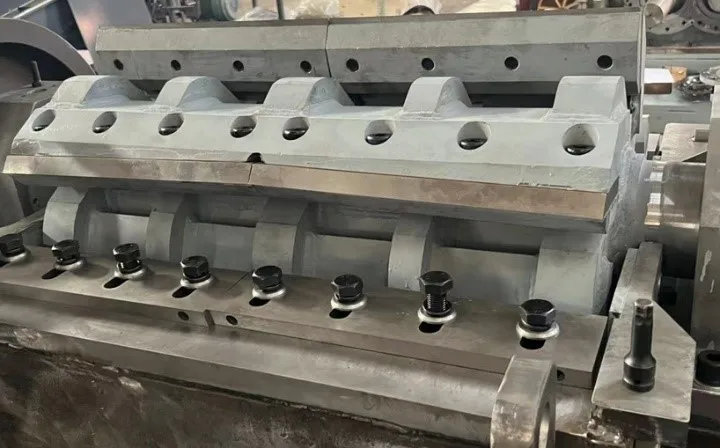

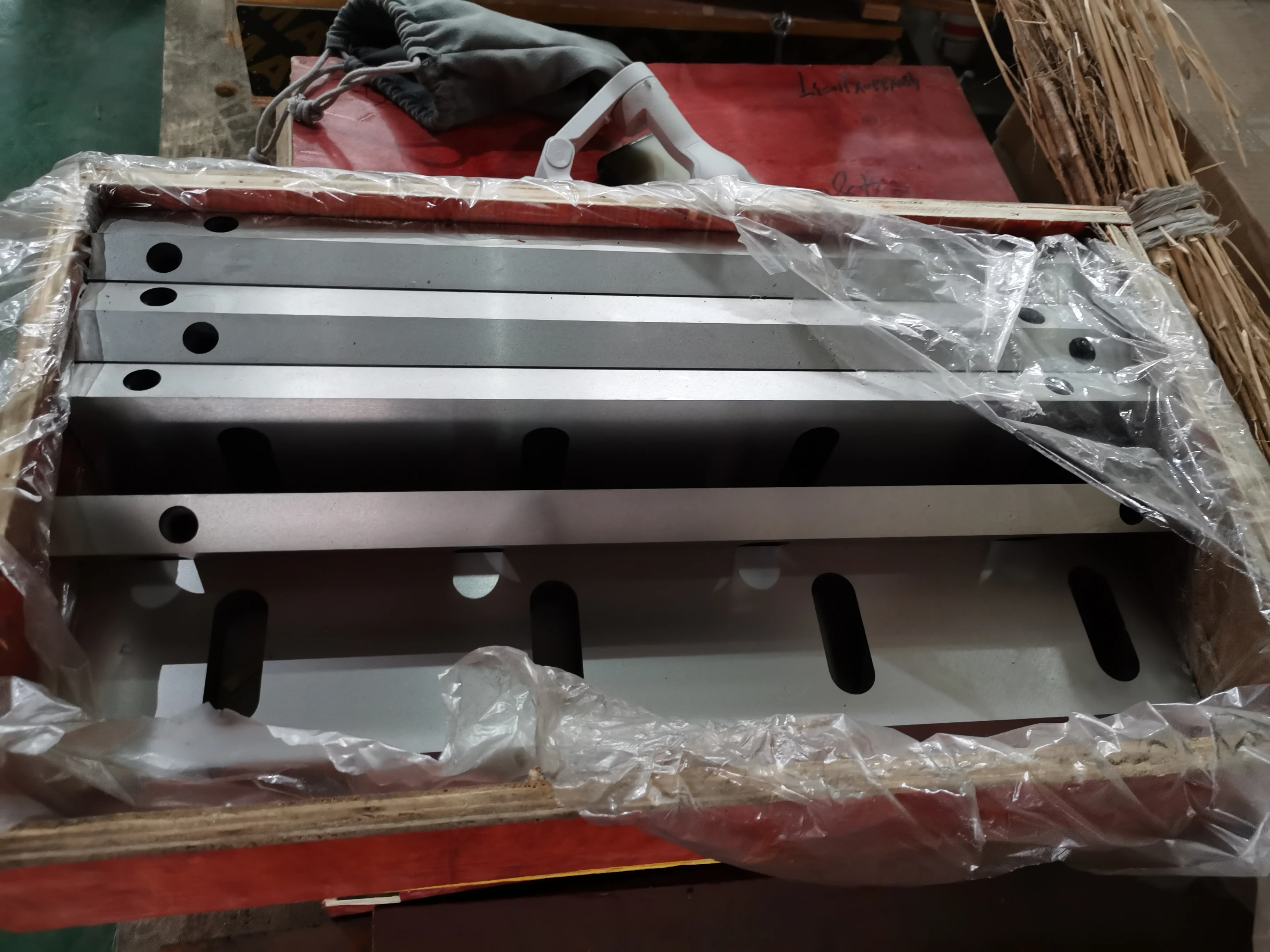

Blades: including rotating blades and fixed blades.
Material: D2 or SKDII(imported)

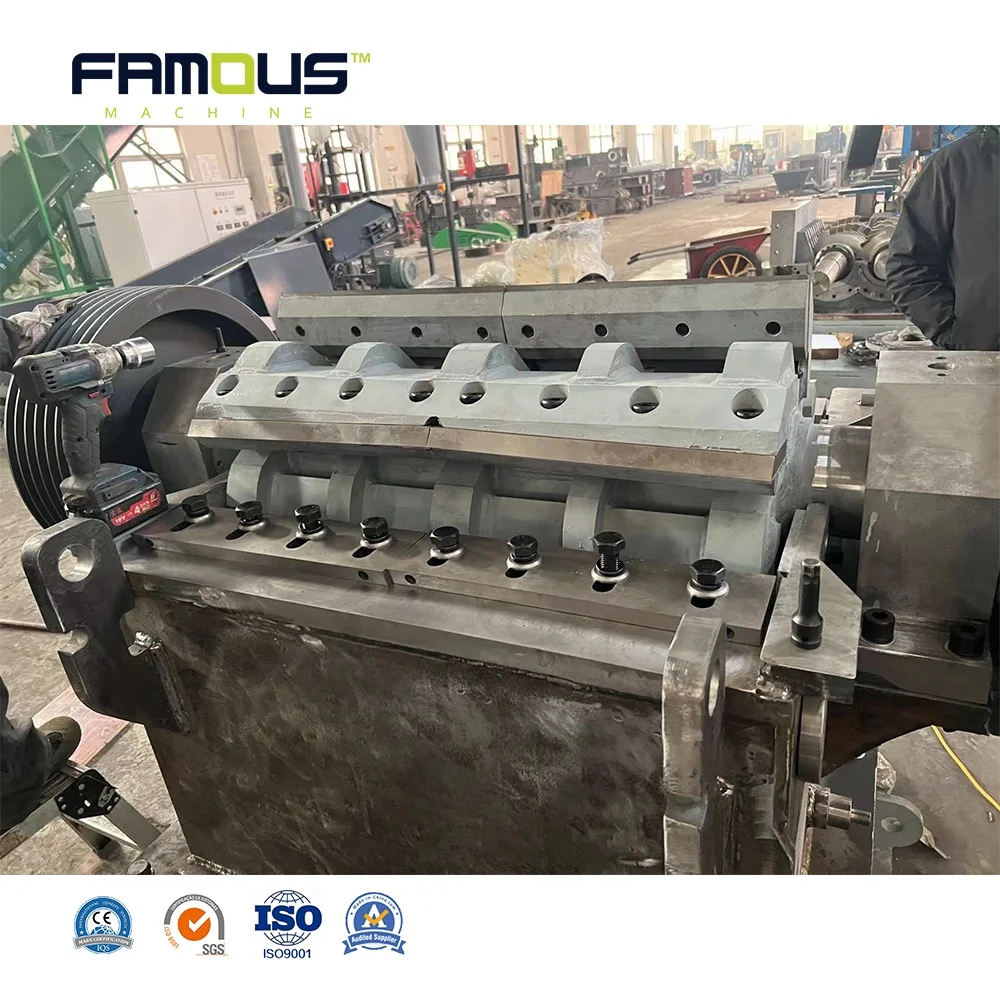

The most suitable spindle can also be designed according to different materials.
Moreover, the spindle is kept stable and reliable by strict static and dynamic leveling.

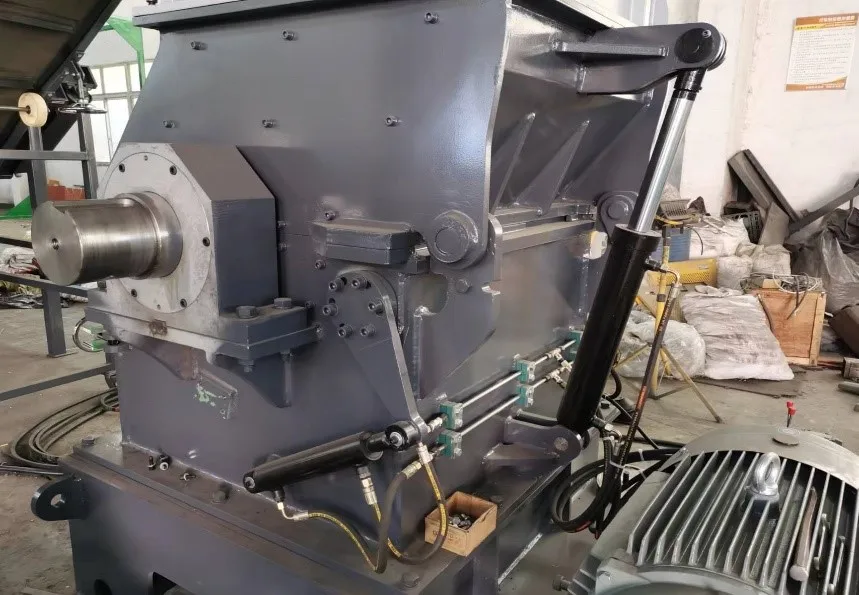

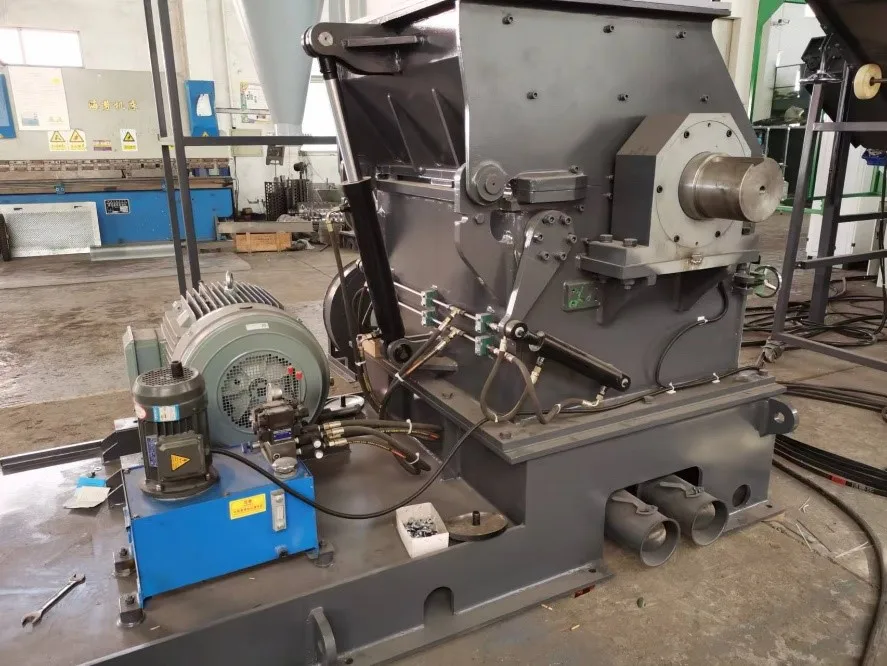

It is convenient to maintain the machine, remove and replace the blades and screens,
and quickly complete the cleaning of the crushing box.
so that the fixing bolts can be tightened conveniently.
Do not operate the machine to protect the safety of maintenance personnel.
The bearing seat is installed outside the case, and wool felt is used to seal between the spindle and the case.
Effectively prevent the crushed materials in the box from entering the bearing, and prolong the service life of the bearing.
Effectively prevent the crushed materials in the box from entering the bearing, and prolong the service life of the bearing.

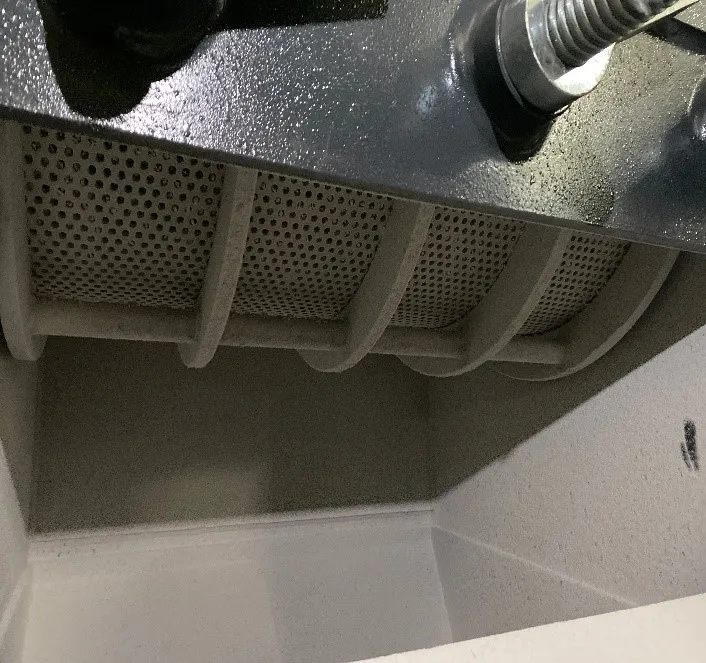

Mesh screen size can be designed according to customer requirement and different materials.

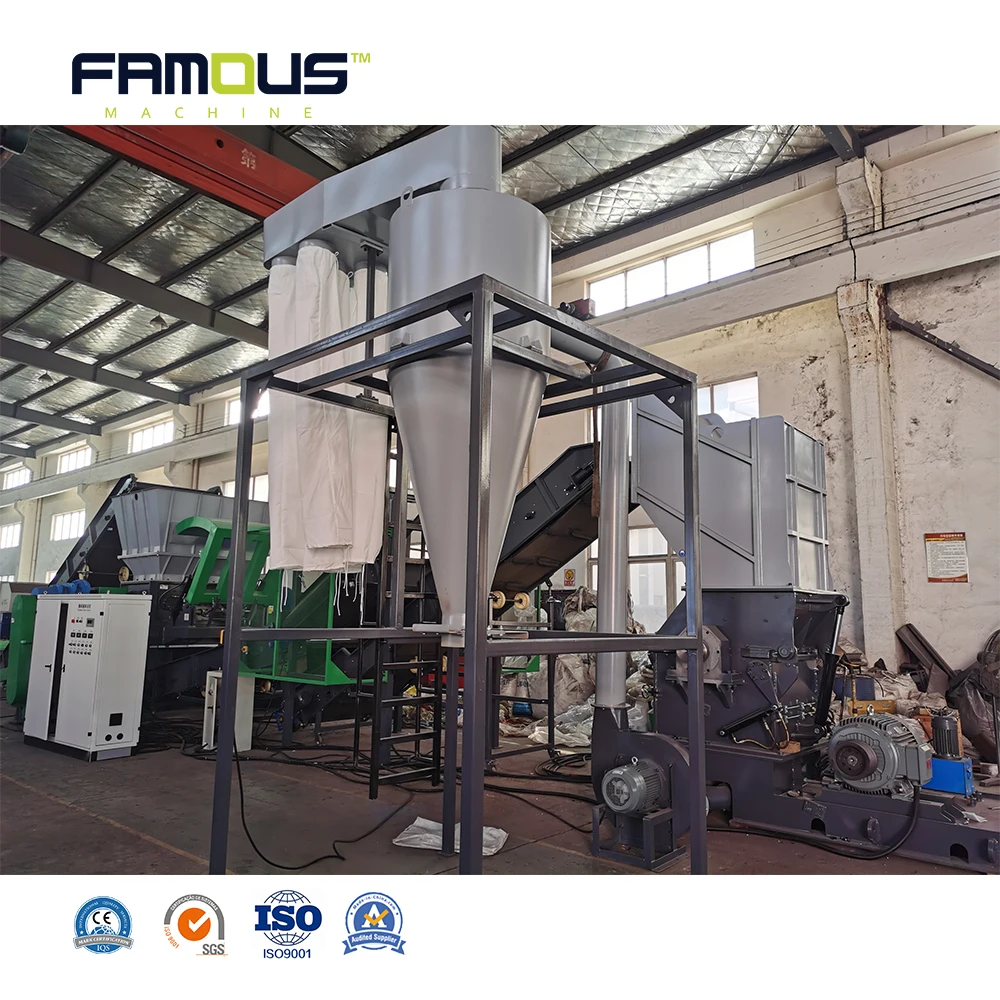

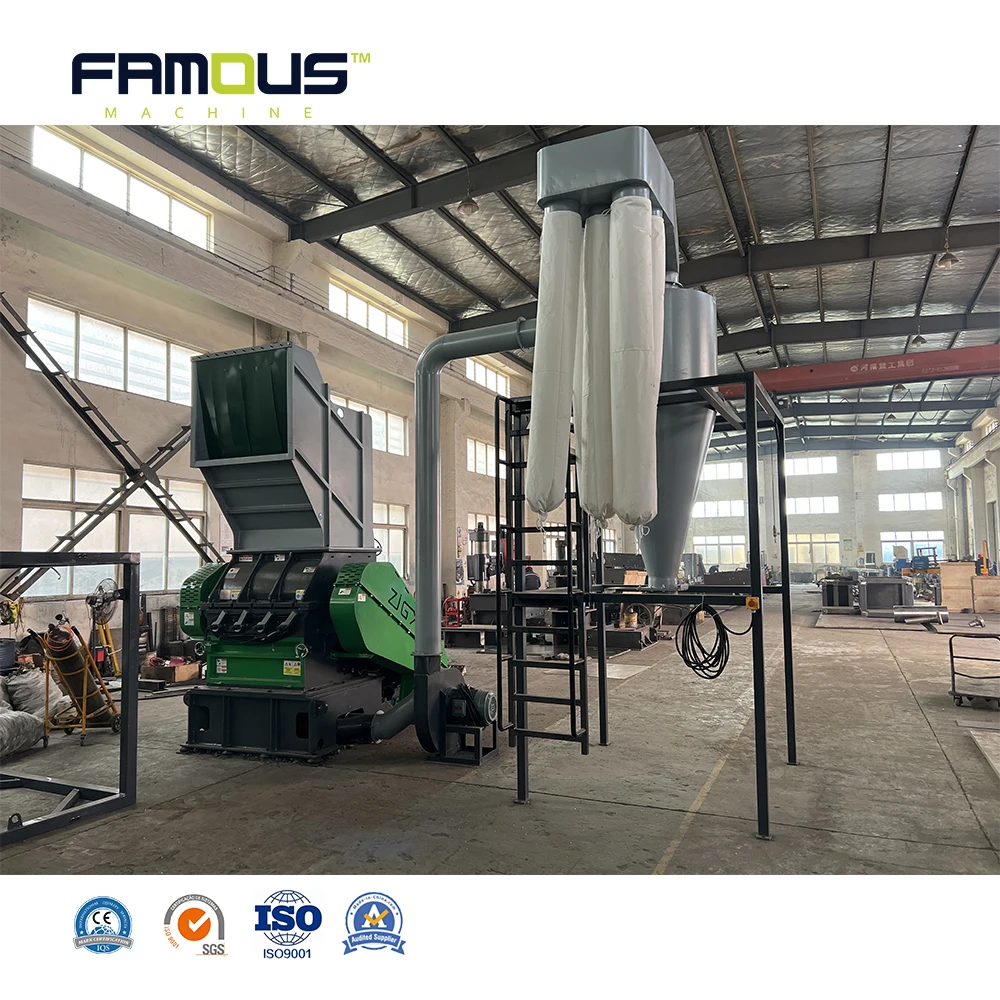

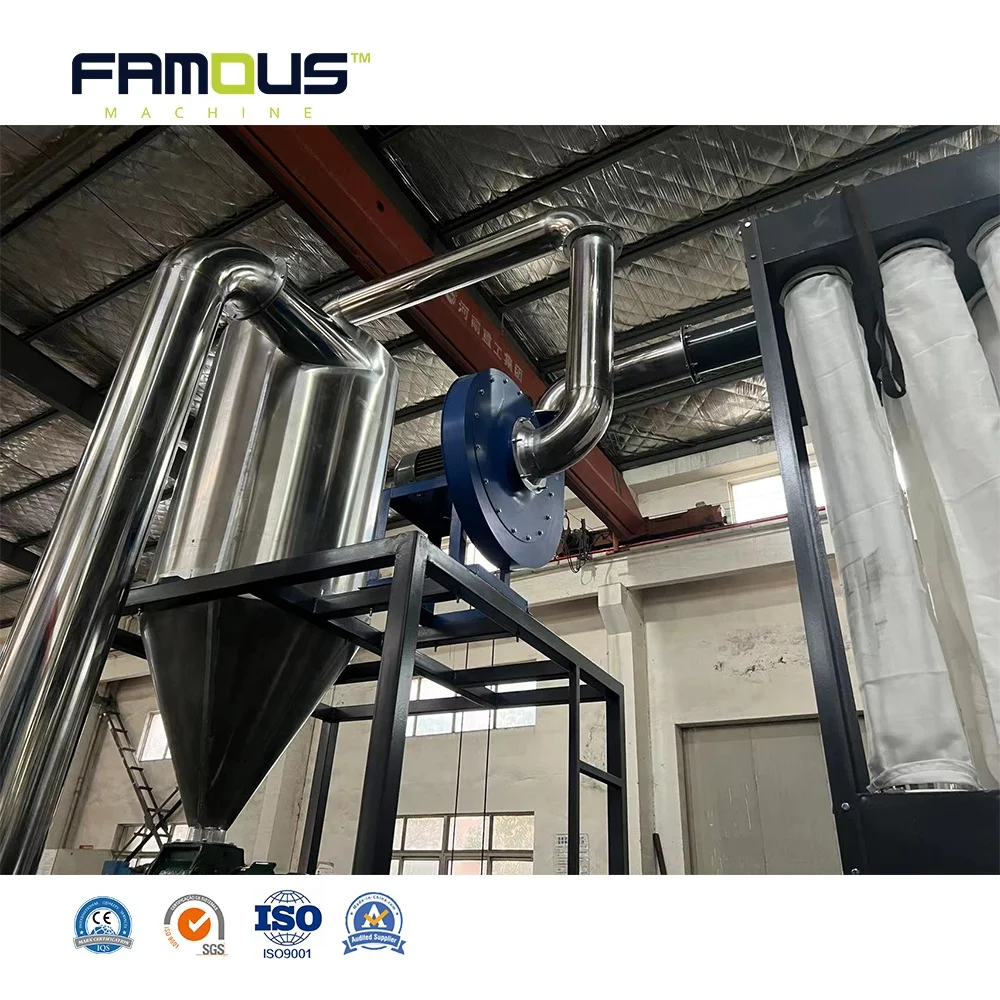

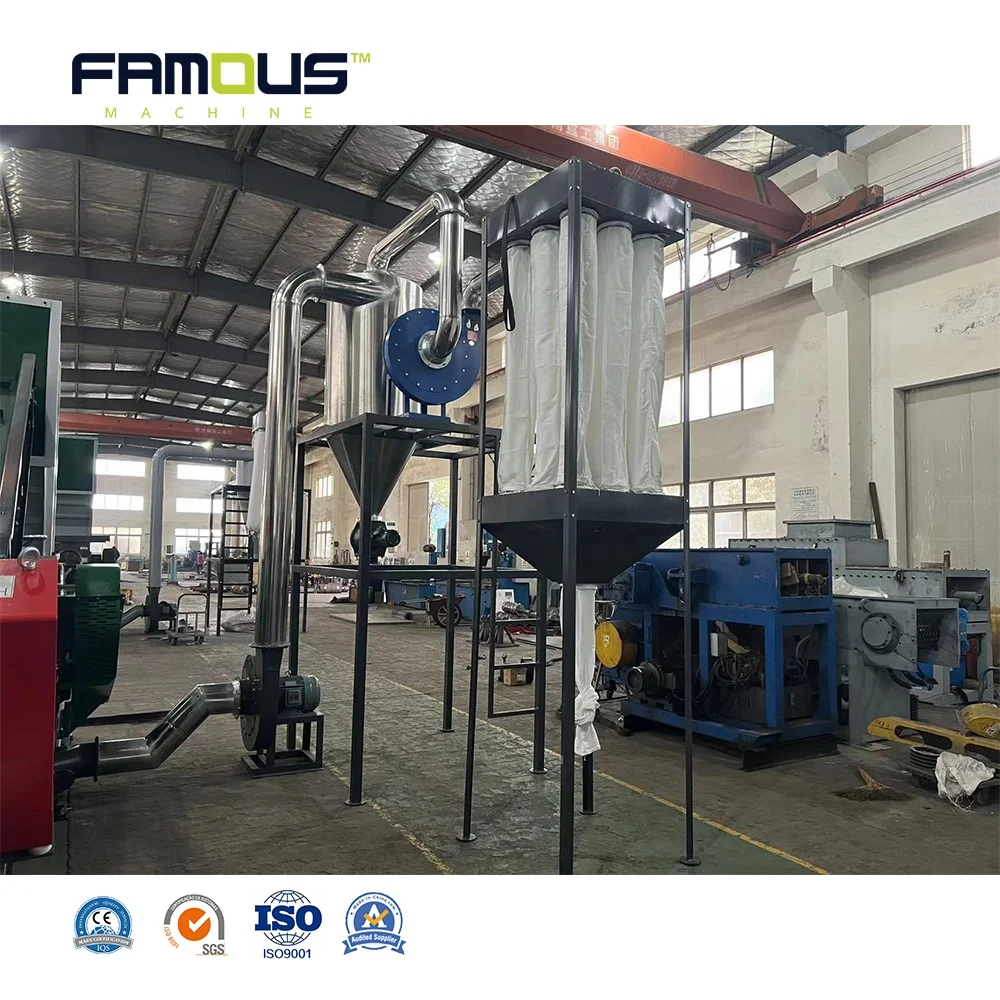

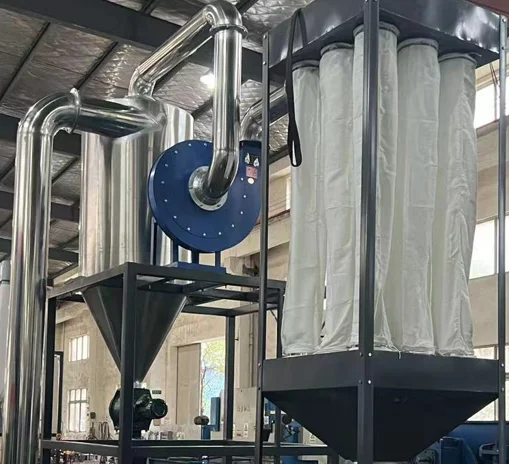

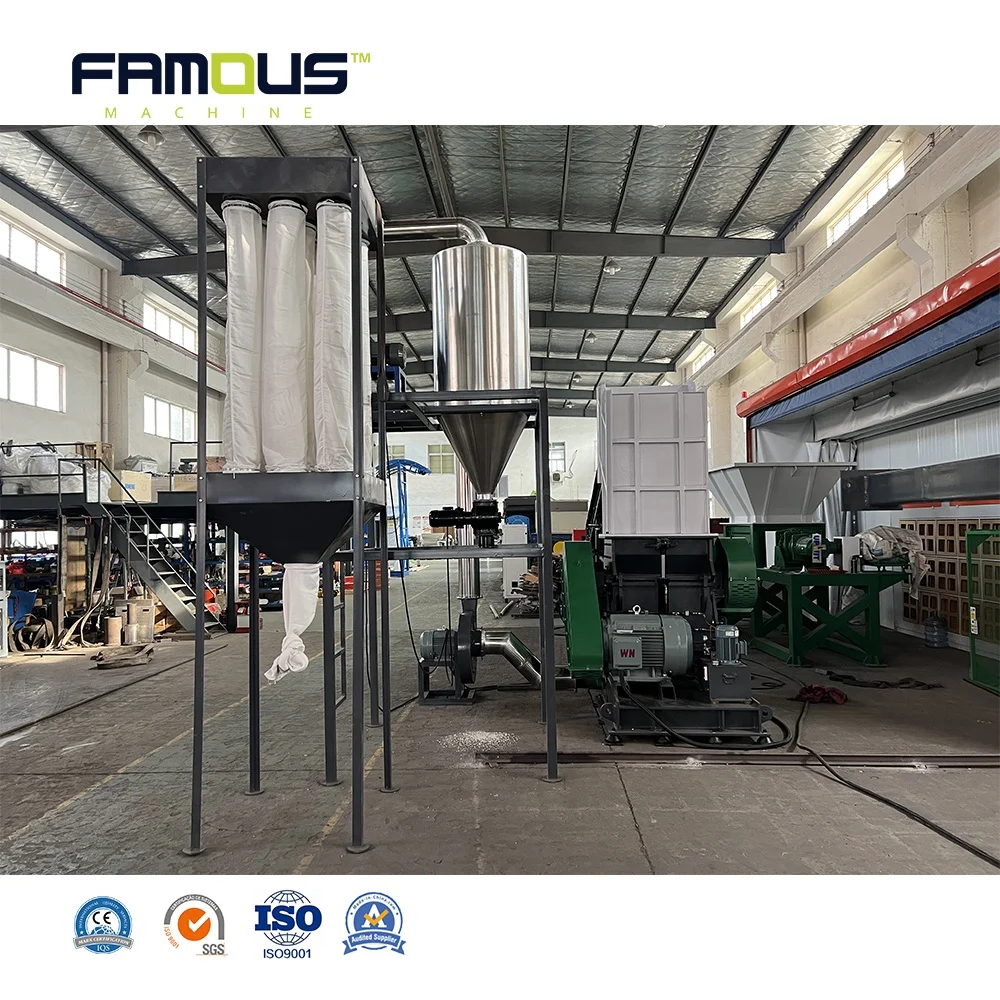

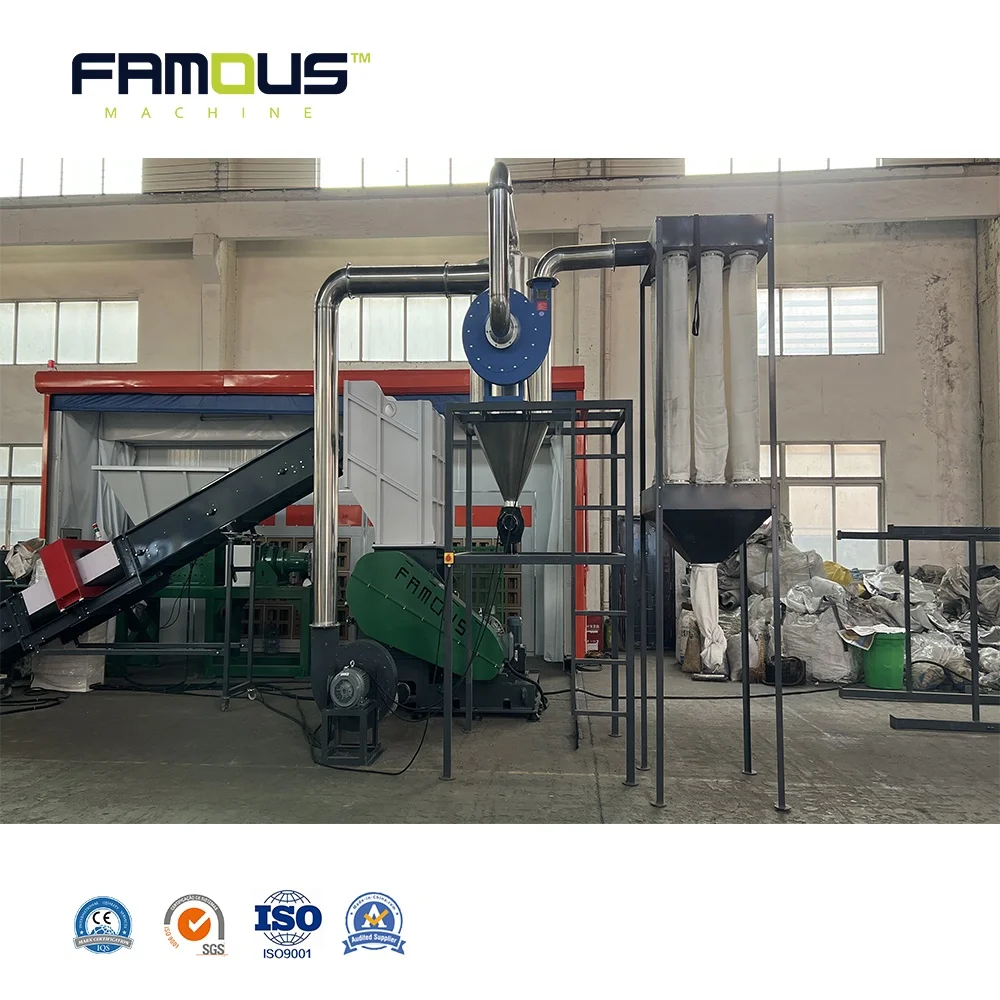

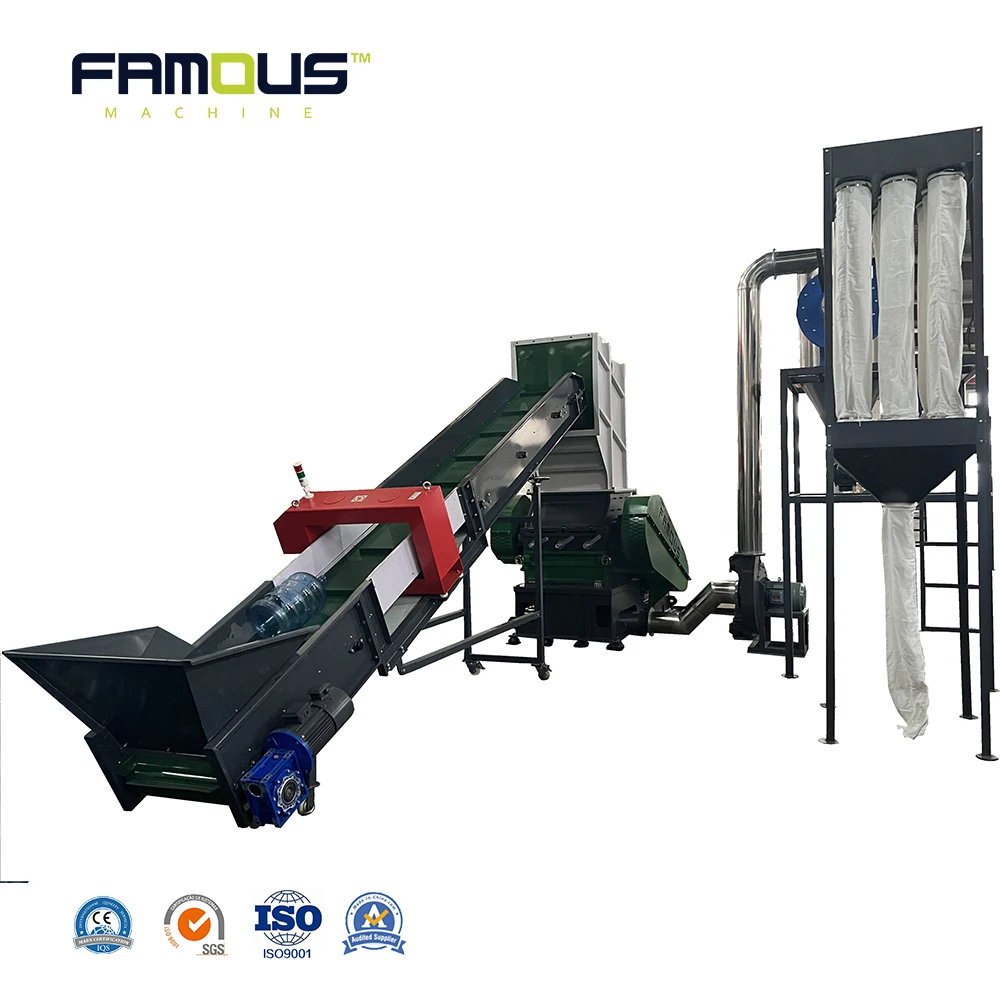

Dust collection: It can separate dust and other light impurities.

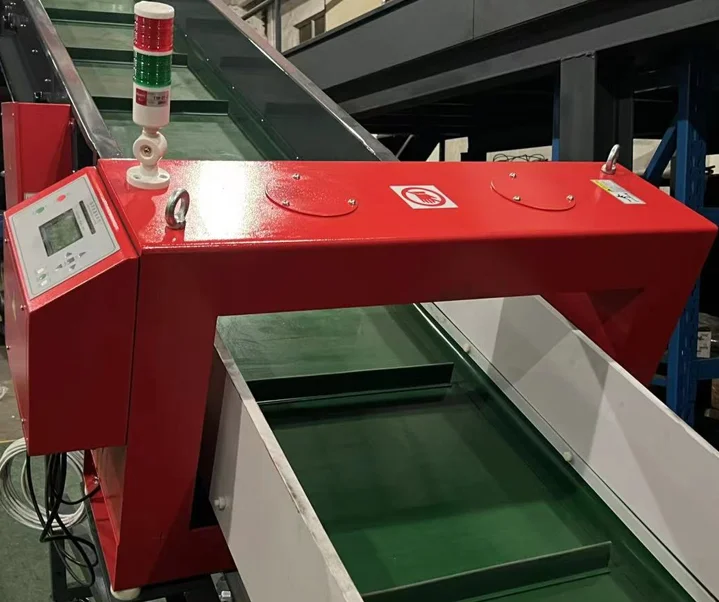

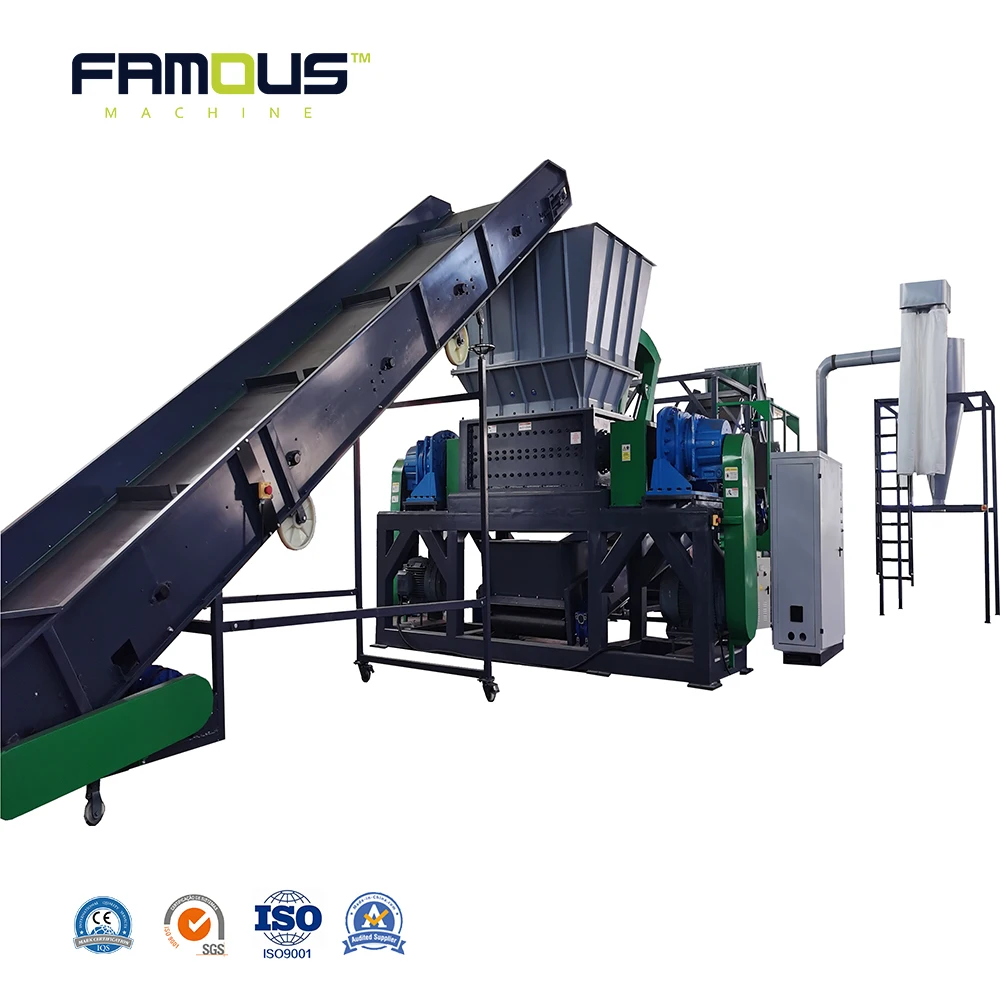

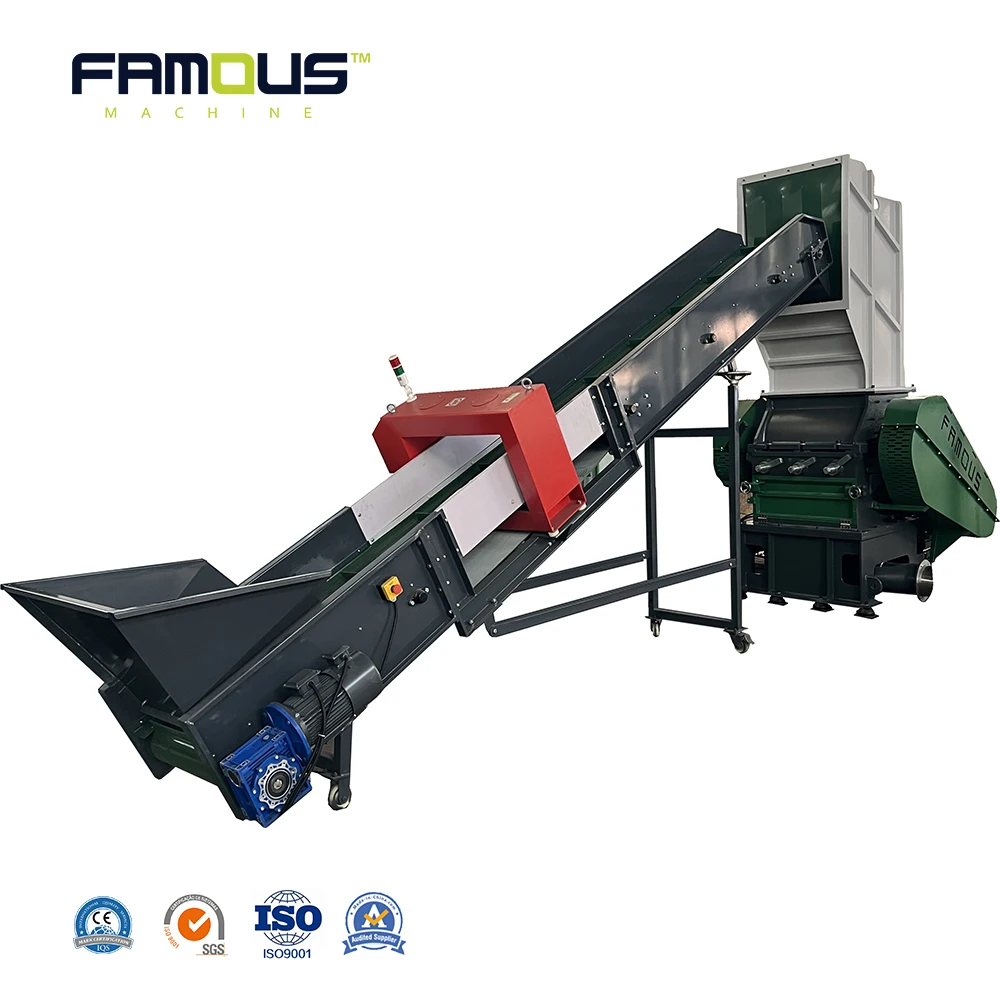

Belt conveyor and metal detector: material feeding automatically,
and can detect metal in raw materials.
and can detect metal in raw materials.

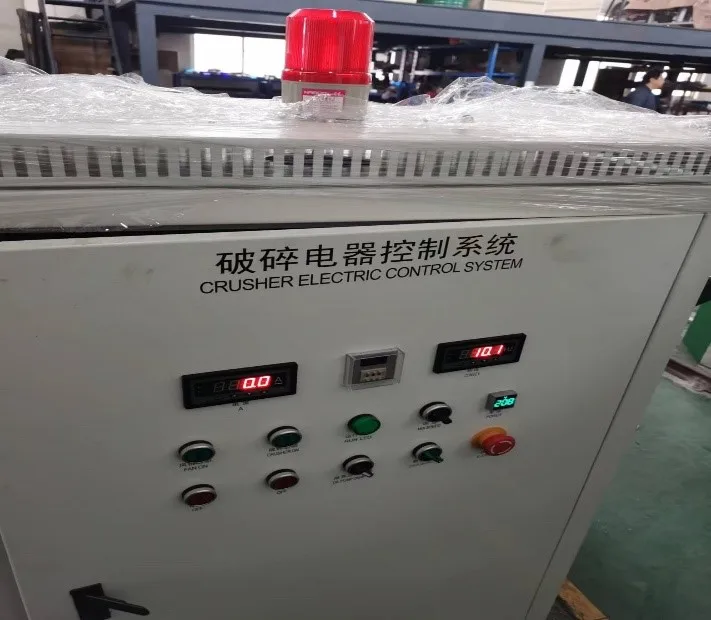

Electric box: Main electrics use siemens or schneider, others use Chinese famous brand.
Company Profile
SUZHOU FAMOUS MACHINERY CO.,LTD. is located in the national civilized city—Zhangjiagang, it's near the golden waterway of Yangtze River, only 2 hours from Shanghai Pudong airport by car. It covers an area of 10000 square meters, with two machinery workshop. It’s a modernized manufacturing enterprise with machinery, product and technology together.
FAMOUS MACHINERY COMPANY held the mission “turn plastic waste into profit, and make it industrialization”, vigorously develop circular economy, We are dedicated to developing and manufacturing the high technology plastic recycling machinery. Our factory has a history of 20 years of equipment processing and experienced engineers which will ensure the quality for you;
Our main products machinery are at below: 1- Waste PET Recycling Line used to washing the waste PET bottles into clean PET flakes complete line; 2- Waste Plastic Film, Woven bags/Jumbo bags recycling washing line; 3- Plastic granulator line with different model can used for the waste plastic Film, PP woven bags, Jumbo bags, waste PSF/POY textile and fabric, Nylon and for hard plastics such as PE, PP, PET, PS, ABS, EPS, XPS, etc. 4- Plastic Shredder Machinery include the Single Shaft Shredder Machine, Double/Four Shaft Shredder Machine, Twin Roller Shredder Machine; 5- Plastic Crushers: PET bottle crusher, PPPE film crusher, PIPE crusher. 6- Milling Machine: PVC milling machine, PE milling machine, WOOD milling machine. 7- Plastic Mixer: PVC mixer, PE mixer, Wood Plastic Mixer; 8- EPS Foam material recycling machine which includes EPS hot melting machine, EPS compacting machine, EPS crusher. 9- Auxiliary Machine: Agglomeration Machine, Plastic Film Squeezer, Plastic film squeezing pelletizer machine, etc.
FAMOUS MACHINERY COMPANY held the mission “turn plastic waste into profit, and make it industrialization”, vigorously develop circular economy, We are dedicated to developing and manufacturing the high technology plastic recycling machinery. Our factory has a history of 20 years of equipment processing and experienced engineers which will ensure the quality for you;
Our main products machinery are at below: 1- Waste PET Recycling Line used to washing the waste PET bottles into clean PET flakes complete line; 2- Waste Plastic Film, Woven bags/Jumbo bags recycling washing line; 3- Plastic granulator line with different model can used for the waste plastic Film, PP woven bags, Jumbo bags, waste PSF/POY textile and fabric, Nylon and for hard plastics such as PE, PP, PET, PS, ABS, EPS, XPS, etc. 4- Plastic Shredder Machinery include the Single Shaft Shredder Machine, Double/Four Shaft Shredder Machine, Twin Roller Shredder Machine; 5- Plastic Crushers: PET bottle crusher, PPPE film crusher, PIPE crusher. 6- Milling Machine: PVC milling machine, PE milling machine, WOOD milling machine. 7- Plastic Mixer: PVC mixer, PE mixer, Wood Plastic Mixer; 8- EPS Foam material recycling machine which includes EPS hot melting machine, EPS compacting machine, EPS crusher. 9- Auxiliary Machine: Agglomeration Machine, Plastic Film Squeezer, Plastic film squeezing pelletizer machine, etc.
Our Partners
Our Certificates
Exhibition
Our Service
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea. After delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea. After delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. Free insurance for goods
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
Package & Delivery
FAQ
Q: Are you a factory or a trading company? |
A: As a professional manufacturer, we have been in plastic recycling machine industry for more than 20 years, our factory is in Zhangjiagang city which is near shanghai and wuxi. |
Q: Do you have any certifications? |
A: Yes, we have ISO, CE. |
Q: What’s your guarantee or the warranty of the quality if we buy your machines? |
A: We offer you high quality machines with 1 year guarantee and supply life-long technical support. |
Q: When can I get my machine after I paid? |
A: Normally production time is around 45-75days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port. |
Q: How to install my machines when it arrives? how much the cost? |
A: We will send the instruction manual and videos to you, your workers can install the machine according to it. If you still have problems in installing it and need our engineer to help, we will arrange our engineer to debugging the machine for you. At same time our engineer will give training lessons to workers in your factory. Customer pay for visa, round air tickets, accommodation and USD100/day/person. |
Q:How long time for installation? |
A:According your machines order, we will send one or two engineers to your plant, it will take about 15 days to 30 days. |
Q: How about the spare parts? |
A: We will send one year enough easy broken spare parts together with the machines, shipping together. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If it is caused by your incorrect operations, we will provide the spare parts at cost price. |
