Fakra RG174 коннектор SMB Fakra BNC адаптер кабеля RG174 с Fakra C гнездо к BNC штекеру
- Category: Wiring Harness >>>
- Supplier: Dongguan,Dosin,Hardware,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
For the Specific Price of Other Models,
Please Contact Our Customer Service >>
Product Description
Full Series : New Automotive Power Connector Cable
( HSD & Fakra )
All types of Automotive Connector from OEM Manufacturer in China
Product Description

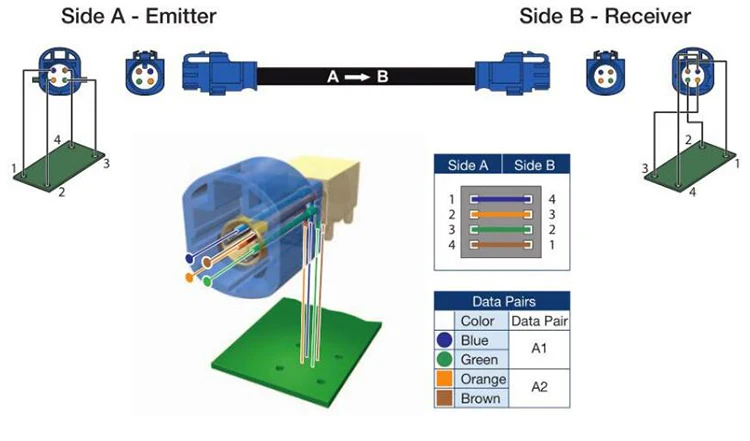

- HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
- The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
- The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST and USB 2.0 protocols. These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB) and designated shield connection systems. These connectors can be used for sealing applications.
Products Feature
1. High-speed shielded connection system suitable for digital data with performance up to 6 Gbps:
2. Fully shielded connection system of different wire diameters and types
3. Compliant with LVDS (Low voltage differential signal), Ethernet and USB protocols
4. Full range of connectors for non-sealed and sealed applications
5. Extend the PCB connector product portfolio
6. High level of process automation and global manufacturing footprint
7. IDB 1394 Automotive Specification
8. USCAR 2, REV 5
9. LVDS Cable: (7/0.16TC*1.2*4C+MY+AL+128/0.1TC)*4.6 Black ,etc.

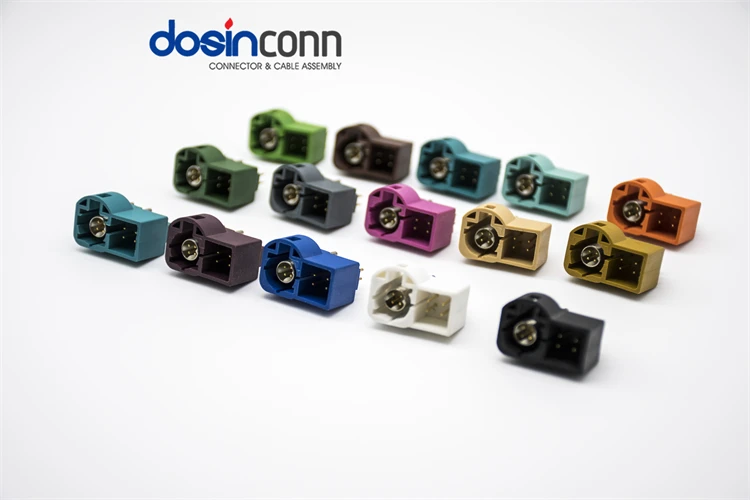

Common Styles: HSD 4 Signal Pin + 2 / 4 / 8 Power Pin
Male Connector (with Needle): Straight for Cable / Sraight for Board
Female Connector (with Hole) : Straight for Cable / Angled for Cable / Straight Dual Connector for Cable
Both Male and Female Have Injection Molding Type and Assembly Type.
Male and Female Are Distinguished by Position and Color.
| HSD | |
| Temperature Range | -40° ~ +105°C |
| Characteristic Impedance | 100Ω |
| Frequency Range | DC~6GHz |
| Operating Voltage | 100V rms |
| Withstand Voltage | 250 V rms |
| Core Connection Resistance | ≤ 10 mΩ |
| Insulation Resistance | ≥ 1000 MΩ |
| Intervention loss | ≤ 0.1 dB, DC to 2 GHz |
| Voltage | ≥ 20 dB, DC to 1 GHz ≥ 17 dB, 1 GHz to 2 GHz |
If You Still Not Found a Suitable Product, Please Contact Us>>
FAKRA Coding
Product Description
FAKRA connectors are specifically designed for automotive applications. They are based on the SMB connector interface FAKRA (Automated Expert Group) to establish a unified connector system and standards that everyone will follow. Due to its special standard locking system, FAKRA connectors meet the high performance and safety requirements of today's automotive industry.
Products Material
Plastic Housing: PA66+30%GF
Body & Center Contact: Bronze
Insulator: PTFE
| FAKRA | |
| Temperature Range | -40°~+125°C |
| Characteristic Impedance | 50Ω |
| Frequency Range | DC~6GHz |
| Operating Voltage | 335V r.m.s at sea level |
| Withstand Voltage | 1000V r.m.s at sea level |
| Core Connection Resistance | ≤20mΩ |
| Insulation Resistance | ≥1000mΩ |
| Intervention loss | ≤20mΩ 0.25dB(for a mated pair) |
| Voltage | ≤1.30 |
How we work for you?
Over 10 years R&D Experience
Talented Engineering Team with a Number of Independent Patents, Provide Professional Connector Solutions
Your RF Connector Supplier From China
Dongguan Dosin Hardware Electronics Co., Ltd. was established in 2005, and specializes in design, development and manufacturing in RF Coaxial Connectors ,RF cable assemblies, RF adapters, Antenna series and other custom made connectors.
We offer an extensive range of interconnect solutions for applications in telecom, security surveillance, automotive, healthcare, and aerospace industries.
Do You Accept OEM / ODM Orders?
Yes, we accept OEM / ODM orders and make many successful projects before.
Our engineer will also offer you technical support and solution suggestion if required.
Application Scenario
Advanced Driving Assistant System (ADAS)
Telematics, multimedia, infotainment, GPS, navigation and camera
Body control, safety, security and comfort
