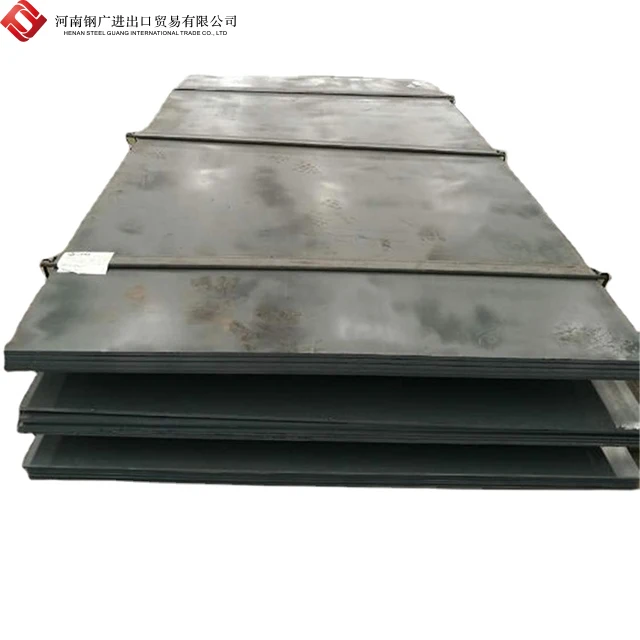

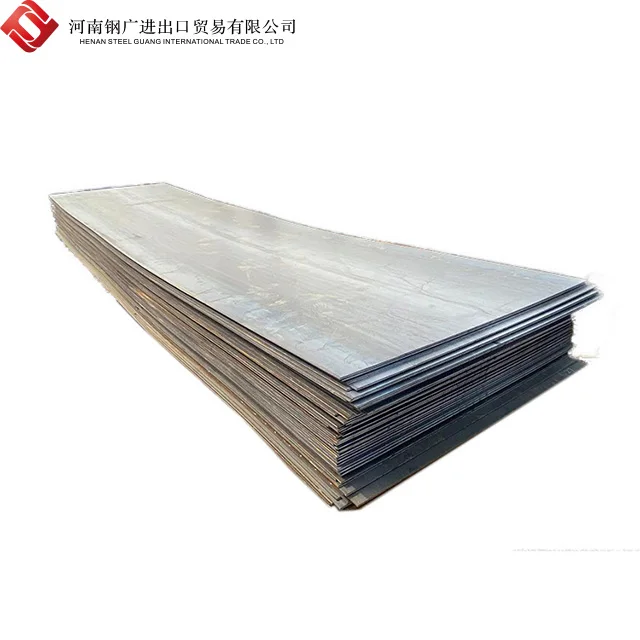

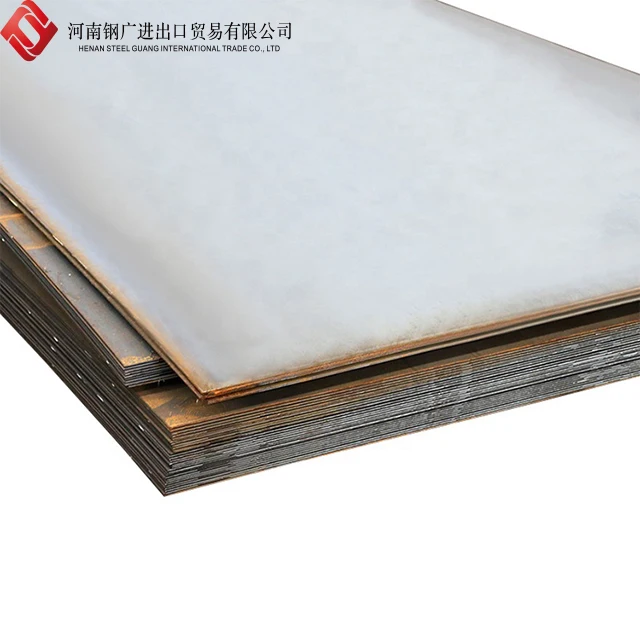

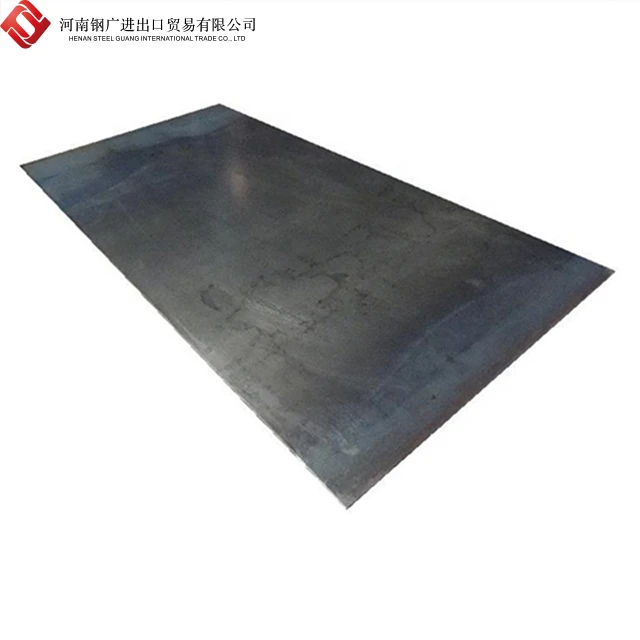

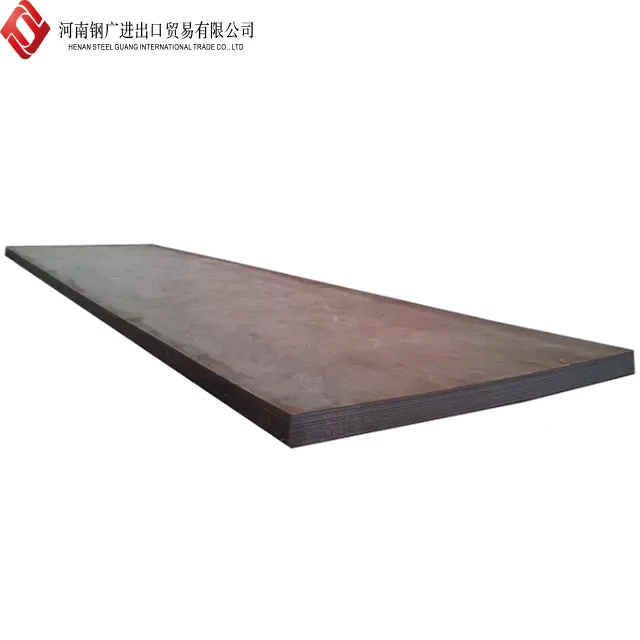

ASTM A515 GR70 Boiler Steel Plate Price
- Category: >>>
- Supplier: Henan Steel Guang International Trade Co. Ltd.
Share on (1600750397151):
Product Overview
Description
Product Description
A515 refers to the medium and high temperature pressure vessel steel plate is divided into three grades according to the strength grade :60, 65, 70(1KSI is about 7MPa), and the material closest to A515GR70 is 16MnR(the current brand is Q345R)
1. from the point of view of the standard, the national standard GB713-2008 is stricter than SA 515, gb 16MnR(Q345R) has impact and bending requirements on steel plates, and these are generally not mandatory requirements in ASME standards.
2.In terms of chemical composition, 16MnR(Q345R) has stricter content of impurity P S than A 515,A The upper limit of C content in 515 can reach 0.35%, which is very high, and the requirements for C content are different with the thickness of steel plate, which is very different from 16MnR(Q345R).
3. In the supply state,A 515 in the plate thickness is greater than 50mm steel plate must be normalized, and 16MnR(Q345R) in GB150 provisions as a cylinder 36mm above must be normalized state
4. in the ultra prospecting gb150-2011 provisions of the thickness of 30~36mm, shall not be lower than grade,36 above shall not be lower than In SA-516, the superprobe level is divided into A, B and C levels. Generally, when super-probe is required, it is grade B qualified by default. Nevertheless,ASME materials attach great importance to process control, although many requirements are not as strict as those of our national standards, the actual quality is generally better than our national standards.
Steel Grade:A515Gr60, A515Gr65, A515Gr70
Heat-treatment: AR, N,
1. from the point of view of the standard, the national standard GB713-2008 is stricter than SA 515, gb 16MnR(Q345R) has impact and bending requirements on steel plates, and these are generally not mandatory requirements in ASME standards.
2.In terms of chemical composition, 16MnR(Q345R) has stricter content of impurity P S than A 515,A The upper limit of C content in 515 can reach 0.35%, which is very high, and the requirements for C content are different with the thickness of steel plate, which is very different from 16MnR(Q345R).
3. In the supply state,A 515 in the plate thickness is greater than 50mm steel plate must be normalized, and 16MnR(Q345R) in GB150 provisions as a cylinder 36mm above must be normalized state
4. in the ultra prospecting gb150-2011 provisions of the thickness of 30~36mm, shall not be lower than grade,36 above shall not be lower than In SA-516, the superprobe level is divided into A, B and C levels. Generally, when super-probe is required, it is grade B qualified by default. Nevertheless,ASME materials attach great importance to process control, although many requirements are not as strict as those of our national standards, the actual quality is generally better than our national standards.
Steel Grade:A515Gr60, A515Gr65, A515Gr70
Heat-treatment: AR, N,
Product Name | ASTM A515 Steel Sheet |
Steel Grade | A515 GR60/GR65/GR70 |
Standard | SA515/SA515M |
Thickness | 8mm-150mm |
Width | 1000-2300mm |
Length | 1000mm-20000mm or according to customer's special request |
Tolerance | Thickness: +/-1mm, Width:+/-1mm |
MOQ | 2 Tons |
Application | 1.Automobile, Bridges, Buildings. 2.Machinery, Pressure vessel industries. 3.Ship building, Engineering construction. 4.Mechanical manufacturing, Pavement slab, ect. |
Package | Bundle with steel strip,Container shipping |
Capacity | 200000 tons /month |
Mill MTC | can be supplied before shipment |
Inspection | The Third Party inspection can be accepted,SGS,BV |
Details Images

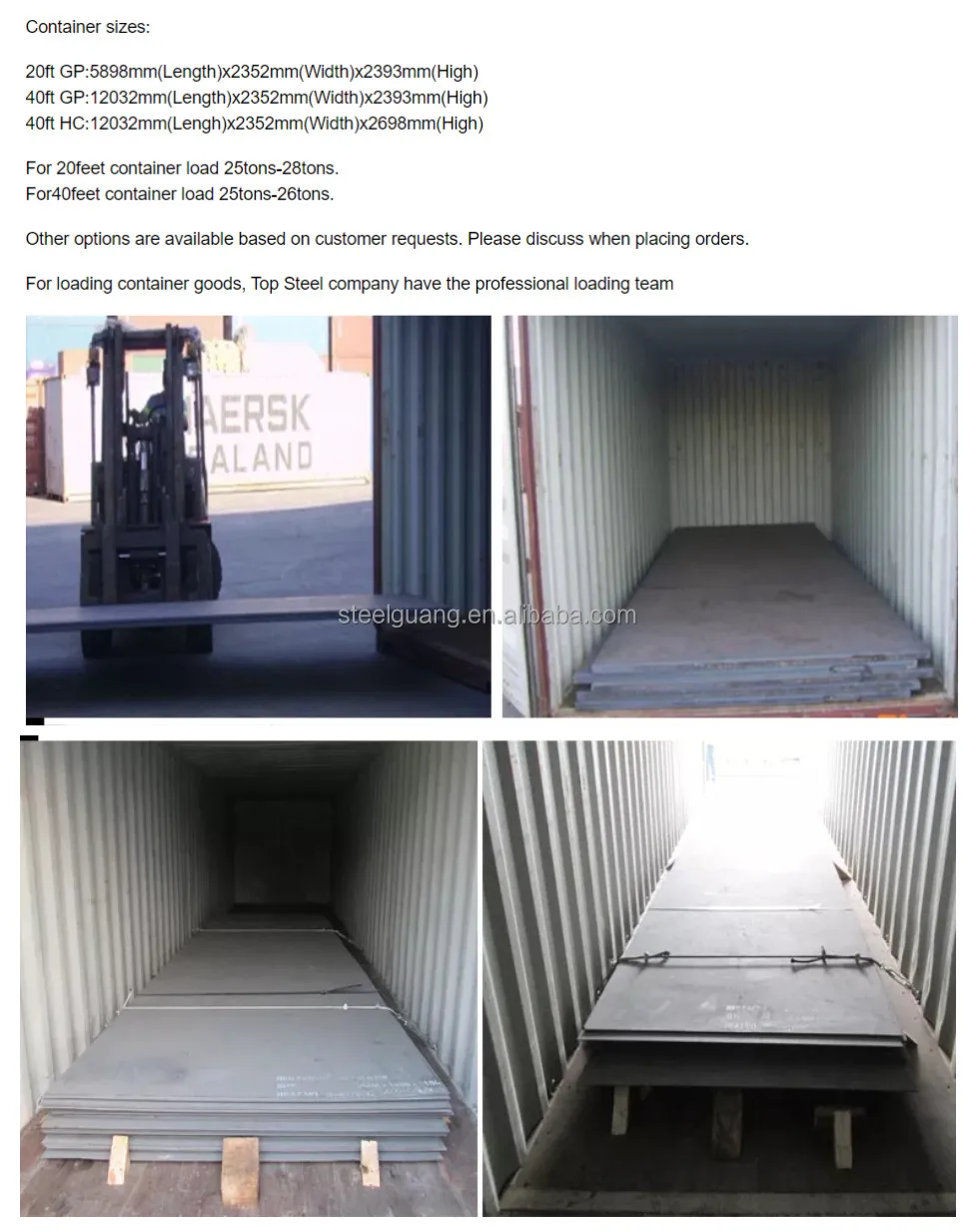

Packing & Delivery
Standard export packing,or customized packing as your request
Company Profile
In 2016, Henan Steel Guang International Trade Co., Ltd is separated from the export department of Henan Rongshenghui Trading Co.,LTD. After long-term efforts, now we have a steel plate cutting factory, with 18 CNC cutting machines and 3 punching machines, and a heat treatment factory with 3 electric heat furnaces. Set up two offices in Wugang City and Zhengzhou City. The company has developed into an integrated trader and manufacturer with the ability to export, import, process, logistics and distribution.
The advanced management brings high quality to automobile and wins good reputation from market and clients.Based on "Honesty Always be rewarded. " to do steel export business. Our company already has done steel exports business for 10 years. Specializing in steel plate, steel bar, steel tubes, steel plate cutting parts, and steel deep processing service. With our competitive price and best service, we are committed to your one-stop service of steel material. Our clients are all over the world, USA, Canada, Brazil, Mexico, Venezuela, Australia, Greece, Middle East, Southeast Asia, and Africa.
Workshop
Our factory is located in Wuyang City, Henan Province, founded in 2009, is a set of steel
plate research and development,manufacturing, sales in one of the professional manufacturers. The factory covers an area of more than 50,000 square meters, the existing workers more than 300 people, including more than 200 senior technical personnel,engineers more than 20 people, with an annual production of more than 100,000 tons of processing parts.
Our factory after more than 10 years of expansion has always been adhering to the integrity, mutual benefit and win-win business philosophy, Based on the wide and thick steel plate production and scientific research base of Hegang Wugang, we are committed to
becoming a first-class steel supplier and equipment supplier in China.
With high quality products help "iron power" of the Chinese dream is our common vision, we have customers throughout Europe, north and South America, Middle East, southeast Asia, South Africa, Australia and other regions, we regard product quality as the lifeline, always adhere to the "quality first, service first" sales principle and "focus on professional, really sincere" the service idea, By the majority of customers praise and trust.
plate research and development,manufacturing, sales in one of the professional manufacturers. The factory covers an area of more than 50,000 square meters, the existing workers more than 300 people, including more than 200 senior technical personnel,engineers more than 20 people, with an annual production of more than 100,000 tons of processing parts.
Our factory after more than 10 years of expansion has always been adhering to the integrity, mutual benefit and win-win business philosophy, Based on the wide and thick steel plate production and scientific research base of Hegang Wugang, we are committed to
becoming a first-class steel supplier and equipment supplier in China.
With high quality products help "iron power" of the Chinese dream is our common vision, we have customers throughout Europe, north and South America, Middle East, southeast Asia, South Africa, Australia and other regions, we regard product quality as the lifeline, always adhere to the "quality first, service first" sales principle and "focus on professional, really sincere" the service idea, By the majority of customers praise and trust.
Our Service
1.We have our own factories with advanced equipment and well trained workers.
2.We can provide factory price with trading company services.
3.We control production quality very strictly to keep none compensation and make inspection for customer during the production and loading.
4.We guarantee 24 hours online response.
5.We accept small order quantity before formal cooperation.
6.Free sample and latest price list will be offered for your evaluation.
7.During The Delivery
We will arrange the shipment with reliable service and reasonable price, all the cost will be clear for you to compare.
2.We can provide factory price with trading company services.
3.We control production quality very strictly to keep none compensation and make inspection for customer during the production and loading.
4.We guarantee 24 hours online response.
5.We accept small order quantity before formal cooperation.
6.Free sample and latest price list will be offered for your evaluation.
7.During The Delivery
We will arrange the shipment with reliable service and reasonable price, all the cost will be clear for you to compare.
Why Choose Us
1.Professional Factory
We have our own factory with more than 10 years production history in hoist equipment manufacturer.
2.High Quality
All of our products have been checked seriously:
With Chemical Composition and Mechanical Properties Analysis; Hydrostatic Test, Dimensional and Visual Inspection, Also With Nondestructive Inspection
3.Good Prices
Competitive prices based on the same quality as we are factory supplier.
4.Fast Delivery
professional packing, avoid damage.
5.OEM Custom
Samples can be made according to your requirements before placing order.
6.Best Service
Your kind inquiry will be replied in 8 hours or 24 hours if time difference.
7.Help to Solve Problem
Specialized team make us strong support to solve your problems from purchase to application.
We have our own factory with more than 10 years production history in hoist equipment manufacturer.
2.High Quality
All of our products have been checked seriously:
With Chemical Composition and Mechanical Properties Analysis; Hydrostatic Test, Dimensional and Visual Inspection, Also With Nondestructive Inspection
3.Good Prices
Competitive prices based on the same quality as we are factory supplier.
4.Fast Delivery
professional packing, avoid damage.
5.OEM Custom
Samples can be made according to your requirements before placing order.
6.Best Service
Your kind inquiry will be replied in 8 hours or 24 hours if time difference.
7.Help to Solve Problem
Specialized team make us strong support to solve your problems from purchase to application.
