Elesun manufacture 50 Ohm RG Coaxial FEP RG142 RG316 RG400 Cable for communication
- Category: >>>
- Supplier: Jiangsu Elesun Cable Co. Ltd.
Share on (1600750844331):
Product Overview
Description
Product Description

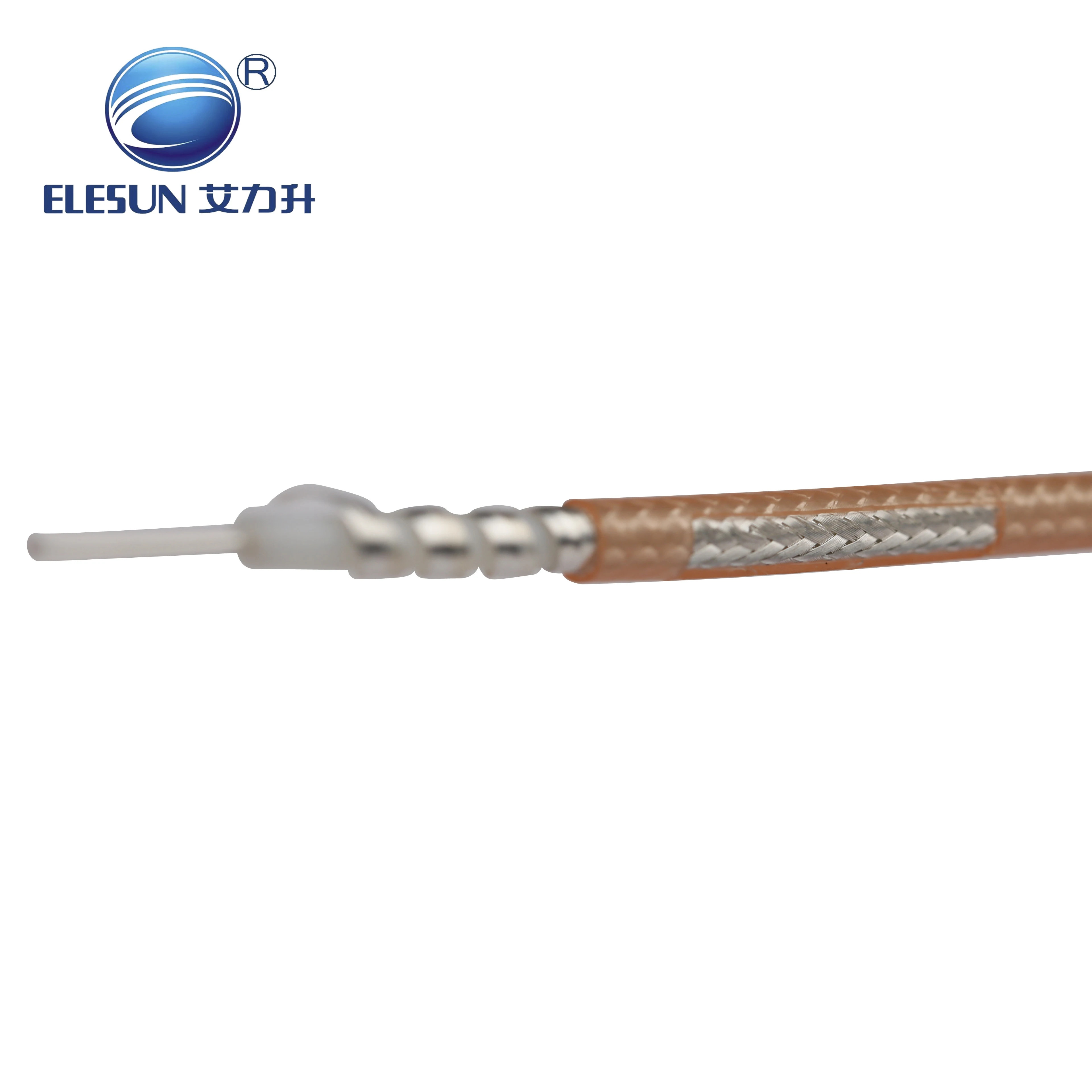

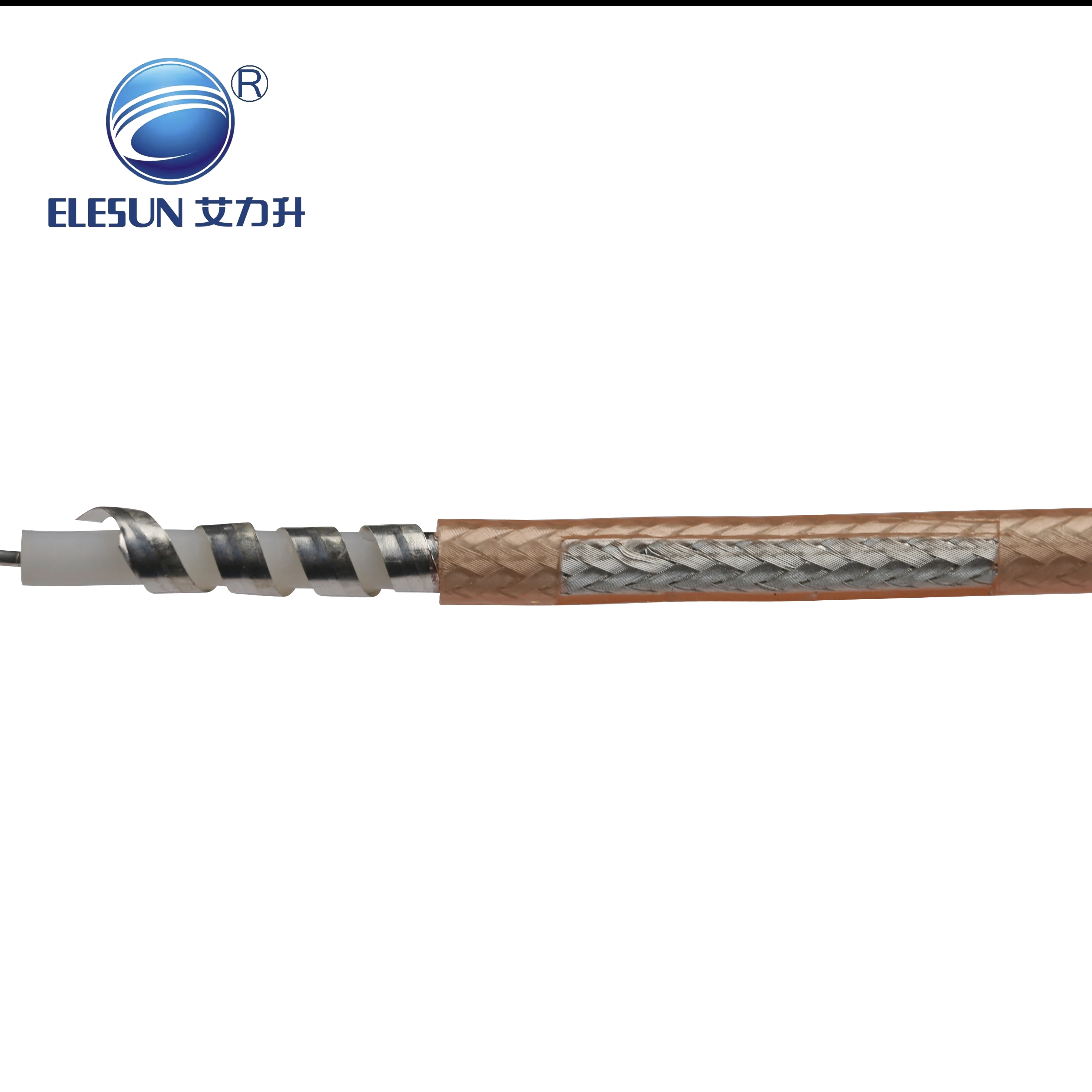

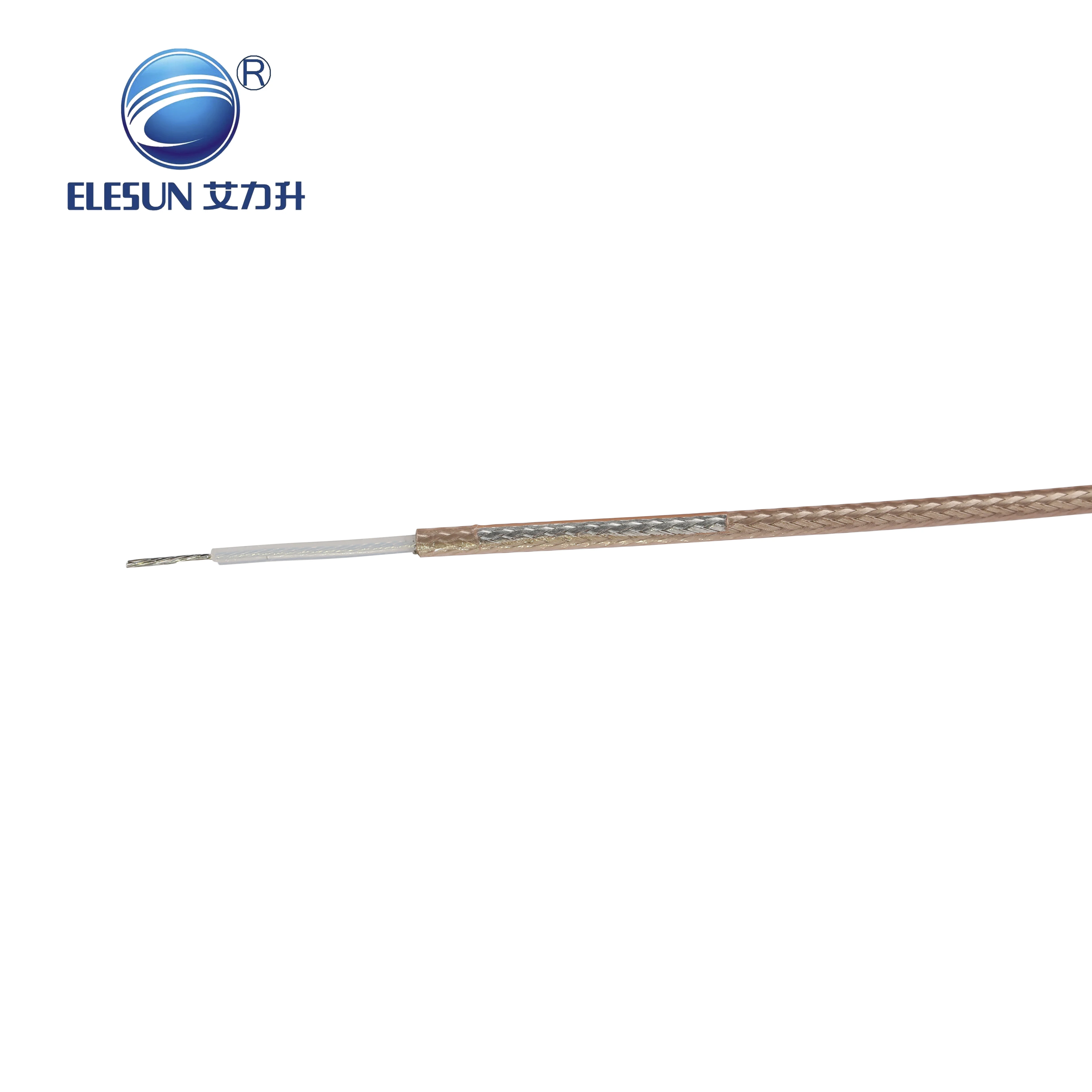

50ohm high temperature RF RG316 Coaxial cable with BNC Male to BNC Male for communication
Standard Mil-c-17
. Insulation Material：PTFE. Impedance:50Ω±2
.Jacket:FEP
. Color:Light Brown
Typical Application:The RG-316 coax cable is widely used in GPS systems, PDAs, security equipment, hands-free voice-controlled devices, mobile phones, broadcast equipment, remote controls, and more.
Best Feature: The size of RG316 is same as RG174U, but the performance is better since silver copper conductor and PTFE dielectric material is used in RG316U
Delivery: Normally3~5 days for samples,it will depend on when you place the order and at that time if our production is busy or free. After all the sample confirmed, 7~15 days for the mass production.However,we'll do our best to speed up with not low the quality.
Custom service:

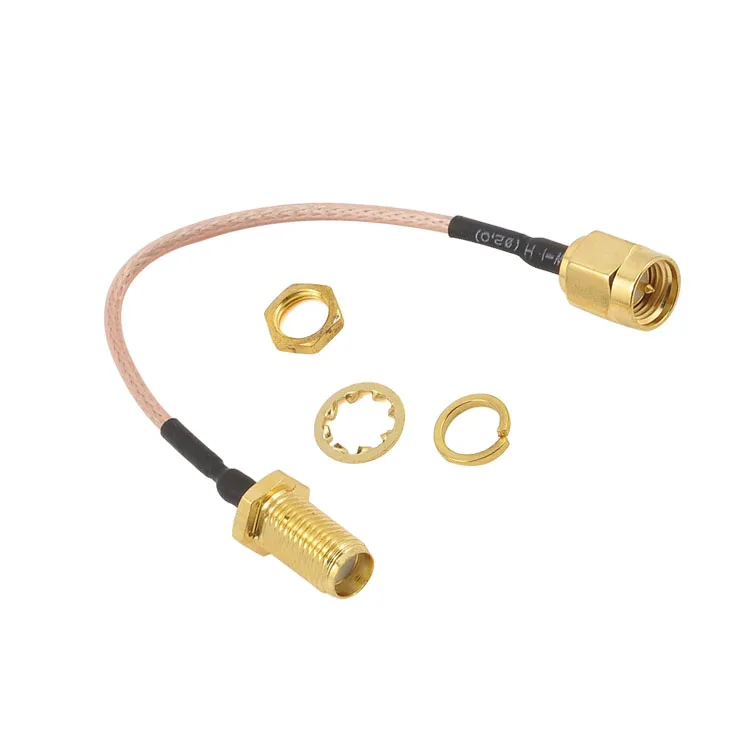

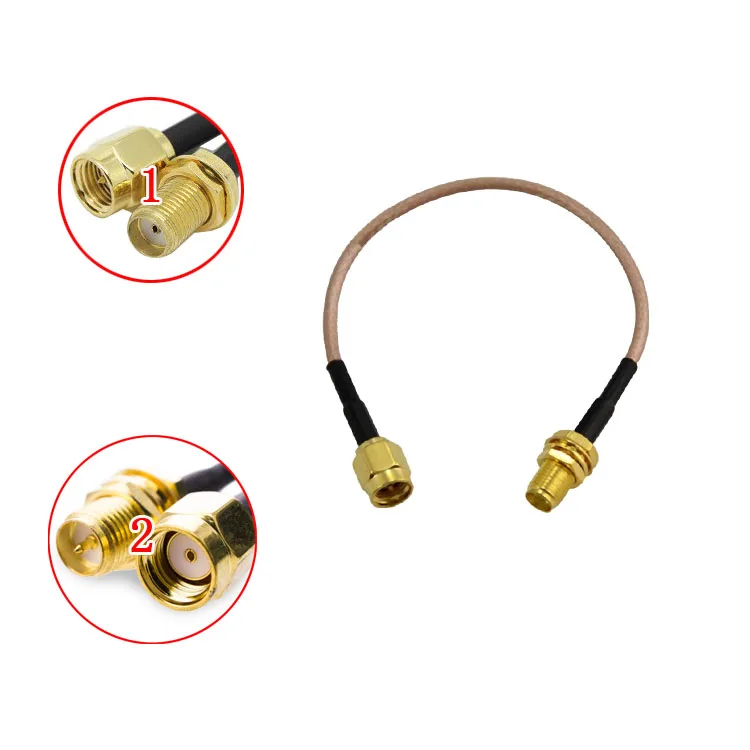

We supply RG316 cable assembly with N connector to SMA connector
RG316/U coaxial cable specifications | ||
Material of Inner Conductor | Silver Copper | |
Structure of Inner Conductor | 7/0.17mm | |
Material of Insulation | PTFE | |
Diameter of Insulation | 1.50mm | |
Material of Braiding(Shielding) | Silver Copper | |
Structure of Braiding(Shielding) | 80*0.10mm | |
Material of Jacket | FEP | |
Diameter of Jacket | 2.50mm | |
Working temp | -55℃/200℃ | |
Impedance | 50Ω±2 | |
Voltage | 2000V | |
Packing & Delivery
Company Profile
Q1: Are you a manufacture or a trading company?
A:We are a professional cable manufacture with more than 20 years production experience.
Q2:What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Cable Assembly,Network cable,electric wire,Network Cable.
We also provide cable assembly according to customers requirement.
Q3:What's your MOQ? Can you offer free samples?
A: Our MOQ is 2KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q4: What's your delivery time?
A:Normally, our delivery time is 7-10 days after received deposit or payment,it base on the quantity of the order.
Q5: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q6:What's your trade term?
A: We accept FOB ShangHai or Ningbo,Guanghzou,Shenzhen,CFR,CIF,EXW term
Q7: Where is your factory located? How can I visit there?
A: Our factory is located in Zhenjiang City,Jiangsu Province,China.
1 hour drive from Nanjing Airport.
3 hours drive or 1 and a half hour by high speed rail to railway station from shanghai.
Q8:Do you accept OEM/ODM?
A:Sure.we accept.
Why choose us:
1.We have more than 20 years experience for communication cables and cable assembly.
2.We own R&D team more than 10 engineers,give you strongest support !
3.Fast delivery time ,we have big capacity with short production time.
4.Factory directly sale - Most Competitive price than average level .
5.We have very strict quality control system during the whole production process.We always inspect all the goods before shipment.
6.IATF 16949 /UL certification approved.
A:We are a professional cable manufacture with more than 20 years production experience.
Q2:What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Cable Assembly,Network cable,electric wire,Network Cable.
We also provide cable assembly according to customers requirement.
Q3:What's your MOQ? Can you offer free samples?
A: Our MOQ is 2KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q4: What's your delivery time?
A:Normally, our delivery time is 7-10 days after received deposit or payment,it base on the quantity of the order.
Q5: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q6:What's your trade term?
A: We accept FOB ShangHai or Ningbo,Guanghzou,Shenzhen,CFR,CIF,EXW term
Q7: Where is your factory located? How can I visit there?
A: Our factory is located in Zhenjiang City,Jiangsu Province,China.
1 hour drive from Nanjing Airport.
3 hours drive or 1 and a half hour by high speed rail to railway station from shanghai.
Q8:Do you accept OEM/ODM?
A:Sure.we accept.
Why choose us:
1.We have more than 20 years experience for communication cables and cable assembly.
2.We own R&D team more than 10 engineers,give you strongest support !
3.Fast delivery time ,we have big capacity with short production time.
4.Factory directly sale - Most Competitive price than average level .
5.We have very strict quality control system during the whole production process.We always inspect all the goods before shipment.
6.IATF 16949 /UL certification approved.
