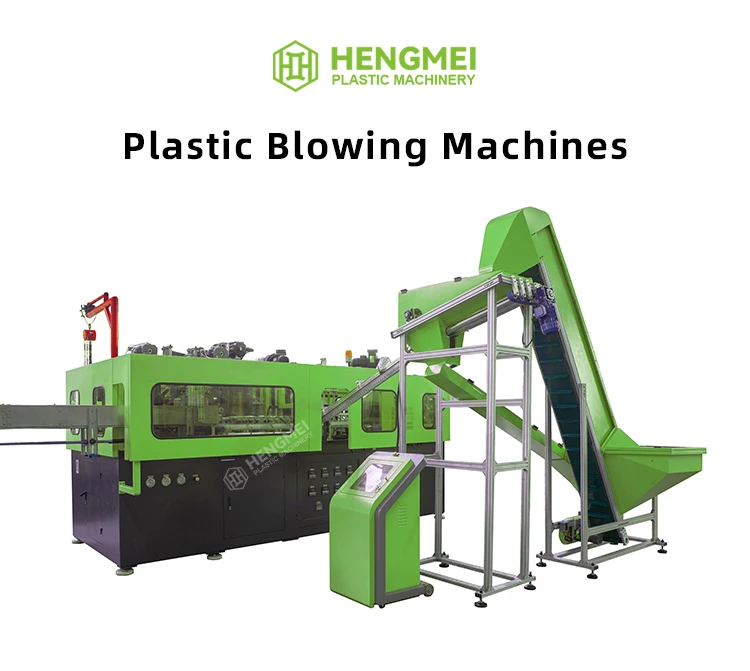

Automatic servo PET stretch blow molding machine manufacturer factory
- Category: >>>
- Supplier: Taizhou Huangyan Hengmei Plastic Machinery Co. Ltd.
Share on (1600751134858):
Product Overview
Description
Recommend Products

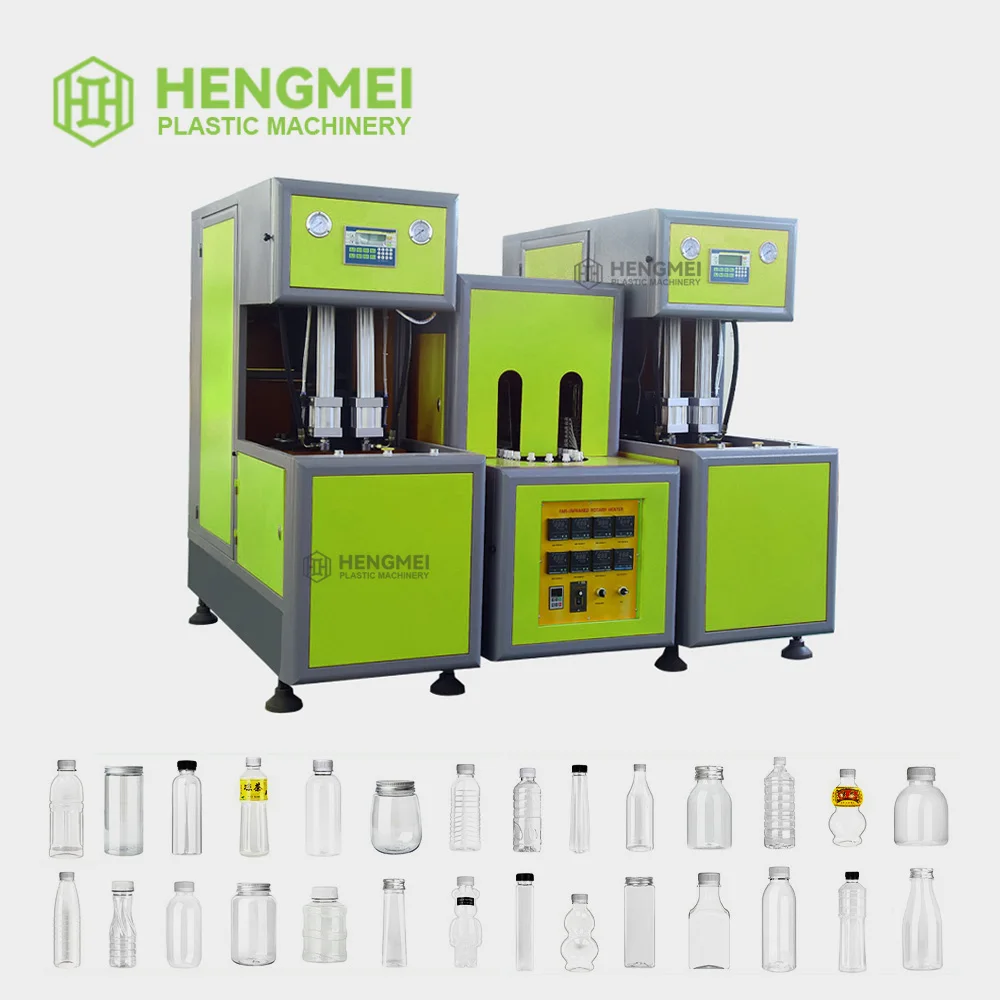

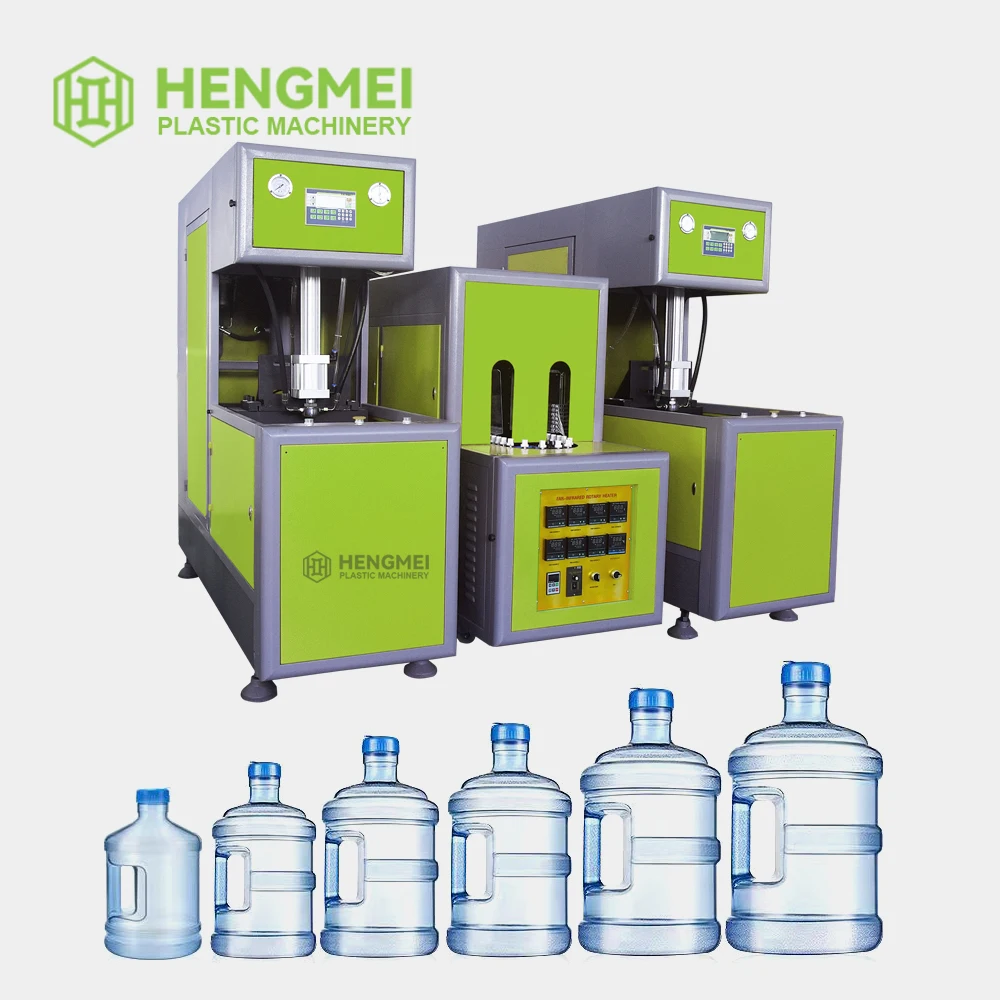

Semi Auto Bottle Blowing Machine
Semi Auto Bottle Blowing Machine

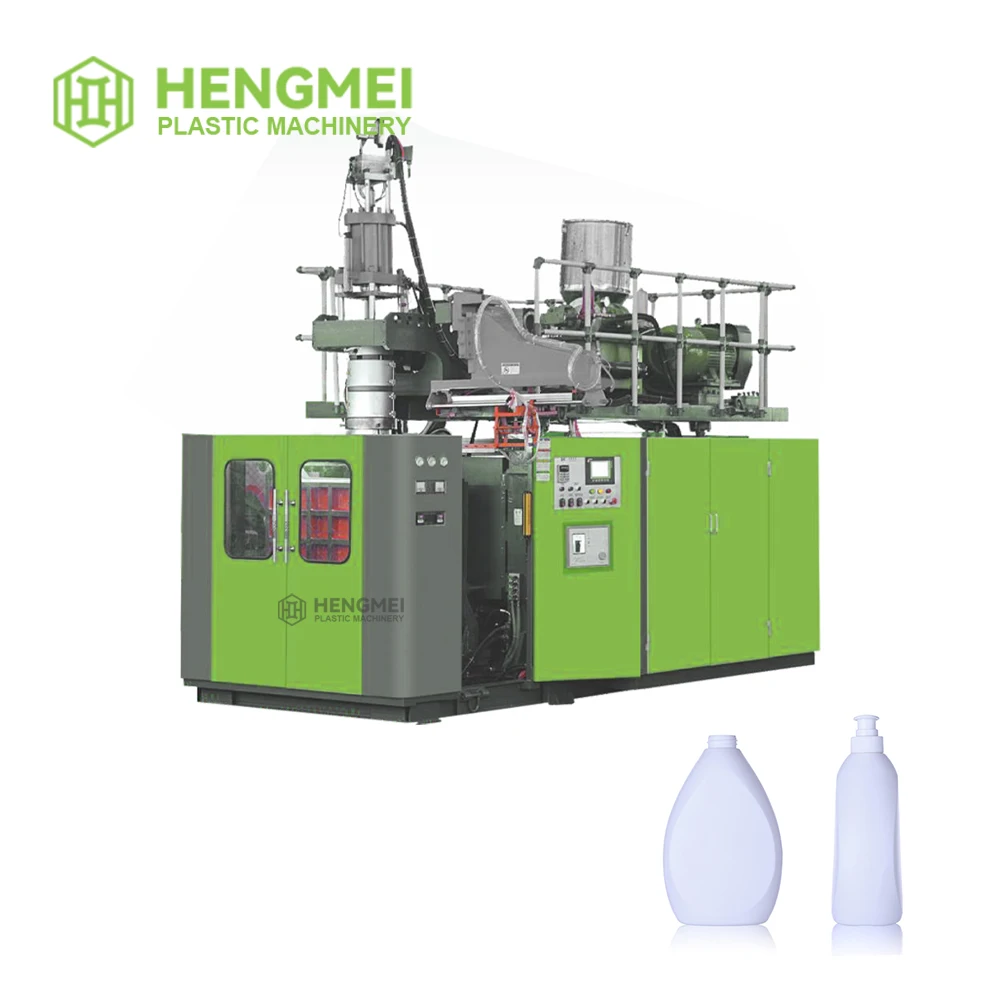

Extrusion Blowing Machine
Final Products
200-2000ml PET bottle
3-10L bottle
3-5 Gallon PET/PC bottle

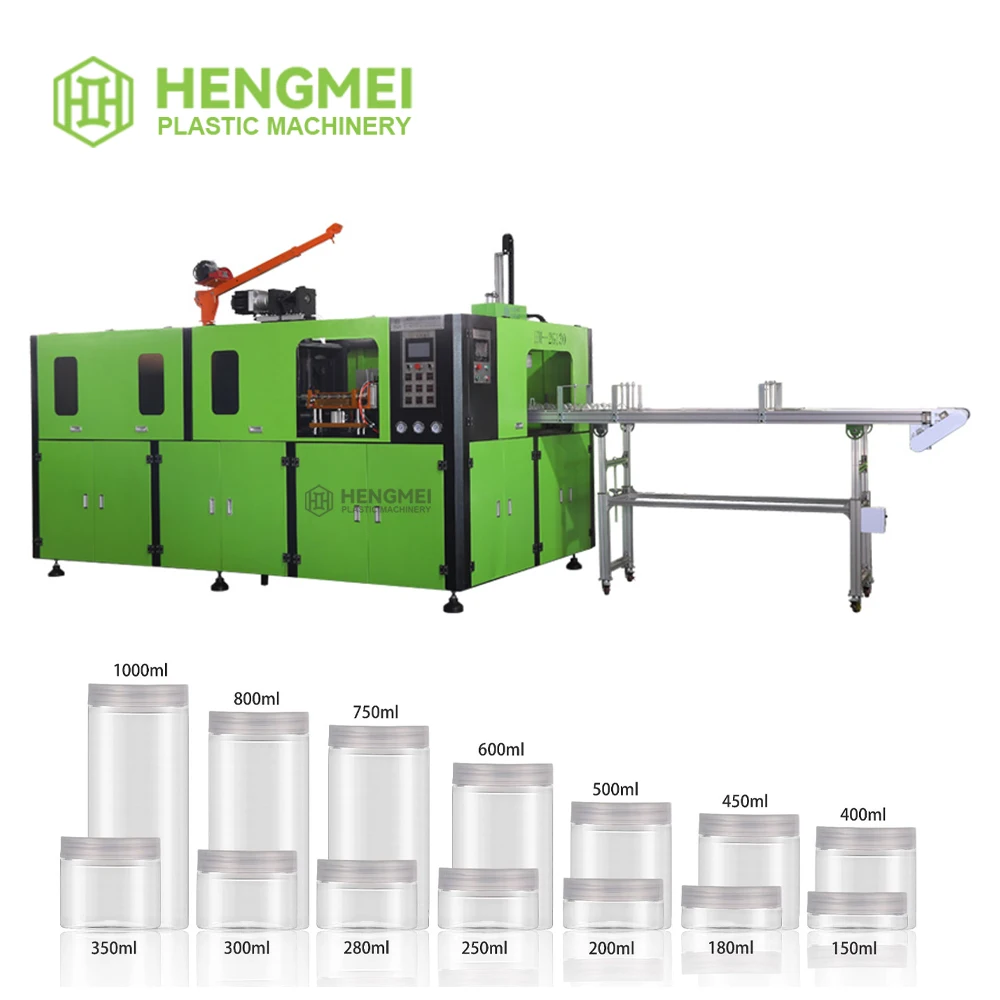

Plastic jar / Wide-mouthed bottle
PE bottle
PE barrel
Products Description

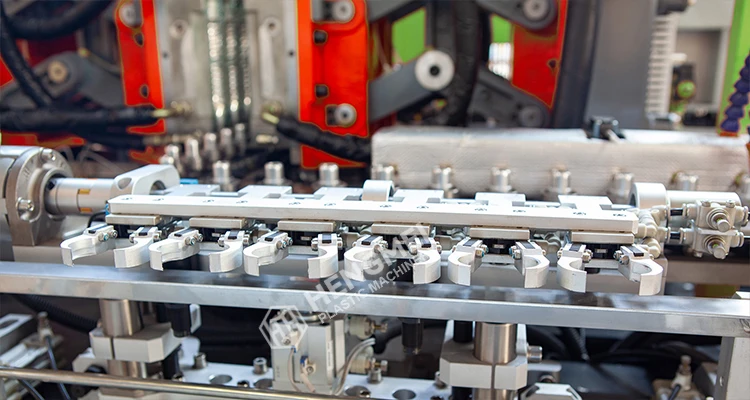

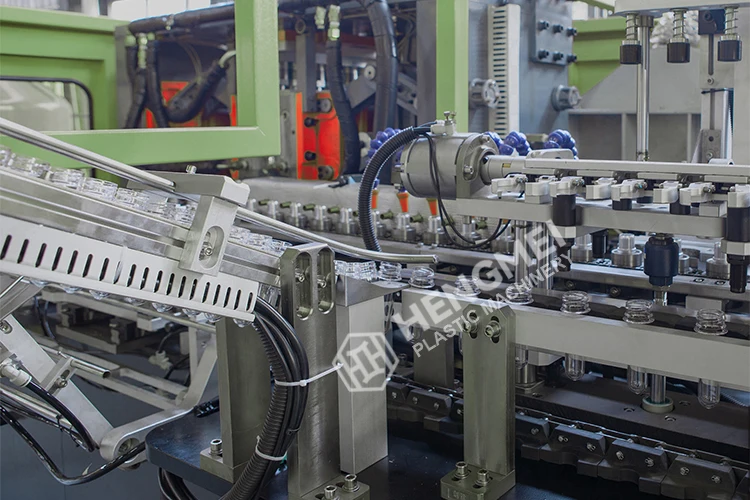

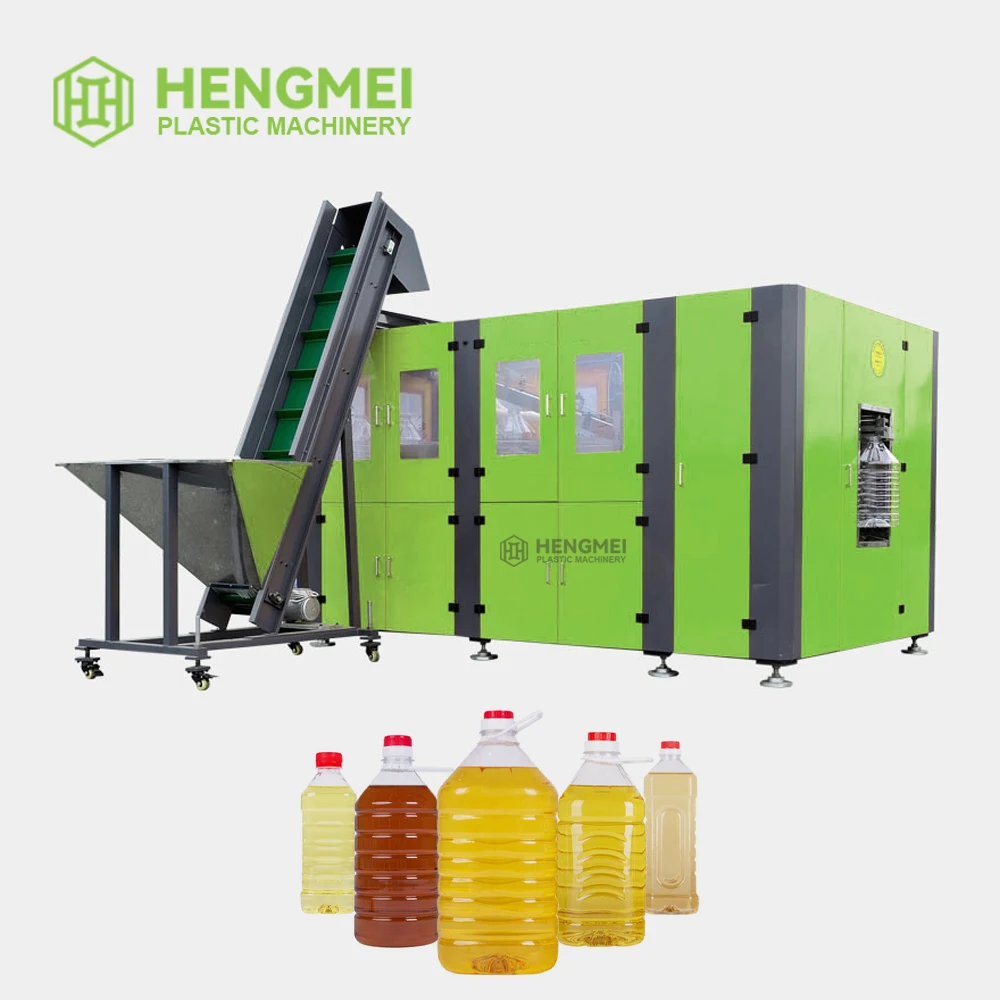

1-Automatic preform loading machine.
While performs are aligned in the unscrambler, there is a photocell on each rail that controls the perform loading motor and aligning cylinder. All these ensure a very precise, high-speed, and compact mechanical system. And the whole system is very stable and energy-saving.

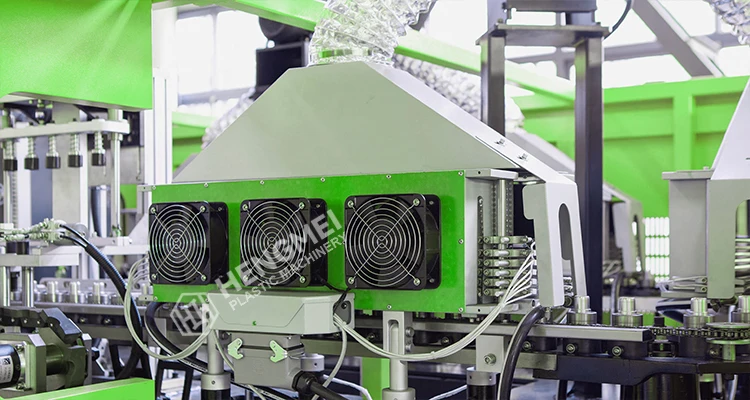

2-Heating System.
It automatic stretch blow molding machine adopts infrared type heating mode, whose superior thermal-radiation and thermal penetrability provide machine with powerful heating to meet strict preform heating requirement under speedy moving. Infrared heating lamps placed onto three heating zone with 10 sets of independent voltage adjusting module and advanced microcomputer controller, can offer ideal heating for preform in different size. Each lamp's horizontal position is adjustable to keep the machine flexible.
3-Clamping System.
Type： Hydraulic Straight Moving Mode Locking, Bidirectional synchronous mechanism, Linear Guide
Drive Type： Differential Fast Locking Die Head, Double Pull Rod Structure, Molar Space
Drive Type： Differential Fast Locking Die Head, Double Pull Rod Structure, Molar Space
4-Clamping system.
It adopts four-plate type toggle clamping unit to provide powerful clamping force and increase the clamping speed. Apart from the four-plate type toggle clamping unit, there is a high pressure assistant clamping device that is special designed to get a firm clamping.

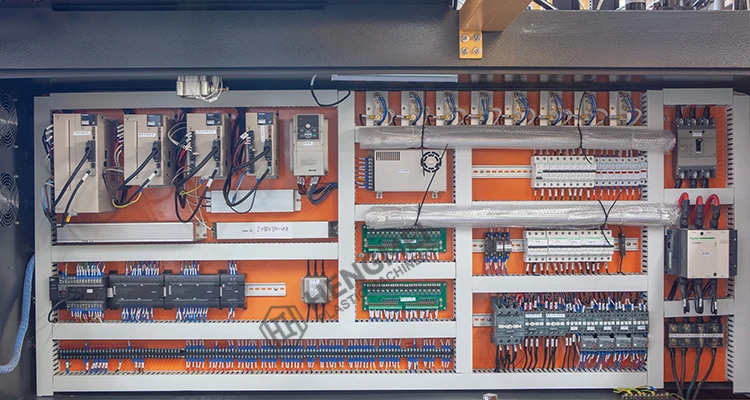

5-Control System.
High response, image high-quality control system, specially support simple USB program upgrade, providing strong guarantee for equipment upgrade, troubleshooting.
Mitsubishi PLC, generalized programming language, program update, convenient update, free maintenance, high precision, fast response.
6-Changing Molds.
The whole mould changing takes only one hour, it will be more easily.
If you want to know more machine details, please contact our online customer service！
Machine Specifications
Model | HM/2G130 | |||
Output | Up To Bottle Shaped | 1500-2200bph | ||
Bottle type | Bottle Body Diameter | 45-120mm | ||
Bottle Height | 50-300mm | |||
Bottle Neck Diameter | 55-105mm | |||
Mold | Cavity | 2 cavity | ||
Mold Thickness | 200±5mm | |||
Max. Stretching Distance | 450*380mm | |||
Power | Power Voltage | 3 Phase 380V/50Hz | ||
Installed Power / Actual Power | 61Kw/25Kw | |||
Air Source | High Pressure Air Compressor | 2.4m3/min 3.0Mpa | ||
Low Pressure Air Compressor | 2.0m3/min 1.0Mpa | |||
Cooling Water | Water Yield | 15L/min | ||
Blower Dimension | Length*Width*Height / Weight | 3850*2200*2200mm / 3500Kg | ||
Preform-loader Dimension | Length*Width*Height / Weight | 5000*500*1300mm / 200Kg | ||
If you need to know more models, please contact our online customer service. | ||||
Main Configuration List
Electric Components | PLC | Japan Mitsubishi |
Touch Screen | Japan Mitsubishi45-120mm | |
Relay | Germany Schneider | |
Circult Breaker | Germany Schneider | |
Air Switch | Germany Schneider | |
Start Button | Germany Schneider | |
Two-position Switch | Germany Schneider | |
Scram Button | Germany Schneider | |
Power Supply | Germany Schneider | |
Praximity Switch | Japan Omron | |
Photoclectric Switch | Japan Omron | |
Air Filtration | Low Pressure Oil-water Separator | Germany Festo |
Low Pressure Press-regulating Valve | Germany Festo | |
Low Pressure Lubricator | Germany Festo | |
Servo Motor | Displacement Servo | Taiwan Xinjie |
Clamping Servo Motor | Taiwan Xinjie | |
Stretch Servo | Taiwan Xinjie | |
Preform Up-loader Servo | Taiwan Xinjie | |
Cylinders | Bottle-takeout Flipping Cylinder | Germany Festo |
Preform-saparating Cylinder | Germany Festo | |
Manipulator | Germany Festo | |
High Pressure Blowing Valve | Germany Festo | |
High Pressure Exhaust Valve | Germany Festo | |
Valves | High Pressure One-way Valve | Germany Festo |
Low Pressure Mufer | Japan SMC | |
High Pressure Mufer | Japan SMC | |
Low Pressure Operating Valve | Germany Festo |
Why Choose Us
Taizhou Huangyan Hengmei Plastic Machinery Co., Ltd.
Taizhou Huangyan Hengmei Plastic Machinery Co., Ltd. is a new environmental protection and energy-saving machinery technology enterprise specialized in the design, development, production, sales and service of plastic packaging machinery. The main components of our bottle blowing machine are Mitsubishi PLC and touch screen, Schneider Electric, Xinbao reducer, Taiwan Xinjie servo motor, Taiwan Yade pneumatic accessories and other internationally famous products, which have the advantages of convenient operation, wide application range and low cost, and are suitable for blowing various forms of carbonated beverage bottles, mineral water bottles, pesticide bottles, cosmetics bottles, large-diameter bottles, medicine bottles, hot filling bottles, etc., which are drinks, candy, medicine, chemical packaging solutions for petroleum and other industries.

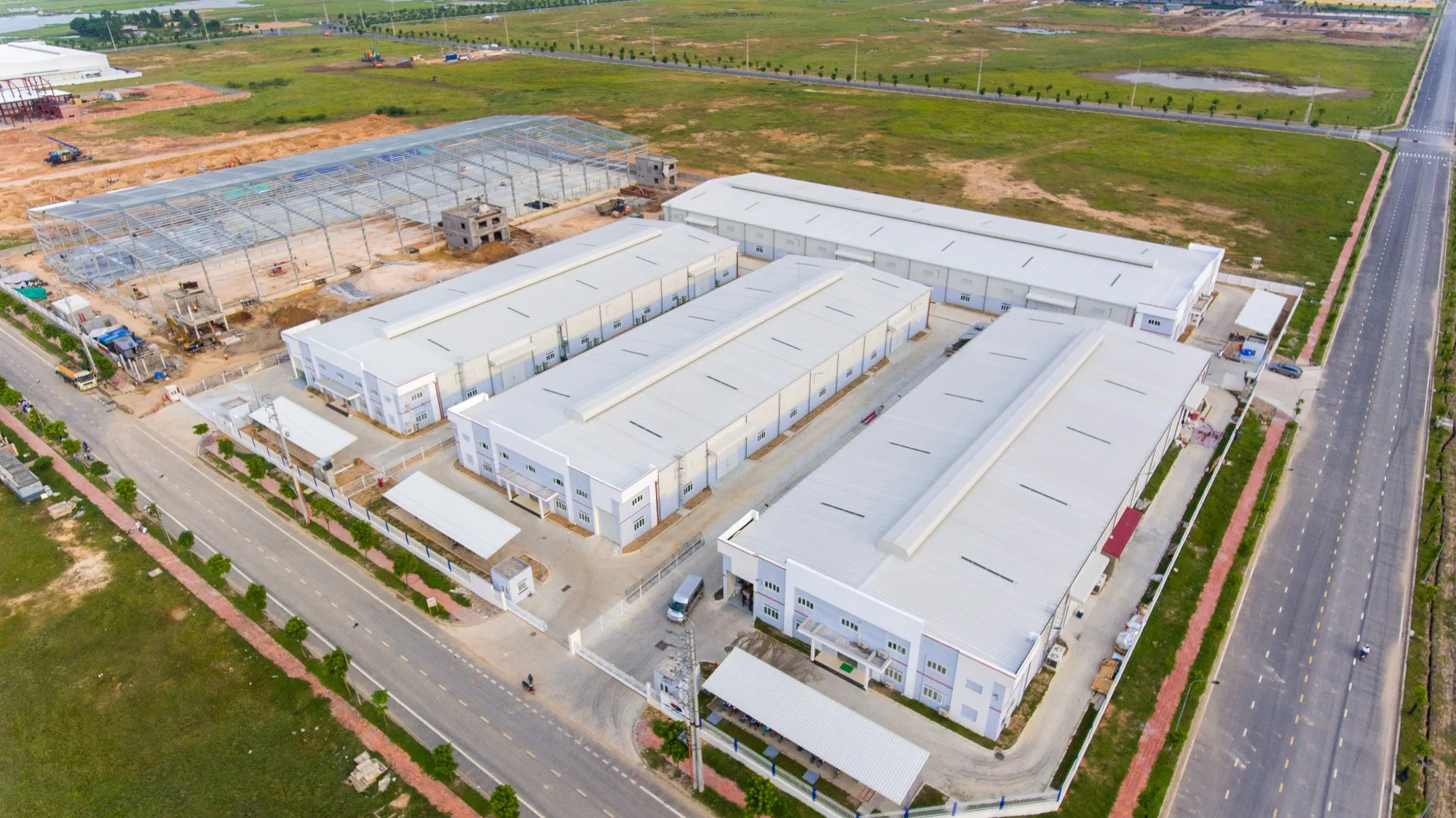

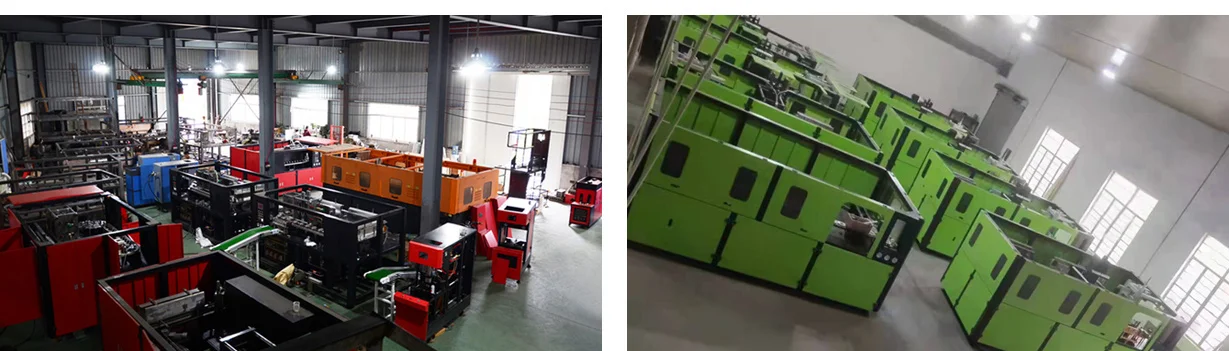

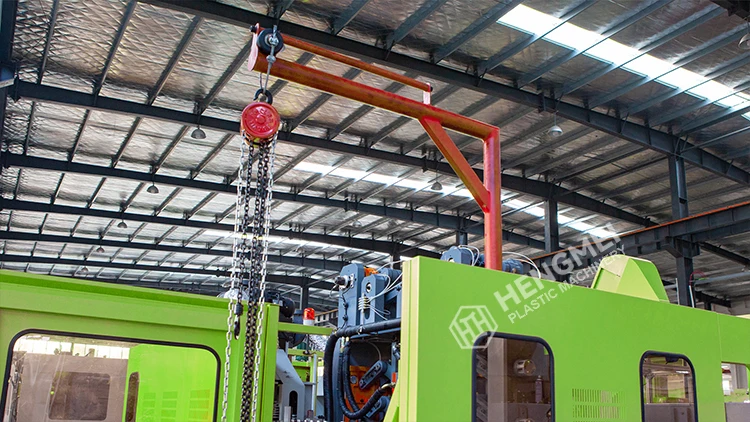

Hengmei Machinery Factory.
*Standardized workshop of total 2000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & Korea Daewoo, ensure the precision of parts.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*Engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*Engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
Certificate &Patent.
International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Hengmei Machinery.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark
registration,etc.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark
registration,etc.
Our Serivce.
*7/24 Online Service:Machine running video / Watch our factory online / More service contact us
*Sucessful Beverage Plant::Supply a running beverage line in your country , you can see machine runing directly.
*Installation / Debug / Training:
1 - We will arrange seasoned technician for equipments installation, debug and test production.
2 - Our company offers technology training to the customer in his factory.
3 - We promise that our goods are all new and not used.
*After-sales Service:
1 - After checking, we offer 12 months as a quality guarantee, free offer wearing parts and offer other parts at the lowest price.
2 - If you could not solve the problems, we will arrange a technician to your factory solving the problems.
3 - After quality guarantee, we offer technical support and after-sales service.
*Sucessful Beverage Plant::Supply a running beverage line in your country , you can see machine runing directly.
*Installation / Debug / Training:
1 - We will arrange seasoned technician for equipments installation, debug and test production.
2 - Our company offers technology training to the customer in his factory.
3 - We promise that our goods are all new and not used.
*After-sales Service:
1 - After checking, we offer 12 months as a quality guarantee, free offer wearing parts and offer other parts at the lowest price.
2 - If you could not solve the problems, we will arrange a technician to your factory solving the problems.
3 - After quality guarantee, we offer technical support and after-sales service.
FAQ
SEE HENGMEI MACHINERY HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years.
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years.
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
THE AFTER-SALE SERVICE OF HENGMEI MACHINERY!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the
customers' project.
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the
customers' project.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
● If we can fullfill your request and you interested in our products, you may pay a visit to Hengmei Machinery site.
● The meaning of visiting supplier, because seeing is believing, King Machine with own manufacture and developed & research team,we can send you engineers and make sure your after sales service.
● The meaning of visiting supplier, because seeing is believing, King Machine with own manufacture and developed & research team,we can send you engineers and make sure your after sales service.
HOW TO FIND HENGMEI MACHINERY?
● Search Alibaba,Google, Youtube and find suppliers and manufactrue and not traders.
● Visit exhibition in different countries.
● Send King Machine an request and tell your basic inquiry.
● Hengmei Machinery sales manager will reply you in short time and add instant chatting tool.
● Visit exhibition in different countries.
● Send King Machine an request and tell your basic inquiry.
● Hengmei Machinery sales manager will reply you in short time and add instant chatting tool.
