22 kW 30 Hp 7 8 10 12 Bar Industrial Stationary Spiral Rotary Screw Air Compressor For Sale
- Category: >>>
- Supplier: Fuzhou,Tuowei,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
Model | SGD 30 |
Type of Cooling | Air Cooling/Water cooling |
Working Pressure( bar) | 7/8/10/12 |
Air Delivery(cfm / m3/min) | 5.3/5.0/4.5/4.0 |
Exhaust Oil Volum | 1~3ppm |
Outlet Air Humidity (℃) | ambient temperature+15℃ |

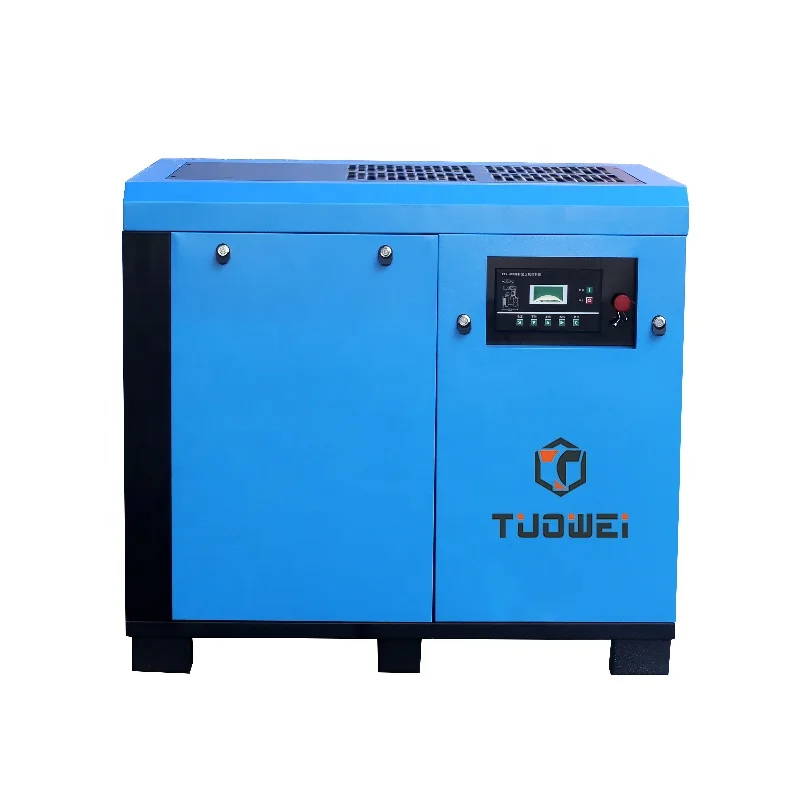

tuowei brand of SGD serial direct drive screw air compressor, with CE certificate, using BAOSI brand of air end (OEM orders of GHH and Hanbell brand of air end are also acceptable), with large rotor and SKF bearing, and famous brand of motor in China, more stable and reliable, MAM serial of control panel, easy to operate, the simple and mature structure of air compressor makes failure rate lower, and also easily assembled and regularly maintain. tuowei screw air compressor can work 24hours automatically and continuously without attend.
Product Paramenters
Model | Working Pressure | Capacity | Motor Power | Dimension (mm) | Net Weight (KGS) | Air Outlet Pipe Diameter | ||||||||||
Psi | bar | Cfm | m3/min | kw/hp | ||||||||||||
102 | 7 | 42.4 | 1.2 | 7.5/10 | 900*670*850 | 200 | 1/2’’ | |||||||||
116 | 8 | 38.8 | 1.1 | |||||||||||||
145 | 10 | 33.5 | 0.95 | |||||||||||||
174 | 10 | 28.3 | 0.8 | |||||||||||||
102 | 7 | 58.3 | 1.65 | 11/15 | 1080*750*1020 | 280 | 3/4’’ | |||||||||
116 | 8 | 53 | 1.5 | |||||||||||||
145 | 10 | 45.9 | 1.3 | |||||||||||||
174 | 12 | 38.8 | 1.1 | |||||||||||||
102 | 7 | 88.3 | 2.5 | 15/20 | 1080*750*1020 | 300 | 3/4’’ | |||||||||
116 | 8 | 81.2 | 2.3 | |||||||||||||
145 | 10 | 74.2 | 2.1 | |||||||||||||
174 | 12 | 67.1 | 1.9 | |||||||||||||
102 | 7 | 113 | 3.2 | 18.5/25 | 1380*850*1185 | 430 | 1’’ | |||||||||
116 | 8 | 105.9 | 3 | |||||||||||||
145 | 10 | 95.3 | 2.7 | |||||||||||||
174 | 12 | 84.7 | 2.4 | |||||||||||||
100 | 7 | 134.2 | 3.8 | 22/30 | 1380*850*1185 | 450 | 1’’ | |||||||||
116 | 8 | 127.1 | 3.6 | |||||||||||||
145 | 10 | 113 | 3.2 | |||||||||||||
174 | 12 | 95.3 | 2.7 | |||||||||||||
102 | 7 | 187.1 | 5.3 | 30/40 | 1380*850*1185 | 500 | 1’’ | |||||||||
116 | 8 | 176.6 | 5 | |||||||||||||
145 | 10 | 158.9 | 4.5 | |||||||||||||
174 | 12 | 141.2 | 4 | |||||||||||||
102 | 7 | 240.1 | 6.8 | 37/50 | 1500*1000*1345 | 650 | 1 1/2" | |||||||||
116 | 8 | 218.9 | 6.2 | |||||||||||||
145 | 10 | 197.7 | 5.6 | |||||||||||||
174 | 12 | 176.6 | 5 | |||||||||||||
102 | 7 | 261.3 | 7.4 | 1500*1000*1345 | 680 | 1 1/2" | ||||||||||
116 | 8 | 247.2 | 7 | |||||||||||||
145 | 10 | 218.9 | 6.2 | |||||||||||||
174 | 12 | 197.7 | 5.6 | |||||||||||||
102 | 7 | 353.1 | 10 | 55/75 | 1800*1250*1670 | 1150 | 2" | |||||||||
116 | 8 | 339 | 9.6 | |||||||||||||
145 | 10 | 300.1 | 8.5 | |||||||||||||
174 | 12 | 268.4 | 7.6 | |||||||||||||
102 | 7 | 473.2 | 13.4 | 75/100 | 1800*1250*1670 | 1200 | 2" | |||||||||
116 | 8 | 444.9 | 12.6 | |||||||||||||
145 | 10 | 395.5 | 11.2 | |||||||||||||
174 | 12 | 353.1 | 10 | |||||||||||||
102 | 7 | 572 | 16.2 | 90/120 | 1800*1250*1670 | 1350 | 2" | |||||||||
116 | 8 | 529.7 | 15 | |||||||||||||
145 | 10 | 487.3 | 13.8 | |||||||||||||
174 | 12 | 434.3 | 12.3 | |||||||||||||
102 | 7 | 741.5 | 21 | 110/150 | 2300*1470*1840 | 1800 | 2 1/2’’ | |||||||||
116 | 8 | 699.1 | 19.8 | |||||||||||||
145 | 10 | 614.4 | 17.4 | |||||||||||||
174 | 12 | 522.6 | 14.8 | |||||||||||||
102 | 7 | 865.1 | 24.5 | 132/175 | 2300*1470*1840 | 1850 | 2 1/2’’ | |||||||||
116 | 8 | 819.2 | 23.2 | |||||||||||||
145 | 10 | 723.9 | 20.5 | |||||||||||||
174 | 12 | 614.4 | 17.4 | |||||||||||||
102 | 7 | 1013.4 | 28.7 | 160/200 | 2300*1470*1840 | 2000 | 2 1/2’’ | |||||||||
116 | 8 | 974.6 | 27.6 | |||||||||||||
145 | 10 | 868.6 | 24.6 | |||||||||||||
174 | 12 | 759.2 | 21.5 | |||||||||||||
102 | 7 | 1129.9 | 32 | 185/250 | 3150*1980*2152 | 3500 | DN85 | |||||||||
116 | 8 | 1073.4 | 30.4 | |||||||||||||
145 | 10 | 967.5 | 27.4 | |||||||||||||
174 | 12 | 875.7 | 24.8 | |||||||||||||
102 | 7 | 1271.2 | 36 | 220/300 | 3150*1980*2152 | 3800 | DN85 | |||||||||
116 | 8 | 1211.1 | 34.3 | |||||||||||||
145 | 10 | 1066.4 | 30.2 | |||||||||||||
174 | 12 | 978.1 | 27.7 | |||||||||||||
102 | 7 | 1483 | 42 | 250/350 | 3150*1980*2152 | 4000 | DN85 | |||||||||
116 | 8 | 1430.1 | 40.5 | |||||||||||||
145 | 10 | 1348.8 | 38.2 | |||||||||||||
174 | 12 | 1218.2 | 34.5 | |||||||||||||
102 | 7 | 1800.8 | 51 | 315/430 | 4000*1980*2152 | 6000 | DN110 | |||||||||
116 | 8 | 1772.6 | 50.2 | |||||||||||||
145 | 10 | 1571.3 | 44.5 | |||||||||||||
174 | 12 | 1412.4 | 40 | |||||||||||||
102 | 7 | 2259.8 | 64 | 355/480 | 4000*1980*2152 | 6500 | DN110 | |||||||||
116 | 8 | 2153.9 | 61 | |||||||||||||
145 | 10 | 1995 | 56.5 | |||||||||||||
174 | 12 | 1730.2 | 49 | |||||||||||||
Motor Protection Class: IP23/IP54/IP55 or as per your required | ||||||||||||||||
Voltage: 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests. | ||||||||||||||||
Company Information
FAQ
Q1: What is the rotor speed for the air end?
A1: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
A1: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
