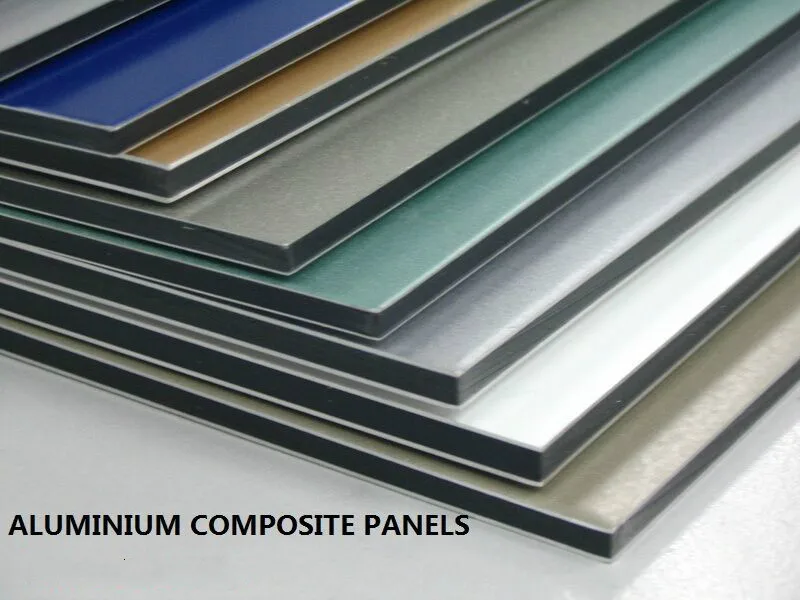

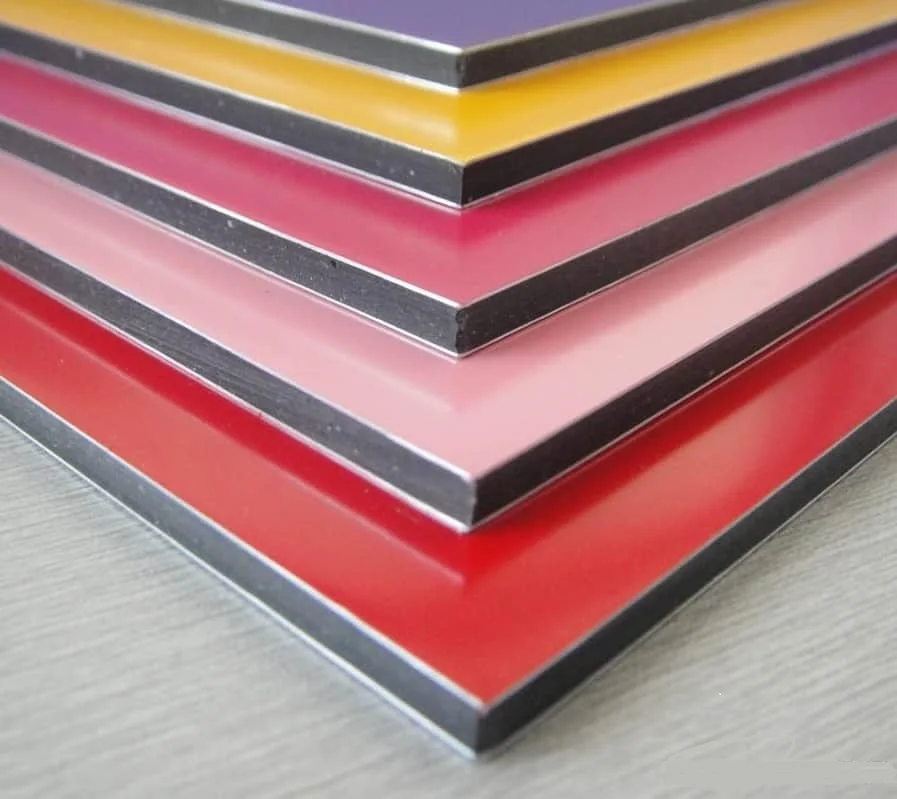

4mm*0.21 0.3 PVDF ACP Aluminum Composite Panel Unbroken Fireproof Acm Panel for Building External Wall Cladding Decoration Mater

Product Overview

Description

Basic Material
1) Front side: aluminum alloy sheet coated with fluoro-carbon resin(PVDF) or polyester resin (PE)
roasting painting
2) Core material: nontoxic polyethylene, PE, FR, LDPE
3) Back side: aluminum alloy sheet coated with polyester resin painting(PE)

SPECIFICATION AND SIZE
Width:1000mm,1220mm 1250mm,1500mm,1550mm, 1570mm ,2000mm
Length :2440mm, 3200mm,4000mm 5000mm 6000mm,or customized
Thickness : 2mm, 3mm, 4mm, 5mm, 6mm,8mm,10mm
Thickness of ALU-layer : 0.08mm,0.10mm,0.12mm,0.15mm,0.18mm,0.21mm,0.25mm,0.3mm,0.35mm,0.4mm,0.45mm,0.5mm
Inner Core Normal non toxic PE core, one side unbroken plastic, two side unbroken plastic, virgin LDPE, fireproof material
Color : Solid color, metallic color, brush color, mirror, marble, wooden color, glossy
Brand: CROWNBOND, MEGABOND, or customized
Surface : PE coating , PVDF coating, NANO, Brush surface, mirror surface,marble.
Thickness of film :0.07mm,0.09mm
FCL :1220*2440*4mm 1500 sheets in 20 feet container;

Applications:

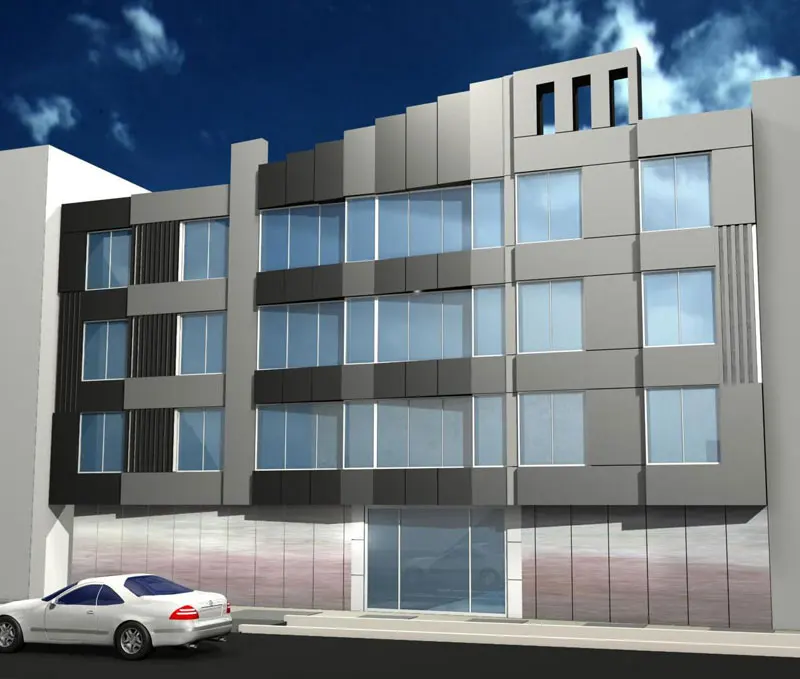

1) Constructional exterior curtain walls, Wall Panel are widely used in exhibition, stores, offices, banks, hotels, restaurants and apartments;
2) Decorative renovation for storey-added old buildings, facades, roofing;
3) Indoors decoration for interior walls, ceilings, bathrooms, kitchens, balconies and subway;
4) Advertisement board, display platforms, billboards and signboards;
5) Wallboard and ceilings for tunnels;
6) Raw materials in industrial purpose;
7) Material used for vehicle bodies, yachts and boat
