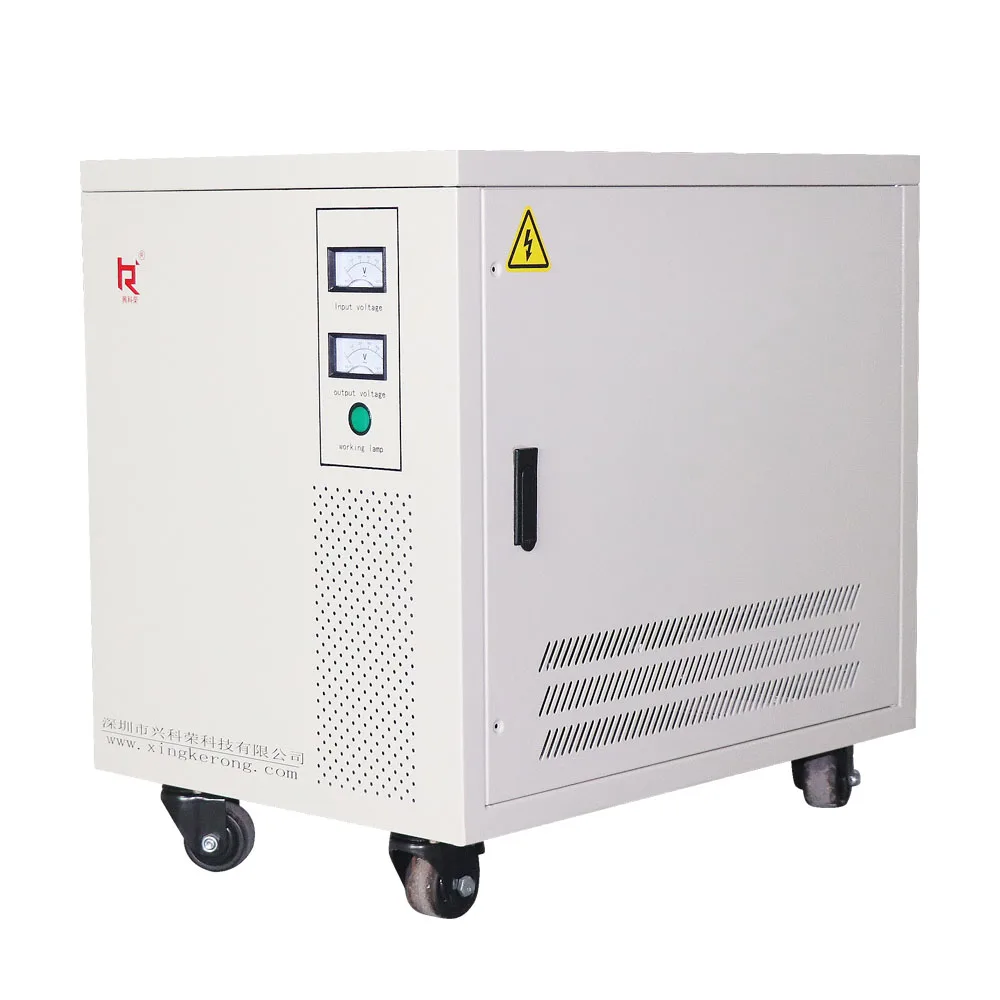

Dry type 30KVA 220V to 380V Autotransformer three phase /single phase step up transformer
- Category: >>>
- Supplier: Shenzhen,Xingkerong,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Dry type 30KVA 220V to 380V Autotransformer three phase /single phase step up transformer
Why choose us:
All our voltage transformer we afford 2 years warranty(include customized one),
All our products'insulation level is H( no need add extra fees up F to H),
All our prodducts using 200 ° high temperature resistance material.(the best material in the market)
All our prodcuts we got CE,ROHS,ISO:9001 certificate.
All our products 10pcs can delivery within 7 work days.
We free for printed your logo on our Machine.
Storng R&D ,Customized welcome, our drawing send to your firstly,specification secondly, quotation lastly.
Welcome to enquiry and join us, we will try our best do the best for you~.~

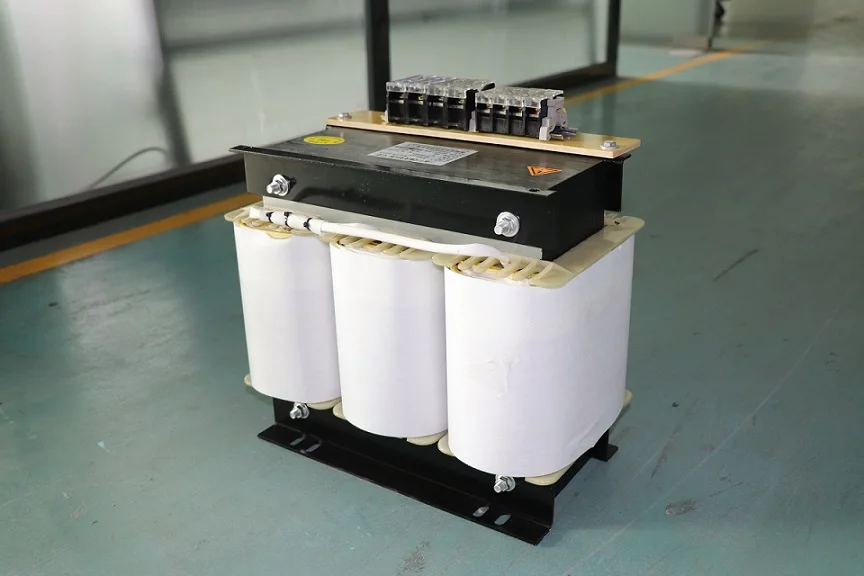

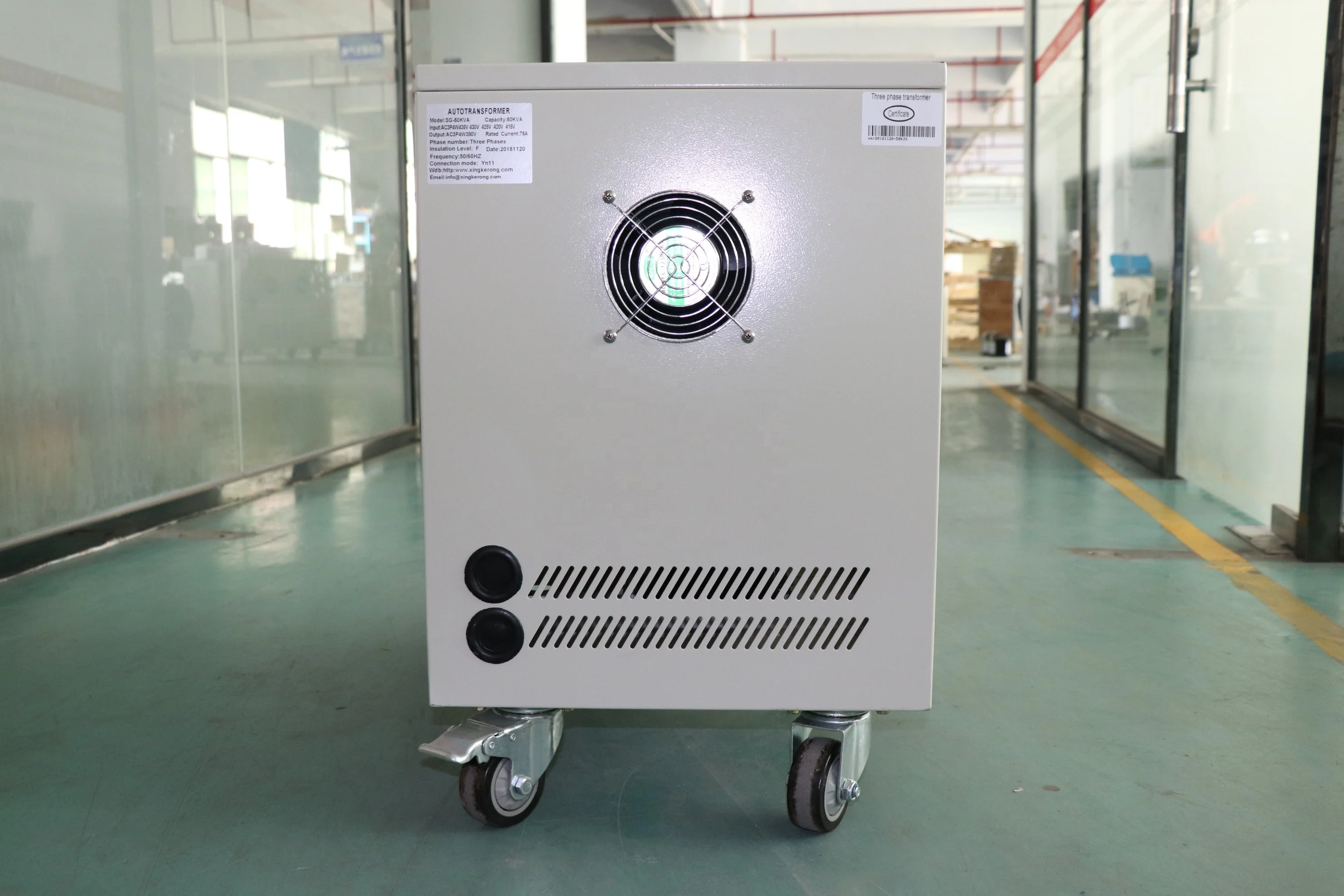

dry autotransformer detail pictures:
Our transformer New type:
Technical specifications:
Rated capacity | 30kva |
phase number | 3 Phases |
Input voltage | 220VAC |
Output voltage | 380VAC |
Working frequency | 50/60HZ |
Short Circurt Impedance | 4% |
Voltage Resistance | 2500VAc/min (does not have the puncture, no break down) |
Insulation Level | Level H |
Insulation Resistance | > 100MΩ/ DC500V |
Material | Transformer coil adopts 200 degree high temperature copper wire or aluminum wire. Silicon steel sheet, Baosteel, B50A470 material |
Main material winding | Aluminum/Copper |
Connection mode | Y/Y(or customized) |
Environment temperature | -10℃ +45℃ ;indoor enclosure, floor-mounted |
Temperature rise limit: | 100K (Actual temperature minus ambient temperature) |
Cooling mode | Air cooling or Fan cooling |
Size(W*D*H) | 500*300*550mm |
Weight | 90KG |
Warranty | 2 years |
Our Transformer Testing Items:
| Testing items | |||
| No. | Test name | Routine Test | Optional Test |
| 1 | Input voltage test | √ | |
| 2 | 0utput voltage test | √ | |
| 3 | No-load loss and current test | √ | |
| 4 | PRI leakage sense test | √ | |
| 5 | Insulation resistance | √ | |
| 6 | Impedance voltage | √ | |
| 7 | Pressure test | √ | |
| 8 | Insulation resistance | √ | |
| 9 | Winding resistance test | √ | |
| 10 | Temperature rise test | √ | √ |
| 11 | Efficiency | √ | |
| 12 | Connection method | √ | |
| 13 | Inrush current test | √ | |
| 14 | Sound level test | √ | |
| 15 | Waterproof test | √ | |
