24v High Power 400W Brushless Outrunner Motor For Electric Tools



1. Applications:,Electric strapping machine,industrial automation,etc



2. Operating Environment:-40~+100°C



3. Characteristics :

The following are our standard products, we also provide customized products and service.



			01-105-18.0       02-105-24.0       03-105-36.0
1	Voltage	V	18.0	24.0	36.0
2	Terminal resistance	Ω	0.034	0.053	0.11
3	No-load  speed	rpm	10500	10500	10500
4	No-load current	A	1.6	1.2	0.9
5	Stall  torque	mNm	8614	9831	10656
6	Stall  current	A	529.4	452.8	327.3
7	Nominal torque	mNm	423	427	420
8	Nominal speed	rpm	9350	9400	9440
9	Nominal current	A	25.7	19.5	12.9
10	Max. output power	W	2367	2701	2928
11	Max. efficiency	%	89.2	89.9	89.7
12	Back-EMF constant	mV/rpm	1.7	2.3	3.4
13	Torque constant	mNm/A	16.3	21.8	32.7
14	KV Value	rpm/V	583	437.5	292.0
15	Speed/torque gradient	rpm/mNm	1.22	1.07	0.99

4. Options:Lead wires length, shaft length, special coils, gearheads,bearing type, driver,encoder

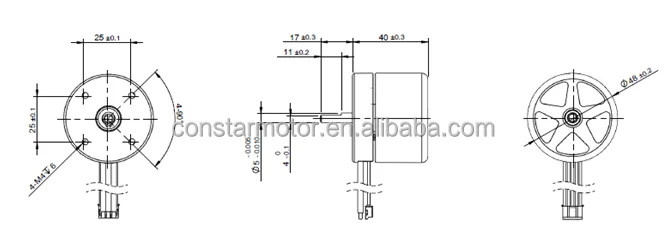

5,Outline Drawing:

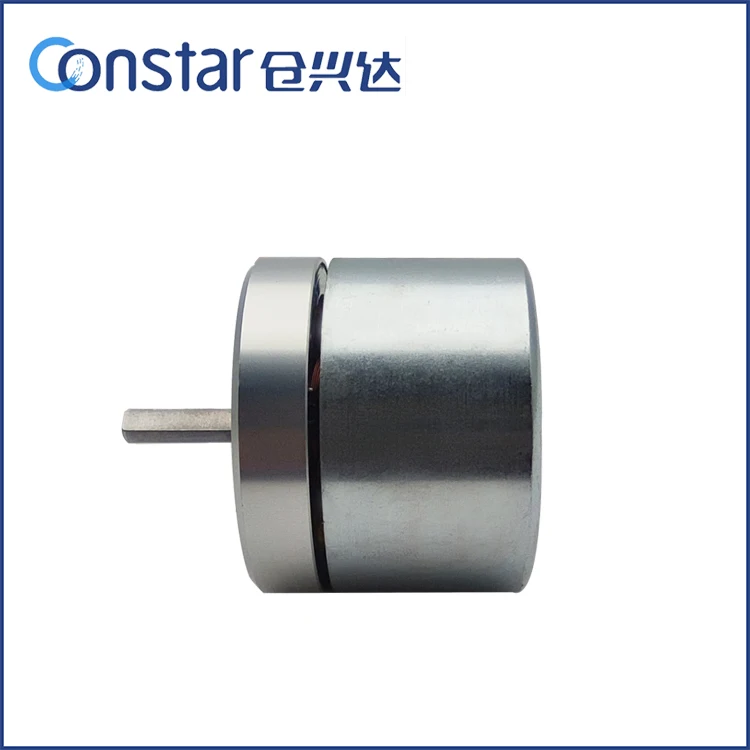

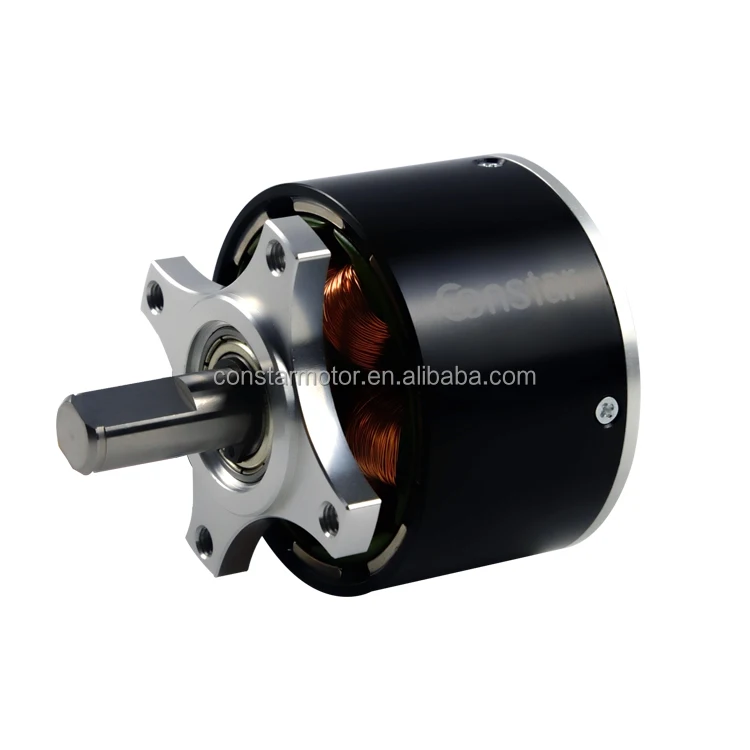

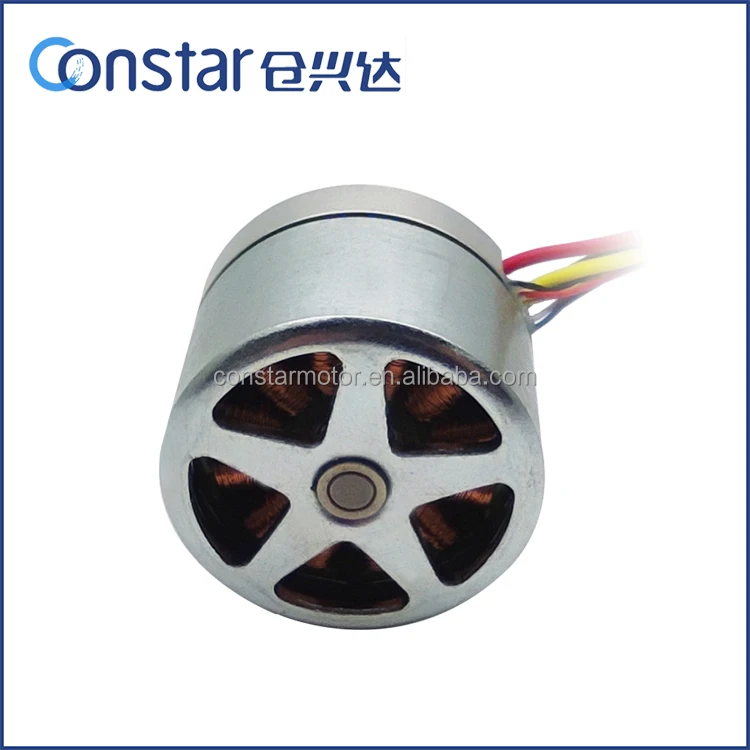

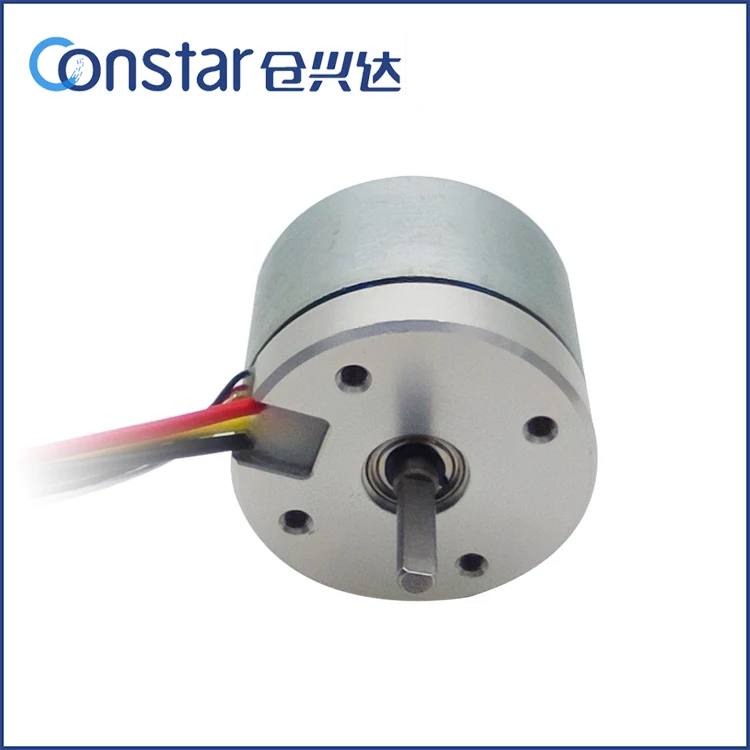

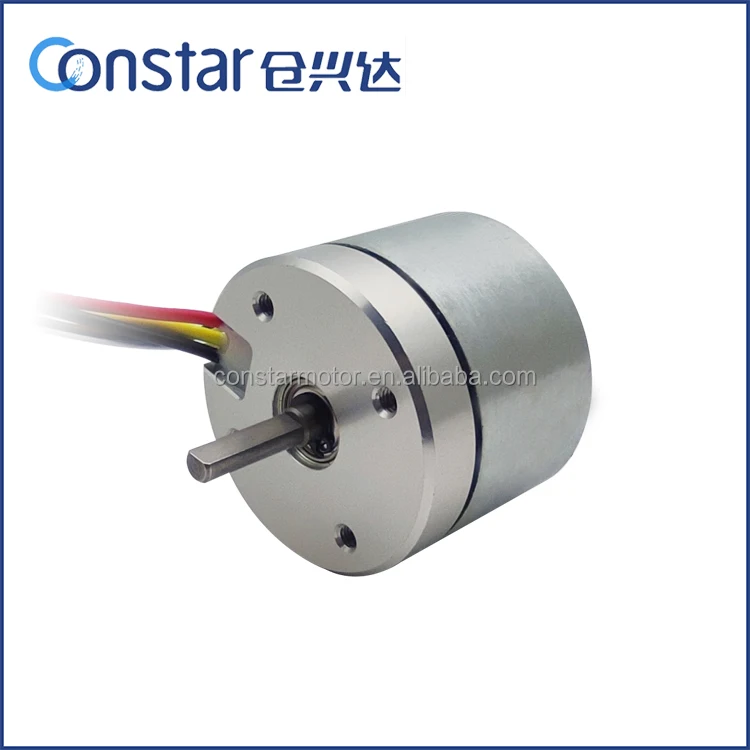

6,Photo:





Customized Motor Solutions:

CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core  Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!



 7.Other Item





Series	Dimension (mm)	Voltage (V)	No-load Speed (rpm)	No-Load Current (mA)	KV Value (rpm/V)	Torque Constant (mNm/A)
1308ZWW	Φ13*8	3.7	39000	700	10500	0.85
1511ZWW	Φ15*11	7.4	35000	400	4700	1.97
1709ZWW	Φ17*9	10	26000	110	2600	3.5
1814ZWW	Φ18*14	6.4	18500	270	2900	3.3
	Φ18*14	6.4	22000	350	3440	2.7
1816ZWW	Φ18*16	7.4	12000	160	1620	5.8
2010ZWW	Φ20*10	10	24000	110	2400	3.9
2015ZWW	Φ20*15	12	11300	80	940	9.9
2316ZWW	Φ23*16	12	19500	450	1625	5.8
2414ZWW	Φ24*14	12	6400	40	530	16.7
2814ZWW	Φ28*14	11.1	22000	650	2000	4.8
2820ZWW	Φ28*20	10.5	13500	450	1290	7.4
2824ZWW	Φ28*24	11.1	10200	400	920	10.3
2826ZWW	Φ28*26	14.8	13500	550	910	10.4
2828ZWW	Φ28*28	14.8	13000	650	880	10.8
2830ZWW	Φ28*30	14.8	13300	750	900	10.6
2914ZW	Φ29*14	24	5500	100	230	40
2914ZWW	Φ29*14	24	5500	100	230	40
3212ZWW	Φ32*12	12	22000	500	1833	5.0
3216ZWW	Φ32*16	12	3200	500	270	35
3517ZWW	Φ35*17	24	4450	60	185	50
3518ZWW	Φ35*18	12	10000	500	830	11.3
3825ZWW	Φ38*25	14.8	10400	560	700	13.5
3828ZWW	Φ38*28	24	29000	700	1200	7.8
4316ZWW	Φ43*16	12	4350	180	360	26
4321ZWW	Φ43*21	24	6700	200	280	34
4326ZWW	Φ43*26	24	6100	300	260	37
4834ZWW	Φ48*34	22.2	10400	1300	470	20
6133ZWW	Φ61*33	22.2	6400	930	290	33
8724ZWW	Φ87*24	36	3600	200	100	95
