Good Sale Stainless Steel CE Certificated CT C Series Hot Air Circulating Drying Oven for Dragon Fruit
- Category: >>>
- Supplier: Liaoyang Wintech Industrial Co. Ltd.
Share on (1600751304136):
Product Overview
Description
Product Overview

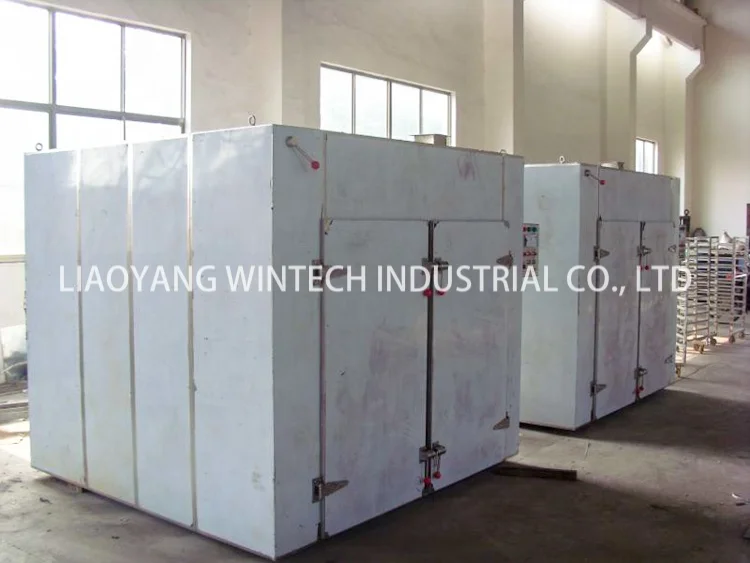

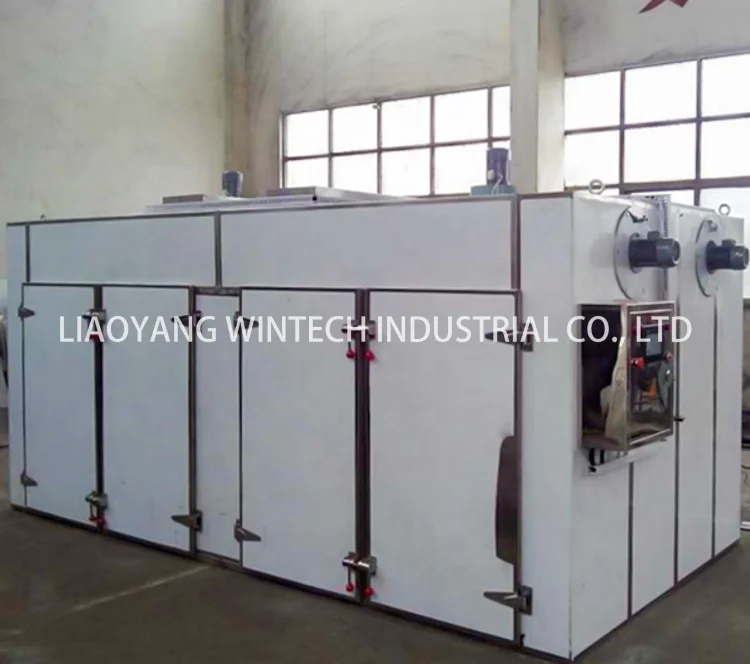

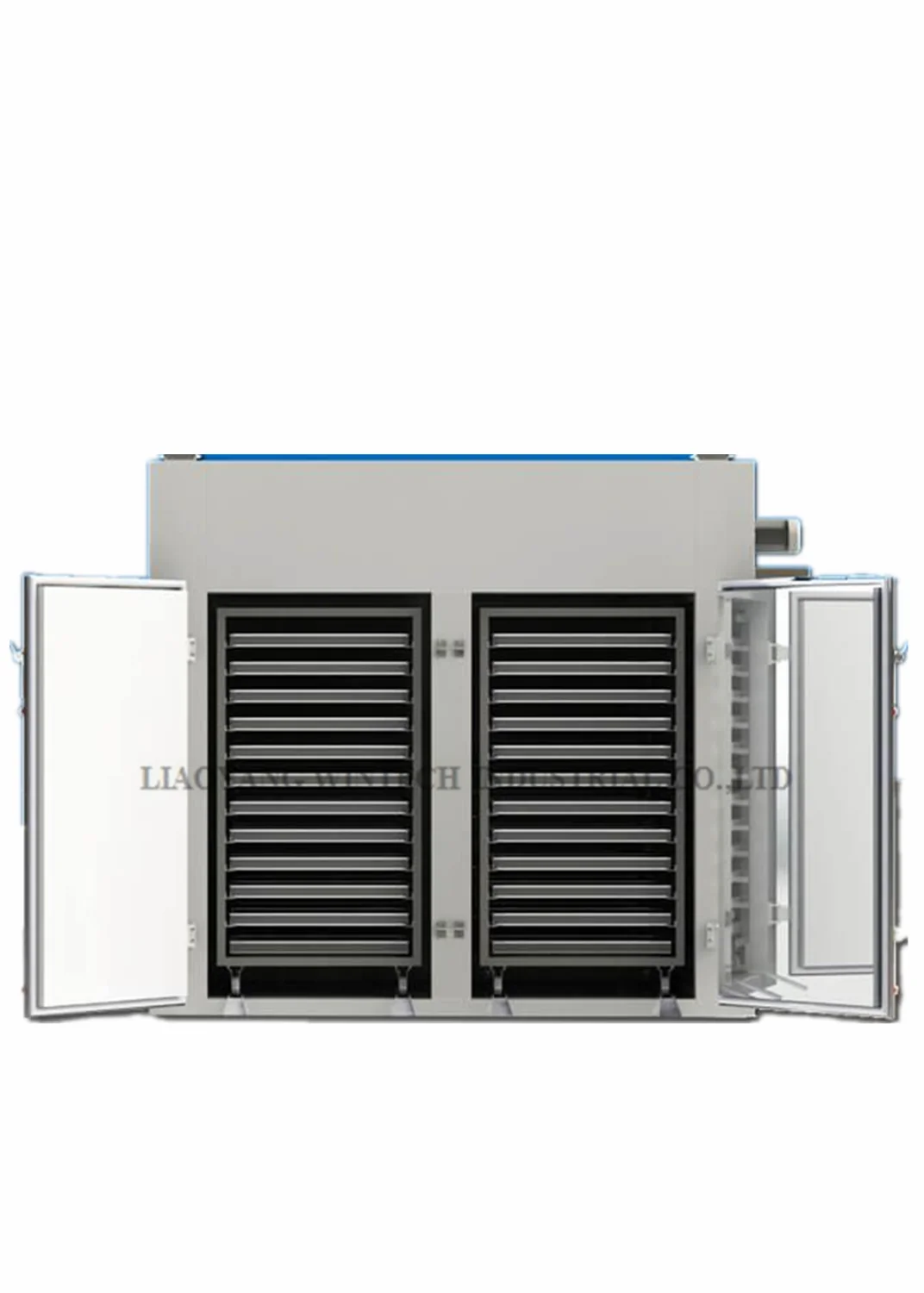

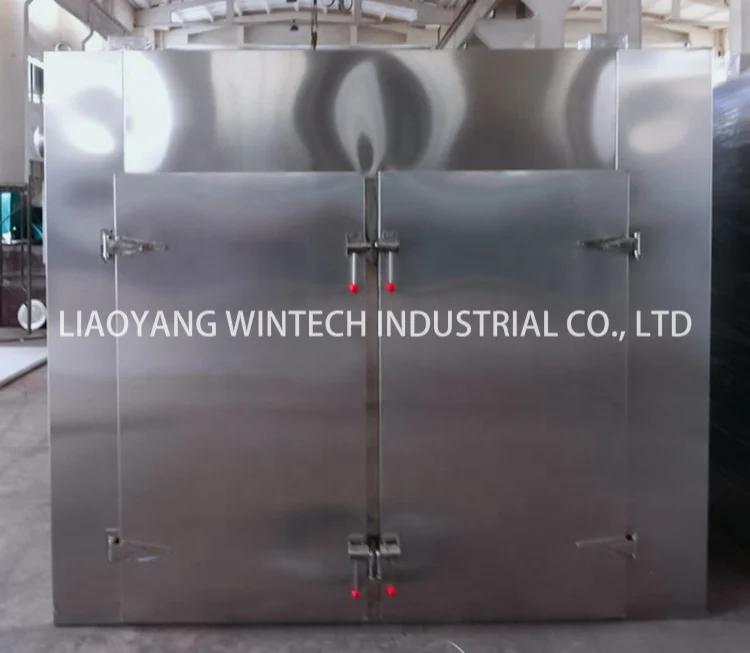

Good Sale Stainless Steel CE Certificated CT-C Series Hot Air Circulating Drying Oven for Dragon Fruit
CT-C series hot air circulation oven is equipped with low noise and high temperature resistant axial flow fan and automatic temperature control system. The whole circulation system is completely closed, which makes the thermal efficiency of the oven increase from 3-7% in the traditional drying room to 35-45% at present, and the maximum thermal efficiency can reach 50%.
The successful design of CT-C type hot air circulation oven makes the hot air circulation oven in our country reach the advanced level at home and abroad, saves a lot of energy for our country and improves the economic benefits of the enterprise.FEATURES AT A GLANCE
ECONOMIC
COMPACT DIMENSIONS
EASY OPERATION
SAFETY STRUCTURE
SIMPLE CONTROL
EASY MAINTENANCE
VERSATILITY
SHAPED TRAY AND TROLLEY
VARIOUS MODELS
One-step molding pressed tray
One-step molding punched tray
Manual double cross mesh tray
1.Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2.Drying temperature: steam heating 50-130 ℃ , Max.140 ℃ .
3.Electricity and far infrared:50-300 ℃ .Automatic control system and computer control system on request.
4.Commonly used steam pressure 0.2-0.8 Mpa(2-8 bar).
5.For CT-C-I, electric heated, rated power consumption:15 Kw, real consumption : 5-8 Kw.
6.The special requirements should be indicated at the time of order.
7.Please consult as for any special requirements.
8.For operation temperature of over 140 ℃ or less than 60 ℃ , please indicate when order.
9.The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.

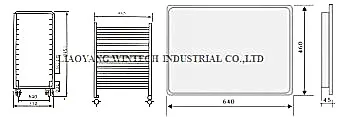

10.Baking plate dimensions:460*640*45 mm.

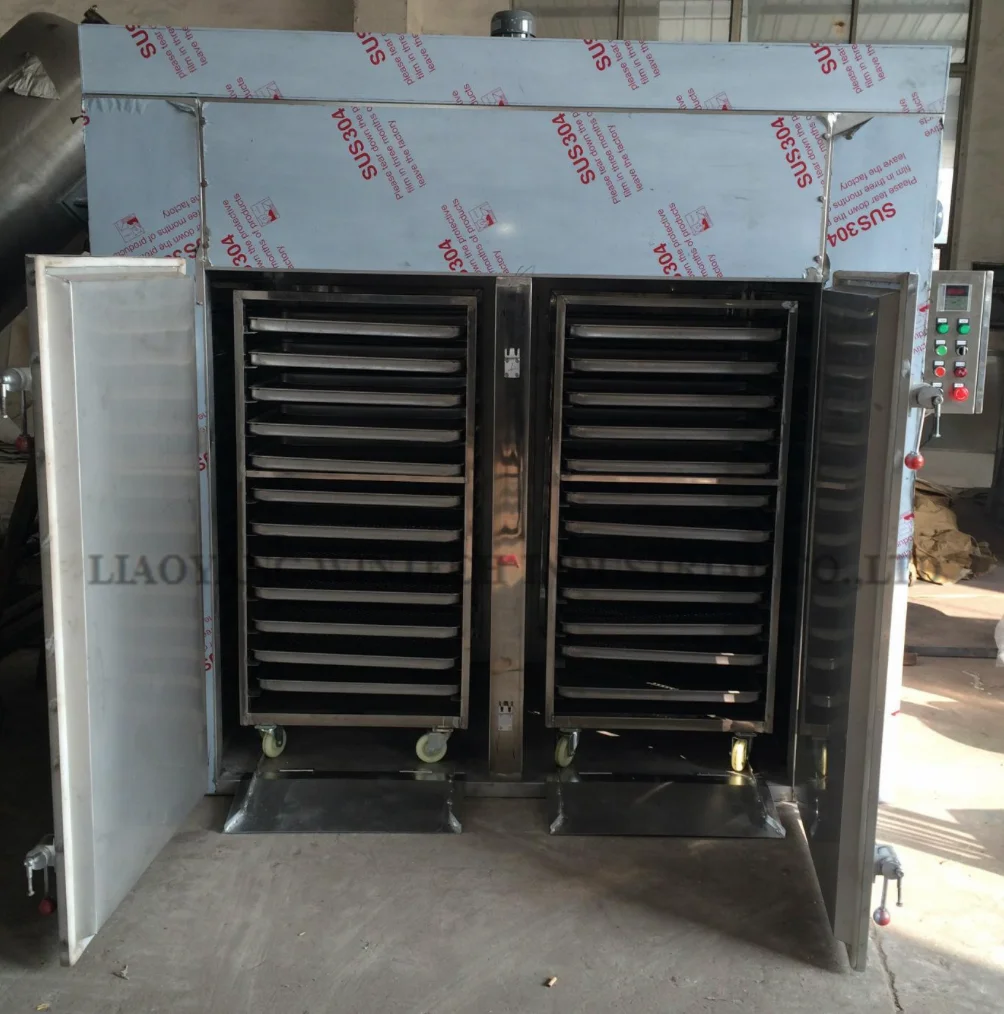

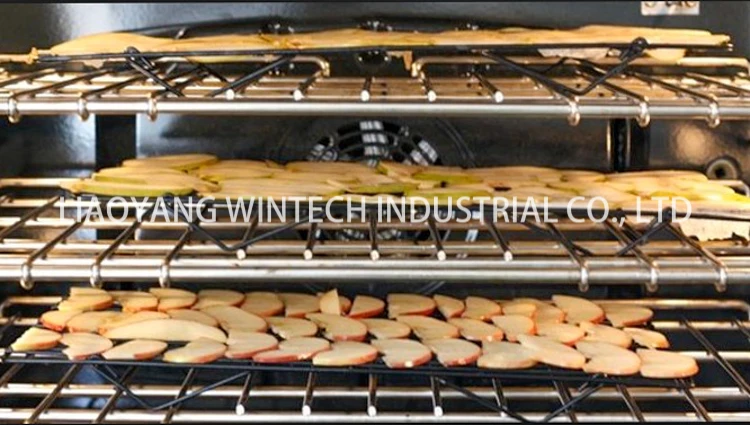

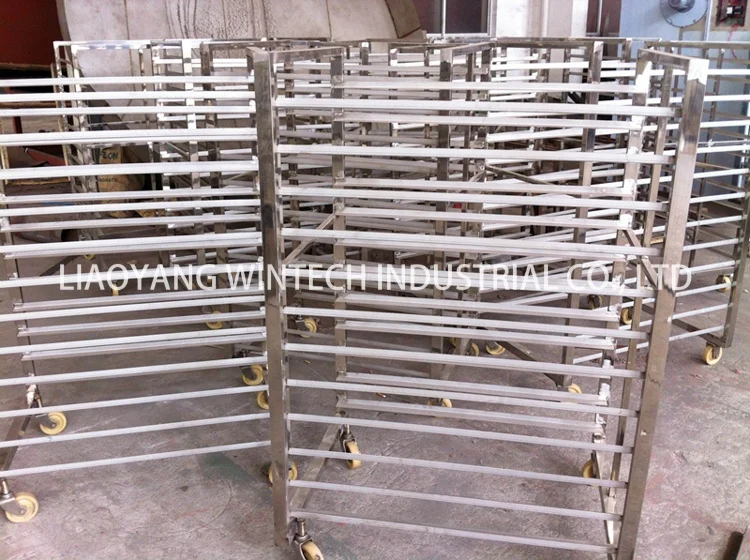

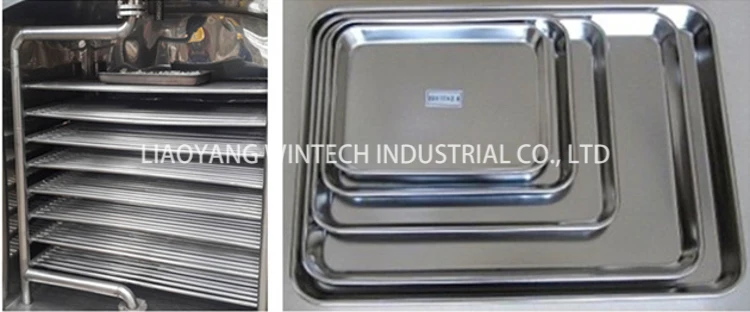

Shaped baking cart Shaped trays
Stainless steel / A3 Steel Stainless steel / Rustproof aluminum alloy
Working Principle
Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and it is a common drying equipment.

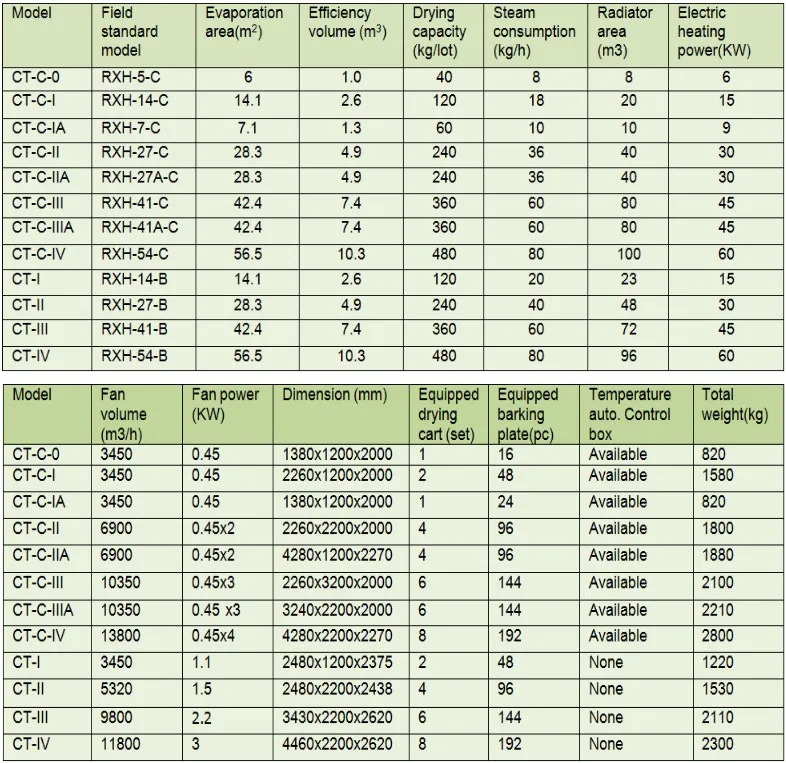

Product Parameters

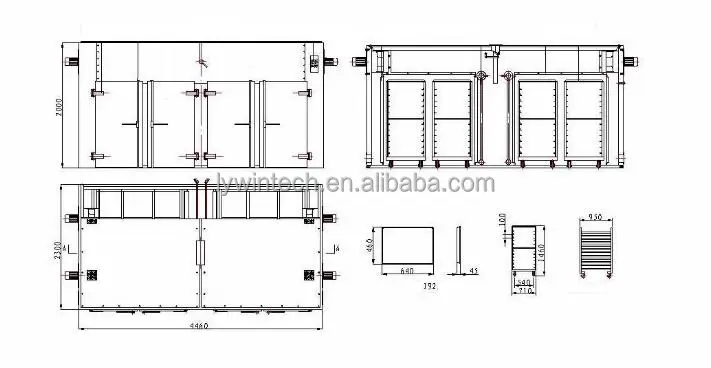

Below is the technical parameter of the oven, if you need, we can also help to select the model for you! |
Application Field
CT-C series hot air circulation oven is suitable for heating, curing, drying and dehydration of materials and products in chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. Such as powder, granules,packaging bottles, pigment dyes, dehydrated vegetables, dried fruits, sausage, plastic resin, electrical components, baking paint and so on.

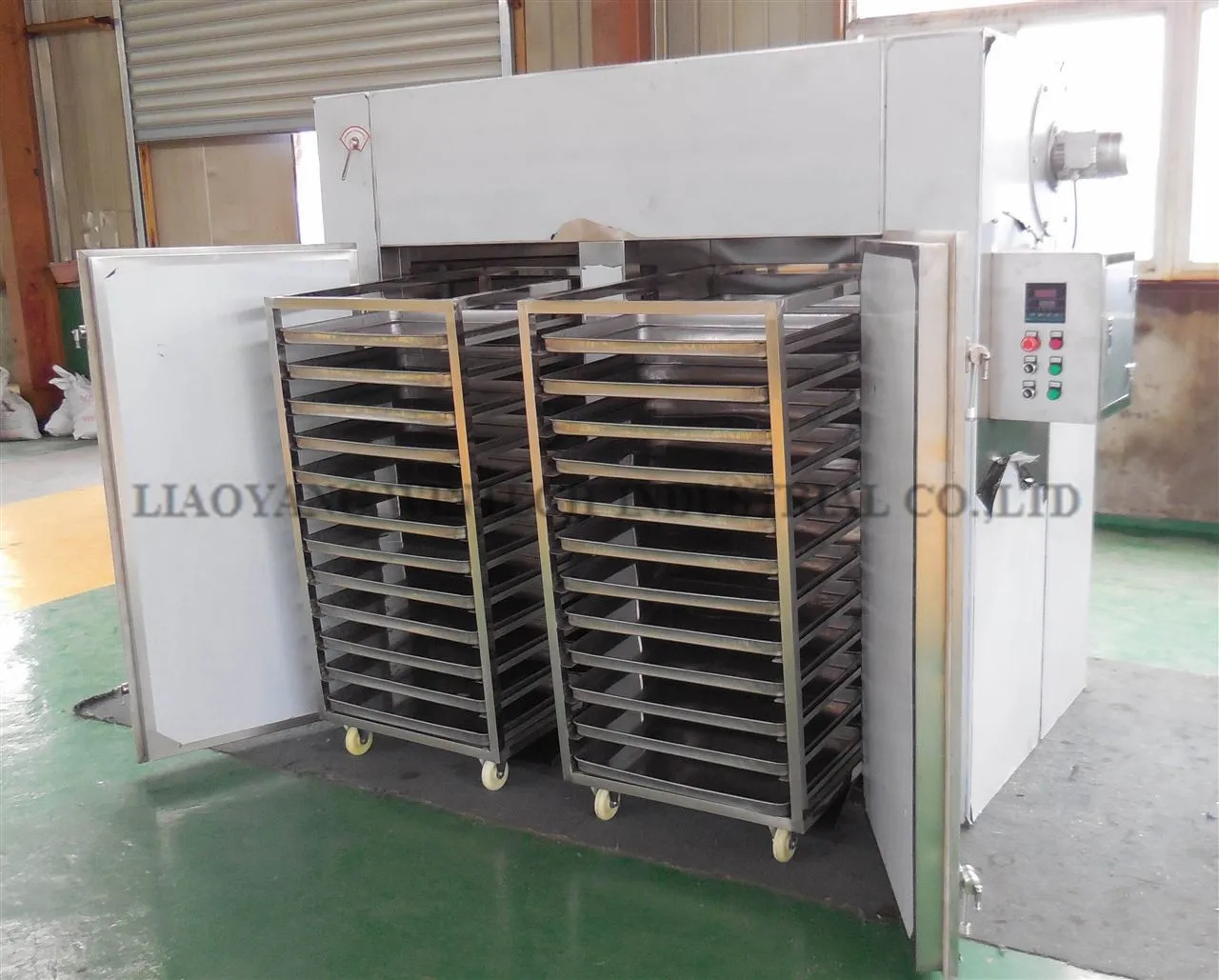

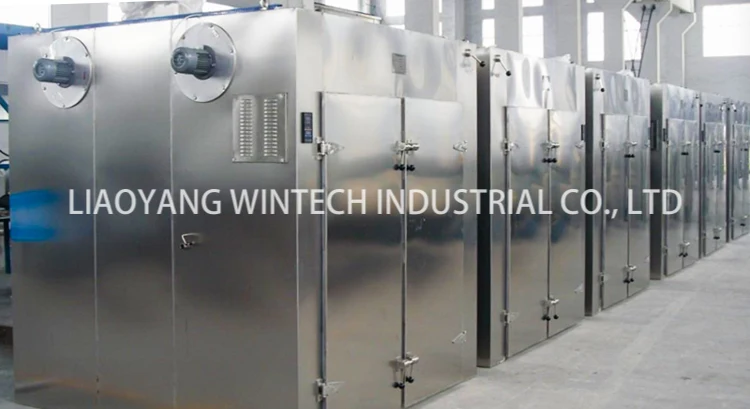

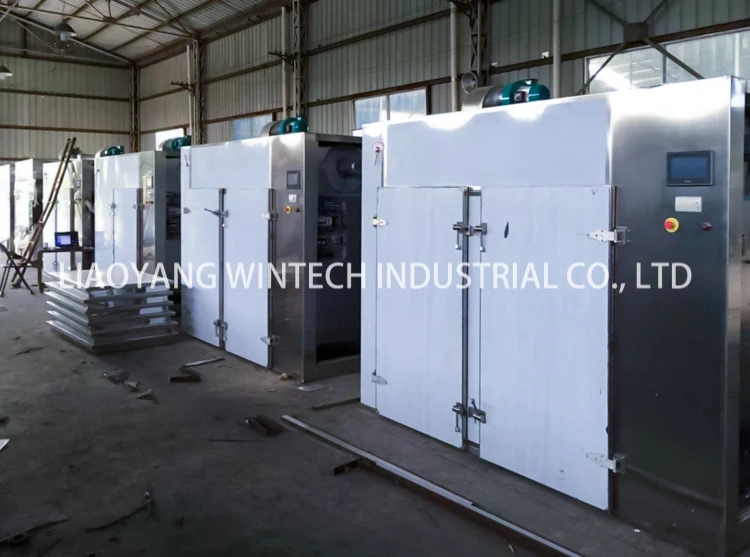

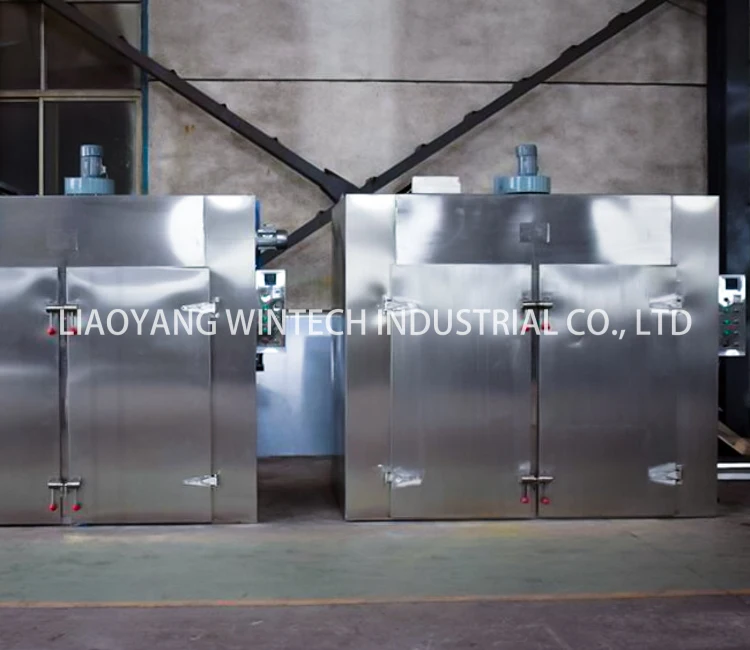

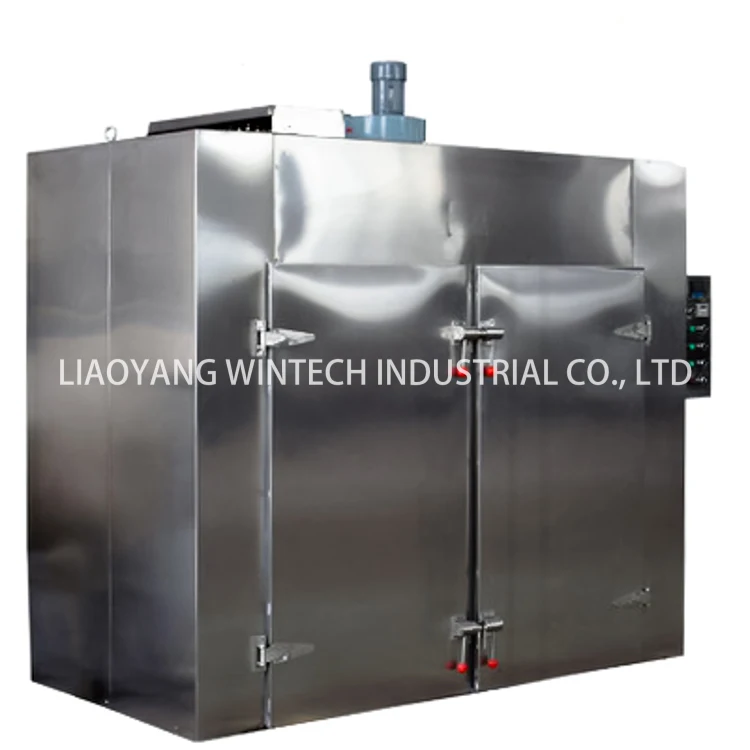

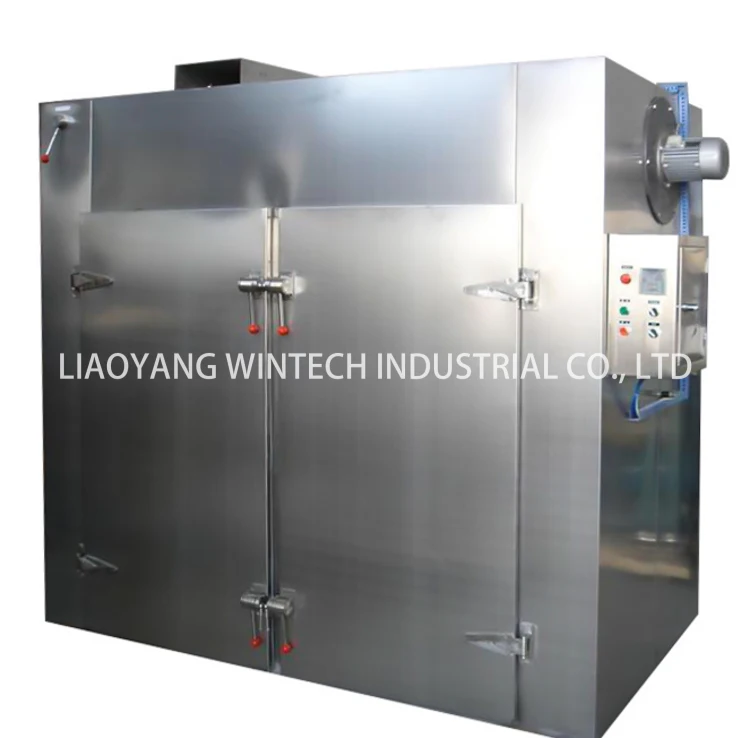

Product More Pictures
Packing and Shipping

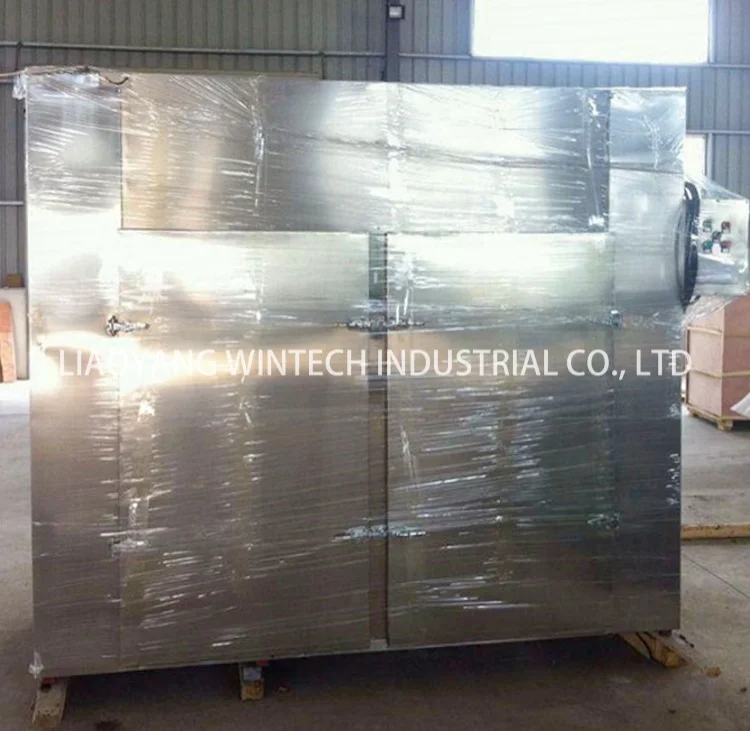

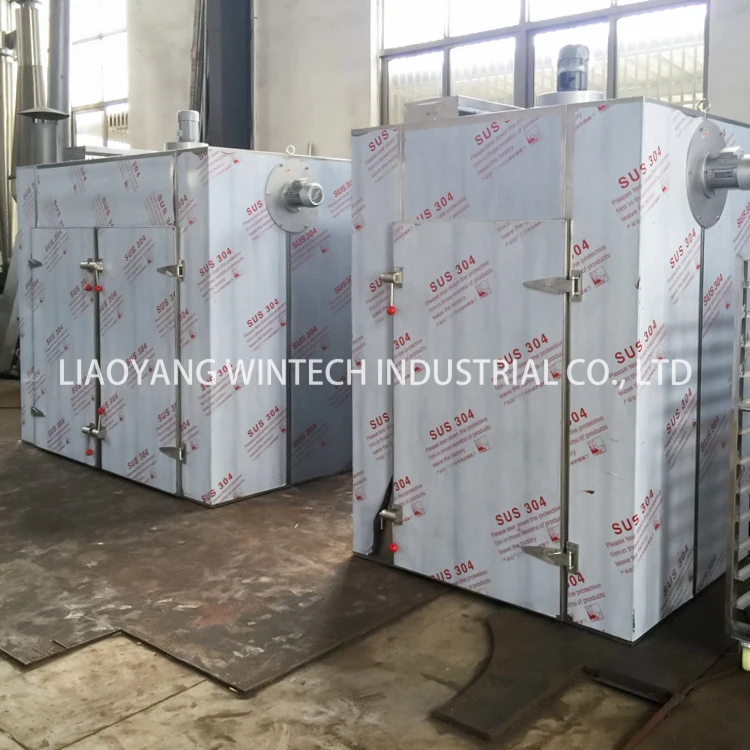

The machine is wrapped with protective film
Safety delivery

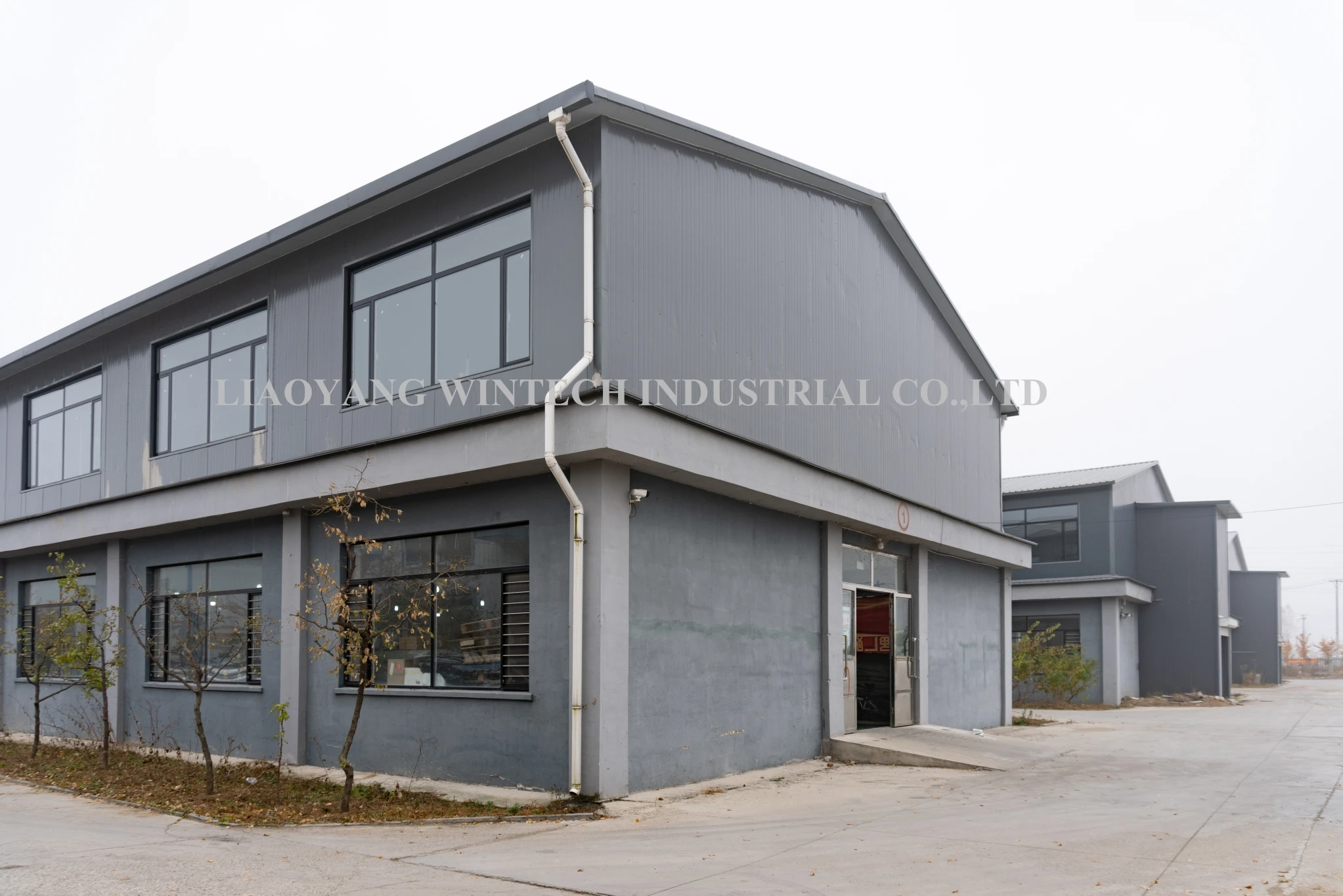

Company Profile
LIAOYANG WINTECH INDUSTRIAL CO.,LTD, takes Centrifuge Equipment and Drying Equipment processing and manufacturing as the main industry, main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, Spray Dryer, Fluid Bed Dryer, Drying Oven, Drum Dryer and corresponding supporting equipment. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.
Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our machinery.
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
SIMILAR PRODUCTS
FAQ
1. What data is required to confirm the model?
(1) Materials to be dried (2) Treatment capacity per hour (3) Moisture requirements before and after drying (4）Heating source（electricity/ gas/ thermal oil, etc)
2. What certificates do you have?
We can provide CE, ISO 9001, etc.
3. What is the warranty period of the equipment?
Normally 1 year warranty.
4. Can we visit your factory?
Sure, we sincerely invite you to visit, if it's not convenient for you, you can visit our factory and solve problems through video conference.
5. Can we bring our own materials to your factory for experiments?
Sure, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
No problem, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
(1) Materials to be dried (2) Treatment capacity per hour (3) Moisture requirements before and after drying (4）Heating source（electricity/ gas/ thermal oil, etc)
2. What certificates do you have?
We can provide CE, ISO 9001, etc.
3. What is the warranty period of the equipment?
Normally 1 year warranty.
4. Can we visit your factory?
Sure, we sincerely invite you to visit, if it's not convenient for you, you can visit our factory and solve problems through video conference.
5. Can we bring our own materials to your factory for experiments?
Sure, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
No problem, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
