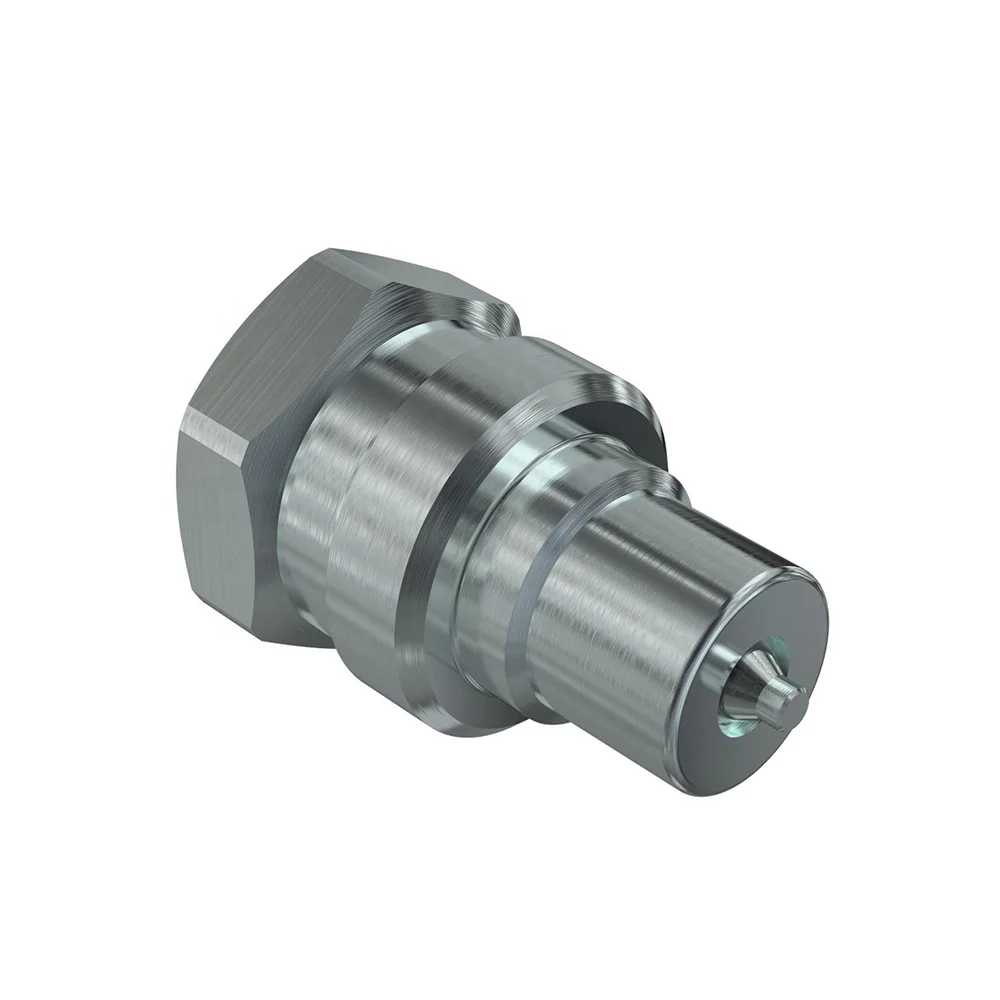

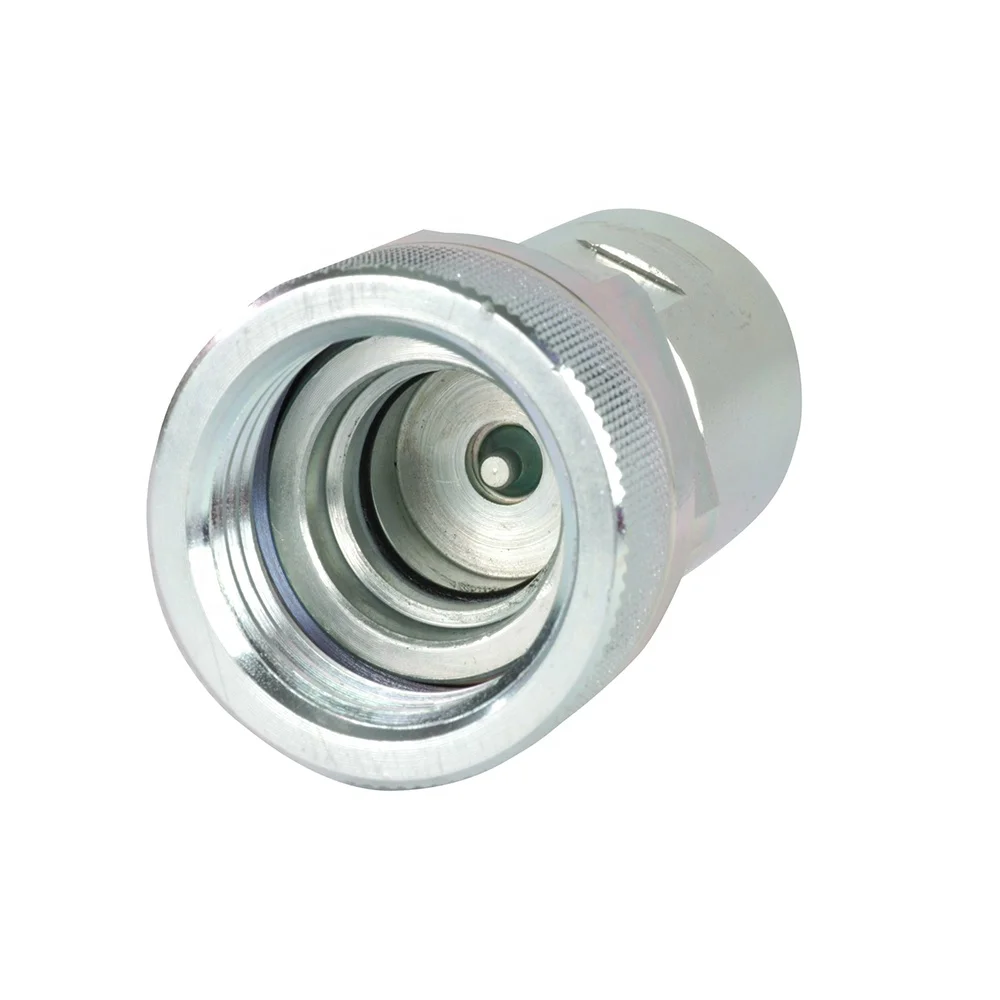

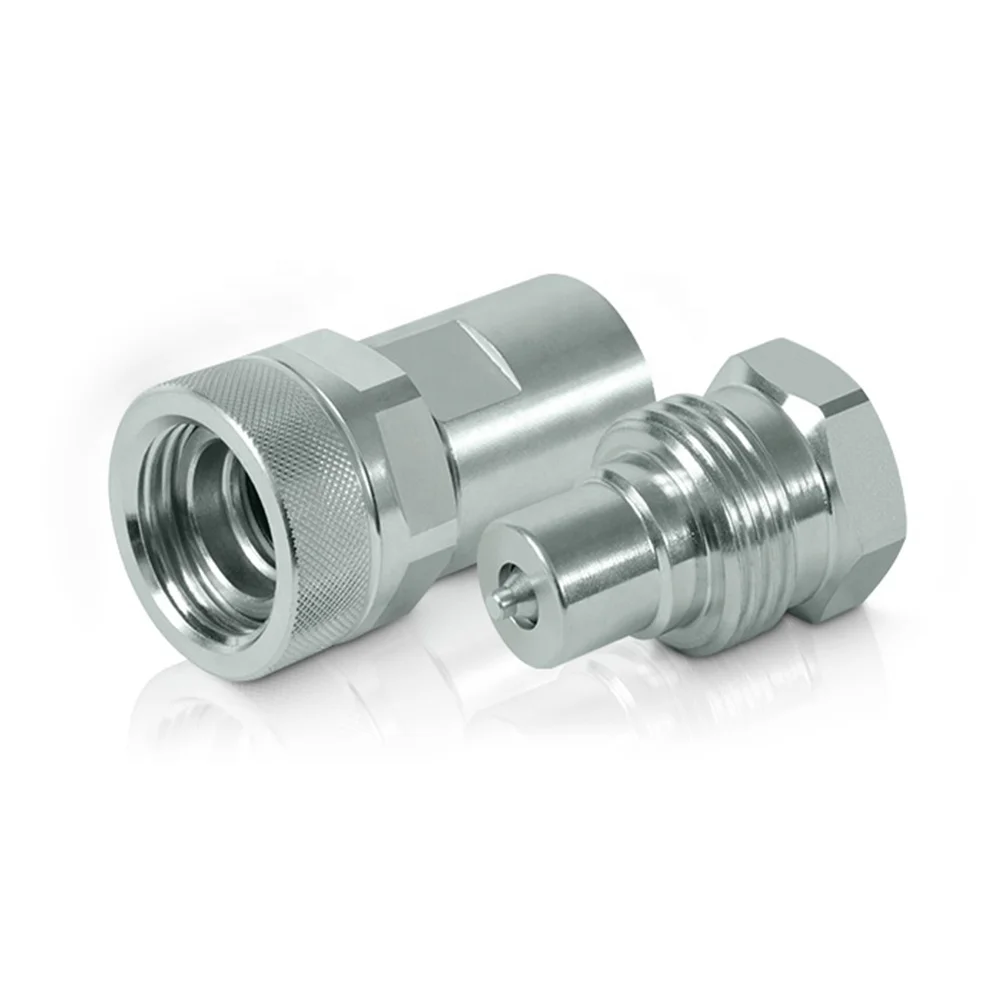

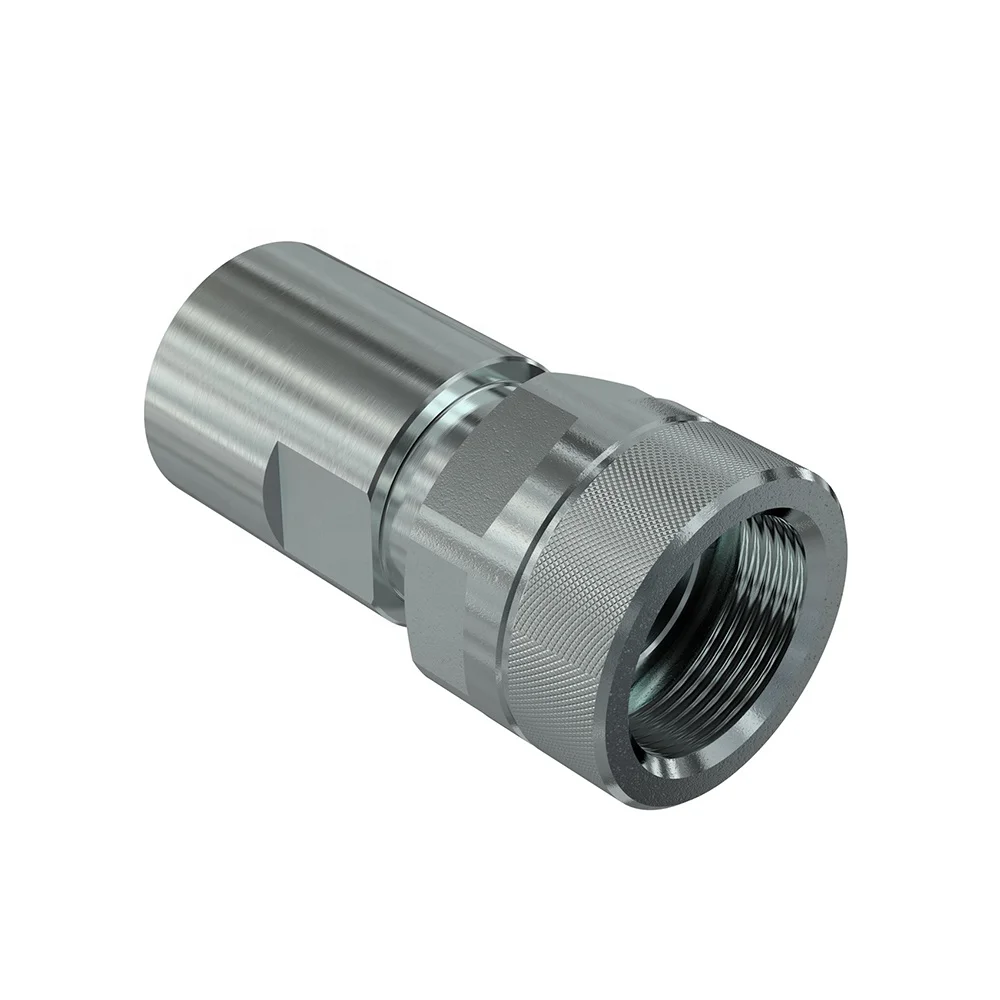

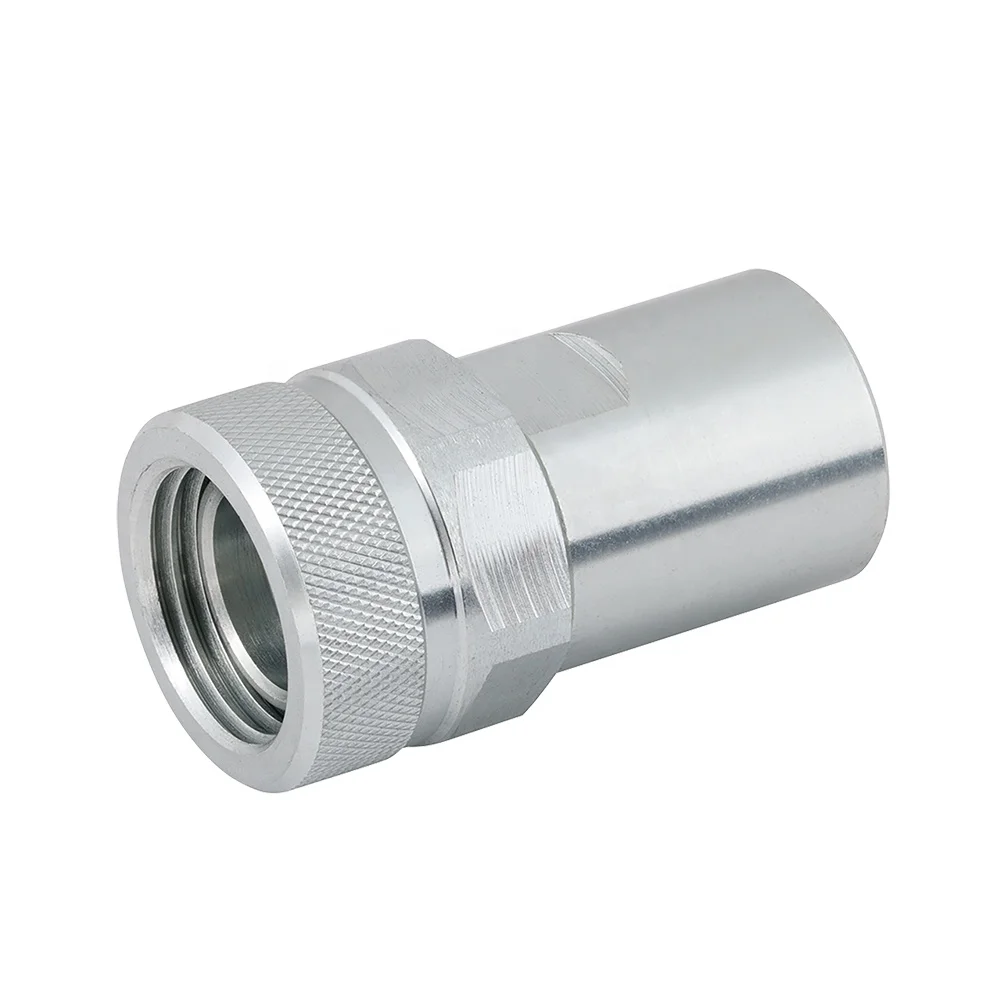

High quality connector hydraulic hose quick coupling High Pressure stainless steel Screw to connect couplings
- Category: >>>
- Supplier: Yancheng Jingdong Hydraulic Machine Co. Ltd.
Share on (1600751368046):
Product Overview
Description
Product Description

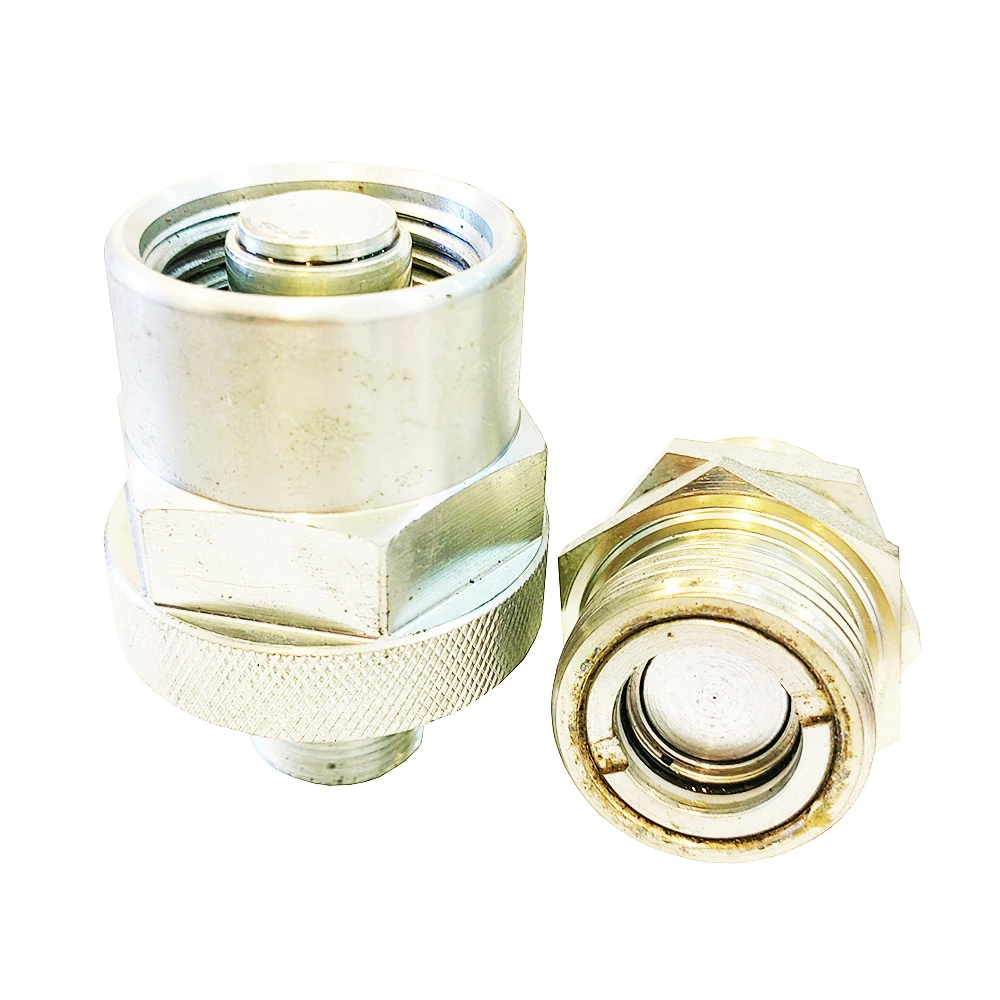

Jindong Free Fit brand VVS series high pressure screw type connect hydraulic quick coupling, Heavy-duty design as standard, O-ring and PTFE back-up ring to weithstand flow surges. Connect with pressure up to 5 Mpa is possible. Can be interchanged with FASTER VVS series.

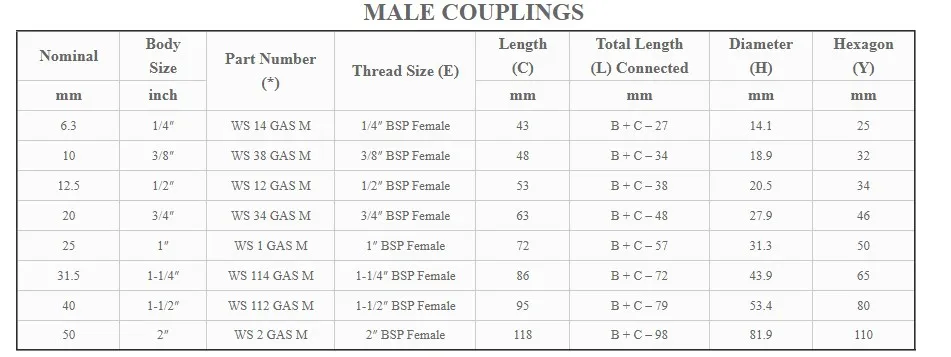

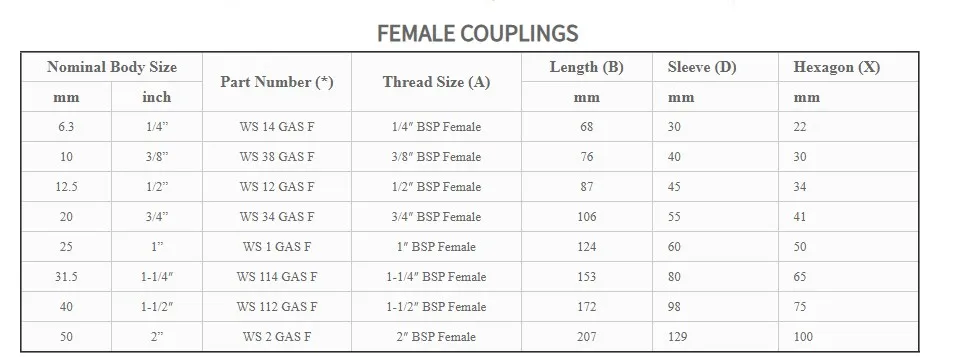

Specifications
VVS Series - ISO 7241-2 standards BSPP NPTF Faster Hydraulic Quick Couplings

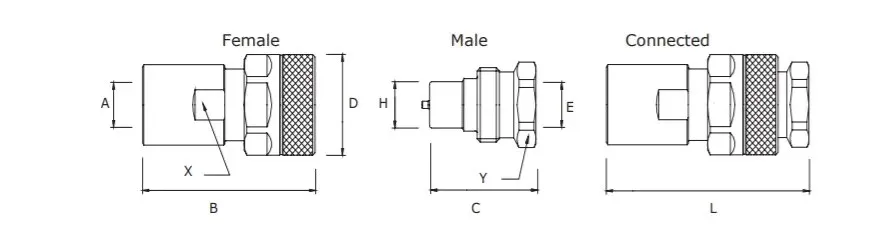

Nipple/Plug/Connector:
Test Specifications:
According to ISO 7241-2 standards
Materials:
High grade carbon steel
Hardening treatment for specific stressed area
Standard seals in Nitrile Rubber (NBR)
Back-up ring in PTFE
Zinc plating and CrIII passivation
Temperature Range:
From -25°C to +125°C (with standard seals)

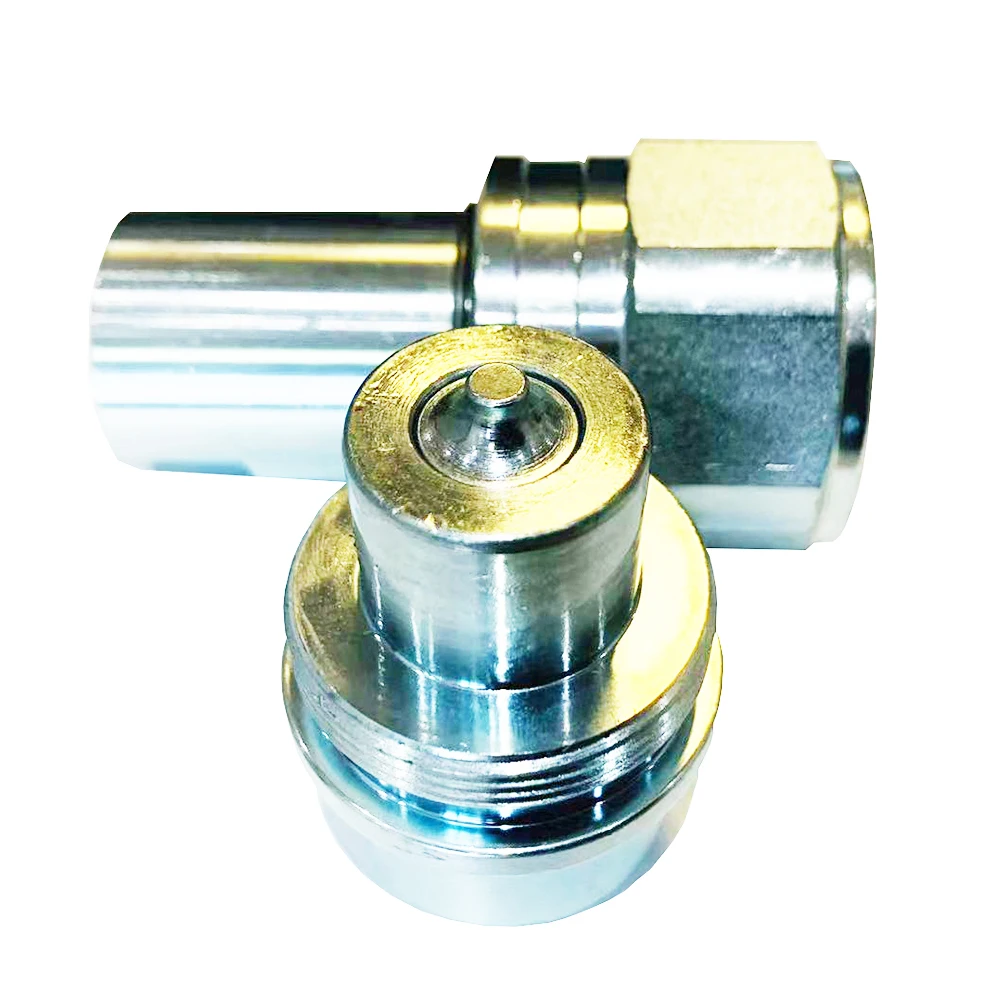

The Tru-Flate Design Plug is recognized by the extremely
Short pilot; however, it has the widest metal section between the groove and the pilot.
The sealing surface on the end of the plug is wider than other interchanges, resulting in better sealing and longer seal life. The Tru-Flate Design Coupler utilizes the tubular valve which supports the seal and allows more air flow at lower pressure drops than most competitive couplers. The protective collar guards against accidental disconnect.
Connection Style: Male Pipe, Female Pipe, Hose Barb, other styles & sizes available on your request
Thread Type & Sizes: G(BSPP), N(NPT)
Material: High Resistant Steel, 316 Stainless Steel
Body Size: 1/4” 3/8” 1/2” 3/4” 1” 1-1/4″ 1-1/2″ 2”

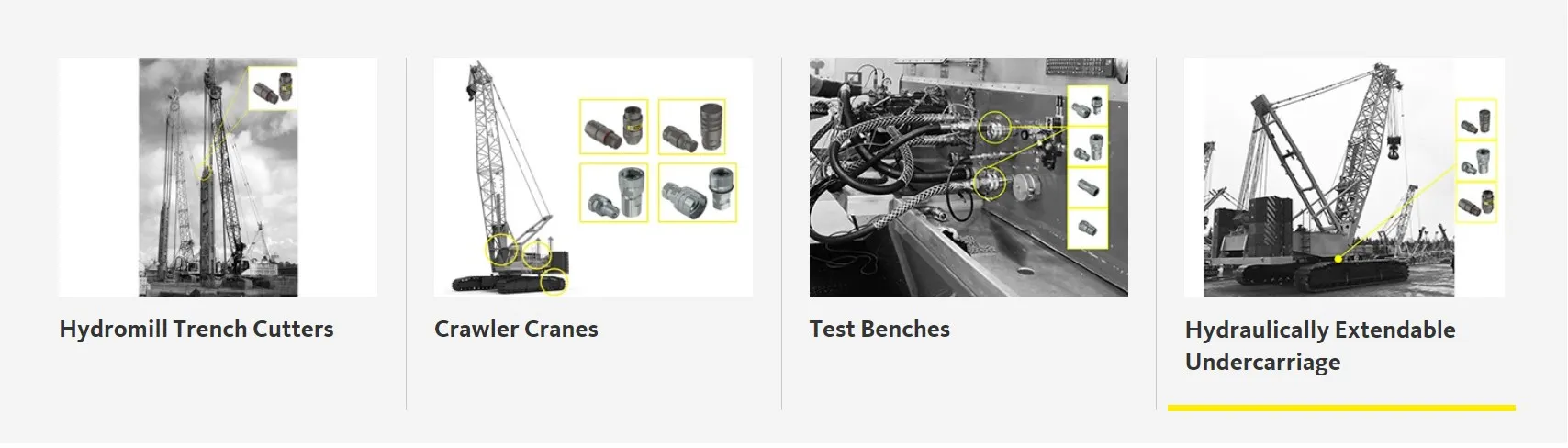

Application
Related Products
Why Choose Us
Company Profile
Factory

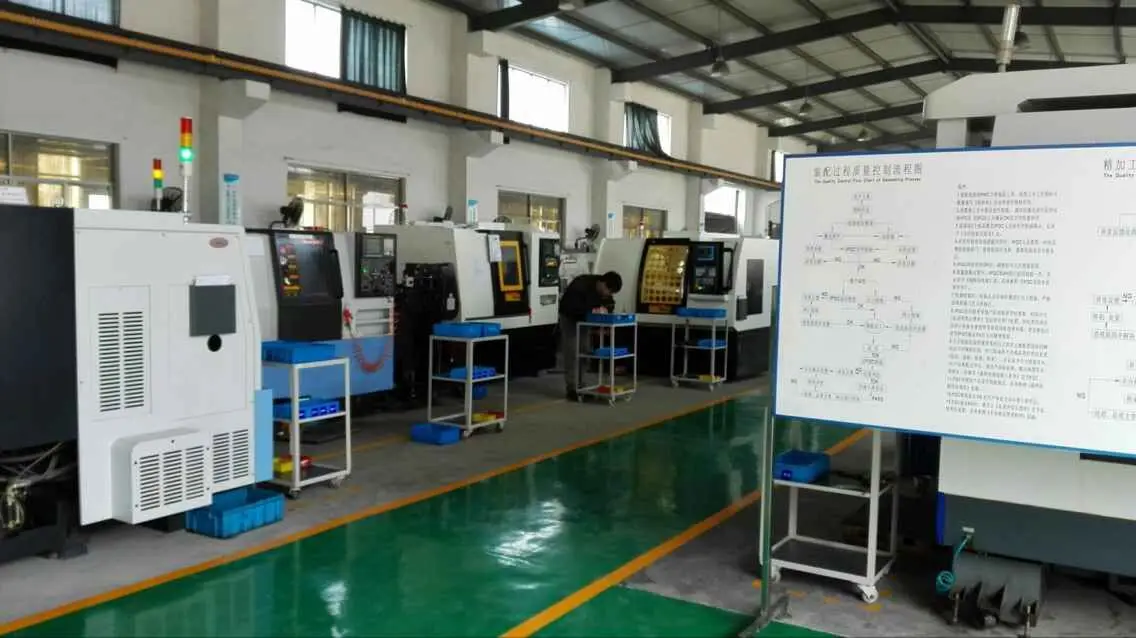

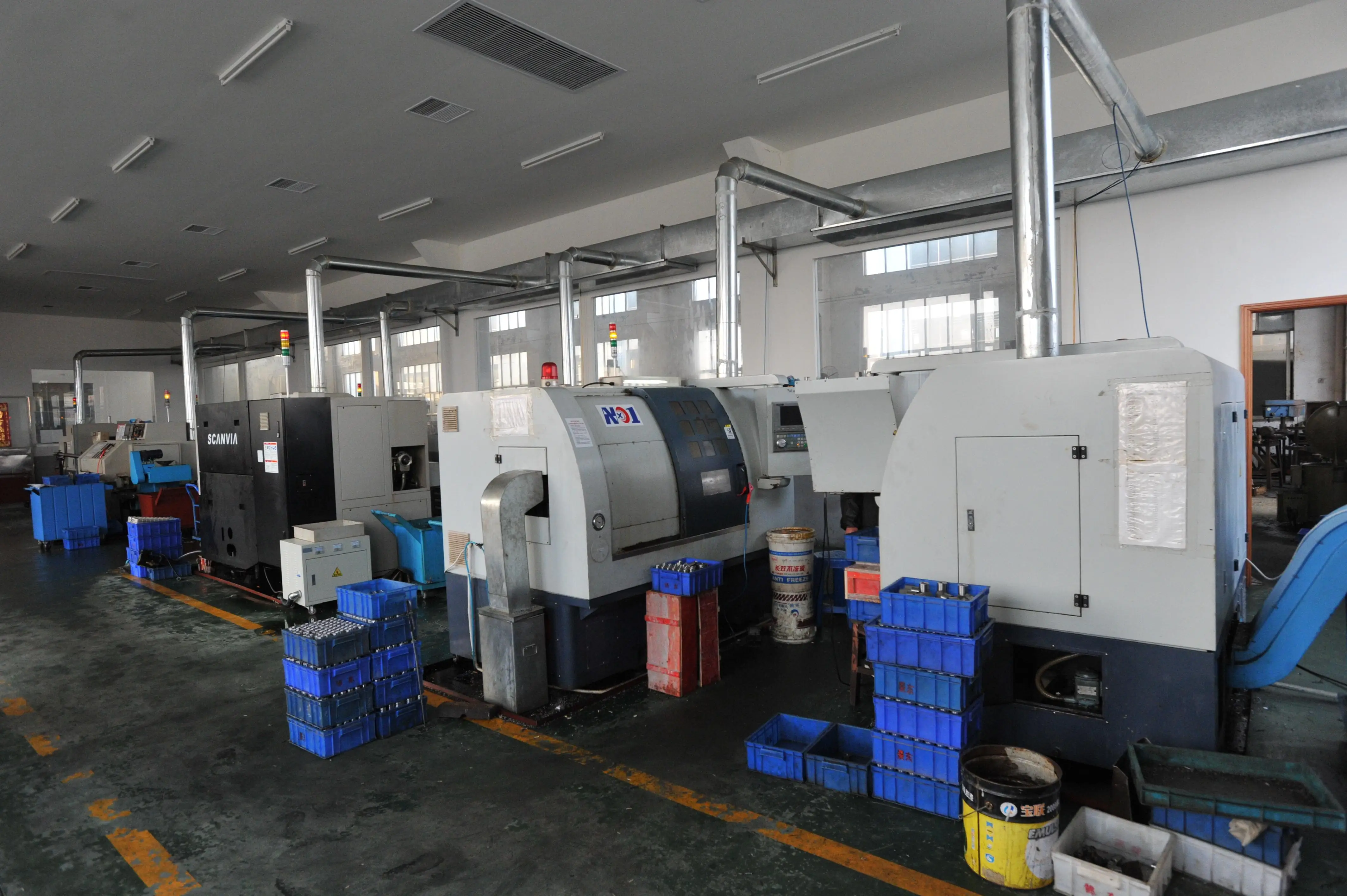

Workshop
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
