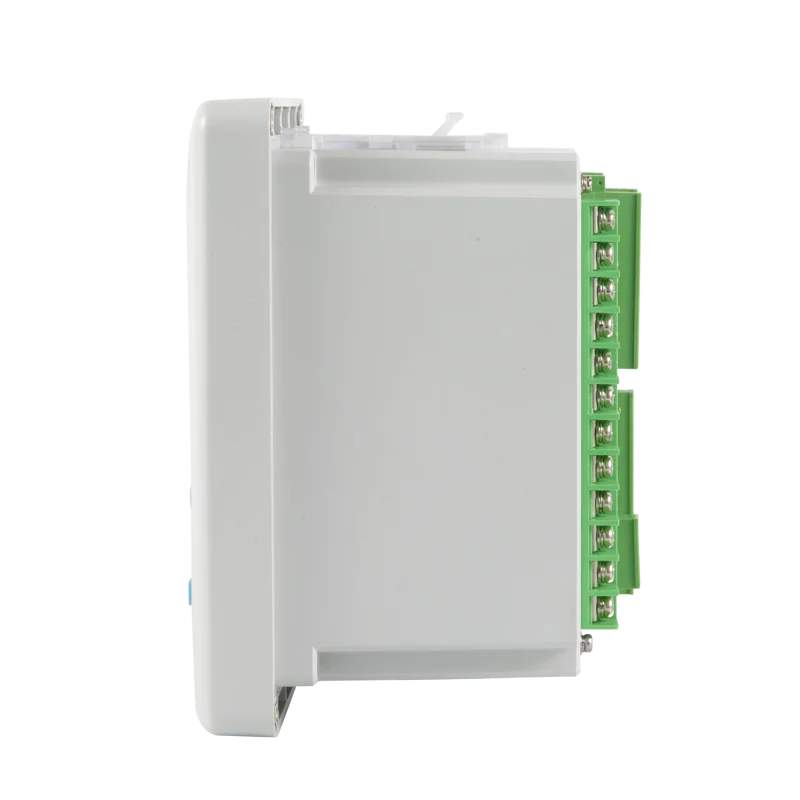

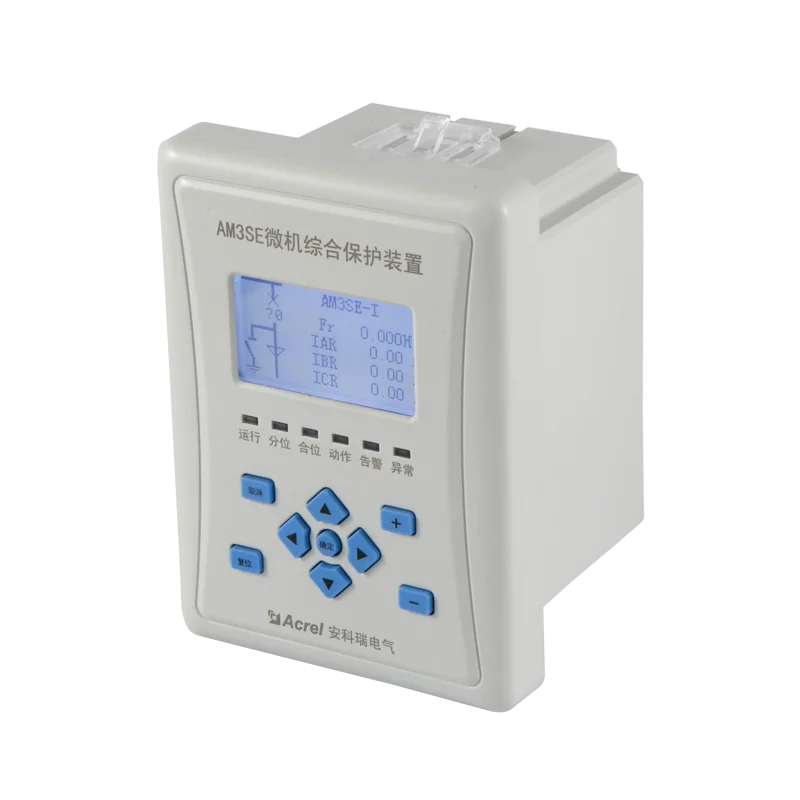

Acrel AM3SE Medium Voltage Transformer or Line Protection Relay with Undervoltage Overvoltage Alarm
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1600751398693):
Product Overview
Description

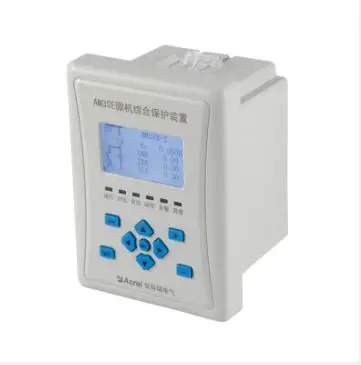

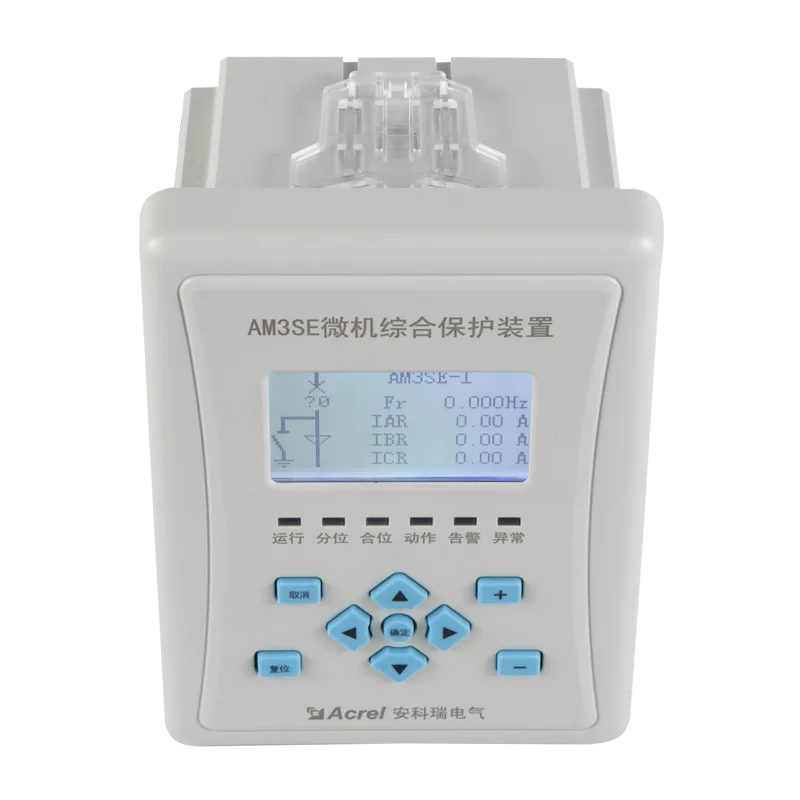

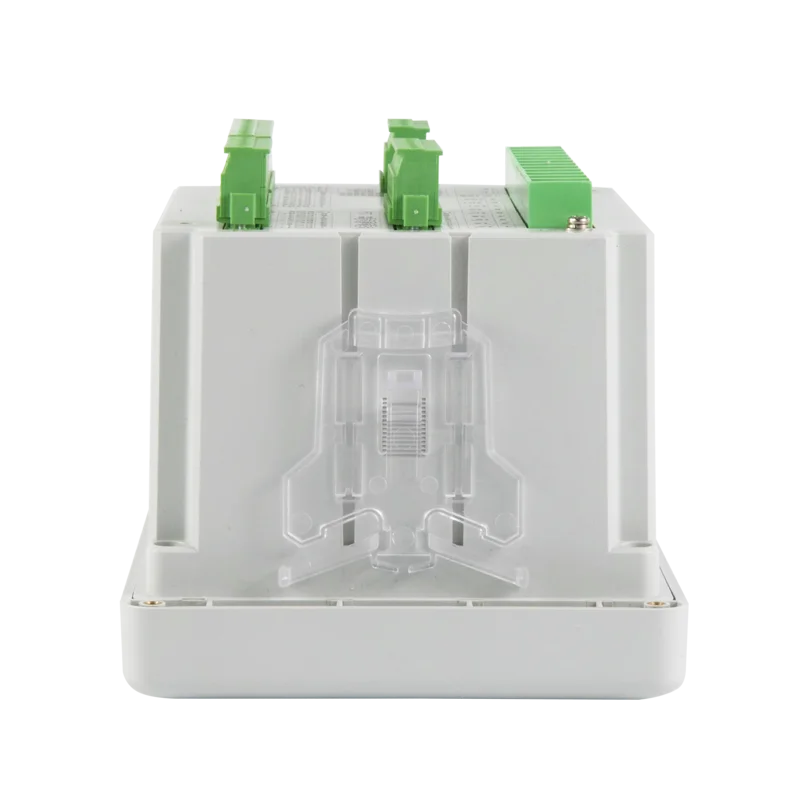

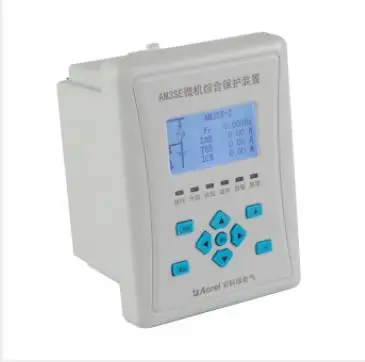

AM3SE Protection Relay
AM3SE series microcomputer protection device are applicable to the user substation which the input voltage is 35kv or below. AM3SE can be used to protect and control the user substation, and is be widely used to Power Industry, Water conservancy industry, Traffic Industry, Oil industry, Chemical industry,Coal Industry, Metallurgical Industry and so on.
Product Description
● 4 current input, 4 voltage input, 12 DI, 5 DO;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 1 RS485 serial communication, IEC 60870-5-103、 Modbus-RTU;
● 1 RS232 for user update;
● 1 GPS for GPS timing;
● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;
● Powerful graphic programmable Logic.
Rated Input | Range | Accuracy | Power Consumption |
Power Supply | AC220V/DC220V DC110V,DC48V/24V | Rated inputx(1±20） | ------ |
Voltage Input | AC100V/100/0.3V | 1~120V | ±0.5% |
Frequency | 50Hz | 45-55Hz | ±0.1Hz |
DI | AC220V/DC220V DC110V,DC48V | Rated inputx(1±20） | ------- |

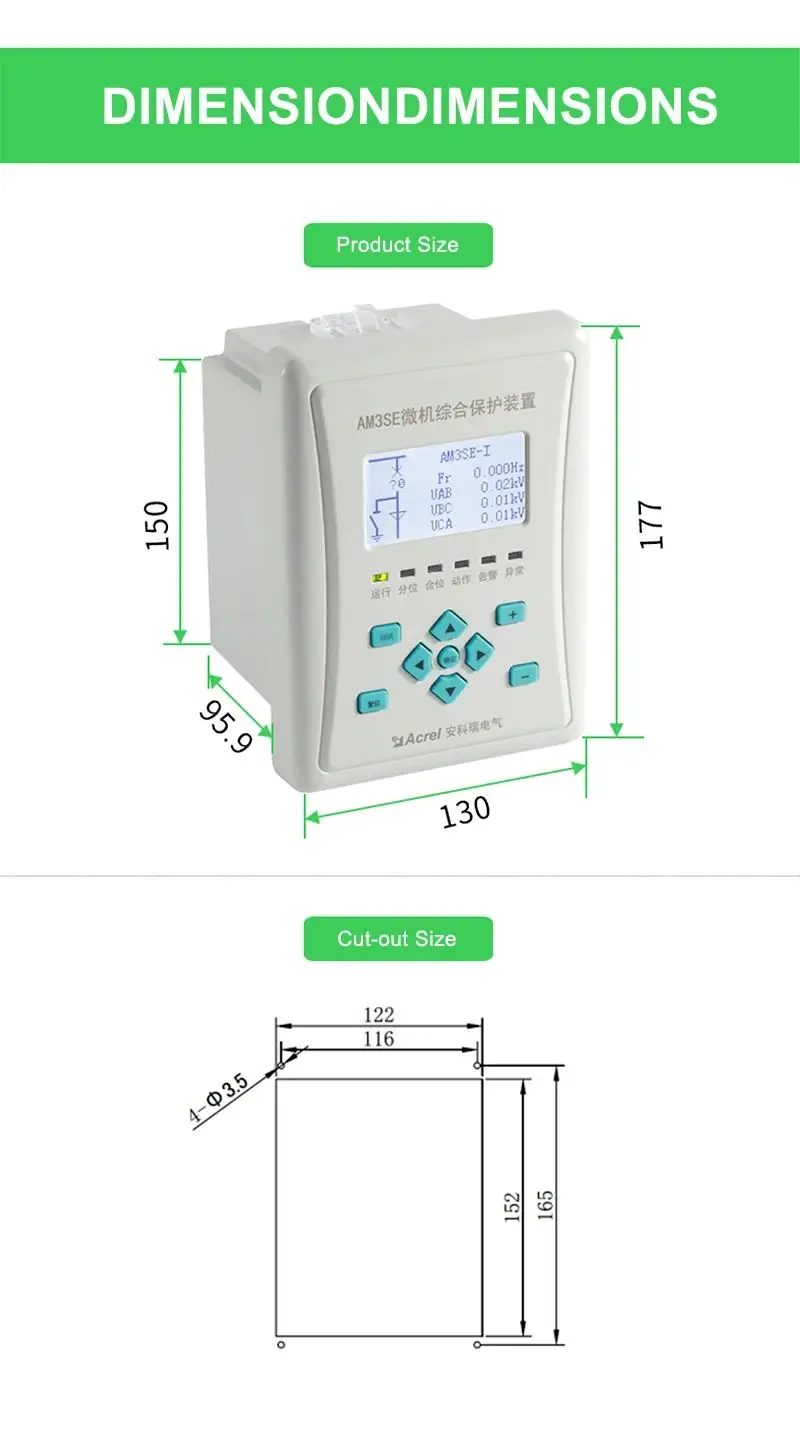

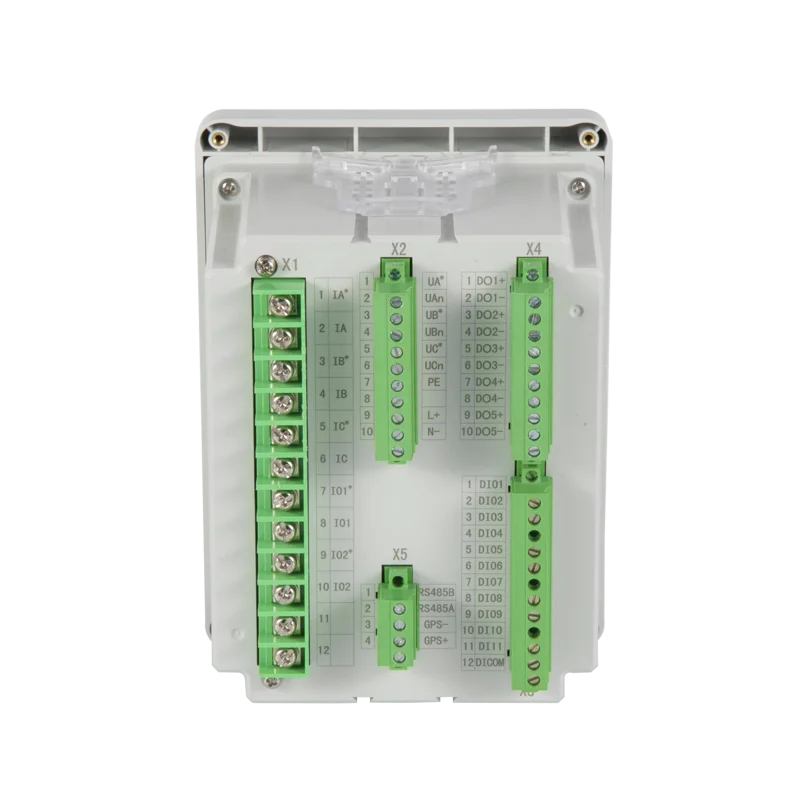

Dimensions and wirings
Company Profile
Acrel Energy Efficiency Management System includes various cloud platforms such as substation operation and maintenance, safety power management, environmental protection power supervision and prepaid management, and many kinds of monitoring and management systems such as intelligent transformer and distribution, power quality, building energy consumption, industrial energy, leakage fire alarm, fire power, fire door, emergency lighting and evacuation instructions, charging pile charge, data center power unit and environment variables, intelligent lighting and IT distribution insulation.
Acrel has set up branches and offices in major cities in China. Local sales and technical support teams are deployed to quickly respond to customers’ and provide users with high-quality product experience.By the end of 2018, Acrel have had 5 trademarks, 18 invention patents, 70 utility model patents, 93 appearance patents and 147 computer software copyrights, and participated in the formulation of national or industrial standards.Acrel has maintained a steady growth since its listing in 2012. With the concept of "innovation, efficiency, unity and integrity", the company will adhere to steady operation and continuous innovation to provide more high-quality solutions, products and services for the end users.
Exhibition
Shanghai Electric Power Exhibition
Indonesia Exhibition
Vietnam Exhibition
Certifications
Packing & Delivery
FAQ
1. Where is your factory located ?
Our production base is located in Jiangyin City, Jiangsu Province, China.
2. How long would your equipment be used?
Generally, more than 10 years.
3. How long could I get my order?
Stock Products: shipping within 5-7 days.
Customized products: usually 10-15 days. It depends on your design and quantity.
4. What certificate do you have?
We have ISO9001, CE, IEC and so on.
5. What's the payment term?
We accept T/T, L/C, PayPal, cash, etc.
6. What's your MOQ?
At least one pcs.
