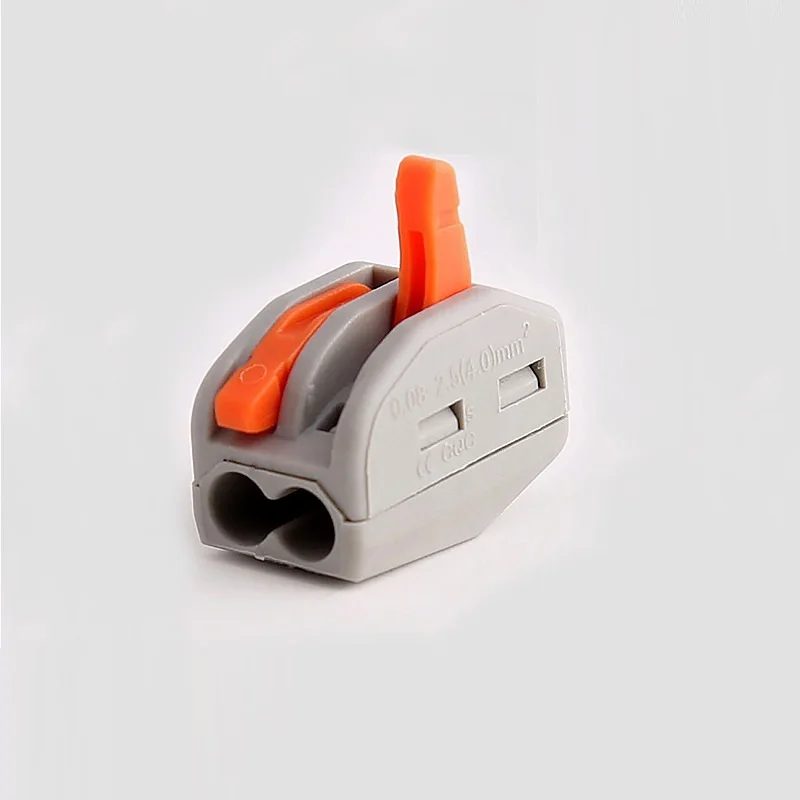

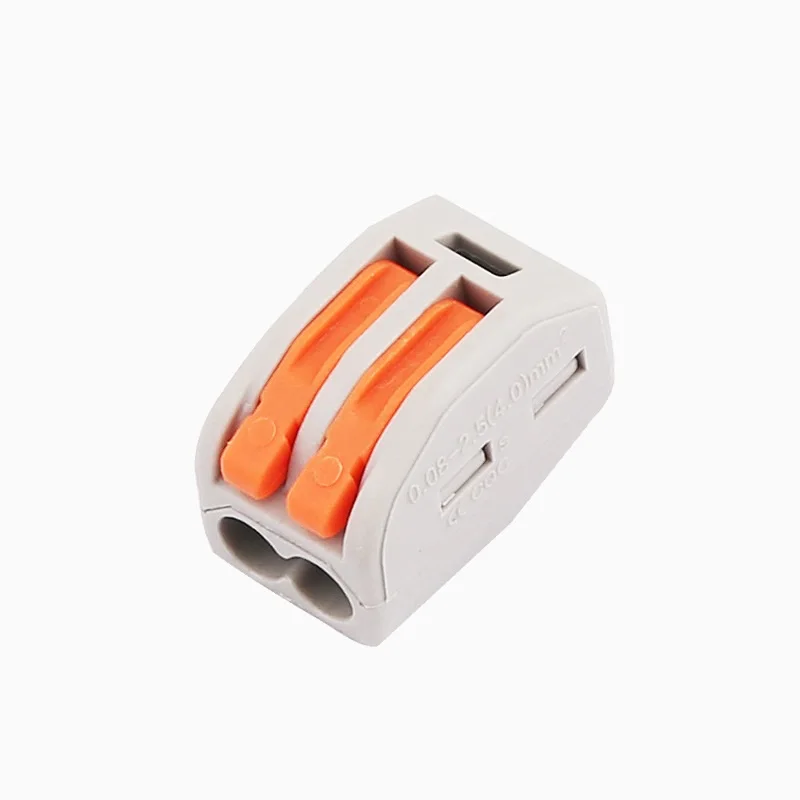

HoneyFly One Way Connector 250V 32A Plug Car PC Electrical Wire Cable Automotive Terminal Binding Post

Product Overview

Description

HoneyFly One Way Connector 250V 32A Plug Car PC Electrical Wire Cable Automotive Terminal Binding Post

* 100% brand new and high quality.
* Farewell to the traditional electrical tape connection, safer, more standardized, more efficient.

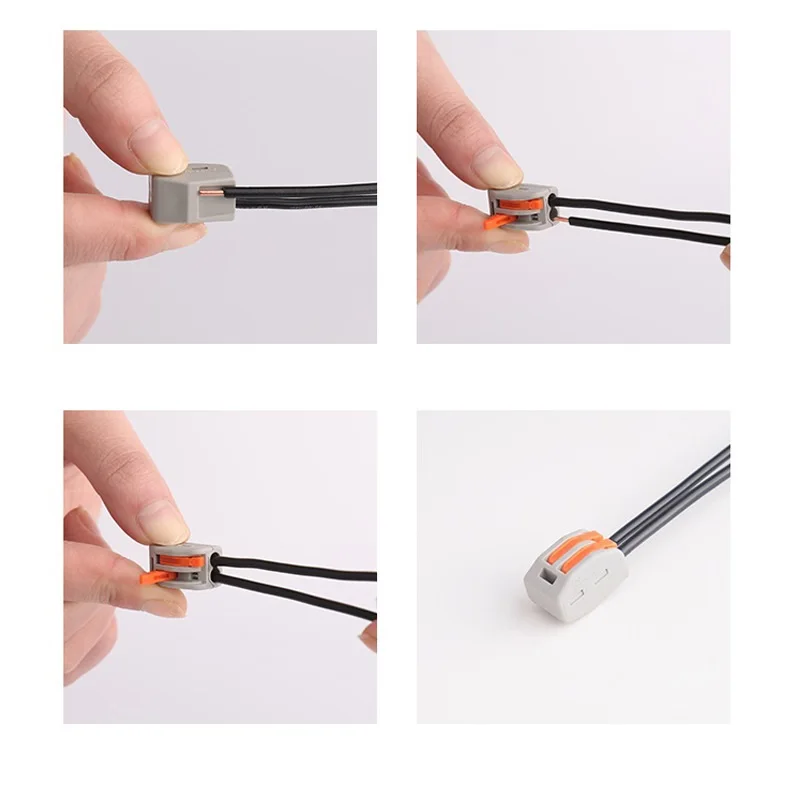

* Fast wiring, save time, effort, easy, fast and reduce costs.
* No peeling, no exposed conductor, excellent ampacity and no hidden dangers.
* Using a breakdown link does not damage the protective layer of the original wire. The cross-sectional area of the wire is larger than its cross-sectional area, which reduces the actual load.
* The structure of multi-pierced wire insulation and clamping pressure is used to ensure the connection does not fall off easily, strengthen the safety guarantee and prevent the occurrence of arcing.



Specification:
* Material: PC/PA
* Color: White
* Nominal voltage: <250V
* Nominal amplifier: <32A
* Minimum cross-sectional area: 0.08-2.5 mm²
* Processable cable type: solid wire / stranded wire 22-18 # AWG
* High precision copper (Cu)
* Normal working TEMP: -20 - + 80 ℃
* Flame retardancy level: UL94v-0

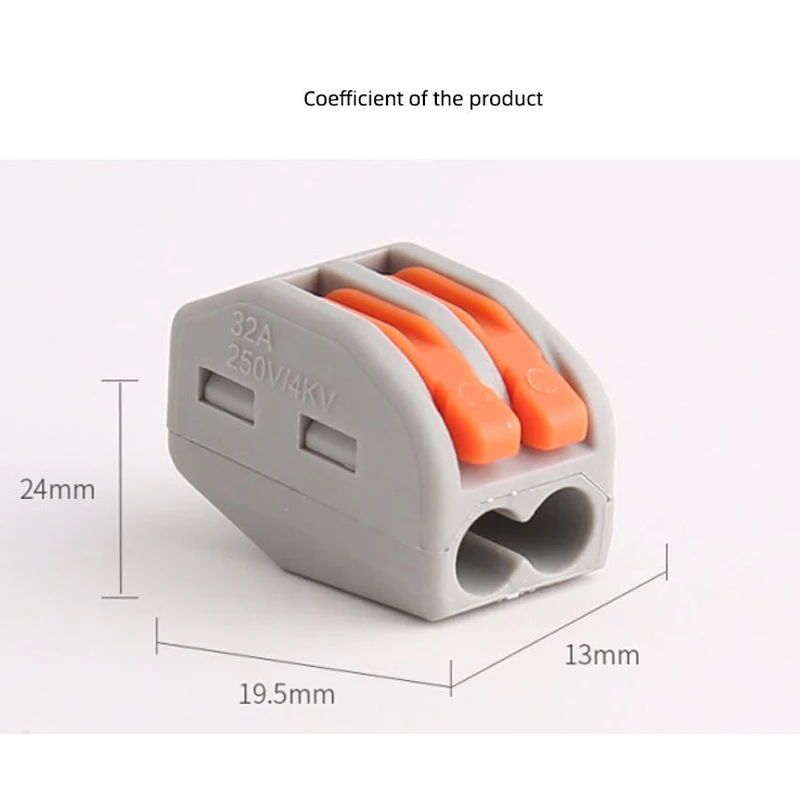

* Size:24.1*19.5*13mm
