Best Quality wind turbine charge controller 24v 48v wind turbine charge controller wind charge controller
- Category: >>>
- Supplier: Guangdong Engineering Plastics Industries (group) Co. Ltd.
Share on (1600751623280):
Product Overview
Description

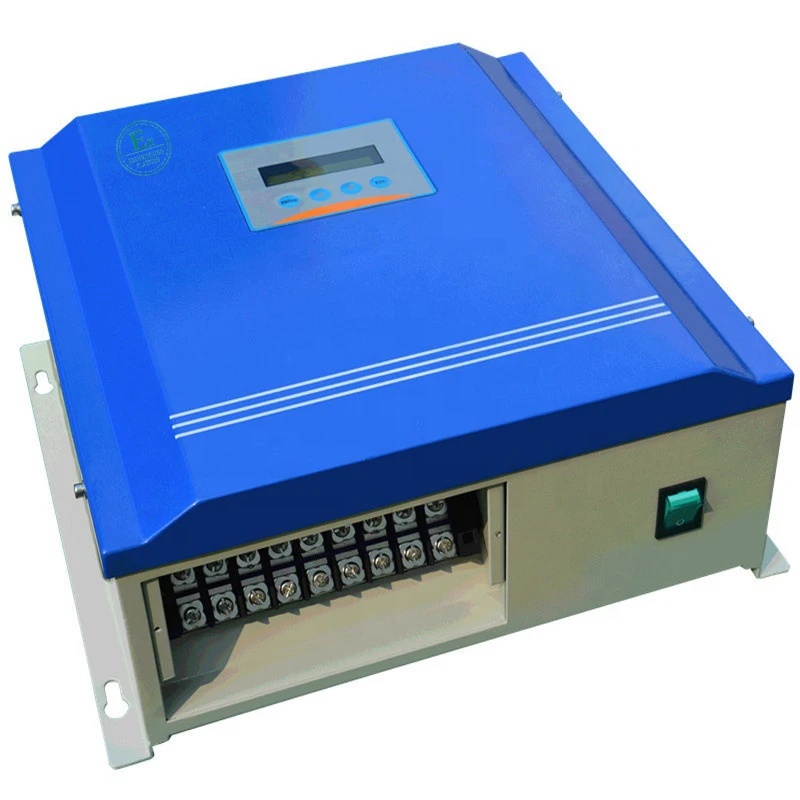

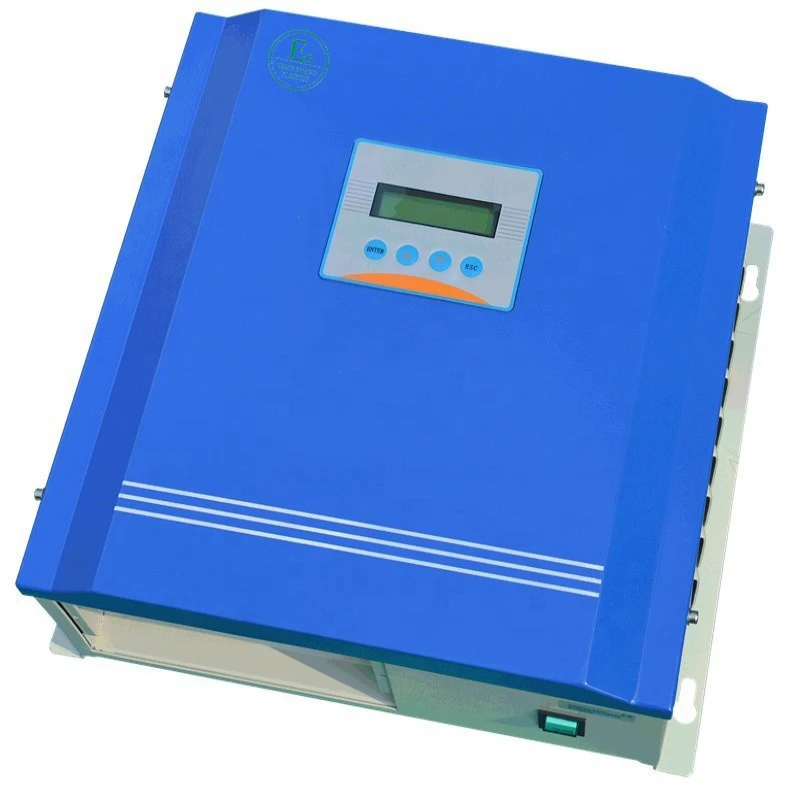

Product Display
Prouduct Parameters
Model | 1KW-48V | 3KW-96V | |
Rated Power | 1kw | 3kw | |
Rated battery Voltage | 48V | 96V | |
Wind Turbine AC Voltage | 57.6V | 115.2 | |
Consumption at standby [mA] | ≤60 | ≤60 | |
Consumption at night [mA] | ≤20 | ≤20 | |
Operating Temperature Range | -25°C ~ +60°C | -25°C ~ +60°C | |
Operating Temperature | 0% ~98% Non-condensing | 0% ~98% Non-condensing | |
Cooling Method | Convection with double cooling fans | ||
Altitude [m] | ≤3000m | ≤3000m | |
Terminal | Barrier terminal | Barrier terminal | |
LCD Display | LCD (16X2characters, green backlight) | LCD (16X2characters, green backlight) | |
Display Language | English | English | |
Data-transfer port | RS232 | RS232 | |
Noise[dBA] | ＜40 | ＜40 | |
Mounting | Wall mounting type | Wall mounting type | |
Main dimension(W*D*H)[mm] | 380 *355 *150 | 380 *355 *150 | |
Main-device net weight [kg] | 8.5 | 12 | |

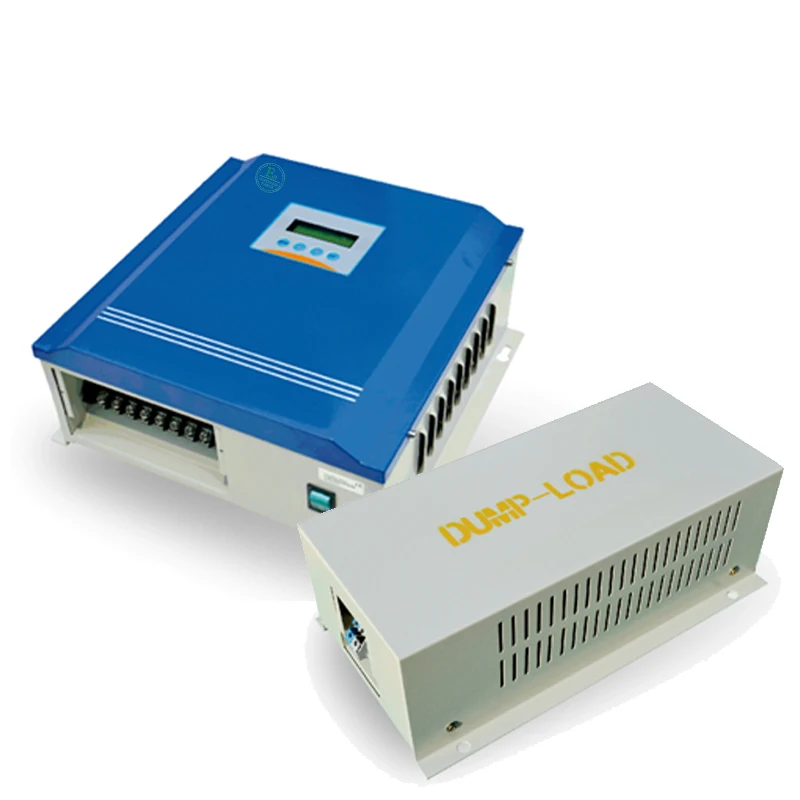

Dump dimension(W*D*H)[mm] | 112*448*144 | 192*425*144 | |
Dump-load net weight [kg] | 4 | 7.5 | |
Spiral Wind Turbine system
System Drawing of Wind/ Solar Hybrid With Diesel System
In the days without wind and solar, the electric energy output from wind generator and solar panel is insufficient for the battery charging, then the battery banks shall be under voltage,
our controller will automatically switch to diesel generator to supply power for the AC load.
FAQ
Q1: How many winds for wind turbines can generate electricity?
In general situation, about 3 levels to the battery charge (the wind generator voltage is higher than the battery voltage), the installation of wind turbines must be aware of your local wind resources, such as the annual wind speed in the 3-5 level, we proposed 300-1000W small wind power generator, if more than 4 levels of wind resources in the usual year, can choose more than 1000W wind generator.
Q2: How to confirm your wind situation
Level 1: smoke with the wind
Level 2: wind blows the face
Level 3: the leaves move, the red flag flies
Level 4:level: wind blowing paper
Level 5: level: shakes with small leaves
Level 6: hard lifting
Level 7: inconveniences in the wind
Level 8:level: wind blowing branch break
Level 9:level: roof flying tile
Level 10: pull up a tree and reverse the house
Q3: Why does the fan has the starting wind speed
In addition to the influence of gravity, such as its own wind blades, and the wind cap, the most important thing is the magnetic resistance (that is, the resistance that usually cuts the magnetic line). Now the good Magnet material is used NdFeB. So the speed of the fan does not necessarily mean that the amount of electricity generated is much.
Q4:Why the wind generator will brake
When the battery is full, or in the case of strong wind, the fan will also have the phenomenon of braking or not turning. This is the normal phenomenon of the fan controller in protecting the battery or the fan.
In general situation, about 3 levels to the battery charge (the wind generator voltage is higher than the battery voltage), the installation of wind turbines must be aware of your local wind resources, such as the annual wind speed in the 3-5 level, we proposed 300-1000W small wind power generator, if more than 4 levels of wind resources in the usual year, can choose more than 1000W wind generator.
Q2: How to confirm your wind situation
Level 1: smoke with the wind
Level 2: wind blows the face
Level 3: the leaves move, the red flag flies
Level 4:level: wind blowing paper
Level 5: level: shakes with small leaves
Level 6: hard lifting
Level 7: inconveniences in the wind
Level 8:level: wind blowing branch break
Level 9:level: roof flying tile
Level 10: pull up a tree and reverse the house
Q3: Why does the fan has the starting wind speed
In addition to the influence of gravity, such as its own wind blades, and the wind cap, the most important thing is the magnetic resistance (that is, the resistance that usually cuts the magnetic line). Now the good Magnet material is used NdFeB. So the speed of the fan does not necessarily mean that the amount of electricity generated is much.
Q4:Why the wind generator will brake
When the battery is full, or in the case of strong wind, the fan will also have the phenomenon of braking or not turning. This is the normal phenomenon of the fan controller in protecting the battery or the fan.
