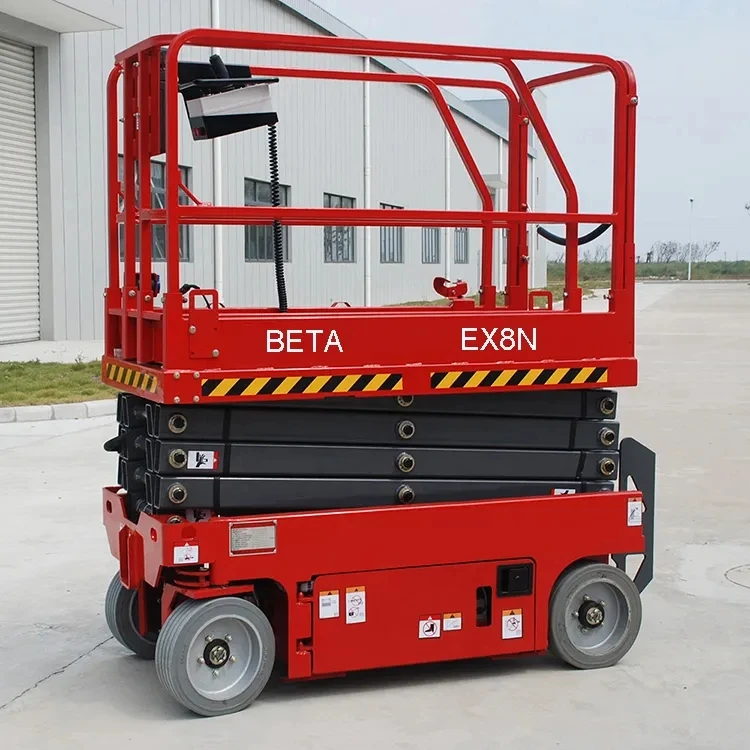

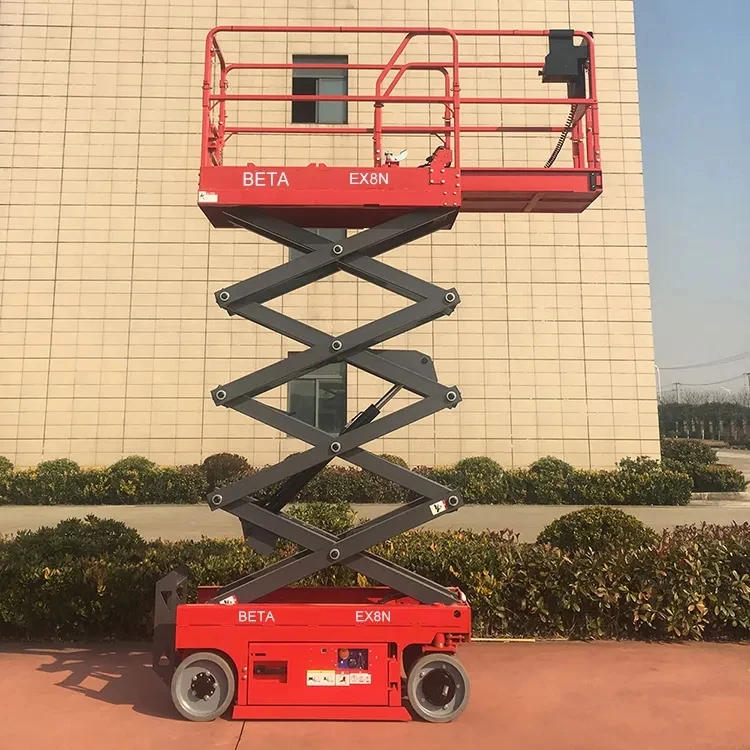

EX8N Mini 7.8m 230kg Electric Lifting Self Propelled Scissor Lift Table Platform
- Category: >>>
- Supplier: Xianheng International Science&technology Co. Ltd.
Share on (1600751655664):
Product Overview
Description
Self-propelled Electric Scissor Lift EX-series | ||
Models | EX8N | |
Working height max(m) | 7.8 | |
Platform height max(m) | 5.8 | |
Outreach(m) | 0.9 | |
Lifting capacity(kg) | 230 | |
Lifting capacity(kg)(Extended platform) | 115 | |
Weight(kg)ANSI/CSA Standard | 1285 | |
CE/AUS Standard | 1540 | |
Platform size(L×W×H)m | 1.64×0.75×1.1 | |
The length of platform extended(m) | 2.54 | |
Skirting board height(m) | 0.15 | |
Stowed size(L×W)m | 1.85×0.77 | |
Stowed height(m) | 2.13 fixed platform 2.13m CE | |
Height of the machine with platform folded(m) | 1.78 | |
Wheelbase(m) | 1.32 | |
Length of the machine with platform extended(m) | 2.75 | |
Hydraulic tank capacity(L) | 15 | |
Gradeability | 30% | |
Ground clearance(m) | 0.06 | |
Pothole protection board ground clearance(m)(down) | 0.02 | |
Inside rotation radius(m) | 0 | |
Outside turning radius(m) | 1.56 | |
Load number max | 2 | |
Raised time/Lowering time(s) | 14/11 | |
Traction speed(km/h) | 3.8 | |
Safe speed(km/h) | 0.7 | |
Vertical tilt° ANSI CSA | 3 | |
CE/AUS | 2 | |
Lateral tilt° ANSI/CSA | 2 | |
CE/AUS | 1.5 | |
Power source | 4×6V; 225Ah | |
Tire size(mm) | 356×114×254 | |
Drive Model | Hydraulic drive/Electric drive | |
Standard Features
1. EX-N series working height is 6.5m(about 21 feet and 8m(about 26 feet)
2. The platform can outreach 0.9m(about 3 feet),and the machine can be2.52m(about 8.26 feet)
3. Compact design, can be easily passed single standard door and enter the lift, and so on.
4. The min. lift capacity is 230kg(about 506 pound),the max. lift capacity is 270kg(594 pound).
5. Proportional controls for lift and drive functions
6. Automatic 25 Amp battery charger provides strong power for vehicle.
7. Safe distance protection when the platform lowering down.( CE)
8. Manual Emergency platform lowering valve, when there is no power, the machine canbe safety lower down.
9. Emergency stop at both platform and ground controls
10. Drive speed interlock limits speed while elevated.
11. Multiple disc brakes provide smooth deceleration.
12. When there is no power, manual brake release function can move the machines under the circumstances when there is no other forklift, lifting equipment and so on.
13. Pothole guards protect the machine don’t tilting down when the machine moved on the raised position.
14. Non-marking tires make sure there is no damage and no marks on the ground.
15. It has the 30% gradeability, and at the same time each machine equipped tilt sensor alarm to make sure the user can use the machine correctly.
16. Diagnostic system.
1. EX-N series working height is 6.5m(about 21 feet and 8m(about 26 feet)
2. The platform can outreach 0.9m(about 3 feet),and the machine can be2.52m(about 8.26 feet)
3. Compact design, can be easily passed single standard door and enter the lift, and so on.
4. The min. lift capacity is 230kg(about 506 pound),the max. lift capacity is 270kg(594 pound).
5. Proportional controls for lift and drive functions
6. Automatic 25 Amp battery charger provides strong power for vehicle.
7. Safe distance protection when the platform lowering down.( CE)
8. Manual Emergency platform lowering valve, when there is no power, the machine canbe safety lower down.
9. Emergency stop at both platform and ground controls
10. Drive speed interlock limits speed while elevated.
11. Multiple disc brakes provide smooth deceleration.
12. When there is no power, manual brake release function can move the machines under the circumstances when there is no other forklift, lifting equipment and so on.
13. Pothole guards protect the machine don’t tilting down when the machine moved on the raised position.
14. Non-marking tires make sure there is no damage and no marks on the ground.
15. It has the 30% gradeability, and at the same time each machine equipped tilt sensor alarm to make sure the user can use the machine correctly.
16. Diagnostic system.
Options Feature
1. Motion alarm
2. Platform swing gate
3. Air line to platform
4. Dual flashing beacon
5. Maintenance-free battery
6. Horn
7. Platform work lights
8. Foldable platform
9. Key-type lock sliding door
10. Anti-collision system
11. Top limit protection auto-stop device
1. Motion alarm
2. Platform swing gate
3. Air line to platform
4. Dual flashing beacon
5. Maintenance-free battery
6. Horn
7. Platform work lights
8. Foldable platform
9. Key-type lock sliding door
10. Anti-collision system
11. Top limit protection auto-stop device
