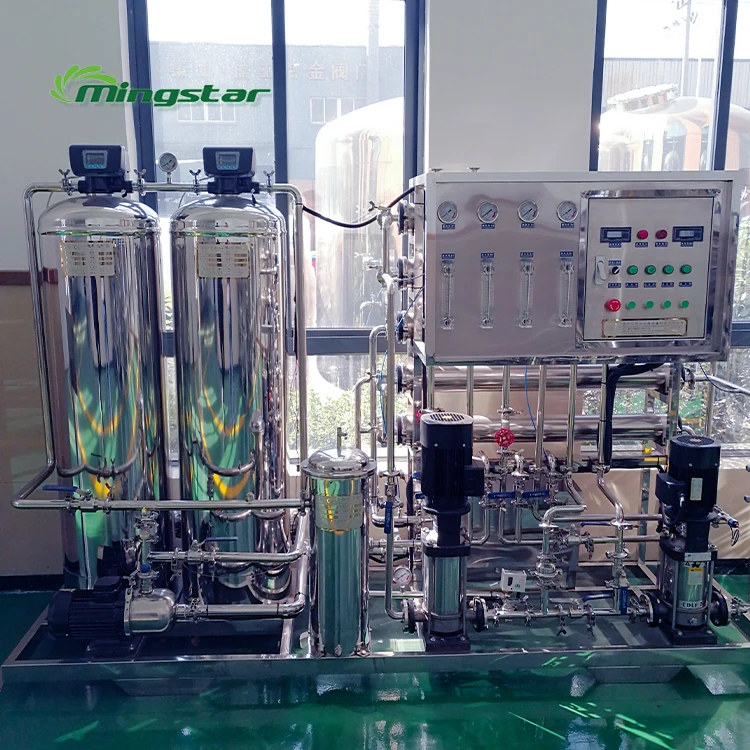

Low Price RO 1.25T activated carbon water treatment machinery reverse osmosis water filter system
- Category: >>>
- Supplier: Suzhou Mingstar Company Limited
Share on (1600751664456):
Product Overview
Description
Product Description
Membrane technology for water purification
The machine adopts advanced single stage low pressure reverse osmosis technology to purify tap water.Combined with carefully designed filtration and adsorption system, can effectively remove the water of various kinds of bacteria, residues, heavy metal ions and harmful material such as removal of chloroform, can remove more conventional method can not, fluorine cancer-causing virus, etc.
Advantage of reverse osmosis system
1. Eliminates Sodium
2. Removes Lead
3. Lowers energy costs
4. System size can be customized
5. Easy to maintain
6. Produces better tasting water
7. Replaces bottled water
2. Removes Lead
3. Lowers energy costs
4. System size can be customized
5. Easy to maintain
6. Produces better tasting water
7. Replaces bottled water
Working Process:
Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→ security filter→ high pressure pump →reverse osmosis system→ Ozone sterilizer (UV sterilizer).
1. Water tank: storage of tap water, to solve the problem of insufficient tap water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate
2. Booster pump:equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration
3. Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water
4. Carbon filter: mainly remove organic substances, residual chlorine and odor in tap water
5. Water softener filter: mainly remove the calcium and magnesium in tap water, reduce the hardness of water
6. Security filter: further filtration, protection of reverse osmosis membrane
7. High pressure pump: provide enough pressure for reverse osmosis system
8. Reverse osmosis unit: the core part of pure water equipment, the production of high-purity water.
9. Pure water tank: storage pure water, can change the size of the water tank,after the below process,The water result is pure enough for different application.
You can choose frp or stainsteel tank filter system and with or without pre-filter.We can customize the system according to your requirements.
Technical Parameters
Take water as the main parameter for reference, other liquids, please contact customer service for details.
All machines could be customized , we could design design and produce machines according to your request.
Model | MST-RO-500 | MST-RO-750 | MST-RO-1000 | MST-RO-1500 | MST-RO-2000 | MST-RO-3000 or more | Remark | |||||
Production capacity | 0.5T/h | 0.75T/h | 1T/h | 1.5T/h | 2T/h | 3T/h or more | Customization | |||||
Power Supply | 220V/380V 50Hz | Customization | ||||||||||
Main motor power | 2kw | 2kw | 3kw | 3kw | 4kw | 4kw or more | Customization | |||||
Dimension(m) | 1.35*0.5*1.6 | 1.35*0.5*1.6 | 1.53*0.5*1.9 | 1.55*0.7*1.85 | 2.5*0.7*1.7 | 3*0.7*1.7 or more | Customization | |||||
Quartz Sand Filter | φ400×1500MM FRP/SUS-304/SUS-316 | |||||||||||
Activated Carbon Filter | φ400×1500MM FRP/SUS-304/SUS-316 | |||||||||||
Water Softener | φ400×1500MM FRP/SUS-304/SUS-316 | |||||||||||
Security Filter | U-PVC /SUS-304/SUS-316 | |||||||||||
RO Membrane | Semi-permeable film 4040 | |||||||||||
Sterilizer Device | UV Sterilizer /Ozone generato SUS-304/SUS-316 (Shell) | Optional | ||||||||||
Weight | 400kg | 450kg | 550kg | 800kg | 1T | 1.5T or more | Optional | |||||
Pretreatment including:
(1) Quartz sand/manganese sand filter
(2) Activated Carbon filter
(3) Softener and PP Filter
(4) Dosing system if need.
(2) Activated Carbon filter
(3) Softener and PP Filter
(4) Dosing system if need.

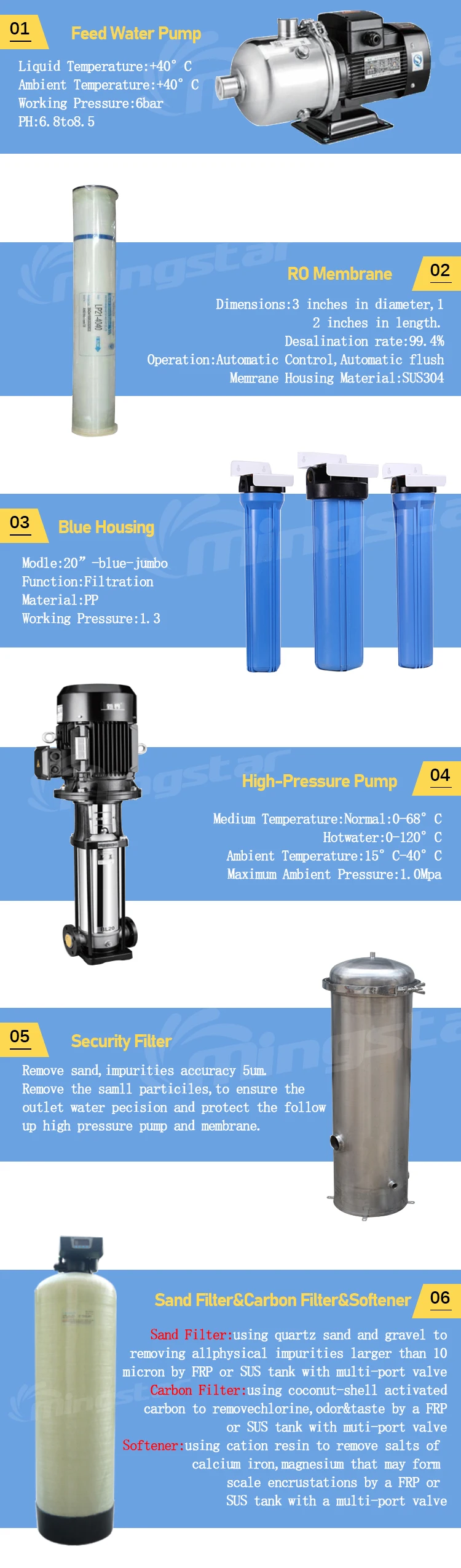

Main Part of the machine:
(1)Pumps
(2)RO membrane (DOW/CSM/Hydranautics)
(3)Membrane Vessel(SS and FRP)
(4)PLC control/Relay control
(5)Optional UV sterlilizer&Ozone
(2)RO membrane (DOW/CSM/Hydranautics)
(3)Membrane Vessel(SS and FRP)
(4)PLC control/Relay control
(5)Optional UV sterlilizer&Ozone
Functions of Water Treatment:
(1)Auto flush
(2)Low pressure protection
(3)Membrane Vessel(SS and FRP)
(4)High pressure protection
(5)Back wash and Eneration control
(2)Low pressure protection
(3)Membrane Vessel(SS and FRP)
(4)High pressure protection
(5)Back wash and Eneration control
Which model should I choose?
It depends on your raw water quality ,pure water requirement and the water production you need.
Direction for use
1. Place the host and preprocessor near the water source and power source.
2. Filter materials such as quartz sand, activated carbon and softening resin.
3. Connecting water: the water inlet of the original pump is connected with the water source, the outlet of the prefilter is connected with the host inlet, and the preprocessor and the host drain pipe are connected to the sewer by pipes.
4. Circuit: firstly, the grounding wire shall be grounded reliably, and the attached power line shall be connected to the room electric control box.
5. Access to the water source and power supply, according to the requirements of "pretreatment instructions", according to the steps, pre- processing and debugging are completed.
6. Use the machine, the original pump switch, dial in the automatic position,and rotate
the stop switch.
7.Connect the water source and power supply, and when the pressure of the multi-stage pump reaches the set value of the pressure controller, the multi-stage pump starts work.
8.After the multi-stage pump is started, the system pressure is 0.7-1.0mpa.
9.For the first time, the RO membrane system is activated for 30 minutes manually.
2. Filter materials such as quartz sand, activated carbon and softening resin.
3. Connecting water: the water inlet of the original pump is connected with the water source, the outlet of the prefilter is connected with the host inlet, and the preprocessor and the host drain pipe are connected to the sewer by pipes.
4. Circuit: firstly, the grounding wire shall be grounded reliably, and the attached power line shall be connected to the room electric control box.
5. Access to the water source and power supply, according to the requirements of "pretreatment instructions", according to the steps, pre- processing and debugging are completed.
6. Use the machine, the original pump switch, dial in the automatic position,and rotate
the stop switch.
7.Connect the water source and power supply, and when the pressure of the multi-stage pump reaches the set value of the pressure controller, the multi-stage pump starts work.
8.After the multi-stage pump is started, the system pressure is 0.7-1.0mpa.
9.For the first time, the RO membrane system is activated for 30 minutes manually.

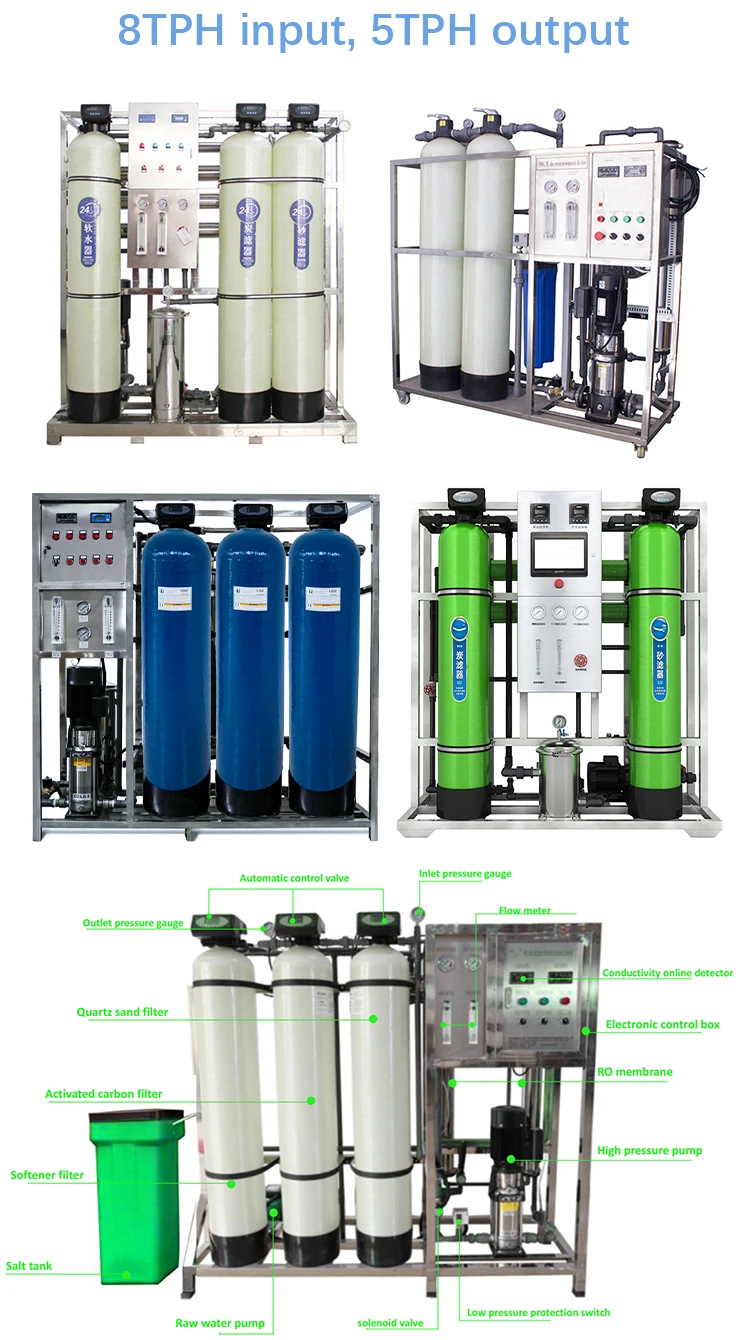

Detailed Images
