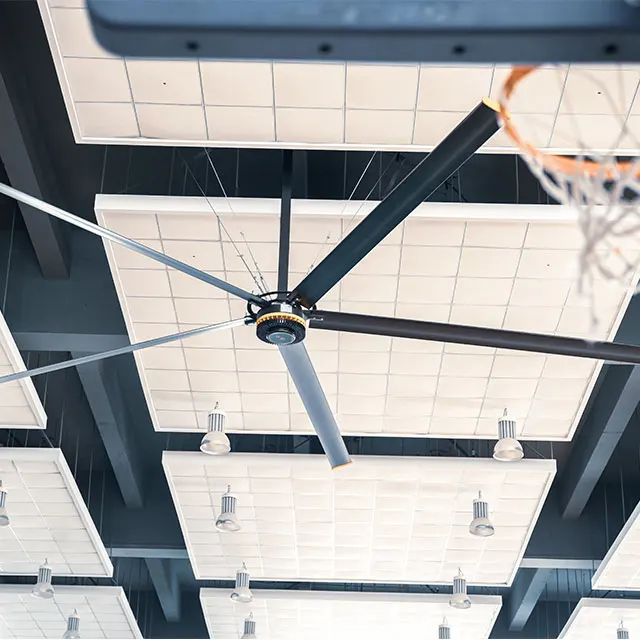

Shanghai Kale 6.1M 20FT High Volume Low Speed Warehouse Ceiling Fan
- Category: >>>
- Supplier: Kale Environmental Technology (Shanghai) Corporation
Share on (1600751697294):
Product Overview
Description
Product Description

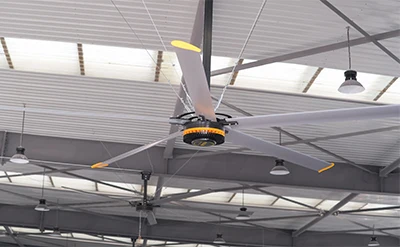

KALE FANS EURUS III Ceiling Fan
EURUS III series fan is based on the development of the PMSM (permanent magnet synchronous motor) technology. The maximum diameter can be up to 7.3m. It can promote the circulation of air flow in high efficiency, achieve the purpose of lowering the temperature of personnel, and greatly improve the environmental comfort.The product combines aerodynamic technology, transmission dynamics, mechanical mechanics, simulation technology, industrial design.
Stronger, Powerful, Bigger, cooling solutions for your industry and business~
EURUS III HVLS fan improves the working environment by providing comfortable and excellent airflow under challenging conditions, and it is our best-selling model with comfort and safety as the standard.
EURUS III HVLS fan improves the working environment by providing comfortable and excellent airflow under challenging conditions, and it is our best-selling model with comfort and safety as the standard.

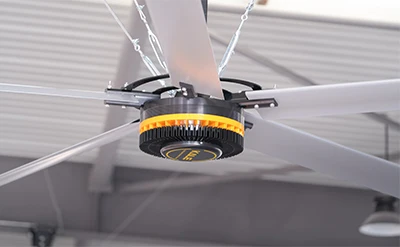

PMSM Motor
KALE specially researched and developed PMSM motor for its SHVLS product. Compared with the traditional brush motor, induction motor, it has a better dynamic performance, higher efficiency, longer life, lower noise, free maintenance,etc. Energy conversion rate can be 88%, the most advanced motor technology in the world. Compared with ordinary PMSM motor on the market, KALE's
independent research and development motor adopt unique rare earth NdFeB magnets, rotor and stator, and with its unique design, the overall dynamic performance improved significantly, 300N.M the highest torque in the world, higher efficiency and better stability.
independent research and development motor adopt unique rare earth NdFeB magnets, rotor and stator, and with its unique design, the overall dynamic performance improved significantly, 300N.M the highest torque in the world, higher efficiency and better stability.
Fan Blade
1. High strength aircraft grade magnesium, fluorocarbon painting on surface, aerodynamic fan blade design.
2. Patented Kale Airfoil Blades™: 3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss of connecting components completely. KALE unique patented jacket-type connector adopt three cold forging process + magnetic force grinding process + anodic oxidation process, aviation hard aluminum 7050 aging heat treatment, certificated by the national quality inspection center, it bears more
2. Patented Kale Airfoil Blades™: 3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss of connecting components completely. KALE unique patented jacket-type connector adopt three cold forging process + magnetic force grinding process + anodic oxidation process, aviation hard aluminum 7050 aging heat treatment, certificated by the national quality inspection center, it bears more
than millions of times of fatigue experiment, completely solve the break and drop problem caused by long time running!
Install Kale HVLS fans provide air movement that helps dissipate stagnant air and mitigates poor air quality, for greater worker comfort and less financial loss from worker illness.
Main Features:
1. Four diameter options ranging from 16 to 24 feet (4.9 to 7.3 meters)
2. Large coverage area
3. IP55 protection grade for use in harsh environments
4. Ten safety protection measures, super safe
5. PMSM Motor
6. Patented Kale Airfoil Blades
7. Double safety cable system
8. Quiet operation, even at high speeds
2. Large coverage area
3. IP55 protection grade for use in harsh environments
4. Ten safety protection measures, super safe
5. PMSM Motor
6. Patented Kale Airfoil Blades
7. Double safety cable system
8. Quiet operation, even at high speeds
Specification
Model | Size | Air Volume | Power | Max Sped | Fan weight |
HVLS-D6AAA73 | 24ft（7.3m） | 14800m³/min | 1.5Kw | 56RPM | 135kg |
HVLS-D6AAA61 | 20ft（6.1m） | 12900m³/min | 1.1Kw | 60RPM | 129kg |
HVLS-D6AAA55 | 18ft（5.5m） | 12200m³/min | 0.9Kw | 65RPM | 120kg |

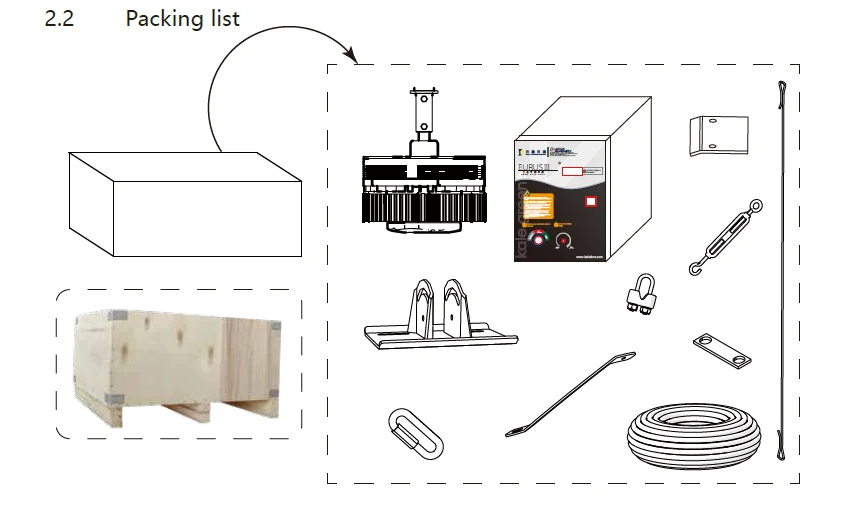

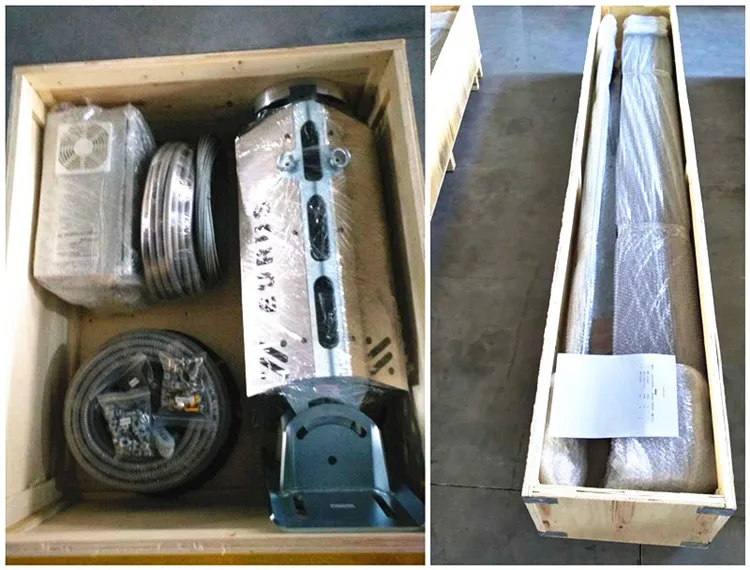

Packing & Delivery
To better ensure the safety of your ventilation fan, professional, environmentally friendly, convenient and efficient packaging services will be provided. If the order is less than 100 units, the delivery time is 5-7 days.

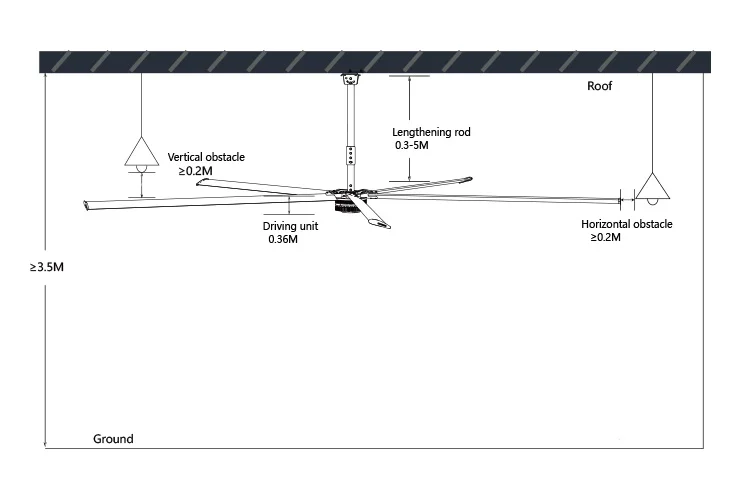

Installation Instructions
Installation Guide
1. Customized installation plan;
2. Well-equipped with life truck;
3. Rich experience to debug the level, height and balance;
4. Dynamic balance test, make sure to run steadily;
5. Fasteners with torque standard, achieve the best fastening;
6. Brief & scientific installation process.
2. Well-equipped with life truck;
3. Rich experience to debug the level, height and balance;
4. Dynamic balance test, make sure to run steadily;
5. Fasteners with torque standard, achieve the best fastening;
6. Brief & scientific installation process.
Application
Scope of Application:

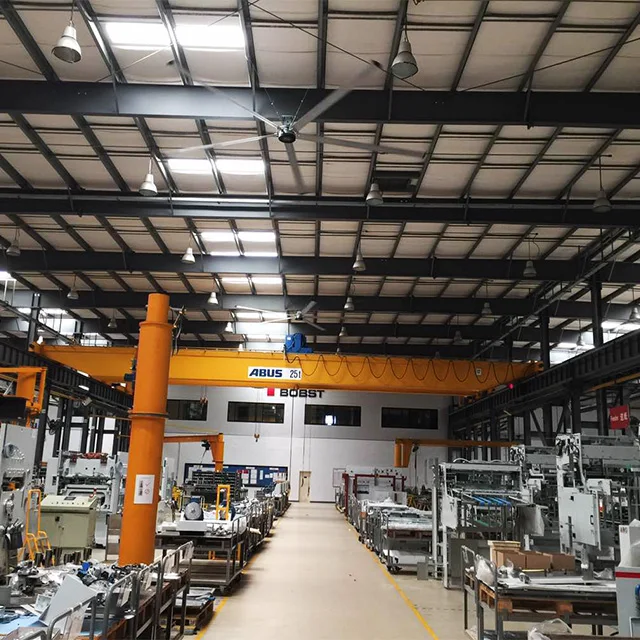

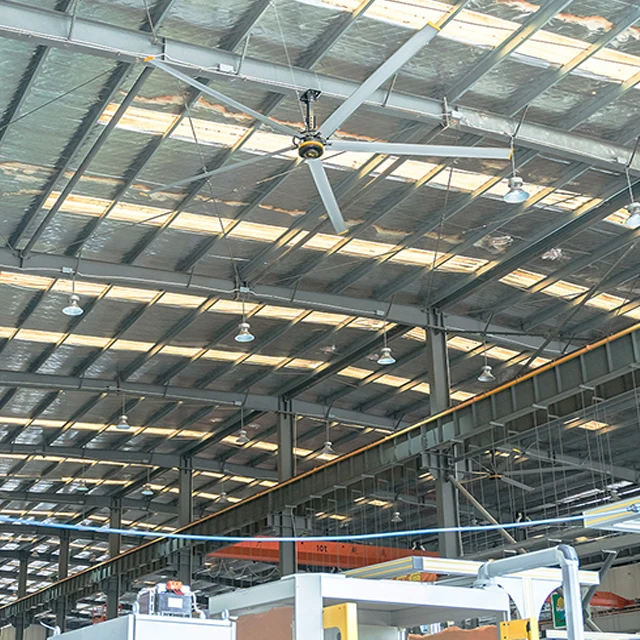

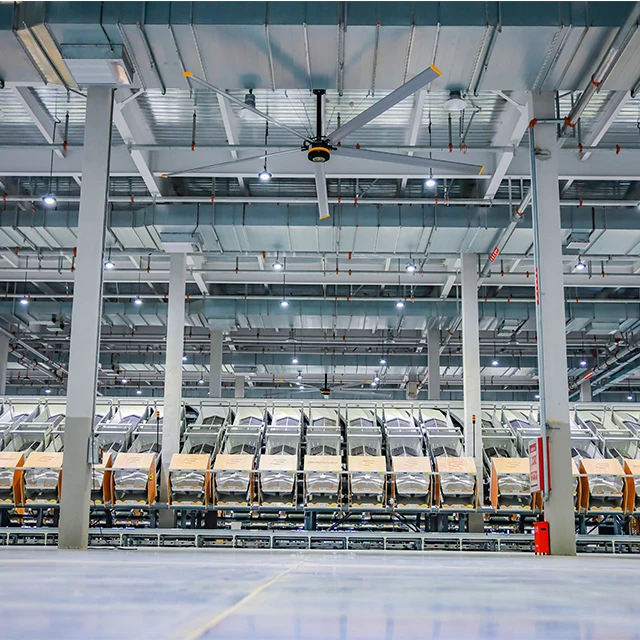

1.Large logistics warehouse and factory facilities;

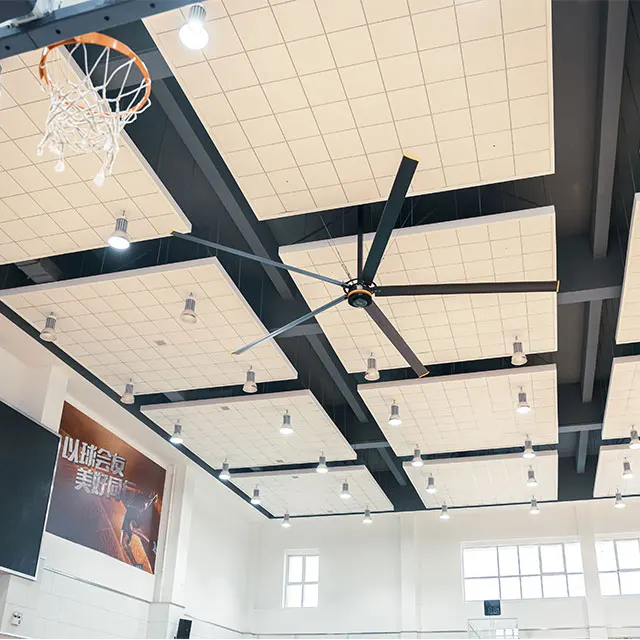

2.Large commercial spaces, churches and mosques;
3.Large public places, stations, car parks, terminals and plazas;
4.Livestock husbandry and farms
1.Large logistics warehouse and factory facilities;
2.Large commercial spaces, churches and mosques;
3.Large public places, stations, car parks, terminals and plazas;
4.Livestock husbandry and farms
Company Profile
Kale Fans--Ventilation and cooling solution package service, to provide your industry with energy-saving and efficient HVLS fans.
FAQ
Q1: Are you the factory?
A1: Yeah, we have factory in Zhejiang Province specializing in HVLS fans since from 2010, prices we offer are our factory prices.
Q2: How long is the delivery time?
A2: Normally 3-5 working days for the standard.
Q3: How long is the warranty?
A3: We offer 3-year warranty to guarantee the quality. Its service life is 12-15 years or longer.
Q4: How do you do after-sale service?
A4: We will send you free spare part to replace under warranty.
Q5: Can you do customize?
A5: Yes, we can do OEM at MOQ requirement.
A1: Yeah, we have factory in Zhejiang Province specializing in HVLS fans since from 2010, prices we offer are our factory prices.
Q2: How long is the delivery time?
A2: Normally 3-5 working days for the standard.
Q3: How long is the warranty?
A3: We offer 3-year warranty to guarantee the quality. Its service life is 12-15 years or longer.
Q4: How do you do after-sale service?
A4: We will send you free spare part to replace under warranty.
Q5: Can you do customize?
A5: Yes, we can do OEM at MOQ requirement.
