olt 2 pon mini fiber olt supply ONU 2 ports EPON no include SFP 9db px compatible

Share on (1600751745736):


Price:

Quantity:


Product Overview

Description



Product Description

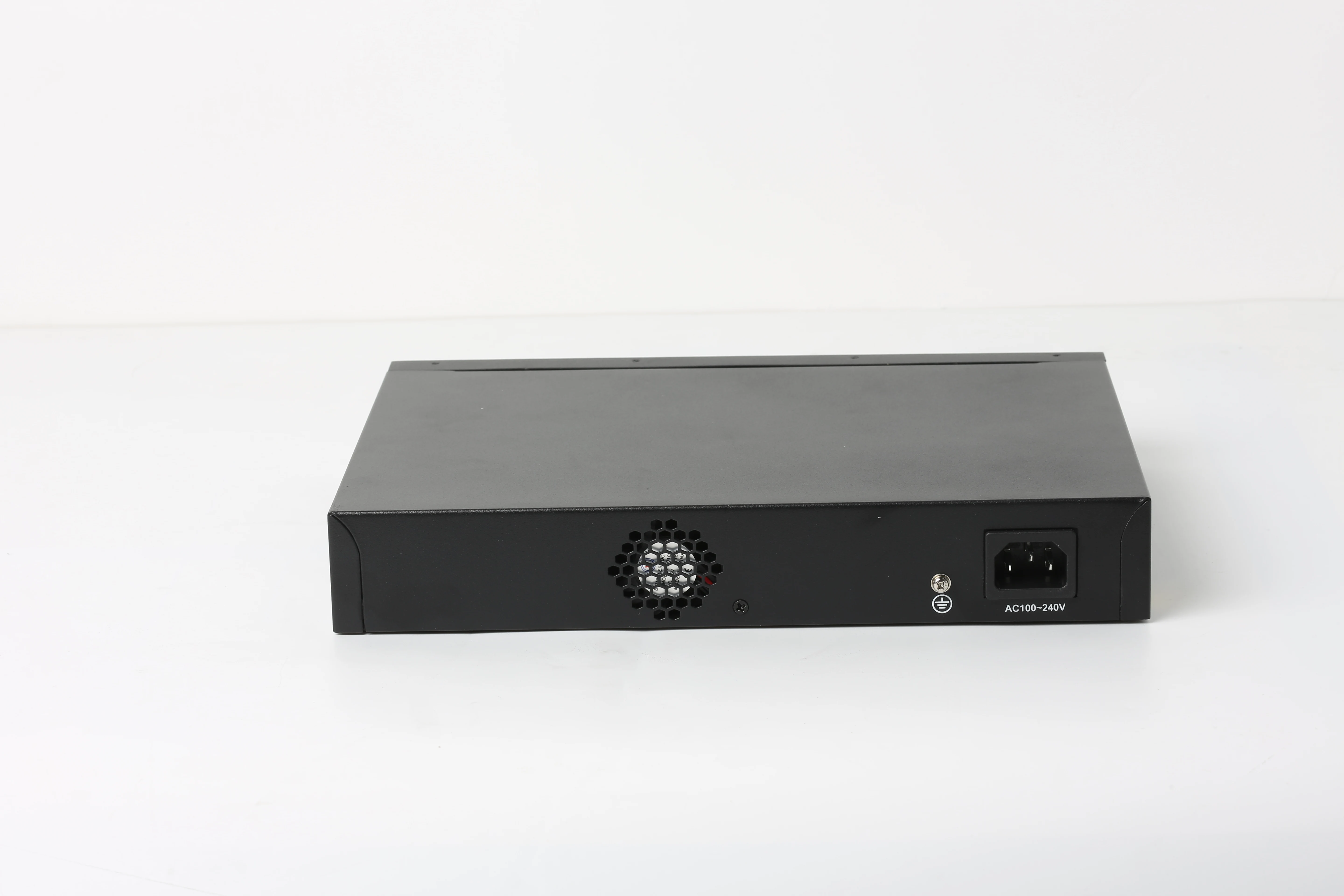

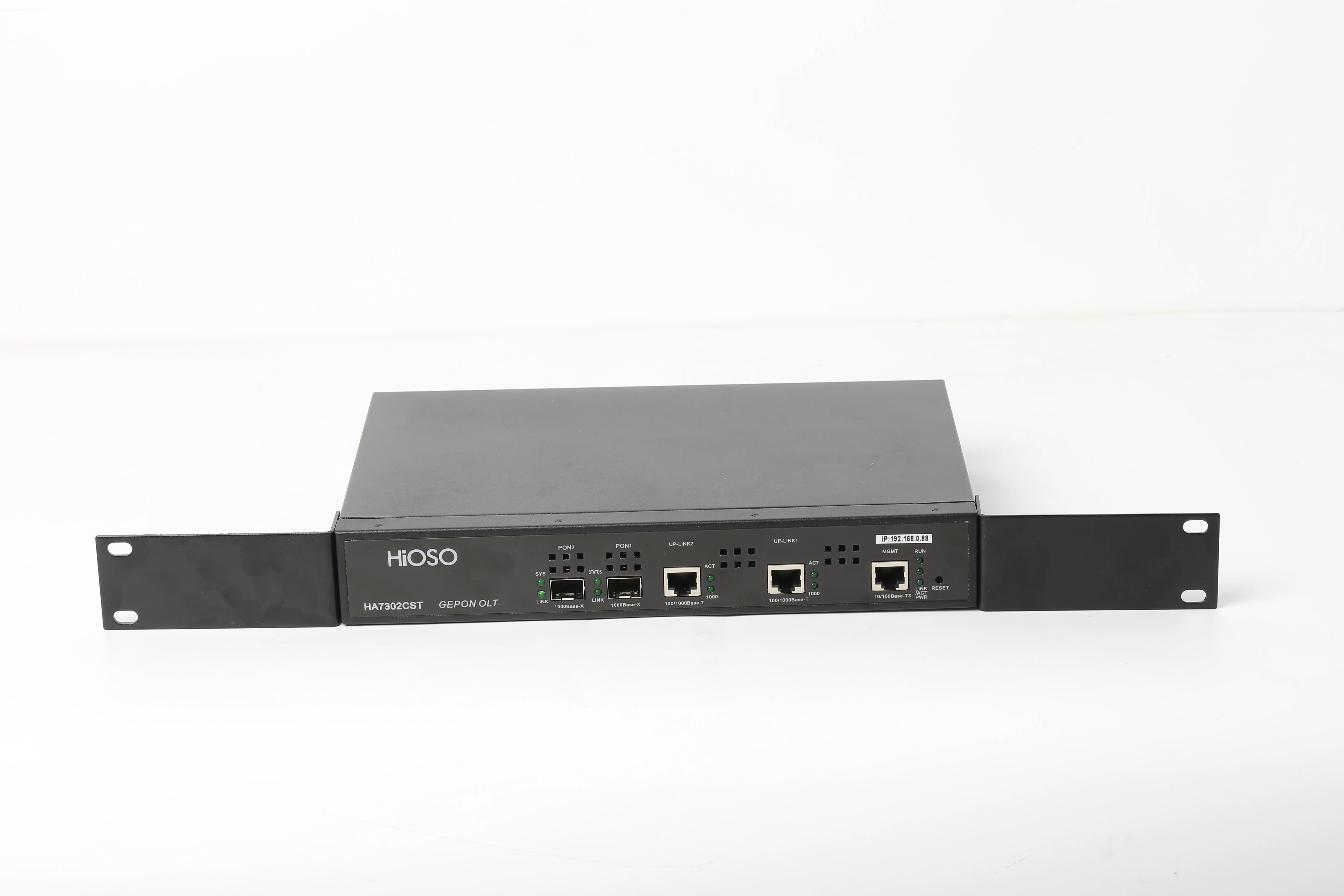

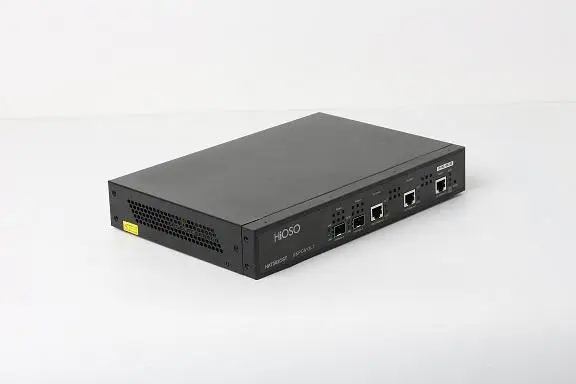

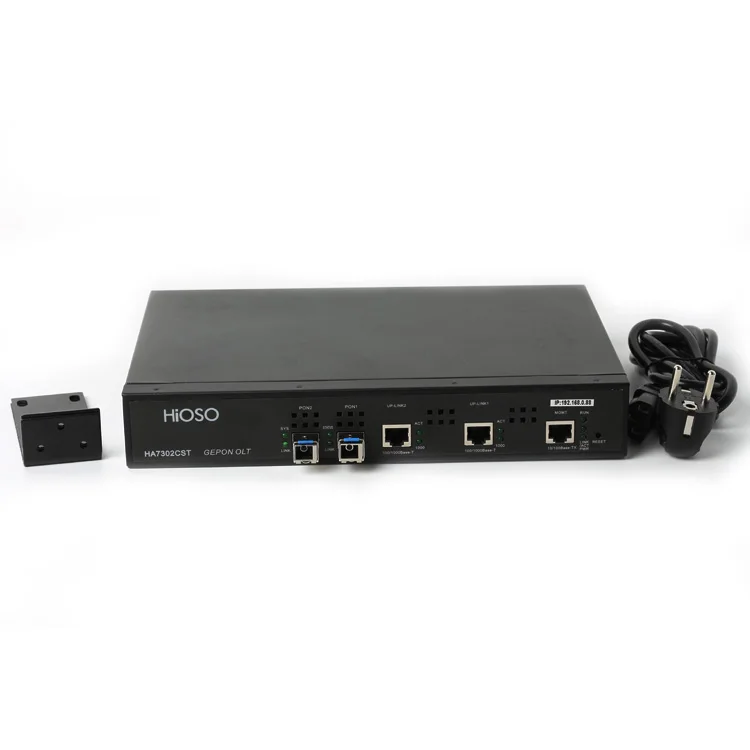

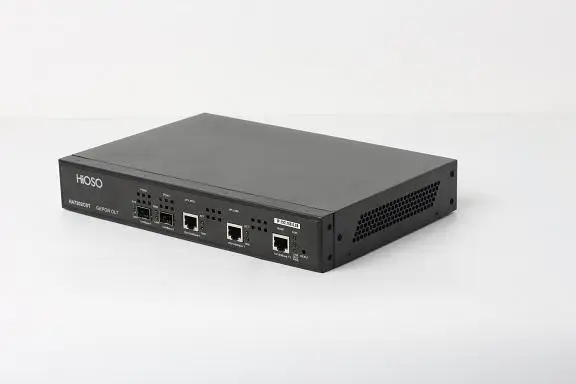

HA7302CST Standalone Type 2-PON OLT


Overview
HA7302CST is a standalone 2-PON OLT,working with HA7200 series ONU and ODN, to establish a passive optic network. It
supports2-PON, 64 ONUs access (maximum 128). It supports 10~20km transmission distance at the base of high bandwidth, full line
speed L2/L3 transition capacity. It supports WEB/SNMP/CLI management.


Feature

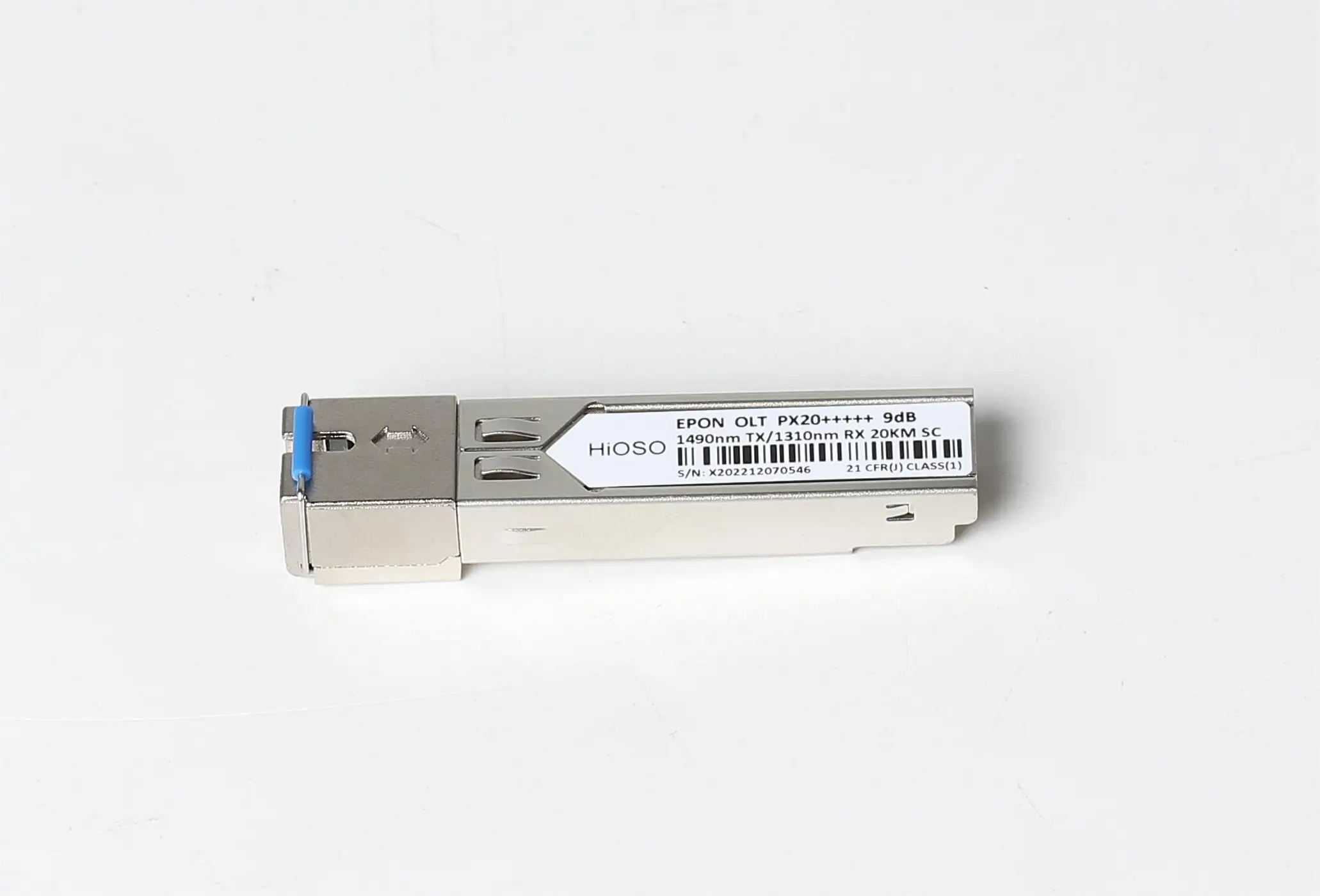

Supply 2 SFP PON ports, 2 1000M RJ45 uplink ports, 1 10/100M RJ45 management port
Support SNMP management and WEB management
Each PON port support 1.32 split ratio, total 64 ONUs access,maximum 128
Distance can reach 20km under 1:32 split ratio,maximum 1:64
Support to work with HA400/HA7200 series ONUs to establish passive network
1U rack design, inside fan,better for heat dissipating and reliability operating
Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access


Parameter
Specifications
Operating wavelength
1310(RX)/1490(TX)
Optical power
+0 ~ +7dBm
Receiving sensitivity
-27dBm
Max distance
20km
Max splitter ratio
1:64
Capacity
2 PON, standard: 64 ONUs maximum:128 ONUs
MAC
8K
Uplink port
2 1000M Ethernet RJ45 ports
PON port
2 SFP fiber ports
Control port
RJ45 console port, to debug the device
MTBF
100,000 hours
EPON traits
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)
Protocols supported
Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS
Management
CLI and GUI, SNMP, WEB
Support DHCP Snooping
Support Ipv4 address learning based at DHCP Snooping
Support ARP Snooping, QoS etc

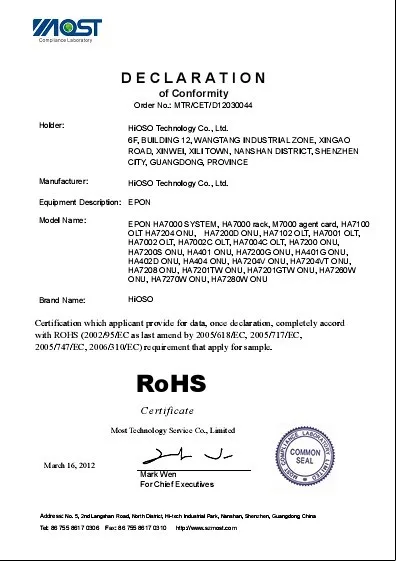

Certifications






Company Profile




HiOSO Technology Co., Ltd. was founded in 2002, being dedicated to the research, production and sale of optical communication network products based on FTTH and FTTD.

To make our products better, we have experienced and professional talents. Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems. Since the launch of our products in domestic market and international market, we have won a good reputation for our high quality products and sincere services. Our products are widely applied to network systems of Telecom, Radio and Television, Public Security and Bank industries. To be in line with different needs of different customers, we have people to trace the latest market information so as to keep our products competitive and vital.

With the principle of "high quality, A-class service and continuous innovation", we have set up perfect testing systems which ensure the quality of every out-going product before delivering to the customers. We have made our products meet ISO9001:2000 international requirements, and obtained the certificate of Network Access License from Telecommunication Equipment Ministry.

To be our clients, you can enjoy perfect services: technical support and related trainings can be obtained at any time, and problems occurred can be solved within 24 working hours. Besides, we provide a one-year replacement, a three-year free repair, and a whole life maintenance service for all of our products.
