48v 300ah Golden supplier lifepo4 electric lithium battery pack forklift lifepo4 48v 300ah 315ah forklift lithium battery
- Category: >>>
- Supplier: Shenzhen DJS Tech Co. Ltd
Share on (1600751805554):
Product Overview
Description
Product Description

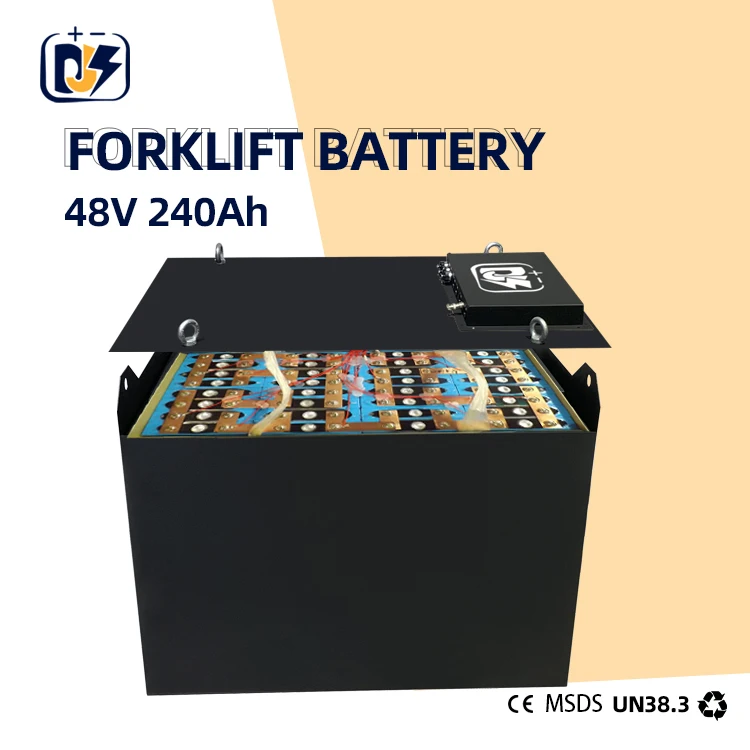

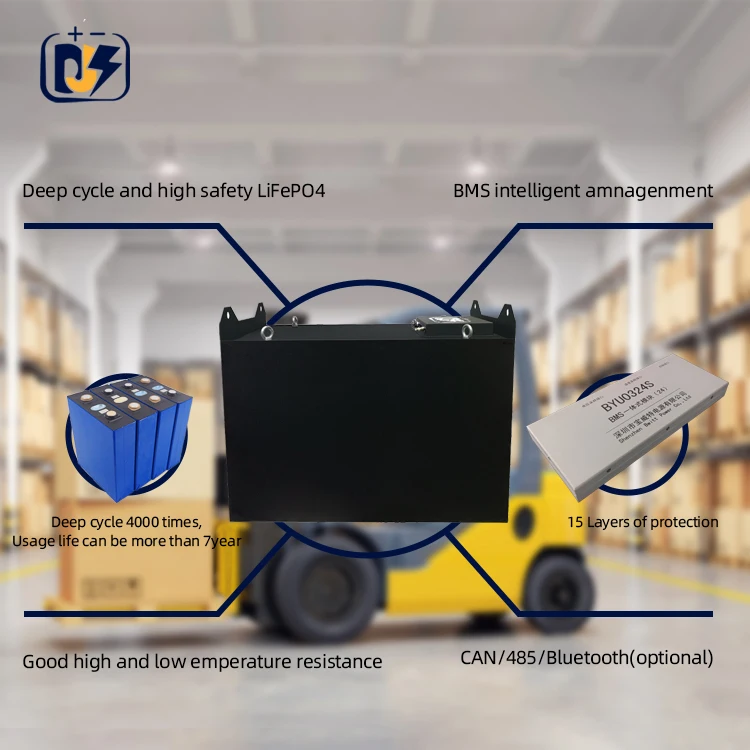

DJS 48V 300AH LiFePO4 Deep Cycle Battery pack
DJS 48V lithium-ion battery is designed for forklift trucks operating 24/7. The high energy density of lithium combined with ultra-fast charging also makes it ideal for energy-intensive application machines.
Large warehouses demanding the retrieval of pallets at high levels in narrow aisles and round-the-clock performance can
significantly increase their productivity when using DJS electric energy solutions. Multi-shift applications, such as third-party logistics (3PL), manufacturing and food and beverage, distribution, and any other 24/7 material handling operations can benefit the most from lithium-ion power solutions.
Large warehouses demanding the retrieval of pallets at high levels in narrow aisles and round-the-clock performance can
significantly increase their productivity when using DJS electric energy solutions. Multi-shift applications, such as third-party logistics (3PL), manufacturing and food and beverage, distribution, and any other 24/7 material handling operations can benefit the most from lithium-ion power solutions.
Special process formula and unique structure design ensure the safety performance of large-capacity lithium battery;
● Cell Safety Performance Measure: The single cell and pack pass heating, short circuit, nail test and extrusion test, the battery are safe, no fire, no explosion;
● Module design: better antiknock and excellent vibration resistance;
● Battery Pack heat radiation: As the simulation testing, 7 degrees less than other batteries;
● Professional wiring harness equipment and testing, the process is stable and reliable.
● Cell Safety Performance Measure: The single cell and pack pass heating, short circuit, nail test and extrusion test, the battery are safe, no fire, no explosion;
● Module design: better antiknock and excellent vibration resistance;
● Battery Pack heat radiation: As the simulation testing, 7 degrees less than other batteries;
● Professional wiring harness equipment and testing, the process is stable and reliable.
Lithium-ion batteries are a type of rechargeable battery. They have a high energy density (meaning that they can store lots of energy), no memory effect (they don’t need to be fully discharged before charging), and a low self-discharge. Lithium-ion batteries contain no toxic lead or acid and don't release explosive gases when charging. Say goodbye to noxious fumes with a clean system built for the modern working environment.
Lower your energy costs. Testing has shown DJS Lithium Forklift battery Packs consume 30% less energy when moving 200 pallets weighing 2,500 pounds each, thus reducing your electric bill and conserving energy as well as reducing overall operations costs.
Specification
Electrical Specifications | ||||||||
Nominal Voltage | 51.2V | |||||||
Nominal Capacity | 300Ah | |||||||
Stored Energy | 15360Wh | |||||||
Self Discharge Rate | ＜3% per month | |||||||
Max. Continuous Charge Current | 200A | |||||||
Max. Continuous Discharge Current | 200A | |||||||
Charge Cut-off Voltage | 29.2V | |||||||
Discharge Cut-off Voltage | 20V | |||||||
Cycle Life(25℃） | ＞4000 cycles @80%DoD | |||||||
Mechanical Specifications | ||||||||
Dimension | 470(L) X 220(W) X 550(H) mm | |||||||
Weight | 150kg (330lbs) | |||||||
Protection Level | IP54 | |||||||
Case Material | Commercial Grade Steel | |||||||
Communication Protocol | RS485/CAN | |||||||
Temperature Specifications | ||||||||
Discharge Temperature | -20 to 55℃ | |||||||
Charge Temperature | 0 to 50℃ | |||||||
Storage Temperature | 0 to 50℃ | |||||||
Other Specifications | ||||||||
Short Circuit Protection | Automatically recover after removal of short circuit | |||||||
Life Expectancy (year) | Around 10 years at one cycle per day | |||||||
Why choose LiFePO4 Battery
Electric Forklift with LiFePO4 Battery VS Fuel Forklift
Item | LiFePO4 Battery | Fuel Forklift | ||||
Vehicle Service Life | 8-10 Years | 8-10 Years | ||||
Maintenance Cost | None | Change engine filter and oil every 500h; Change the transmission oil and belt every 1000h. | ||||
Energy Consumption Cost (eg. 3tons) | 5USD for Electric Bill/8h | 15USD for Fuel Charge/8h | ||||
Operating States | No Noise; No Gas Discharged | Loud Noise; Harmful Gas with Pungent Smell Discharge. | ||||
Electric Forklift Battery: LiFePO4 Battery VS Lead Acid Battery
Item | LiFePO4 Battery | Lead Acid Battery | ||||
Cycle Life | ≥4000cycles(80%DOD) | 800-1000 cycles | ||||
Safety Performance | No Fire, No Explosion, No Pollution | Fire, Explosion, Corrosion, Pollution | ||||

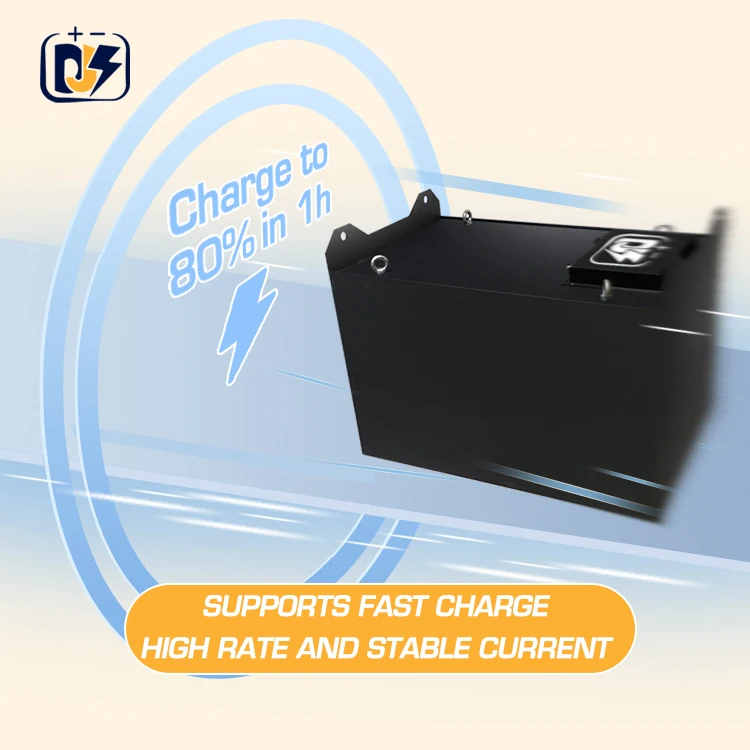

Charge Characteristic | Support Fast Charge(1-2h) | Standard Charge(8-12h) | ||||
Maintenance | Maintenance-free | Periodic Maintenance | ||||
Operating Temperature | -20~55℃； High/ Low Temperature Protection | Poor Low Temperature performance. | ||||
Why Choose Us
1.CAPACITY & CYCLE LIFE
● All lithium chemistries have higher energy density compared to lead acid batteries. We use lithium-ion technology because of the dramatic increase in energy density over current lead acid battery solutions. We chose lithium iron phosphate (LiFePO4) because it has a specific energy of ~110 watt-hours per kilogram, compared to lead acids ~40 watt-hours per kilogram. What does this mean? Our batteries can be ~1/3 the weight for similar amp-hour ratings.
● Every battery cell chemistry is affected by the depth of discharge, and the deeper the discharge, the shorter the lifespan. Our lithium-ion can be discharged to 80% while still maintaining long cycle lifetimes (>4000 cycles). Lead acid batteries experience drastic reductions in cycle life. In fact, at an 80% depth of discharge, lead acid batteries only last 1000-1500 cycles, meaning our batteries last 3x longer.
● All lithium chemistries have higher energy density compared to lead acid batteries. We use lithium-ion technology because of the dramatic increase in energy density over current lead acid battery solutions. We chose lithium iron phosphate (LiFePO4) because it has a specific energy of ~110 watt-hours per kilogram, compared to lead acids ~40 watt-hours per kilogram. What does this mean? Our batteries can be ~1/3 the weight for similar amp-hour ratings.
● Every battery cell chemistry is affected by the depth of discharge, and the deeper the discharge, the shorter the lifespan. Our lithium-ion can be discharged to 80% while still maintaining long cycle lifetimes (>4000 cycles). Lead acid batteries experience drastic reductions in cycle life. In fact, at an 80% depth of discharge, lead acid batteries only last 1000-1500 cycles, meaning our batteries last 3x longer.
2. Consistent Power
Delivers consistent high performance power and battery voltage throughout the full charge.
The flat discharge curve and high sustained voltage mean forklifts run faster on each charge, without getting sluggish.
Delivers consistent high performance power and battery voltage throughout the full charge.
The flat discharge curve and high sustained voltage mean forklifts run faster on each charge, without getting sluggish.

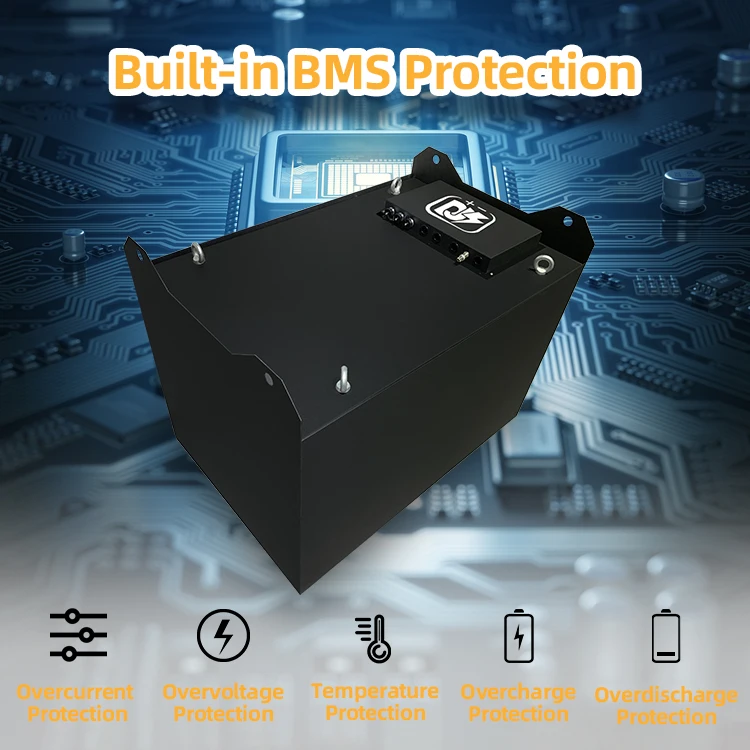

3. BMS
The battery management system that DJS uses with the lithium-ion battery packs is designed to continually monitor the lithium-ion cells and other vital components. It offers overcharge/over-discharge protection, fault monitoring, battery health estimates, battery current/voltage detection, and a low cost/low power consumption feature. These features are all put in place to make the lithium-ion battery packs, found in forklifts, the most reliable power option offered.
DJS Forklift Lithium Battery Series
Battery Model | Rated Voltage | Rated Capacity | Energy(KWh) | Max. Charge Current | Max. Continuous Discharge Current | Outline Dimension | Weight | Terminal | ||||||||
DJS-FB-24200 | 25.6V | 200Ah | 5.12 | 100A | 150A | 417*280*310 | 47kg | Anderson or REMA optional | ||||||||
DJS-FB-24300 | 25.6V | 300Ah | 7.68 | 150A | 200A | 470*220*550 | 65kg | |||||||||
DJS-FB-36200 | 38.4 | 200A | 7.68 | 100A | 150A | 850*260*370 | 65kg | |||||||||
DJS-FB-36300 | 38.4 | 300A | 11.52 | 150A | 200A | 850*400*380 | 86kg | |||||||||
DJS-FB-48200 | 51.2V | 200Ah | 10.24 | 200A | 150A | 800*250*320 | 90kg | |||||||||
DJS-FB-48300 | 300Ah | 15.36 | 150A | 200A | 930*400*320 | 130kg | ||||||||||
DJS-FB-48400 | 400Ah | 20.48 | 200A | 200A | 750*400*500 | 190kg | ||||||||||
DJS-FB-48500 | 500Ah | 25.6 | 200A | 200A | 800*650*440 | 235kg | ||||||||||
DJS-FB-72200 | 76.8V | 200Ah | 15.36 | 100A | 150A | 950*400*200 | 140kg | |||||||||
DJS-FB-80400 | 83.2V | 400Ah | 33.28 | 200A | 200A | 800*650*400 | 320kg | |||||||||
DJS-FB-80500 | 500Ah | 41.6 | 200A | 200A | 800*780*430 | 380kg | ||||||||||
Remark 1 : Other voltage, capacity, current, size can be customized according to requirements. | ||||||||||||||||
Remark 2: If the weight of the battery pack is not enough, it can be increased. | ||||||||||||||||
Recommend Products

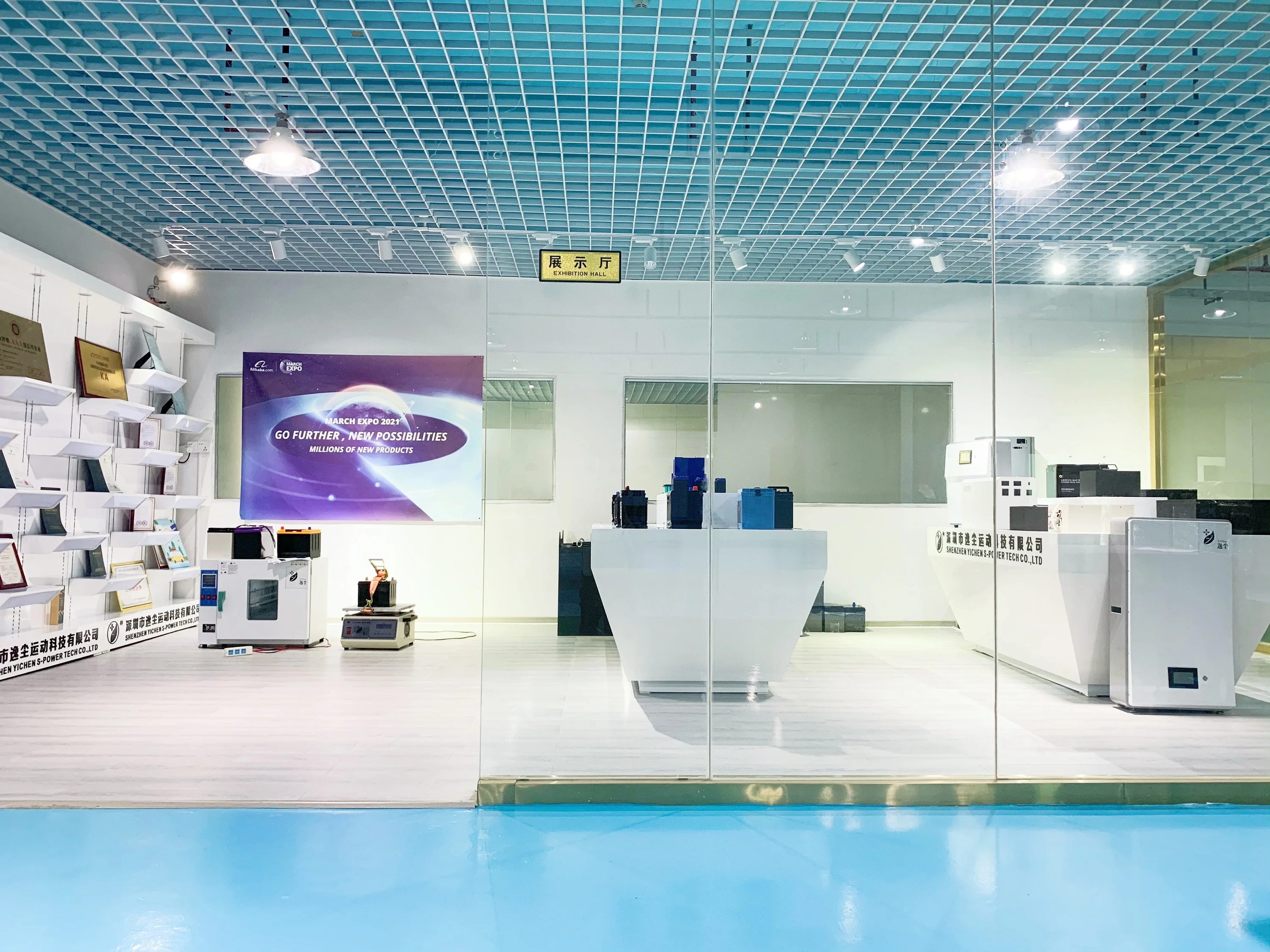

Company Profile
