30knkn 50kn computer control metal electronic universal tensile testing machine

Product Description

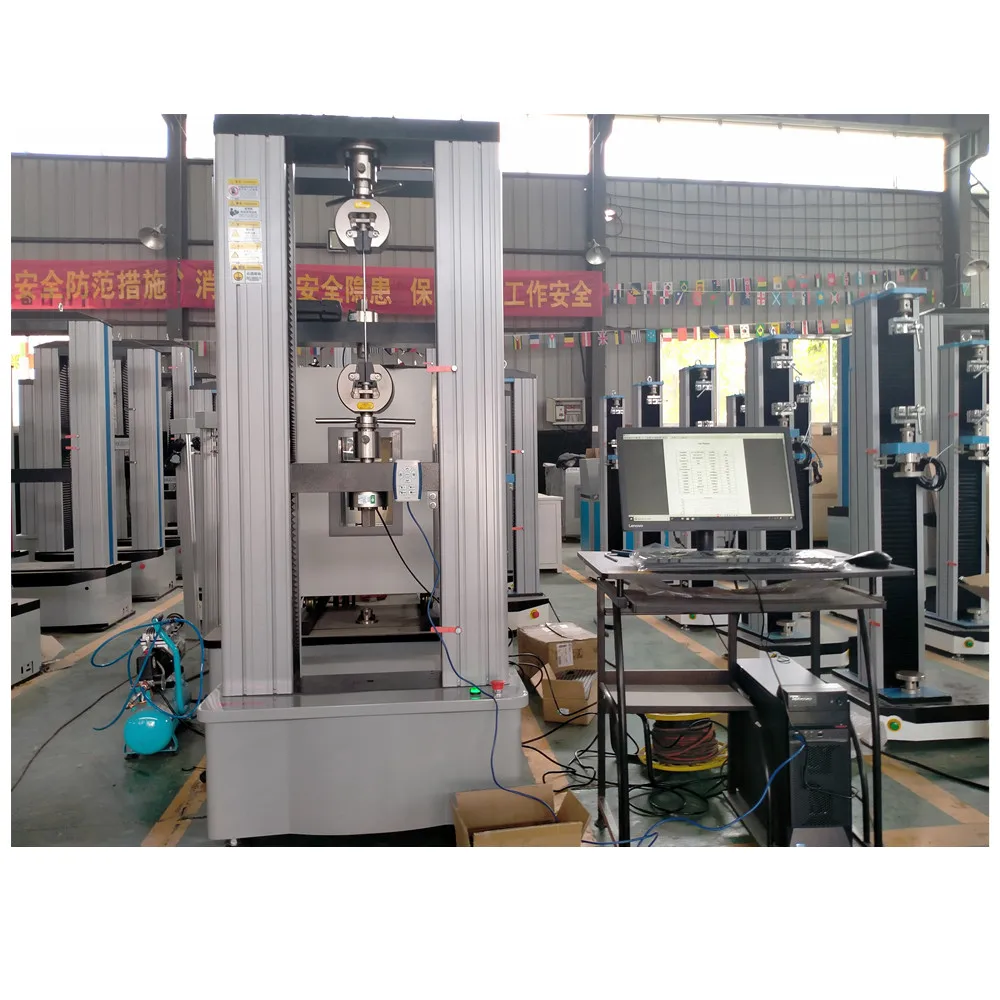

Electronic universal testing machine is mainly used to test and analyze the mechanical property of metal materials such as various copper aluminium alloy products and non-metallic materials such as plastic,rubber, paper,woven bags,wood etc.It is widely used in aerospace, petrochemical industry,wire and cable,machinery manufacturing,plastic, rubber,mining,ceramic building materials,machinery,high polymer mechanics and other industries,as well as colleges and universities,scientific research institutions,technical supervision,quality inspection station and other departments.This series is applicable to the mechanical performance test which test load is less than 300kN.This series is mainly divided into the following four categories

a), Digital display gate-type electronic universal tester

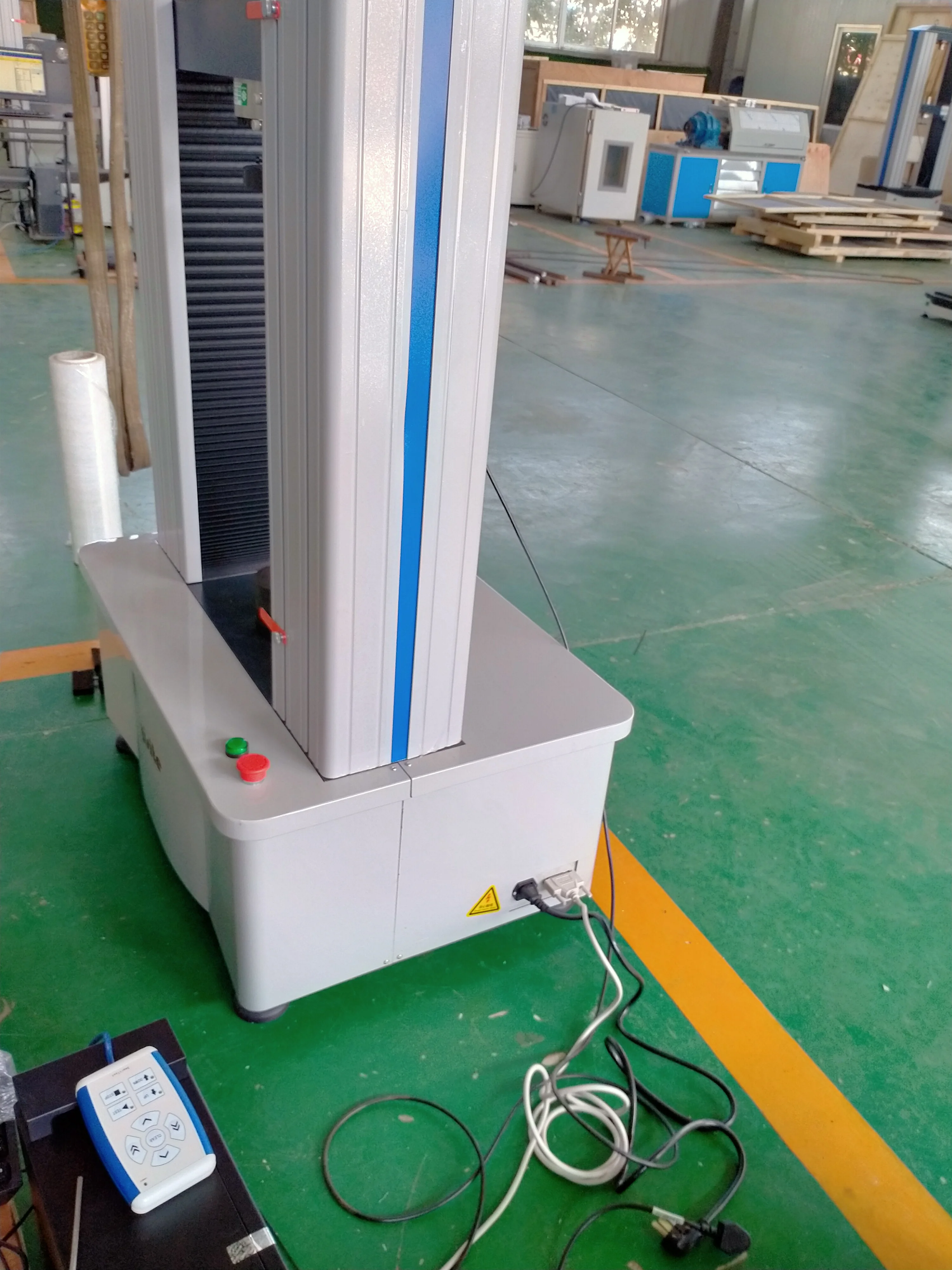

b), Digital display single arm type electronic universal tester

c), Computer controlled gate-type electronic universal tester

d), Computer controlled single arm type electronic universal tester

Technical Parameters

Range Parameters	10KN	20KN	50KN	100KN	200KN	300KN
Maximum test force(KN)	10	20	50	100	200	300
Precision grade	1 or 0.5 grade
Test force resolution(KN)	0.001	0.001	0.001	0.01	0.01	0.01
Test force display value resolution	1/300000
Testing force measuring range	1-100%F.S
Deformation range	1-100%F.S
Distortion value error	Within 1% or 0.5% of indicating value (depending on the machine precision level)
Displacement indication error	Within 1% or 0.5% of indicating value (depending on the machine precision level)
Displacement resolution	0.01mm
Effective tensile test space (mm)	650	650	650	550	550	600
Valid test width(mm)	350	350	360	370	400	450
Speed adjustment range	0.01-500mm/min
Power Supply(V/Hz)	220/50	220/50	220/50	220/50	380v/3KW	380v/3KW

Features:

Computer controlled type:this type could test pulling force, tensile strength, stress, compressive strength, shear force, stripping force, cohesive force, output, tear strength, bending strength, elongation, elastic modulus and yield strength etc,can display curve, export and print detailed data report.

Features:

1.When sample fracture, automatic stop.

2.Test data and conditions can be made into module storage, a batch test is set for the same parameters.

3.The test speed can be automatically changed at a predetermined speed;

4.The system can automatically calibrate the accuracy of the display value;

5. The test data and curve are automatically saved;

6. The test process, measurement, display and analysis are completed by the computer;

7.Software English interface, menu hint, mouse operation;

8. Data and curves are displayed dynamically with the test process;

9.Curve selection: could select stress-strain, force - displacement, force - time, displacement - time and other curves to display and print according to the need.the corresponding experimental data can be found with the mouse.

10.Automatic and manual mode to obtain the test results and automatically form the report, which can be prepared and printed in accordance with the format of the user's requirements;

11.Two level limit protection:Procedures and machinery;automatic stop when load exceeds 3-5% of full range (can be set);
