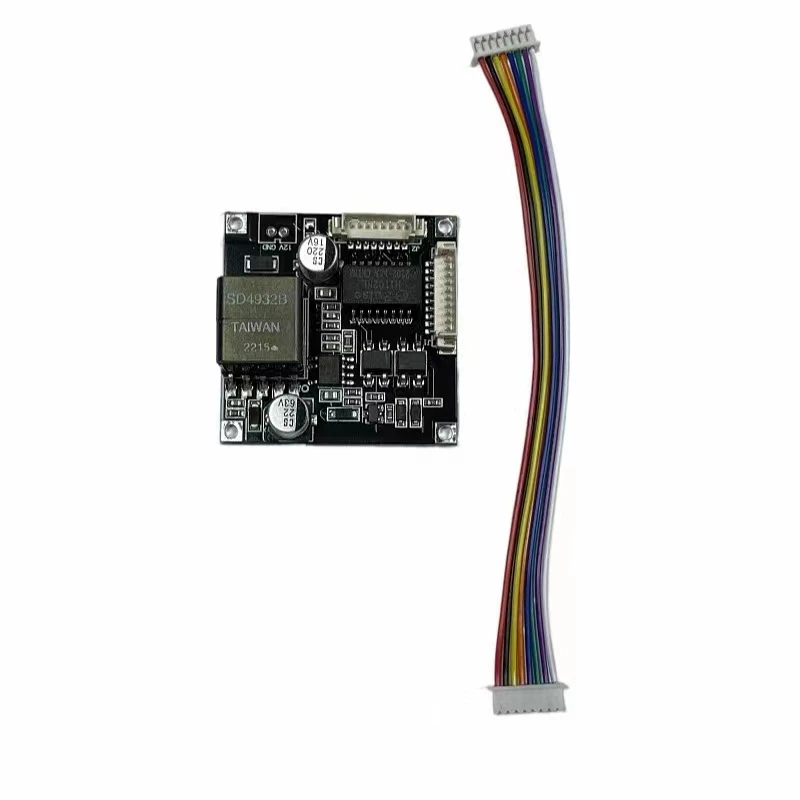

SD4932B IEE802.3AT AF OEM ODM 12V 1.5A POE Module for IP camera

Product Overview

Description

SD4932B IEE802.3AT AF OEM ODM 12V 1.5A POE Module for IP camera







 Product Features:



Specification:with IEEE802.3af/at standard.

Security:Has a perfect short circuit protection, 1500V high voltage isolation.

Size :38*38mm.

Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes.





Input and output



Voltage type	minimum	Rated value	Maximum	Output ripple	efficiency
Input voltage	38Vdc	48Vdc	57Vdc	100mV Max	85%or above
Output voltage	11.6v	12V	13V
Current output			1.5A
Short-circuit protection	When the output is short-circuited to the ground, the input power of the product is reduced and will not be damaged. When the short-circuit is removed, the product will automatically return to normal.  .







Warranty Policy:

1. All products will have been 100% strictly tested again and again in workshop before packing.
2. All products will be well packed before shipping.
3. 2 years warranty for all of products after the ship date: for any false items you get, we will repair or replace it for free.
1). If our customers can repair the items by themselves locally, we will supply necessary spare parts.
2). If our customers can't repair the items, the items will need to be returned to us, and we will repair for free and carry 50% freight for customers.
