Description of Industrial Air Cooled Heat Exchanger with Fin Tube
Industrial Air Cooled Heat Exchanger with Fin Tube, or called Air cooler, is an industrial heat exchanger that uses Ambient air as cooling medium, where the fan forces air cross the Finned pipes to cool the high-temperature processing medium within the pipes.
The air cooler is mainly composed of three basic parts: tube bundle, fan and structure, and auxiliary parts like louver and platform handrails. It uses natural air as cooling medium saving precious water, reducing the discharge of industrial waste water and protecting the natural environment.
Product details
The working principle of the air cooled heat exchanger
The working principle of the air cooler is to use the power to drive the impeller to rotate, and the generated vortex continuously sucks the air. The air cooler uses the principle of vortex tube, mainly using a compressed air source of 5.5 ~ 8bar; the compressed air enters the air cooler, which can generate cold airflow at one end (the temperature can drop by -40 °C), and generate hot air at the other end (maximum temperature up to 120°C).
Type of Industrial Air Cooled Heat Exchanger with Fin Tube

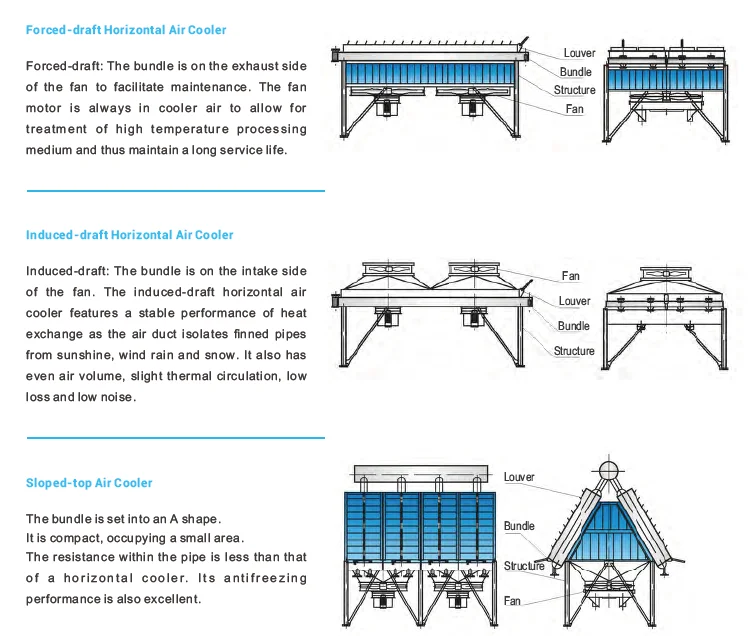

1. Forced-draft Horizontal Industrial Air Cooled Heat Exchanger with Fin Tube
2. Induced-draft Horizontal Industrial Air Cooled Heat Exchanger with Fin Tube
3. Sloped-top Industrial Air Cooled Heat Exchanger with Fin Tube
2. Induced-draft Horizontal Industrial Air Cooled Heat Exchanger with Fin Tube
3. Sloped-top Industrial Air Cooled Heat Exchanger with Fin Tube

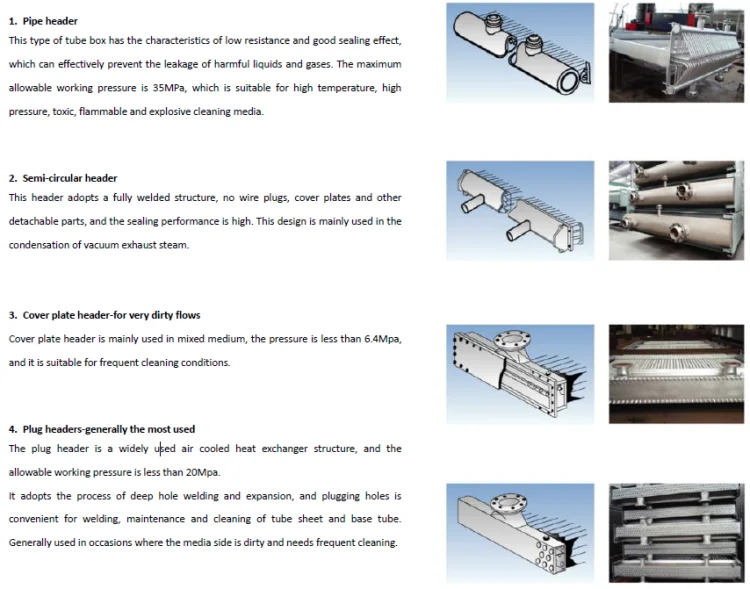

Header Types of Industrial Air Cooled Heat Exchanger with Fin Tube
1. Pipe header
2. Semi-circular bonnet header
3. Cover plate header- for very dirty flows
4. Plug headers-generally the most used
2. Semi-circular bonnet header
3. Cover plate header- for very dirty flows
4. Plug headers-generally the most used
PRODUCT SPECIFICATIONS
Tube bundle model | Tube number | Pressure Mpa | Tube row number | Base tube area,m2 | Fin area m2 | Net weight, kg L fin tube | Net weight,kg DR fin tube | Water filling weight, kg |
GP12X3-4-172-1.6S-23.4L(DR)-Ia | 182 | 1.6 | 4 | 172 | 4025 | 7524 | 8529 | 810 |
GP12X3-4-172-2.5S-23.4L(DR)-Ia | 182 | 2.5 | 7563 | 8568 | ||||
GP12X3-4-172-4.0S-23.4L(DR)-Ia | 182 | 4 | 7589 | 8594 | ||||
GP12X3-6-258-1.6S-23.4L(DR)-Ia | 1.6 | 6 | 258 | 6037 | 10408 | 11915 | 1218 | |
GP12X3-6-258-2.5S-23.4L(DR)-Ia | 2.5 | 10609 | 12116 | |||||
GP12X3-6-258-4.0S-23.4L(DR)-Ia | 4 | 10939 | 14224 | |||||
GP12X3-8-344-1.6S-23.4L(DR)-Ia | 1.6 | 8 | 344 | 8049 | 13591 | 15600 | 1625 | |
GP12X3-8-344-2.5S-23.4L(DR)-Ia | 2.5 | 13590 | 15599 | |||||
GP12X3-8-344-4.0S-23.4L(DR)-Ia | 4 | 13590 | 15599 | |||||
GP12X2.5-4-142-1.6S-23.4L(DR)-Ia | 1.6 | 4 | 142 | 3322 | 6474 | 7302 | 668 | |
GP12X2.5-4-142-2.5S-23.4L(DR)-Ia | 2.5 | 6512 | 7340 | |||||
GP12X2.5-4-142-4.0S-23.4L(DR)-Ia | 4 | 6534 | 7362 | |||||
... | ... | ... | ... | ... | ... | ... | ... | ... |
GP9X3-4-129-1.6S-23.4L(DR)-Ia | 1.6 | 4 | 129 | 5908 | 6661 | 639 | ||
GP9X3-4-129-2.5S-23.4L(DR)-Ia | 2.5 | 5946 | 6700 | |||||
GP9X3-4-129-4.0S-23.4L(DR)-Ia | 4 | 5972 | 6726 | |||||
GP9X3-6-193-1.6S-23.4L(DR)-Ia | 1.6 | 6 | 193 | 8142 | 9273 | 963 | ||
GP9X3-6-193-2.5S-23.4L(DR)-Ia | 2.6 | 8343 | 9473 | |||||
GP9X3-6-193-4.0S-23.4L(DR)-Ia | 4 | 8673 | 9803 | |||||
... | ... | ... | ... | ... | ... | ... | ... | .. |
