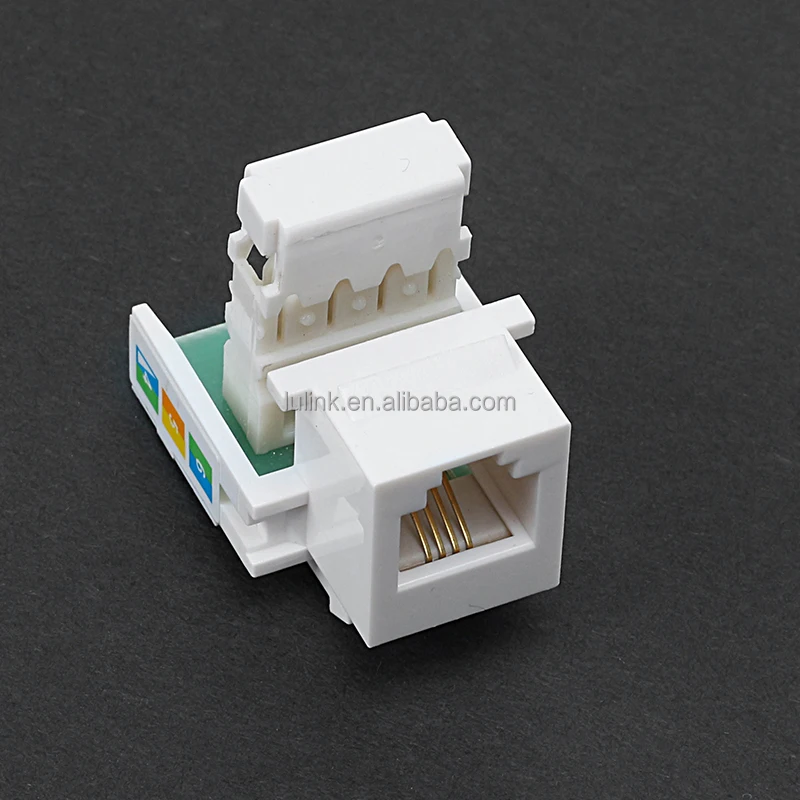

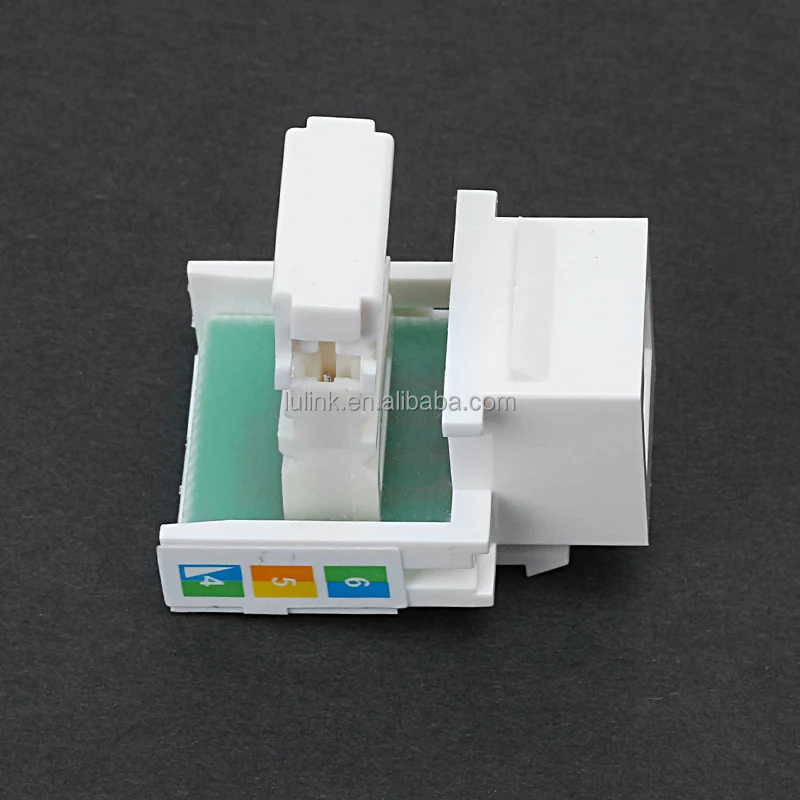

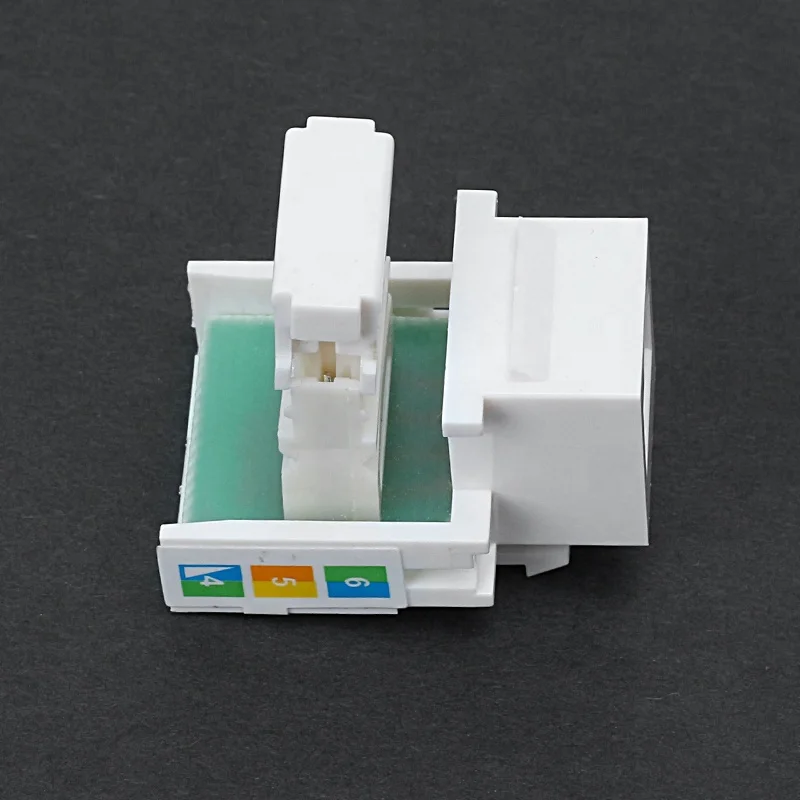

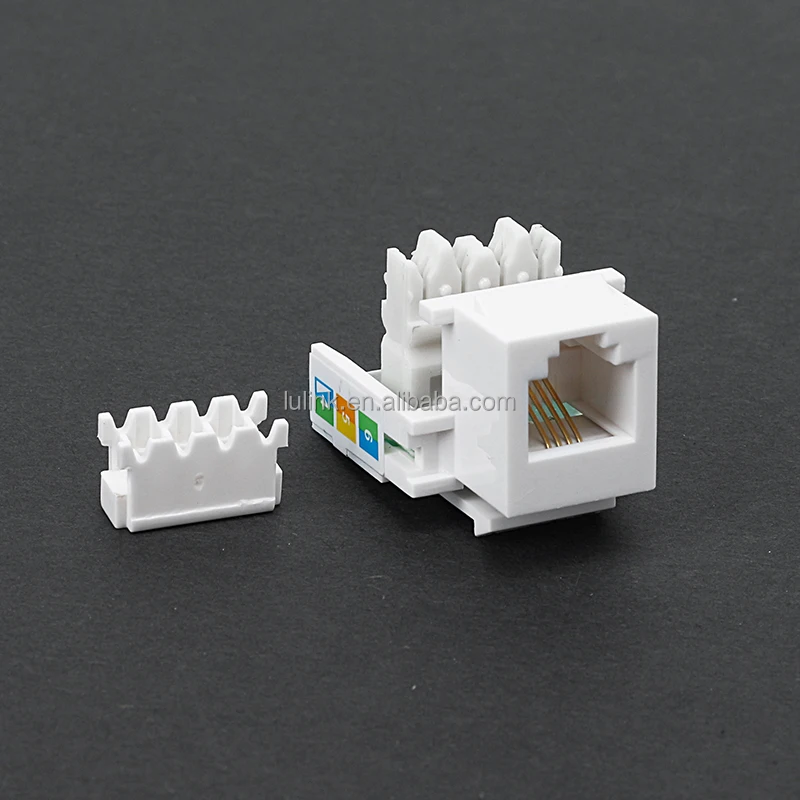

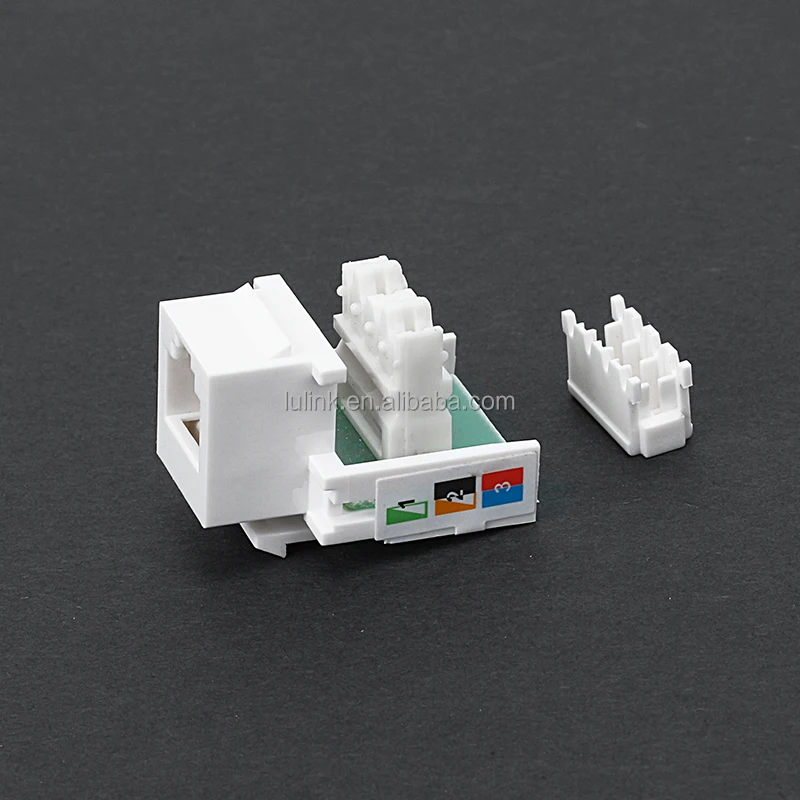

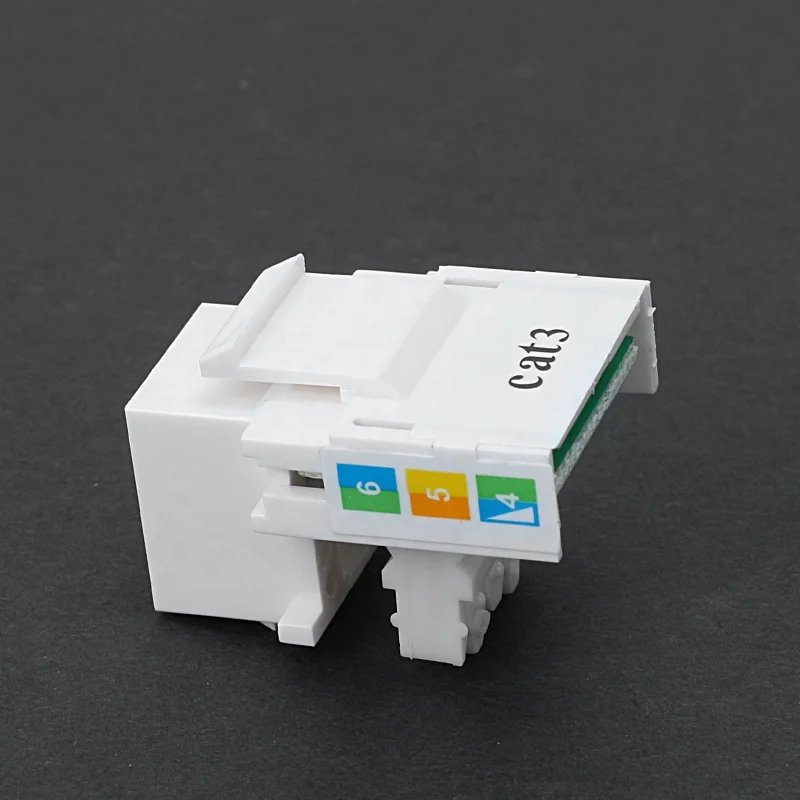

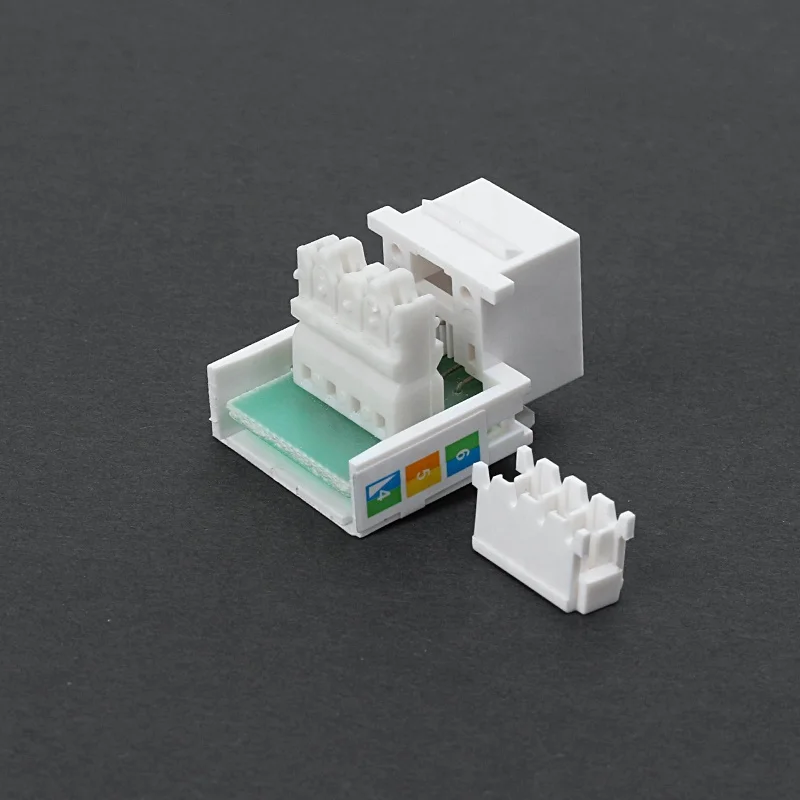

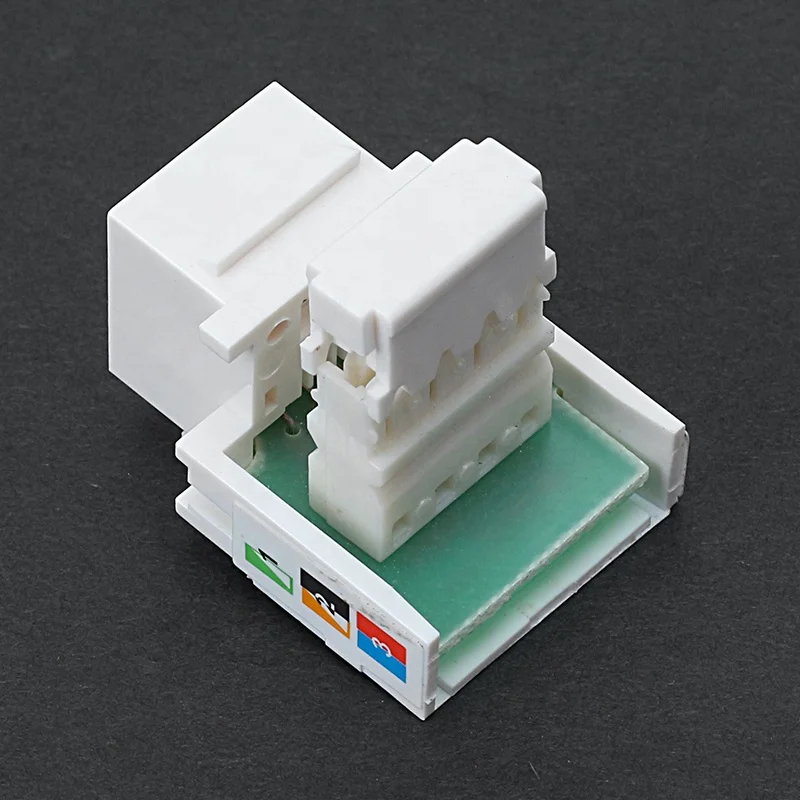

CAT3 UTP RJ11 6P4C Telephone Keystone Jack
- Category: >>>
- Supplier: Guangzhou Lulink Electronics Technology Co. Ltd.
Share on (1600752952096):
Product Overview
Description
Product Description
CAT3 Keystone Jack | ||
1.Category:CAT3,6P4C. | ||
2.Shiled Type:UTP. | ||
3.Shell Material:ABS. | ||
4.Gold Plating Thickness(optional):3U/30U/50U etc. | ||
5.Shell Color:As the pictures show. | ||
6.Application:Integrated wiring.etc. | ||
7.Packing:Ordinary packing Or special packing are available. | ||
8.Voltage rating:125 vac rms. | ||
9.Current rating:1.5 AMP. | ||
10.Contact resistance:100 Miliohms max. | ||
11.Insulation resistance:1000 megonms min@0500vdc. | ||
12.Dielectric strength:750 vac rms 60hz,1min.Mates With Modular Plug Conforming To FCC Fart 68. | ||
13.Housing material:PC UL94V-0. | ||
14.Insert material:Flame Retardancy ABS UL94V-0. | ||
15.Contact material: Phosphor bronze stamp pin T=0.46mm. | ||
16.Pcb material:Fr-4 thickness:1.6mm. | ||
17.ldc contact material:Phosphor bronze T=0.50mm Tin plating. | ||
Feature | ||

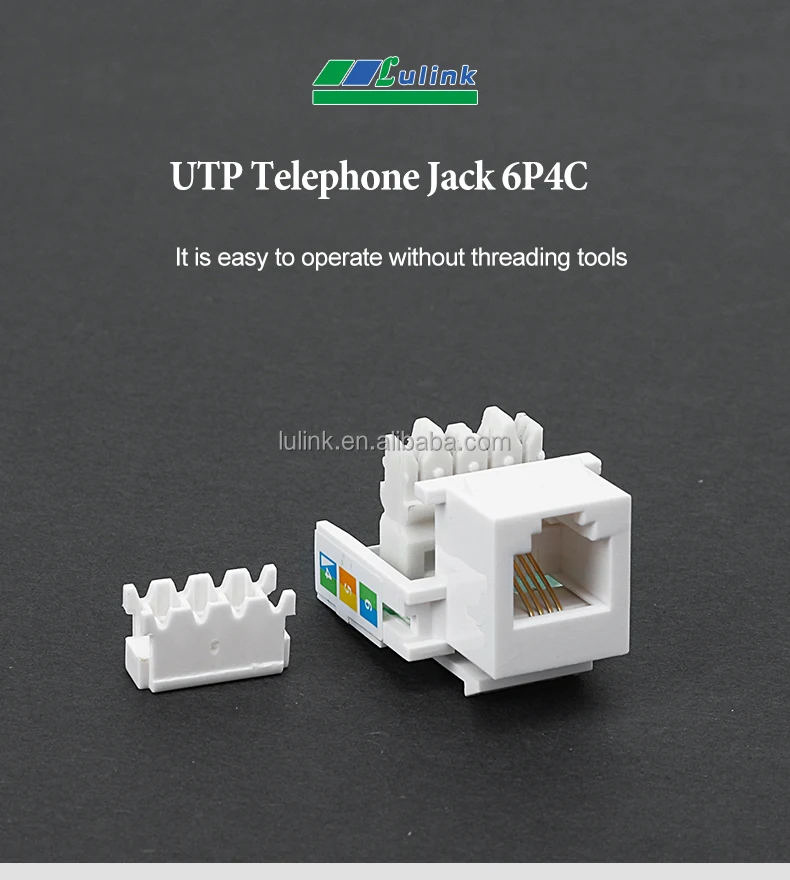

1.UTP Telephone Jack 6P4C It is easy to operate without threading tools. | ||

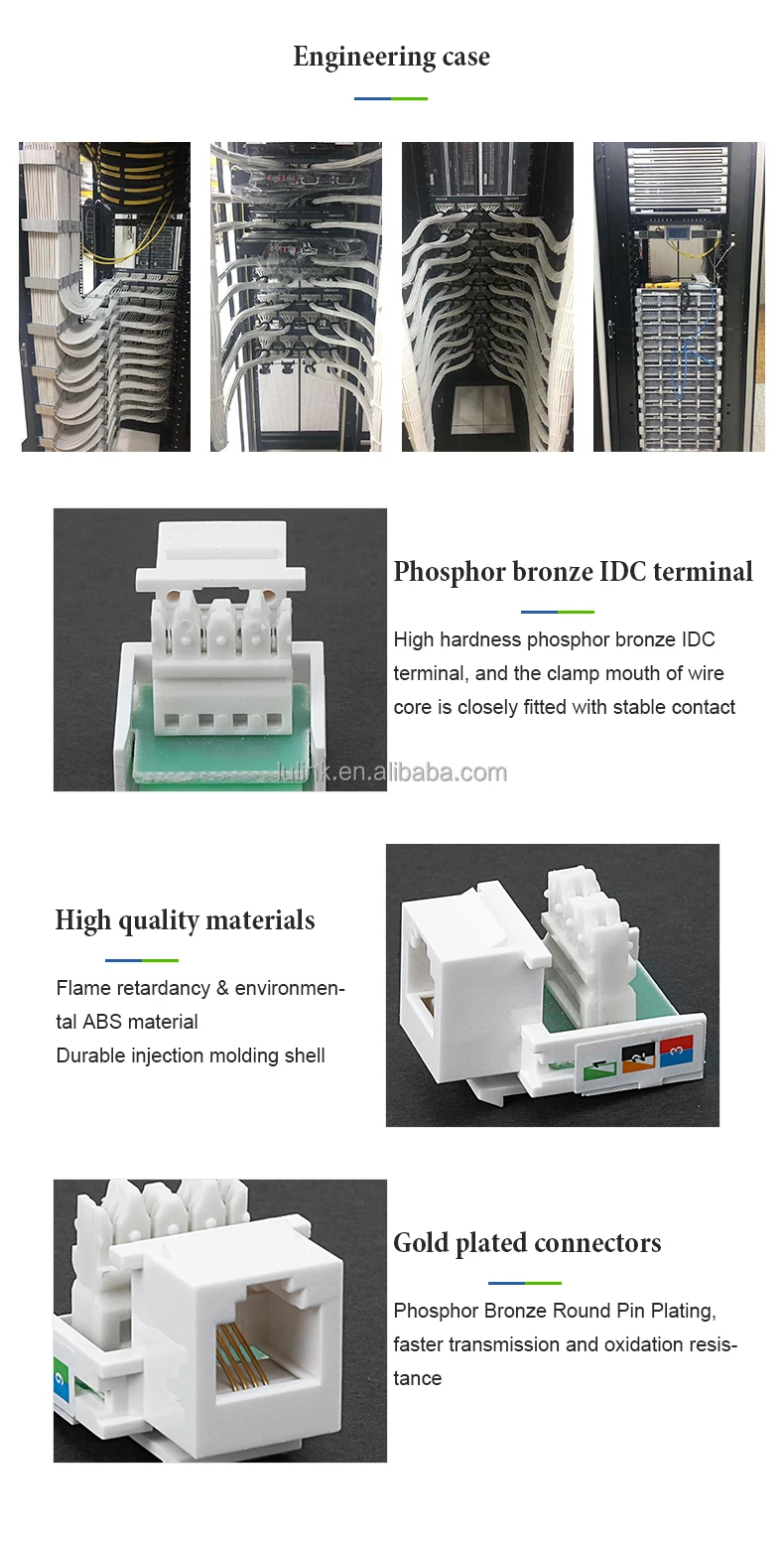

2.Phosphor bronze IDC terminal High hardness phosphor bronze IDC terminal,and the clamp mouth of wire core is closely fitted with stable contact. | ||
3.High quality materials Flame retardancy environmental ABS material Durable injection molding shell. | ||
4.Gold plated connectors Phosphor Bronze Round Pin Plating.Fast transmission and oxidation resis-tance. | ||
5.Application scenario Applied to home,company,monitoring teaching network,data center,Telecom room. | ||

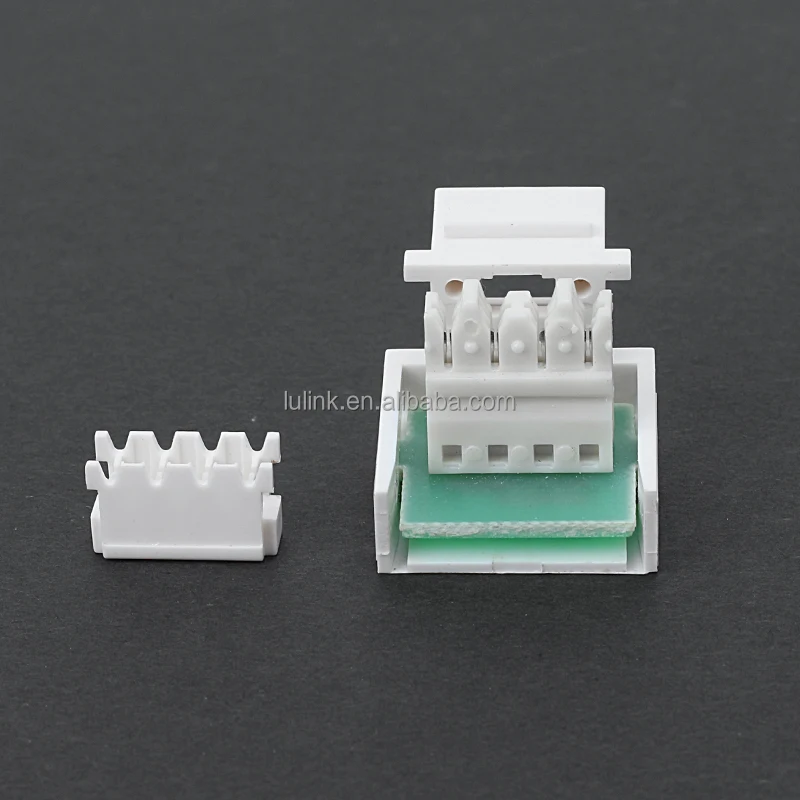

Product Images
Product Recommendation
Terms Of Payment And Mode Of Transport
Convenient Payment Mothods:
Terms of payment by Western Union,Paypal,T/T,Cash,Trade Assurance are available.
Packing:
1) Inner packing:Wooden reel,plastic reel,and paper reel available.
2) Outer packing:Carton box,pull out box,pallet available.
3) Other packing available according to client's request.
Professional Logistics Transportation:
Packing:
1) Inner packing:Wooden reel,plastic reel,and paper reel available.
2) Outer packing:Carton box,pull out box,pallet available.
3) Other packing available according to client's request.
Professional Logistics Transportation:
We have professional logistics transportation with fast delievery.
By DHL,UPS,FedEx,TNT,EMS etc.
For mass order delivery,can be optional with terms of EXW,FOB,CNF,CIF by air or by sea and based on the buyer forwarder.
By DHL,UPS,FedEx,TNT,EMS etc.
For mass order delivery,can be optional with terms of EXW,FOB,CNF,CIF by air or by sea and based on the buyer forwarder.
Company Introduction
Our Main Products&Advantages

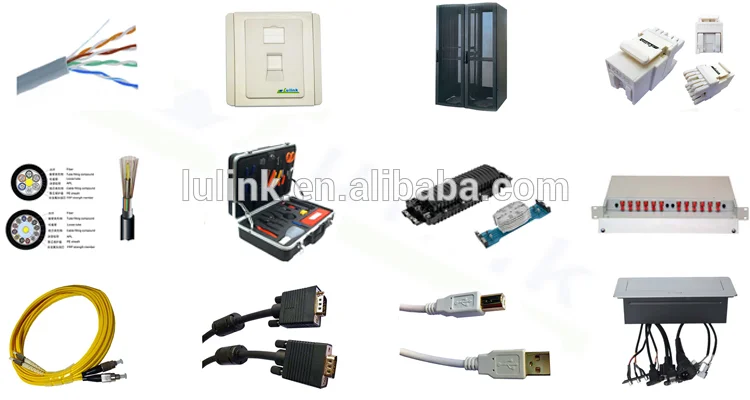

Our Main Products:
Copper Integrated Wiring And Fiber Optic Integrated Wiring Projects.
Copper System:LAN cables,Adaptor,Connector and Spliter,Cabinet,PATCH CORD,TOOLS, Coaxial cables.
Fiber Optic System:fiber optic patch cord,PLC splitter,adapter,connector,closure,media converter,etc
Cable Assembly:USB cable,HMI cable,VGA cable,AV cable,DVI cable,etc.
Intelligent Socket:Pop up/Desk Top Socket Or Module with HD/VGA/DVI/USB/Ethernet/Audio/Video Interface etc.
You receive the highest quality products,delivered on time and 100% tested and inspected.We guaranty our products with long time end-to-end networks solution by the term.Lulink guarantees to offer safer and more reliable products with reasonable prices.If you want to know more information of us,please feel free to contact us!
Professional Certifications

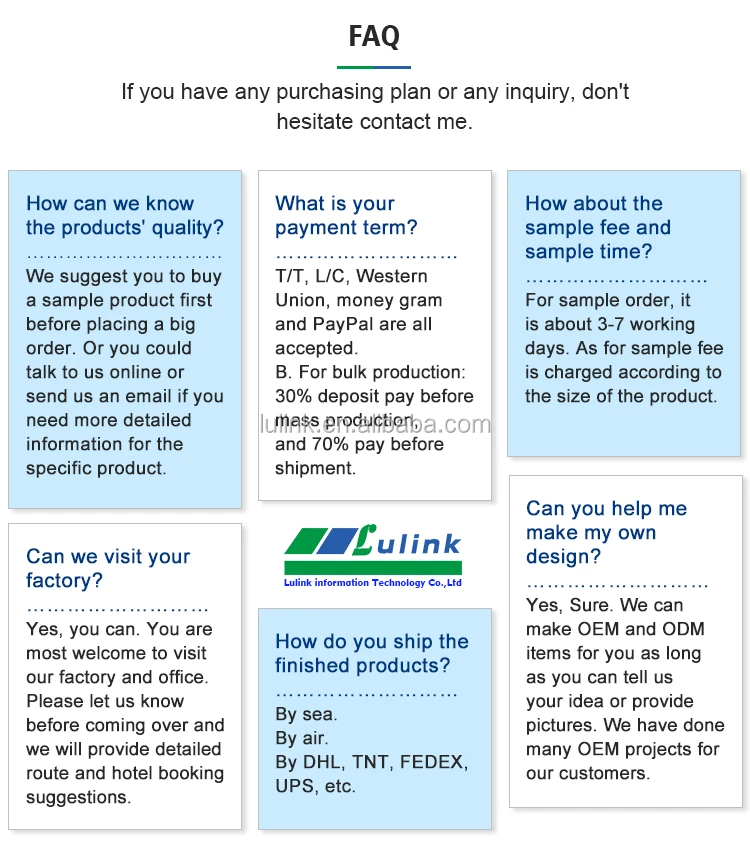

FAQ
